This guide walks you through installing a Ring Doorbell Pro without an existing doorbell, including wiring, transformer setup, and app configuration. No prior doorbell? No problem! We’ll show you how to power your device safely and get it working in under an hour.
Key Takeaways
- You don’t need an existing doorbell to install Ring Doorbell Pro: With the right tools and a compatible transformer, you can wire it directly to your home’s electrical system.
- A 16-24V AC transformer is required: Ring Doorbell Pro needs consistent power, so upgrading your transformer is often necessary.
- Proper wiring is essential: Use 18-22 gauge low-voltage wire to connect the doorbell to the transformer and ensure reliable performance.
- The Ring app guides installation: Use the in-app setup wizard to connect your doorbell to Wi-Fi and complete configuration.
- Safety first: Always turn off power at the breaker before working with electrical wiring to avoid shocks or damage.
- Professional help is optional but helpful: If you’re unsure about electrical work, hiring an electrician ensures safe and correct installation.
- Test before final mounting: Power up and test the doorbell before securing it permanently to avoid rework.
How to Install Ring Doorbell Pro Without an Existing Doorbell
So, you’ve got your shiny new Ring Doorbell Pro, and you’re ready to upgrade your home security—but there’s one problem: you don’t have an existing doorbell. No worries! Many homes, especially newer builds or rentals, don’t come with a traditional doorbell setup. The good news? You can still install the Ring Doorbell Pro without one. In fact, installing it from scratch gives you more control over placement, wiring, and power supply.
This comprehensive guide will walk you through every step of installing your Ring Doorbell Pro without an existing doorbell. Whether you’re a DIY enthusiast or a first-time installer, we’ll make sure you feel confident and informed. You’ll learn how to power your doorbell safely, run wiring, connect it to your home’s electrical system, and set it up using the Ring app. By the end, you’ll have a fully functional smart doorbell that enhances your home’s security and convenience.
Let’s get started!
What You’ll Need

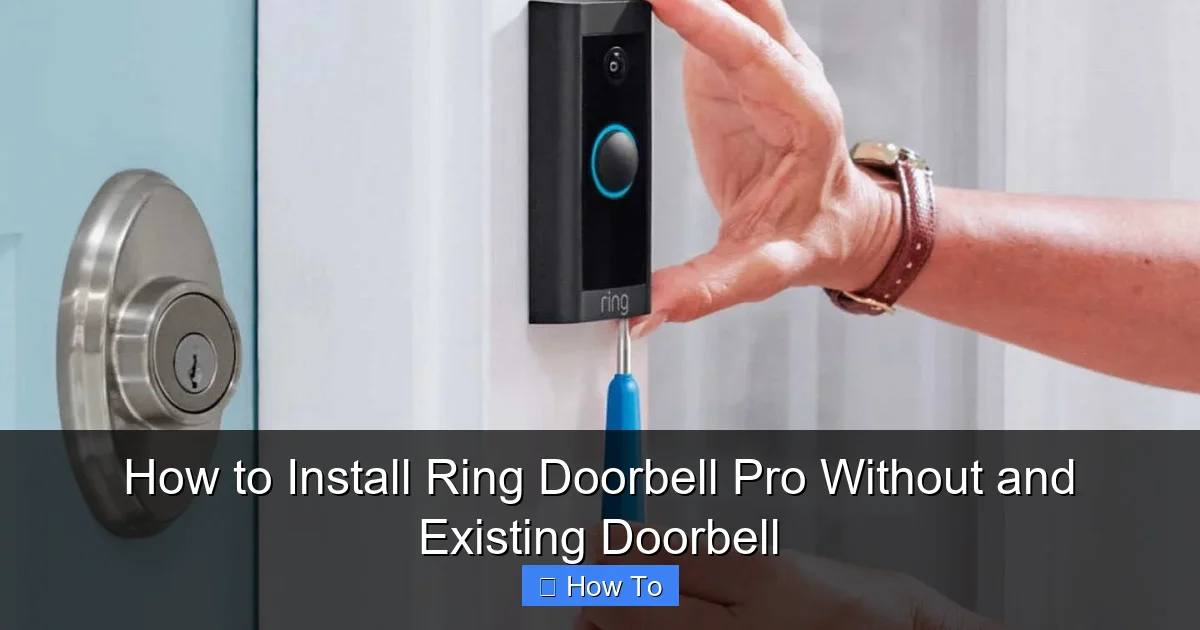

Visual guide about How to Install Ring Doorbell Pro Without and Existing Doorbell
Image source: storables.com
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration during installation.
Tools
- Screwdriver (Phillips and flathead)
- Drill with drill bits (for mounting)
- Wire strippers
- Voltage tester (non-contact)
- Electrical tape
- Level (to ensure straight mounting)
- Pencil or marker
- Ladder (if installing at height)
Materials
- Ring Doorbell Pro (obviously!)
- Ring Doorbell Pro mounting bracket
- 16-24V AC transformer (30VA or higher recommended)
- 18-22 gauge low-voltage doorbell wire (at least 2 conductors)
- Wire nuts or terminal connectors
- Wall anchors and screws (if not included)
- Optional: conduit or wire molding (for clean wire routing)
Optional but Helpful
- Fish tape (for running wire through walls)
- Cable clips or staples
- Smartphone with Ring app installed
- Assistant (for holding the doorbell during testing)
Having these items on hand ensures a smooth installation process. If you’re missing anything, most can be found at your local hardware store or online.
Understanding How Ring Doorbell Pro Gets Power
The Ring Doorbell Pro is a hardwired device, meaning it draws power directly from your home’s electrical system—unlike battery-powered models. This provides continuous power, eliminating the need for frequent recharging. However, it does require a proper power source.
Why You Need a Transformer
A transformer steps down your home’s standard 120V AC power to a lower voltage (16-24V AC) that the doorbell can safely use. Most traditional doorbells use a 16V transformer, but the Ring Doorbell Pro recommends a 16-24V AC transformer with at least 30VA (volt-ampere) of power. This ensures enough energy for the doorbell’s advanced features like HD video, night vision, and two-way audio.
If your home doesn’t have a doorbell transformer, you’ll need to install one. This is common in homes without existing doorbells.
How the Wiring Works
The Ring Doorbell Pro connects to the transformer via two low-voltage wires. These wires carry power from the transformer to the doorbell. The circuit is simple: power flows from the transformer, through the wires, into the doorbell, and back—creating a complete loop.
Even though the voltage is low, it’s still electrical current. Always treat it with respect and follow safety guidelines.
Step 1: Turn Off Power and Locate the Breaker
Safety is the most important part of any electrical project. Before touching any wires or installing the transformer, you must turn off the power.
Find Your Electrical Panel
Locate your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility closet. Open the panel door to see the circuit breakers.
Turn Off the Correct Circuit
If you’re installing a new transformer, you’ll likely connect it to an existing circuit (like a light or outlet). Identify the breaker that controls the area where you’ll install the transformer. Flip it to the “OFF” position.
Use a non-contact voltage tester to double-check that the power is off. Touch the tester to the wires—if it doesn’t beep or light up, the power is off.
Label the Breaker (Optional but Smart)
If you’re adding a new circuit or modifying an existing one, label the breaker “Doorbell” for future reference. This helps avoid confusion later.
Step 2: Install the Transformer
Now it’s time to install the transformer. This is the heart of your doorbell’s power system.
Choose a Location
The transformer should be installed:
- Near an electrical outlet or junction box
- In a dry, accessible location (like a basement or garage)
- Within 50 feet of the doorbell location (to minimize voltage drop)
Avoid installing it in damp areas like crawl spaces or outdoor enclosures unless it’s rated for outdoor use.
Mount the Transformer
Most transformers come with mounting brackets. Use a screwdriver to attach the transformer to a junction box or electrical box. Make sure it’s secure and won’t move.
Connect the Wires
Here’s how to wire the transformer:
- Strip about 1/2 inch of insulation from the ends of the 120V wires (usually black and white).
- Connect the black (hot) wire to the “LINE” or “HOT” terminal on the transformer.
- Connect the white (neutral) wire to the “NEUTRAL” terminal.
- Connect the ground wire (green or bare copper) to the grounding screw.
- Tighten all connections securely.
Connect the Low-Voltage Wires
Now connect the low-voltage side:
- Run two 18-22 gauge wires from the transformer to the doorbell location. Use fish tape if you need to route them through walls.
- Strip the ends of these wires.
- Connect one wire to the “COM” (common) terminal on the transformer.
- Connect the other wire to the “FRONT” terminal (or “T” for transformer).
- Use wire nuts or terminal screws to secure the connections.
Secure and Test
Once wired, secure the transformer cover and turn the power back on at the breaker. Use a voltage tester to confirm the transformer is outputting 16-24V AC. If it’s within range, you’re good to go!
Step 3: Run the Wiring to the Doorbell Location
Now that the transformer is powered, you need to run the low-voltage wires to where the doorbell will be mounted.
Plan the Route
Decide the best path for the wires. Common routes include:
- Through the wall from the transformer to the doorframe
- Under siding or trim
- Through the attic or basement
Avoid sharp bends or pinching the wires.
Drill Holes (If Needed)
Use a drill to create access holes where the wires will enter and exit walls. A 1/2-inch drill bit is usually sufficient.
Fish the Wires
If running wires through walls, use a fish tape to pull them through. Attach the wires to the fish tape with electrical tape, then gently pull them through.
Leave Extra Length
Leave about 6-12 inches of wire at the doorbell location. This gives you room to work during installation.
Protect the Wires
Use conduit or wire molding to protect exposed wires from damage. This is especially important if the wires run along the exterior of your home.
Step 4: Mount the Ring Doorbell Pro
With the wiring in place, it’s time to install the doorbell itself.
Choose the Mounting Location
The ideal spot is:
- At eye level (about 48 inches from the ground)
- Centered on the doorframe
- Away from direct sunlight or rain (to protect the camera)
- Within range of your Wi-Fi signal
Use a level to ensure the mounting bracket will be straight.
Mark and Drill
Hold the mounting bracket against the wall and mark the screw holes with a pencil. Drill pilot holes if needed, then insert wall anchors for stability.
Attach the Bracket
Secure the bracket with screws. Make sure it’s tight and level.
Connect the Wires
Strip the ends of the low-voltage wires (about 1/4 inch). Insert them into the terminals on the back of the Ring Doorbell Pro:
- One wire goes to the “COM” terminal
- The other goes to the “FRONT” terminal
It doesn’t matter which wire goes where—the doorbell is not polarity-sensitive.
Tighten the terminal screws to secure the wires.
Attach the Doorbell
Slide the Ring Doorbell Pro onto the mounting bracket until it clicks into place. Give it a gentle tug to ensure it’s secure.
Step 5: Power On and Test
Before finalizing the installation, test the doorbell to make sure everything works.
Turn On Power
Go back to the breaker and turn the power back on. The transformer should now supply power to the doorbell.
Check the LED
The Ring Doorbell Pro has a status LED. When powered correctly, it should light up solid blue. If it flashes or doesn’t light, there may be a wiring issue.
Test the Doorbell
Press the button on the doorbell. You should hear a chime (if you have a Ring Chime or Chime Pro connected) and see activity in the Ring app.
Check Video and Audio
Open the Ring app and check the live view. Make sure the video is clear, night vision works, and two-way audio is functional.
If everything works, great! If not, move to the troubleshooting section.
Step 6: Set Up the Ring App
The Ring app is essential for configuring your doorbell and connecting it to your home network.
Download the App
If you haven’t already, download the Ring app from the App Store (iOS) or Google Play (Android).
Create or Log In to Your Account
Open the app and sign in with your Ring account. If you don’t have one, create a new account using your email and password.
Add a New Device
Tap the “+” icon in the app and select “Set up a device.” Choose “Doorbells” and then “Ring Doorbell Pro.”
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the doorbell. This links the device to your account.
Connect to Wi-Fi
Follow the in-app prompts to connect the doorbell to your 2.4GHz Wi-Fi network. (Note: Ring Doorbell Pro does not support 5GHz networks.)
Enter your Wi-Fi password when prompted. The app will test the connection.
Complete Setup
Follow the remaining steps to:
- Name your doorbell (e.g., “Front Door”)
- Set motion zones
- Enable notifications
- Link to a Ring Chime (if you have one)
Once complete, your doorbell is ready to use!
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Won’t Power On
- Check that the breaker is on.
- Use a voltage tester to confirm the transformer is outputting 16-24V AC.
- Ensure wires are securely connected at both ends.
- Test with a multimeter if available.
Weak or No Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Ensure the doorbell is within 30-50 feet of the router.
- Avoid placing it behind metal doors or thick walls.
Video Quality Is Poor
- Clean the camera lens with a soft cloth.
- Check for obstructions like dirt, spider webs, or condensation.
- Ensure adequate lighting—night vision works best in total darkness.
Doorbell Button Doesn’t Work
- Check wire connections at the doorbell and transformer.
- Ensure the button isn’t stuck or damaged.
- Reboot the doorbell by removing and reattaching it.
Chime Doesn’t Ring
- If using a mechanical chime, ensure it’s compatible with Ring.
- If using a Ring Chime, make sure it’s powered and connected to Wi-Fi.
- Check the app settings to ensure the chime is enabled.
Tips for a Professional-Looking Installation
A clean installation not only looks better but also protects your doorbell and wiring.
Hide the Wires
Use wire molding or run wires through walls to keep them out of sight. This prevents tripping hazards and improves curb appeal.
Use a Weatherproof Cover
If your doorbell is exposed to the elements, consider a weatherproof cover or housing to protect it from rain and snow.
Label Your Wiring
If you ever need to troubleshoot or upgrade, labeled wires make it much easier to identify connections.
Schedule Regular Maintenance
Every few months, check the doorbell for dirt, loose wires, or software updates. Keep the app updated for the latest features and security patches.
When to Call a Professional
While many homeowners can install the Ring Doorbell Pro themselves, some situations call for professional help.
You’re Uncomfortable with Electrical Work
If you’re unsure about wiring, transformers, or breakers, hire a licensed electrician. They can ensure the installation is safe and up to code.
Your Home Has Complex Wiring
Older homes or those with unusual electrical systems may require specialized knowledge.
You Want a Clean, Hidden Wire Setup
An electrician or handyman can run wires through walls neatly and professionally.
You’re Installing Multiple Doorbells
If you’re setting up multiple Ring devices, a professional can optimize power and network performance.
Conclusion
Installing a Ring Doorbell Pro without an existing doorbell is entirely possible—and easier than you might think. With the right tools, a compatible transformer, and careful wiring, you can enjoy all the benefits of this advanced smart doorbell. From enhanced security to real-time alerts, the Ring Doorbell Pro transforms how you interact with your home.
Remember to prioritize safety, test your setup thoroughly, and don’t hesitate to seek help if needed. Whether you’re a DIY pro or a beginner, this guide gives you everything you need to succeed.
Now that your doorbell is installed, sit back, relax, and enjoy peace of mind knowing your home is protected—24/7.
