Installing a Ring Doorbell Pro without an existing doorbell is easier than you think—no prior wiring required. With the right tools and our detailed guide, you’ll have your smart doorbell up and running in under an hour.
Key Takeaways
- Use a Ring Pro Power Kit: This essential accessory safely powers your Ring Doorbell Pro even without a traditional doorbell transformer, preventing damage to your device.
- Check voltage requirements: Your home’s electrical system must support 16–24V AC at 30–40VA to power the Pro model—verify before installation.
- Install near an electrical outlet: Since there’s no existing chime, you’ll need access to a nearby outlet for the power kit.
- Follow wiring safety steps: Always turn off power at the breaker before handling wires to avoid shocks or short circuits.
- Use the Ring app for setup: The app guides you through Wi-Fi connection, device pairing, and motion settings after physical installation.
- Test before final mounting: Power on and test the doorbell temporarily before securing it permanently to ensure everything works.
- Consider professional help if unsure: If electrical work feels overwhelming, hire a licensed electrician for safe, code-compliant installation.
How to Install Ring Doorbell Pro Without Existing Doorbell
So, you’ve decided to upgrade your home security with the Ring Doorbell Pro—but you don’t have an existing doorbell. No problem! Many modern homes, especially newer builds or rentals, skip traditional doorbells altogether. The good news? You can still install the Ring Doorbell Pro safely and effectively, even without pre-existing wiring.
In this comprehensive guide, we’ll walk you through every step of installing your Ring Doorbell Pro from scratch—no prior doorbell needed. We’ll cover what tools you’ll need, how to power your device using the Ring Pro Power Kit, how to wire it correctly, and how to set it up using the Ring app. By the end, you’ll have a fully functional smart doorbell that sends real-time alerts, HD video, and two-way audio straight to your phone.
Whether you’re a DIY enthusiast or a first-time installer, this guide is designed to be clear, safe, and easy to follow. Let’s get started!
What You’ll Need Before Starting
Visual guide about How to Install Ring Doorbell Pro Without Existing Doorbell
Image source: robots.net
Before you grab your drill and head to the front door, make sure you have all the necessary tools and components. Skipping this step can lead to frustration, delays, or even damage to your device.
Essential Tools and Materials
- Ring Doorbell Pro – The main device
- Ring Pro Power Kit – Required for homes without a doorbell transformer (more on this below)
- Screwdriver set – Phillips and flathead
- Drill and drill bits – For mounting the doorbell bracket
- Level – To ensure your doorbell is straight
- Pencil or marker – For marking drill points
- Wire strippers – If you need to trim or prepare wires
- Electrical tape – For securing connections
- Smartphone with Ring app installed – Available on iOS and Android
- Wi-Fi network – 2.4 GHz or 5 GHz (Ring recommends 2.4 GHz for better range)
- Access to a nearby electrical outlet – Within 10–15 feet of the installation site
Why the Ring Pro Power Kit Is Essential
If you don’t have an existing doorbell, you likely don’t have a low-voltage doorbell transformer wired into your home. The Ring Doorbell Pro requires 16–24 volts AC at 30–40VA to operate properly. Without this, the device won’t get enough power to function—especially when using features like HD video, night vision, and two-way talk.
That’s where the Ring Pro Power Kit comes in. This small but powerful accessory plugs into a standard wall outlet and delivers the correct voltage to your doorbell via low-voltage wiring. It’s specifically designed for Ring Pro models and ensures your device gets consistent, safe power without overloading your home’s electrical system.
Pro Tip: Don’t try to power the Ring Doorbell Pro directly from a high-voltage outlet or use a generic transformer. Doing so can damage the device or void your warranty.
Step 1: Choose the Right Installation Location
Picking the perfect spot for your Ring Doorbell Pro is crucial for both functionality and security. You want a location that gives you a clear view of your doorstep, driveway, or walkway—while also being easy to access for maintenance.
Ideal Placement Guidelines
- Height: Mount the doorbell 48–60 inches (4–5 feet) above the ground. This height captures most visitors’ faces and avoids tampering.
- Angle: Position it slightly angled toward the walkway or driveway for better motion detection.
- Proximity to outlet: Ensure the power kit can reach a nearby outlet—ideally within 10–15 feet.
- Avoid direct sunlight: Too much sun can cause overheating and affect video quality. Choose a shaded or covered area if possible.
- Wi-Fi signal strength: Test your Wi-Fi signal at the installation spot using your phone. Weak signal = poor performance.
Example Scenario
Let’s say your front door is on the side of your house, near a covered porch. There’s an outdoor outlet about 12 feet away. This is a great spot! You can run the low-voltage wire from the doorbell down the wall, under the porch, and plug the power kit into the outlet. Just make sure the wire is secured and protected from weather.
Step 2: Turn Off Power and Prepare the Area
Safety first! Even though you’re working with low-voltage wiring, it’s still important to turn off power to avoid accidental shocks or short circuits.
Turn Off the Circuit Breaker
1. Go to your home’s main electrical panel.
2. Locate the breaker that controls the outlet you’ll be using for the Ring Pro Power Kit.
3. Flip the breaker to the “OFF” position.
4. Test the outlet with a lamp or phone charger to confirm power is off.
Note: If you’re unsure which breaker controls the outlet, turn off the main breaker for extra safety.
Clear the Installation Area
Remove any obstacles near the door—like potted plants, decorations, or furniture. Use a damp cloth to clean the wall surface where you’ll mount the doorbell. A clean, dry surface helps the mounting bracket adhere better and ensures a secure fit.
Step 3: Install the Ring Pro Power Kit
Now it’s time to set up the power source for your doorbell. The Ring Pro Power Kit is the key to making this work without an existing doorbell system.
Step-by-Step Power Kit Installation
1. Plug in the Power Kit: Insert the Ring Pro Power Kit into the nearby electrical outlet. Make sure it’s firmly seated.
2. Run the low-voltage wire: The power kit comes with two thin wires (usually red and white). Run these wires from the outlet to your doorbell location. You can:
– Drill a small hole in the wall and feed the wire through.
– Use wire molding or conduit to hide and protect the wire along the exterior wall.
– Tuck the wire under siding or trim if possible.
3. Strip the wire ends: Use wire strippers to remove about 1/4 inch of insulation from each wire end. This exposes the copper for connection.
4. Connect wires to the power kit: Attach the stripped wires to the terminals on the power kit (usually labeled “+” and “–” or “L” and “N”). Tighten the screws securely.
5. Secure the wires: Use electrical tape or wire clips to keep the wires neat and prevent them from pulling loose.
Pro Tip: Label the wires (e.g., “Doorbell +” and “Doorbell –”) to avoid confusion during doorbell installation.
Important Safety Notes
- Never plug in the power kit until all wires are connected and secured.
- Do not run wires through high-traffic areas where they could be tripped over or damaged.
- If running wires through walls, check local building codes—some areas require professional installation.
Step 4: Mount the Doorbell Bracket
With the power source ready, it’s time to install the mounting bracket for your Ring Doorbell Pro.
Position the Bracket
1. Hold the mounting bracket against the wall at your chosen height (48–60 inches).
2. Use a level to ensure it’s straight.
3. Mark the screw holes with a pencil.
Drill Pilot Holes
1. Use a drill bit slightly smaller than your wall anchors (if needed).
2. Drill pilot holes at the marked spots.
3. Insert wall anchors if mounting into drywall or brick.
Secure the Bracket
1. Align the bracket with the pilot holes.
2. Insert screws and tighten with a screwdriver or drill (use low torque to avoid cracking the bracket).
3. Double-check that the bracket is level and secure.
Pro Tip: If mounting on brick or concrete, use a masonry drill bit and appropriate anchors. For vinyl or wood siding, standard screws usually work fine.

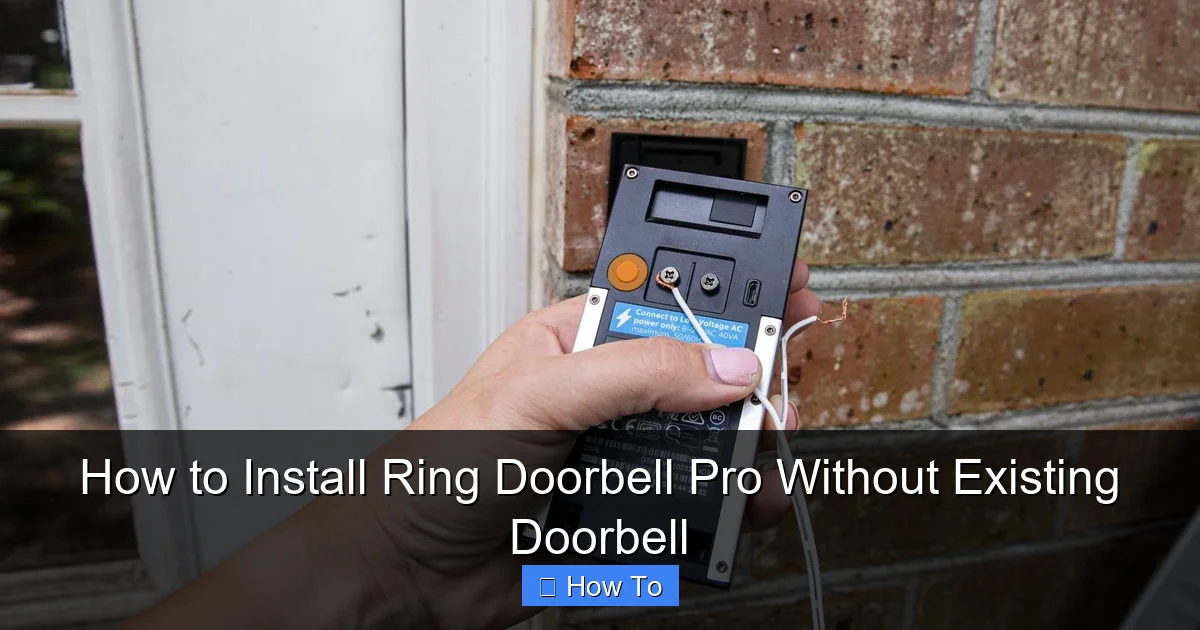

Step 5: Connect the Wires to the Doorbell
Now it’s time to connect the low-voltage wires from the power kit to your Ring Doorbell Pro.
Prepare the Doorbell
1. Remove the faceplate from the Ring Doorbell Pro by pressing the release tab.
2. Locate the two terminal screws on the back of the device (usually labeled “+” and “–”).
Attach the Wires
1. Loosen the terminal screws slightly.
2. Insert the stripped end of one wire into the “+” terminal and tighten the screw.
3. Insert the other wire into the “–” terminal and tighten.
4. Give the wires a gentle tug to ensure they’re secure.
Important: The Ring Doorbell Pro is polarity-sensitive. Make sure you connect the wires correctly. If you’re unsure, refer to the color coding on the power kit (red to +, white to –).
Reattach the Faceplate
Once the wires are connected, snap the faceplate back onto the doorbell. Make sure it clicks into place.
Step 6: Mount the Doorbell to the Bracket
With the wiring complete, it’s time to attach the doorbell to the mounting bracket.
Slide and Secure
1. Align the doorbell with the bracket.
2. Slide it downward until it locks into place.
3. Use the included security screw to prevent theft—insert it into the bottom of the doorbell and tighten with a screwdriver.
Pro Tip: Don’t overtighten the security screw—it can damage the plastic housing.
Step 7: Power On and Test
Before you celebrate, let’s make sure everything is working.
Turn the Power Back On
1. Go back to your electrical panel.
2. Flip the breaker to the “ON” position.
3. Wait 30–60 seconds for the power kit to activate.
Check the Doorbell
Look for a solid green light on the front of the Ring Doorbell Pro. This indicates it’s receiving power and is ready to connect.
If you see a blinking red light, there may be a wiring issue or insufficient power. See the troubleshooting section below.
Test the Connection
Open the Ring app on your smartphone and follow the setup prompts. The app will guide you through:
– Connecting to your Wi-Fi network
– Pairing the device
– Adjusting motion zones
– Testing the camera and audio
Try ringing the doorbell (press the button) and check if you receive a notification on your phone. Speak through the app to test two-way audio.
Step 8: Final Adjustments and Settings
Once your doorbell is working, take a few minutes to customize it for your needs.
Adjust Motion Zones
In the Ring app:
1. Go to Device Settings > Motion Settings.
2. Use the motion zone tool to define areas you want to monitor (e.g., driveway, walkway).
3. Avoid areas like busy streets or neighbor’s yards to reduce false alerts.
Set Up Chimes (Optional)
Even without a traditional doorbell chime, you can still hear alerts:
– Use the Ring Chime or Chime Pro (sold separately) to play sounds inside your home.
– Enable smartphone notifications with sound.
– Connect to Alexa-enabled devices for voice alerts.
Enable Smart Alerts
Customize your notification preferences:
– Choose between motion alerts, doorbell rings, or both.
– Set quiet hours to avoid disturbances at night.
– Enable person detection to reduce alerts from pets or passing cars.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Doorbell Won’t Power On
- Check the breaker: Make sure power is restored to the outlet.
- Test the outlet: Plug in another device to confirm it’s working.
- Inspect wiring: Ensure wires are securely connected at both ends.
- Verify voltage: Use a multimeter to check if the power kit is outputting 16–24V AC.
Weak or No Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Switch to the 2.4 GHz band in the Ring app (better range than 5 GHz).
- Avoid placing the doorbell near metal objects or thick walls.
Blurry or Dark Video
- Clean the camera lens with a soft, dry cloth.
- Adjust the angle to avoid direct sunlight or backlighting.
- Check night vision settings in the app.
False Motion Alerts
- Narrow the motion zones to exclude trees, cars, or animals.
- Lower the motion sensitivity in the app.
- Enable person detection to filter out non-human movement.
When to Call a Professional
While most homeowners can install the Ring Doorbell Pro without an existing doorbell, some situations call for expert help.
Consider hiring a licensed electrician if:
– You’re uncomfortable working with electricity.
– Your home has complex wiring or older electrical systems.
– You need to run wires through walls or attics.
– Local building codes require permits for electrical work.
A professional can ensure your installation is safe, code-compliant, and optimized for performance.
Conclusion
Installing a Ring Doorbell Pro without an existing doorbell might seem daunting at first, but with the right tools and guidance, it’s a straightforward DIY project. By using the Ring Pro Power Kit, following safe wiring practices, and setting up the device through the Ring app, you can enjoy all the benefits of smart home security—no traditional doorbell required.
Remember to prioritize safety, test your setup thoroughly, and customize your settings for the best experience. Whether you’re protecting your home, keeping an eye on deliveries, or just staying connected, your Ring Doorbell Pro will give you peace of mind—one ring at a time.
Now go ahead, mount that doorbell, and start seeing who’s at your door—even when you’re not home.
