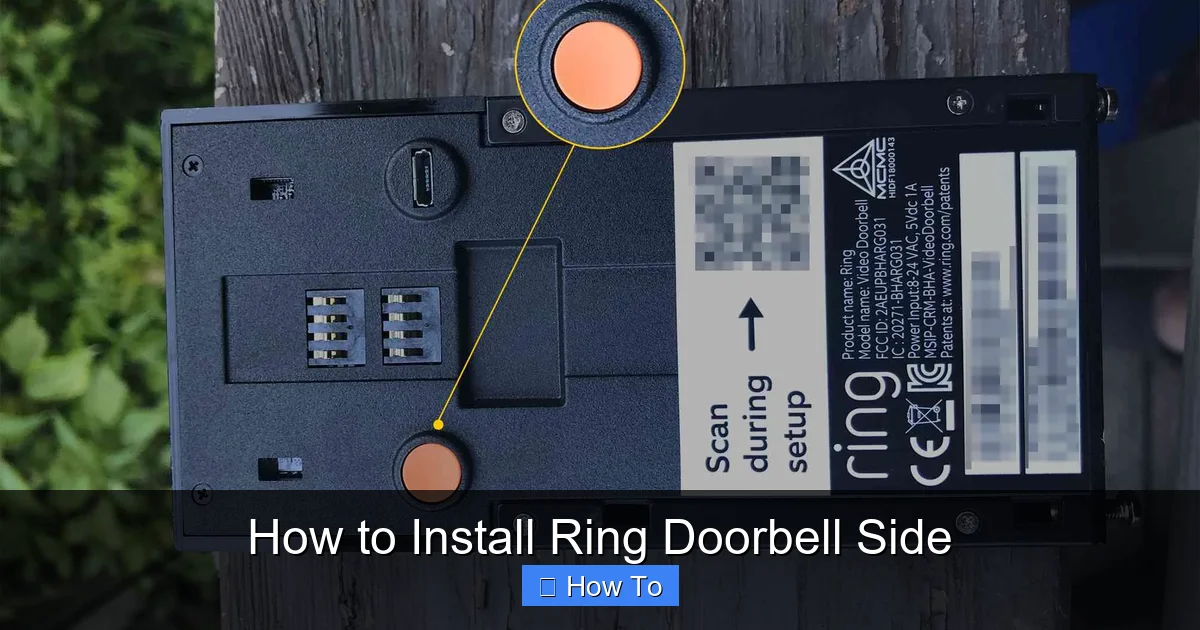

How to Install Ring Doorbell Side

Installing a Ring Doorbell on the side of your doorframe or wall is a smart way to maximize coverage and security. This guide walks you through every step—from choosing the right location to final testing—so you can set up your device safely and effectively.

Key Takeaways

• Choose the right mounting angle: Side installation often requires a wedge or corner mount to ensure optimal camera view and motion detection.
• Turn off power before wiring: If replacing an existing doorbell, always shut off electricity at the breaker to avoid shocks.
• Use the right tools: A drill, level, screwdriver, and voltage tester are essential for a secure and safe installation.
• Test Wi-Fi signal strength: Ensure your side mounting location has strong Wi-Fi coverage for reliable live streaming and alerts.
• Secure all connections: Whether wired or battery-powered, double-check that wires are tight and the device is firmly attached.
• Adjust motion zones in the app: After installation, customize motion detection areas to reduce false alerts from passing cars or pedestrians.
• Maintain regularly: Clean the lens and check battery levels or wiring every few months for consistent performance.

How to Install Ring Doorbell Side: A Complete Step-by-Step Guide

So, you’ve decided to install your Ring Doorbell on the side of your doorframe or exterior wall—great choice! Side mounting can offer better coverage, reduce blind spots, and give you a clearer view of visitors approaching your home. Whether you’re replacing an old doorbell or setting up a new one in a non-traditional spot, this guide will walk you through the entire process safely and efficiently.

In this comprehensive how-to, you’ll learn how to install Ring Doorbell side—whether you’re using a wired model like the Ring Video Doorbell Pro or a battery-powered version like the Ring Video Doorbell (2nd or 3rd Gen). We’ll cover everything from planning your installation to testing the final setup. By the end, your Ring Doorbell will be securely mounted, fully functional, and ready to keep your home safe.

Let’s get started!

Why Install Ring Doorbell on the Side?

Before diving into the installation, it’s helpful to understand why side mounting is a popular option. Traditional doorbell placement—right next to the front door—works well for many homes. But side installation offers several advantages:

• Wider field of view: Mounting on the side allows the camera to capture more of your porch, walkway, or driveway.
• Better motion detection: You can angle the device to monitor a larger area, reducing the chance of missed activity.
• Avoids obstructions: If your door swings open and blocks the camera, side mounting keeps the lens clear.
• Ideal for narrow entryways: Homes with tight spaces or recessed doors benefit from a side-mounted setup.

However, side mounting also comes with challenges. You may need additional accessories like a wedge mount or corner bracket, and Wi-Fi signal strength can vary depending on distance from your router. But don’t worry—we’ll address all of that in this guide.

What You’ll Need Before You Begin

Before you start drilling holes or handling wires, gather the right tools and materials. Having everything ready will save time and prevent frustration.

Tools Required

• Drill and drill bits: For creating pilot holes in wood, brick, or siding.
• Screwdriver (Phillips and flathead): For tightening screws and mounting brackets.
• Level: To ensure your doorbell is straight—important for both appearance and camera angle.
• Voltage tester: Essential if you’re working with existing doorbell wiring.
• Pencil or marker: For marking drill points.
• Measuring tape: To find the ideal height and position.
• Wire strippers (if wiring): To prepare existing doorbell wires.

Materials and Accessories

• Ring Doorbell (your model): Confirm compatibility with side mounting.
• Mounting bracket: Most Ring models come with a standard bracket, but you may need a wedge mount or corner mount for side installation.
• Screws and wall anchors: Use the ones provided, or purchase appropriate ones for your wall type (e.g., masonry anchors for brick).
• Optional: Ring Chime or Chime Pro: For indoor alerts if you don’t have a mechanical chime.
• Optional: Wire nuts or electrical tape: For securing wire connections.

Safety Gear

• Safety glasses: Protect your eyes when drilling.
• Gloves: Especially if working with sharp edges or electrical components.

Step 1: Choose the Right Location

The success of your side installation starts with picking the perfect spot. A well-placed Ring Doorbell ensures clear video, reliable motion detection, and strong Wi-Fi connectivity.

Ideal Height and Angle

Ring recommends mounting your doorbell between 48 and 60 inches from the ground. This height captures most visitors’ faces while minimizing tampering risk.

For side mounting, aim for a location that gives the camera a clear view of your front walkway, porch, or driveway. Avoid placing it too far back, or the angle may become too narrow.

Check Wi-Fi Signal Strength

Your Ring Doorbell needs a stable Wi-Fi connection to stream video and send alerts. Use the Ring app’s “Device Health” feature to test signal strength at your chosen spot.

• Open the Ring app.
• Go to Device Settings > Device Health.
• Tap Check Wi-Fi Signal and follow the prompts.

If the signal is weak, consider:

• Moving your router closer.
• Using a Wi-Fi extender.
• Installing a Ring Chime Pro, which also acts as a Wi-Fi booster.

Consider Obstructions and Lighting

Avoid placing the doorbell where it might be blocked by:

• Plants or shrubs.
• Mailboxes or light fixtures.
• Door handles or swinging doors.

Also, think about lighting. Avoid direct sunlight on the lens, which can cause glare. If possible, mount it under an eave or porch overhang for shade.

Step 2: Turn Off Power (For Wired Models)

If you’re installing a wired Ring Doorbell (like the Pro or Wired model), you must turn off the power before touching any wires. This prevents electric shock and protects your device.

Locate Your Circuit Breaker

Find the breaker that controls your existing doorbell. It’s usually labeled “Doorbell,” “Front Door,” or “Chime.” If unsure, turn off the main breaker to be safe.

Test the Wires

Use a voltage tester to confirm the power is off. Touch one probe to the doorbell wire and the other to a ground (like a metal junction box). If the tester doesn’t light up, it’s safe to proceed.

Remove the Old Doorbell (If Applicable)

Unscrew the old doorbell from the wall. Carefully pull the wires out, but don’t cut them yet. You’ll need them to power your Ring Doorbell.

Step 3: Prepare the Mounting Surface

Now it’s time to get your wall ready for the new mount.

Mark the Drill Points

Hold the mounting bracket against the wall at your chosen height. Use a level to ensure it’s straight. Mark the screw holes with a pencil.

Drill Pilot Holes

Use a drill bit slightly smaller than your screws to create pilot holes. This prevents wood from splitting and makes screwing easier.

• For wood or siding: Use a 3/16” bit.
• For brick or concrete: Use a masonry bit and wall anchors.

Install Wall Anchors (If Needed)

If you’re drilling into brick, stucco, or concrete, insert wall anchors into the pilot holes. Tap them gently with a hammer until flush.

Step 4: Install the Mounting Bracket

With the surface prepared, it’s time to secure the bracket.

Attach the Bracket

Line up the bracket with the pilot holes. Insert screws and tighten them with a screwdriver or drill (use low torque to avoid over-tightening).

Use a Wedge or Corner Mount (Recommended for Side Installation)

For side mounting, a standard flat bracket may not provide the best angle. Ring offers optional mounts:

• Wedge Mount: Angles the doorbell 15° or 30° for better coverage.
• Corner Mount: Designed for corners or tight spaces, offering a 45° angle.

Attach the wedge or corner mount to the wall first, then secure the standard bracket to it. This gives you the ideal viewing angle.

Step 5: Connect the Wires (Wired Models Only)

If you’re using a wired Ring Doorbell, now’s the time to connect the existing doorbell wires.

Strip the Wire Ends

Use wire strippers to remove about 1/4 inch of insulation from each wire. This exposes fresh copper for a solid connection.

Attach Wires to the Bracket

Most Ring mounting brackets have two small terminals. Loosen the screws, insert the wires, and tighten them securely. It doesn’t matter which wire goes where—Ring devices are not polarity-sensitive.

Secure Loose WiresStep 6: Attach the Ring Doorbell

With the bracket in place and wires connected, you can now mount the device.

Slide the Doorbell Onto the Bracket

Align the slots on the back of the Ring Doorbell with the tabs on the bracket. Gently slide it down until it clicks into place.

Secure with the Security Screw

Use the included security screw and screwdriver to lock the doorbell in place. This prevents theft and ensures it stays mounted.

Step 7: Power On and Test

Now it’s time to bring your Ring Doorbell to life.

Turn the Power Back On

Go back to your circuit breaker and restore power to the doorbell circuit.

Wait for the Light to Flash

Your Ring Doorbell will power up and show a flashing light. This means it’s connecting to Wi-Fi.

Open the Ring App

Launch the Ring app on your phone. If this is your first setup, follow the on-screen prompts to add a new device.

• Tap Set Up a Device.
• Select Doorbells.
• Scan the QR code on the back of your device or enter the serial number manually.

Connect to Wi-Fi

Choose your home Wi-Fi network and enter the password. The app will guide you through the connection process.

Test the Doorbell

Once connected:

• Press the doorbell button to test the chime (if wired to a mechanical chime).
• Check live view in the app.
• Walk in front of the camera to test motion detection.

Step 8: Adjust Settings in the Ring App

Your installation is almost complete! Now, fine-tune the settings for the best experience.

Set Motion Zones

Go to Device Settings > Motion Settings > Motion Zones. Draw zones where you want motion detected (e.g., your walkway) and exclude areas like busy streets.

Adjust Motion Sensitivity

Lower sensitivity if you’re getting too many alerts from wind or small animals. Increase it if you’re missing visitors.

Enable Smart Alerts

Turn on features like People Only Mode to reduce false alerts. You can also set up Linked Devices to trigger lights or cameras when motion is detected.

Set Up Chimes

If you have a Ring Chime or Chime Pro, pair it in the app to receive indoor alerts.

Troubleshooting Common Issues

Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.

Doorbell Won’t Power On

• Check that power is restored at the breaker.
• Ensure wires are securely connected to the bracket.
• Test voltage at the wires with a multimeter (should be 8–24V AC).

Poor Wi-Fi Signal

• Move your router closer or use a Wi-Fi extender.
• Install a Ring Chime Pro for boosted signal.
• Avoid mounting near metal objects or thick walls.

Blurry or Dark Video

• Clean the camera lens with a microfiber cloth.
• Adjust the angle to avoid direct sunlight or backlighting.
• Enable Night Vision in the app for low-light clarity.

False Motion Alerts

• Narrow the motion zones.
• Lower motion sensitivity.
• Enable People Only Mode.

Doorbell Not Chiming

• Ensure the mechanical chime is compatible (check Ring’s compatibility list).
• Verify wires are connected properly.
• Use a Ring Chime for digital alerts.

Maintenance Tips for Long-Term Performance

To keep your Ring Doorbell working perfectly, follow these simple maintenance steps:

• Clean the lens monthly: Use a soft, dry cloth to remove dust and smudges.
• Check battery levels (if battery-powered): Recharge or replace batteries as needed.
• Inspect wires and connections: Ensure nothing is loose or corroded.
• Update firmware: The Ring app will notify you of updates—install them promptly.
• Review event history: Regularly check recordings to ensure everything is functioning.

Conclusion

Installing a Ring Doorbell on the side of your doorframe or wall is a smart, effective way to enhance your home’s security. With the right tools, a little planning, and this step-by-step guide, you can complete the installation safely and confidently—whether you’re using a wired or battery-powered model.

From choosing the ideal location and testing Wi-Fi to mounting the bracket and adjusting settings in the app, every step matters. Side mounting may require a wedge or corner mount for the best angle, but the improved coverage and reduced blind spots are well worth the effort.

Remember to turn off power when working with wires, secure all connections, and customize your motion zones to avoid false alerts. And don’t forget regular maintenance to keep your device in top shape.

Now that your Ring Doorbell is installed and active, you can enjoy peace of mind knowing your home is protected 24/7. Welcome to smarter, safer living!
