This guide walks you through how to install Ring Doorbell Spotlight to wall with clear, easy-to-follow instructions. You’ll learn the tools needed, wiring tips, and how to test your setup for optimal performance.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to ensure safety.
- Use the included mounting bracket to secure the Ring Doorbell Spotlight properly to the wall.
- Check compatibility with your existing doorbell wiring—most homes with 16–24V AC transformers work.
- Adjust the motion sensor and spotlight angles after installation for best coverage and lighting.
- Connect to the Ring app to complete setup, customize settings, and test functionality.
- Use a level and drill pilot holes to avoid damaging your wall and ensure a straight mount.
- Test the system thoroughly before finishing to catch any wiring or connection issues early.
How to Install Ring Doorbell Spotlight to Wall: A Complete Step-by-Step Guide
Installing a Ring Doorbell Spotlight to your wall is a smart way to boost home security, improve nighttime visibility, and deter unwanted visitors. Whether you’re replacing an old doorbell or setting up a new one, this guide will walk you through the entire process—from planning and preparation to final testing and app setup.
You’ll learn exactly how to install Ring Doorbell Spotlight to wall safely and correctly, even if you’ve never done electrical work before. We’ll cover everything you need: tools, wiring tips, mounting techniques, and troubleshooting common issues. By the end, your Ring Doorbell Spotlight will be securely mounted, properly connected, and ready to protect your home.
Let’s get started!
What You’ll Need Before You Begin

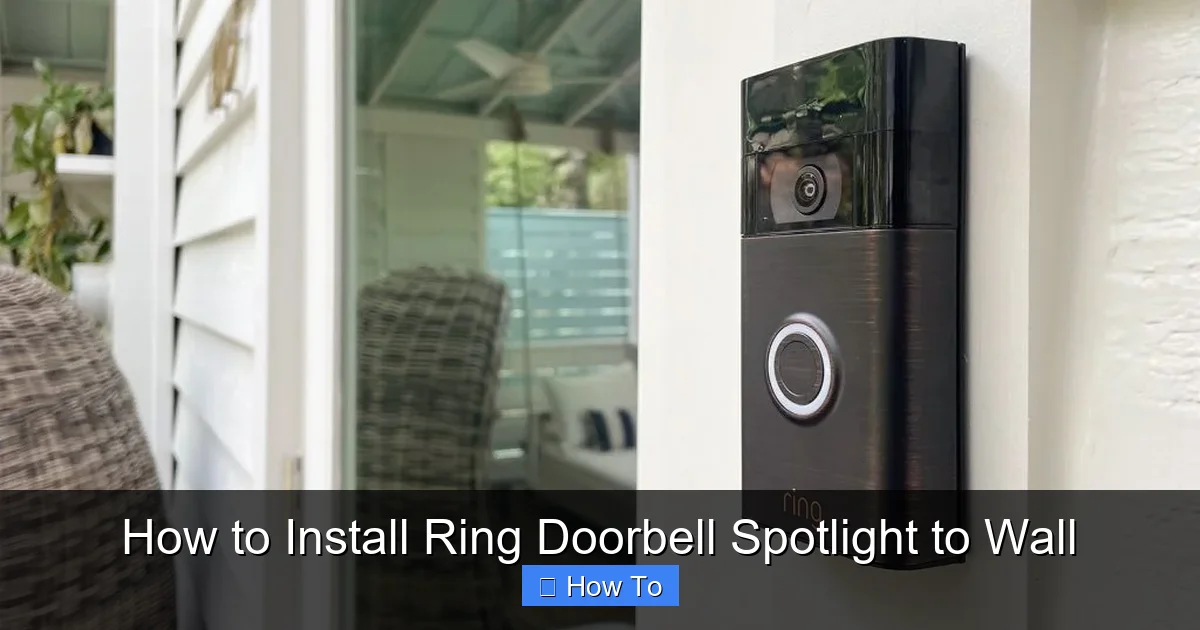

Visual guide about How to Install Ring Doorbell Spotlight to Wall
Image source: toolsmechanism.com
Before you touch a single screw or wire, make sure you have all the necessary tools and materials. Having everything ready will save time and reduce frustration.
Tools Required
- Phillips head screwdriver
- Drill with drill bits (typically 3/16” for masonry or wood)
- Level (a small bubble level works great)
- Pencil or marker
- Wire strippers (if you need to trim or expose wires)
- Voltage tester (optional but recommended)
- Ladder (if installing above ground level)
Materials Included with Your Ring Doorbell Spotlight
- Ring Doorbell Spotlight unit
- Mounting bracket
- Screws and anchors (for wood, brick, or drywall)
- Wire nuts
- Security screw (to prevent tampering)
- Installation guide and quick start card
Optional but Helpful Items
- Electrical tape
- Wall anchors (if not included or if your wall requires stronger support)
- Smartphone or tablet with the Ring app installed
- Assistant (for holding the unit while you work)
Step 1: Turn Off Power at the Breaker
Safety first! Even though doorbell circuits are low voltage, they are still connected to your home’s electrical system. Turning off the power prevents accidental shocks and protects your equipment.
Locate Your Electrical Panel
Go to your home’s main electrical breaker box. It’s usually in the basement, garage, or utility closet.
Find the Doorbell Circuit
Look for a breaker labeled “doorbell,” “chime,” or something similar. If it’s not labeled, you may need to test circuits by turning them off one at a time and checking if your existing doorbell stops working.
Turn Off the Breaker
Switch the correct breaker to the “off” position. Use a voltage tester on the doorbell wires to confirm no power is flowing. This extra step ensures safety.
Pro Tip: Place a piece of tape over the breaker switch to prevent someone from accidentally turning it back on while you’re working.
Step 2: Remove Your Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it before installing the Ring Doorbell Spotlight.
Unscrew the Old Unit
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the unit away from the wall.
Disconnect the Wires
You’ll see two wires connected to the back of the old doorbell. Loosen the screws holding them or pull them out of wire nuts. Be careful not to let the wires fall back into the wall.
Cap the Wires Temporarily
Twist wire nuts onto the exposed ends of the wires to prevent them from touching each other or the wall. This keeps them safe until you’re ready to connect them to the new unit.
Remove the Old Mounting Plate
Unscrew and remove the old mounting plate or bracket. Clean the area if there’s old caulk, paint, or debris.
Step 3: Check Your Doorbell Wiring and Voltage
The Ring Doorbell Spotlight works with most standard doorbell systems, but it’s important to verify compatibility.
Check Wire Gauge and Type
Most doorbells use 18- to 22-gauge low-voltage wires. These are usually thin, insulated copper wires. Make sure both wires are intact and not frayed.
Test the Voltage
Use a multimeter or voltage tester to check the voltage across the two wires. The Ring Doorbell Spotlight requires 16–24V AC. If your system is outside this range, you may need a compatible transformer.
Note: If your existing transformer is too low (e.g., 8V or 10V), the Ring may not charge properly or function reliably. Ring sells a compatible transformer if needed.
Ensure Two Wires Are Present
You need two wires: one for power (usually labeled “front”) and one for the chime (“trans”). If you only have one wire, you may need to run a new cable or consider a battery-only model.
Step 4: Choose the Right Mounting Location
Picking the best spot for your Ring Doorbell Spotlight ensures maximum coverage and effectiveness.
Ideal Height
Mount the unit between 48 and 60 inches from the ground. This height captures faces clearly and avoids tampering.
Angle and Coverage
Aim the camera slightly downward to cover your walkway, porch, or driveway. Avoid pointing it directly at a wall or shrubbery.
Proximity to Door
Install it within 6–10 feet of your front door for optimal motion detection and two-way audio.
Check for Obstructions
Make sure trees, lights, or decorations won’t block the camera or spotlight. Also, avoid placing it where rain or sprinklers might hit it directly.
Wi-Fi Signal Strength
Use the Ring app’s “Device Health” feature to check Wi-Fi signal at the installation spot. Weak signal can cause lag or disconnections.
Tip: If your Wi-Fi is weak, consider a Wi-Fi extender or mesh network to boost coverage.
Step 5: Install the Mounting Bracket
The mounting bracket is the foundation of your installation. A secure bracket ensures the unit stays level and stable.
Hold the Bracket Against the Wall
Position the bracket where you want to install the Ring Doorbell Spotlight. Use a level to make sure it’s straight.
Mark the Screw Holes
Use a pencil to mark the centers of the screw holes on the wall.
Drill Pilot Holes
Drill small pilot holes at each mark. This prevents the wall from cracking, especially on brick or concrete.
Insert Wall Anchors (If Needed)
If you’re mounting into drywall, brick, or concrete, insert the included wall anchors into the pilot holes. Tap them gently with a hammer until flush.
Secure the Bracket
Align the bracket with the holes and screw it into place using the provided screws. Make sure it’s tight and level.
Pro Tip: For uneven walls, use the included wedge kit to angle the bracket for better camera coverage.
Step 6: Connect the Wires to the Ring Doorbell Spotlight
Now it’s time to connect the doorbell wires to your new Ring unit.
Strip the Wire Ends (If Necessary)
If the wire ends are too short or damaged, use wire strippers to expose about 1/4 inch of copper.
Loosen the Terminal Screws
On the back of the Ring Doorbell Spotlight, locate the two terminal screws (usually labeled “Front” and “Trans”).
Insert the Wires
Place one wire under each screw head. It doesn’t matter which wire goes where—Ring is non-polarized.
Tighten the Screws
Use a screwdriver to tighten the screws securely. Make sure the wires are held firmly and won’t slip out.
Double-Check Connections
Gently tug on each wire to ensure it’s secure. Loose wires can cause power issues or intermittent operation.
Warning: Do not let the bare wire ends touch each other or the metal bracket. This can cause a short circuit.
Step 7: Attach the Ring Doorbell Spotlight to the Bracket
With the wires connected, it’s time to mount the unit.
Align the Unit with the Bracket
Hold the Ring Doorbell Spotlight so the mounting slots align with the bracket.
Slide It Into Place
Gently slide the unit down onto the bracket until it clicks or sits flush.
Secure with the Security Screw
Use the included security screw and screwdriver to fasten the unit to the bracket. This prevents theft or tampering.
Note: Keep the security screw in a safe place. You’ll need it to remove the unit later for maintenance or battery replacement.
Step 8: Turn Power Back On and Test the System
Now that everything is installed, restore power and test your setup.
Turn the Breaker Back On
Go to your electrical panel and switch the doorbell breaker back to “on.”
Wait for the Unit to Power Up
The Ring Doorbell Spotlight should light up and begin initializing. This may take 30–60 seconds.
Check for Lights and Sounds
You should see a solid light on the front of the unit. If it blinks or doesn’t light up, there may be a wiring issue.
Test the Doorbell
Press the button on the unit. Your indoor chime should ring (if connected). If not, check the wiring and chime settings in the app.
Test the Spotlight
Walk in front of the unit to trigger motion. The spotlight should turn on automatically. Adjust the sensitivity in the app if needed.
Step 9: Set Up the Ring App and Customize Settings
The Ring app is essential for full functionality, including live view, motion alerts, and two-way talk.
Download the Ring App
Available for free on iOS and Android. Create an account or log in if you already have one.
Add Your Device
Tap “Set Up a Device” and follow the on-screen instructions. Scan the QR code on the back of your Ring Doorbell Spotlight.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The unit will connect and update its firmware if needed.
Name Your Device
Give it a name like “Front Door” or “Porch” for easy identification.
Adjust Motion Zones
Use the app to define motion detection areas. Exclude areas like busy streets to reduce false alerts.
Set Up Chime Pro (Optional)
If you have a Ring Chime or Chime Pro, link it to your doorbell for louder, customizable alerts.
Enable Smart Alerts
Turn on person detection, package alerts, and other smart features to get the most out of your device.
Step 10: Final Adjustments and Tips
A few final tweaks can improve performance and user experience.
Adjust the Camera Angle
Loosen the security screw slightly and tilt the unit up or down for the best view. Tighten it when done.
Clean the Lens
Use a soft, dry cloth to wipe the camera lens and spotlight cover. Avoid harsh chemicals.
Check Night Vision
Test the infrared night vision by viewing the feed in a dark area. Adjust the angle if needed.
Review Event History
Check the app’s event timeline to see if motion and doorbell presses are being recorded correctly.
Set Up Shared Users
Invite family members to access the device through the app for shared monitoring.
Troubleshooting Common Installation Issues
Even with careful installation, problems can occur. Here’s how to fix the most common ones.
The Unit Won’t Power On
- Check that the breaker is on.
- Verify wire connections are tight and not touching.
- Test the voltage at the wires—should be 16–24V AC.
- Try reseating the unit on the bracket.
Spotlight Doesn’t Turn On
- Ensure motion detection is enabled in the app.
- Check that the spotlight brightness is set above zero.
- Make sure the unit isn’t in “Do Not Disturb” mode.
- Clean the spotlight cover if it’s dirty or foggy.
Poor Wi-Fi Connection
- Move your router closer or use a Wi-Fi extender.
- Check for interference from other devices.
- Restart the Ring unit and router.
- Reconnect to Wi-Fi in the app.
Doorbell Doesn’t Ring Indoor Chime
- Verify the chime is compatible with Ring (most mechanical chimes work).
- Check wiring at both the doorbell and chime unit.
- Adjust chime settings in the Ring app under “Device Settings.”
False Motion Alerts
- Adjust motion zones to exclude trees or passing cars.
- Lower motion sensitivity in the app.
- Install a motion shield (sold separately) to block unwanted areas.
Conclusion
Installing a Ring Doorbell Spotlight to your wall is a straightforward project that can significantly enhance your home’s security. By following this guide, you’ve learned how to install Ring Doorbell Spotlight to wall safely, correctly, and efficiently—from turning off power and mounting the bracket to connecting wires and setting up the app.
Remember to prioritize safety, double-check your wiring, and test everything before finishing. With proper installation, your Ring Doorbell Spotlight will provide reliable performance, bright lighting, and peace of mind for years to come.
If you run into issues, don’t hesitate to consult the Ring support team or revisit the troubleshooting section. And don’t forget to explore all the smart features in the app to get the most out of your investment.
Now go enjoy your smarter, safer home!
