Installing the Ring Doorbell Wired 2nd Generation is a straightforward DIY project that enhances your home security. This guide walks you through every step—from checking compatibility to final setup—ensuring a safe and successful installation.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Ring’s requirements (16–24V AC, 30–40VA) to avoid damage or malfunction.
- Turn off power at the breaker: Always shut off electricity before handling wires to prevent shocks or short circuits.
- Use the included mounting bracket: It ensures a secure fit and proper angle for optimal motion detection and video quality.
- Download the Ring app: The app guides setup, connects your doorbell to Wi-Fi, and lets you customize settings like motion zones and alerts.
- Test after installation: Verify live view, motion detection, and chime functionality to confirm everything works before finishing.
- Secure loose wires: Tuck excess wiring neatly into the wall or use wire covers to prevent tampering and maintain a clean look.
- Update firmware regularly: Keep your Ring Doorbell updated via the app for the latest features and security patches.
How to Install Ring Doorbell Wired 2nd Generation
Upgrading your home security has never been easier—or more affordable—than with the Ring Doorbell Wired 2nd Generation. This smart doorbell delivers 1080p HD video, two-way audio, advanced motion detection, and real-time alerts straight to your phone. Unlike battery-powered models, the Wired version connects directly to your home’s existing doorbell wiring, ensuring continuous power without the hassle of recharging.
In this comprehensive guide, you’ll learn how to install the Ring Doorbell Wired 2nd Generation safely and correctly. Whether you’re replacing an old doorbell or installing one for the first time, we’ll walk you through every step—from checking compatibility to final testing. By the end, you’ll have a fully functional smart doorbell that keeps your home secure and gives you peace of mind.
No need to call an electrician unless you’re unsure about your wiring. With basic tools and about 20–30 minutes, you can complete this project yourself. Let’s get started!
What You’ll Need Before You Begin
Before diving into the installation, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration.

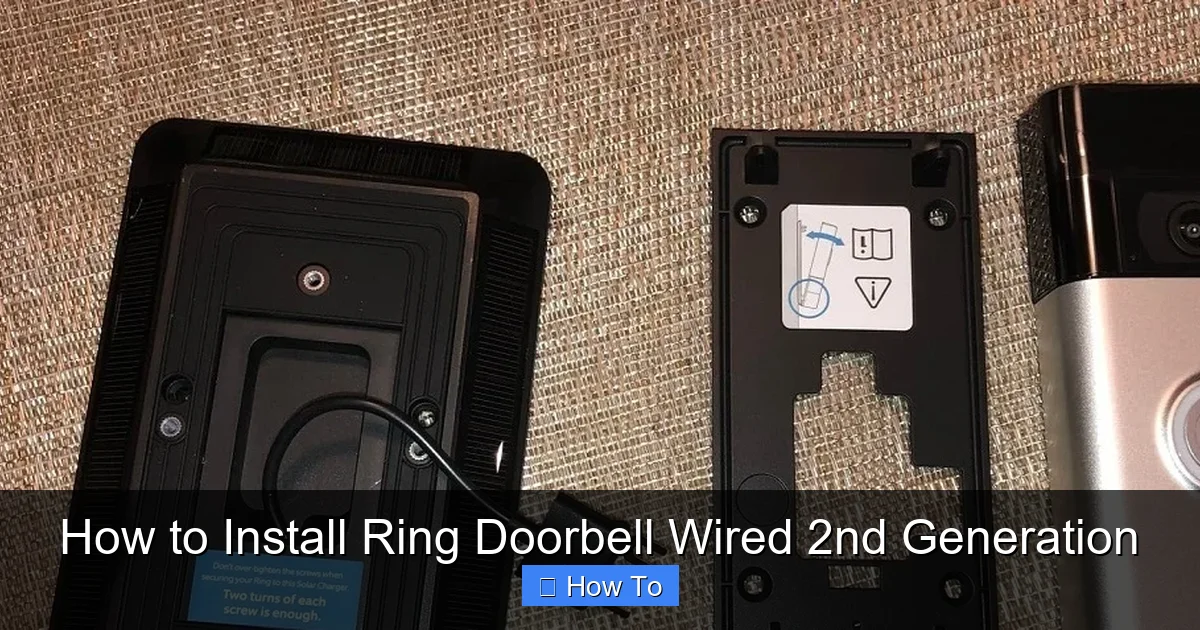

Visual guide about How to Install Ring Doorbell Wired 2nd Generation
Image source: robots.net
Tools and Materials
- Ring Doorbell Wired 2nd Generation (includes doorbell, mounting bracket, screws, wire nuts, and security screw)
- Screwdriver (Phillips head)
- Drill (optional, for mounting on brick or concrete)
- Masonry drill bit (if drilling into stone or brick)
- Voltage tester (recommended for safety)
- Smartphone with the Ring app installed
- Wi-Fi network (2.4 GHz required; 5 GHz not supported)
- Ladder (if your doorbell is high up)
Check Your Existing Doorbell System
Not all homes are compatible with the Ring Doorbell Wired. To avoid damage or poor performance, verify your current setup:
- Transformer voltage: Must be between 16–24 volts AC. Most older doorbells use 8–16V, which is too low. Check the transformer (usually near your breaker box or chime) for labeling.
- Transformer power: Should be 30–40 volt-amperes (VA). If it’s below 30VA, the doorbell may not function properly.
- Wiring: You need two wires connected to your existing doorbell button. If you only have one wire or no wires at all, you’ll need to run new wiring or consider a wireless Ring model.
- Chime compatibility: The Ring Wired works with most mechanical and digital chimes. If you have a very old or unusual chime, check Ring’s compatibility list online.
Pro Tip: If your transformer is underpowered, you can upgrade it yourself or hire an electrician. A 16V 30VA transformer is a common and affordable replacement.
Step 1: Turn Off the Power
Safety first! Working with electrical wiring can be dangerous if the power is on. Even low-voltage doorbell systems can cause shocks or damage your device.
Locate Your Breaker Box
Find your home’s main electrical panel (breaker box). Look for a breaker labeled “doorbell,” “chime,” or “front door.” If there’s no label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch off the breaker that controls your doorbell circuit. To confirm it’s off, press your existing doorbell button. If the chime doesn’t sound, the power is off.
Use a Voltage Tester (Optional but Recommended)
For extra safety, use a non-contact voltage tester near the doorbell wires. If the tester doesn’t beep or light up, the circuit is safe to work on.
Important: Never assume the power is off just because the chime is silent. Always verify with a tester or by checking the breaker.
Step 2: Remove Your Old Doorbell
Now that the power is off, it’s time to remove the existing doorbell button.
Unscrew the Old Button
Use a Phillips screwdriver to remove the two screws holding the old doorbell in place. Gently pull the button away from the wall.
Disconnect the Wires
You’ll see two wires connected to the back of the button. Loosen the screws or pull the wires out of the terminals. Don’t cut them—just disconnect them.
Secure the Wires
To prevent the wires from slipping back into the wall, twist them together temporarily or tape them to the wall with electrical tape. This keeps them accessible for the new installation.
Pro Tip: Take a photo of the wiring before disconnecting. This can help if you need to troubleshoot later.
Step 3: Install the Mounting Bracket
The Ring Doorbell Wired 2nd Generation comes with a sturdy mounting bracket that ensures a secure fit and proper angle for the camera.
Position the Bracket
Hold the mounting bracket against the wall where you want to install the doorbell. Make sure it’s level and at a comfortable height (typically 48 inches from the ground).
Mark the Screw Holes
Use a pencil to mark the spots where the screws will go. If you’re mounting on wood or siding, you can screw directly into the surface. For brick, stucco, or concrete, you’ll need to drill pilot holes.
Drill Pilot Holes (If Needed)
Use a drill and appropriate bit (masonry bit for stone or brick) to create small holes at the marked spots. This prevents cracking and makes screwing easier.
Attach the Bracket
Line up the bracket with the holes and secure it using the included screws. Make sure it’s tight and doesn’t wobble.
Pro Tip: If your wall is uneven, use plastic wall anchors for a more secure hold. The Ring kit includes anchors for this purpose.
Step 4: Connect the Wires to the Ring Doorbell
Now it’s time to connect your home’s wiring to the new Ring Doorbell.
Prepare the Wires
Strip about 1/4 inch of insulation from the ends of the two wires if needed. This ensures a clean connection.
Attach Wires to the Doorbell
The Ring Doorbell has two terminals labeled “Front” and “Trans.” It doesn’t matter which wire goes where—just connect one wire to each terminal. Loosen the screws, insert the wires, and tighten them securely.
Secure the Doorbell to the Bracket
Slide the Ring Doorbell onto the mounting bracket until it clicks into place. Make sure it’s snug and level.
Use the Security Screw
Insert the small security screw (included) into the bottom of the doorbell and tighten it with the provided tool. This prevents theft or tampering.
Pro Tip: Don’t overtighten the terminal screws—just enough to hold the wires firmly. Over-tightening can damage the threads.
Step 5: Restore Power and Test the Chime
With the doorbell installed, it’s time to turn the power back on and test the system.
Turn the Breaker Back On
Go to your breaker box and switch the doorbell circuit back on.
Test the Chime
Press the doorbell button. Your indoor chime should ring. If it doesn’t, double-check the wiring and breaker.
Check for Power to the Doorbell
The Ring Doorbell’s LED should light up when powered. If it doesn’t, the wiring may be loose or the transformer underpowered.
Pro Tip: If the chime doesn’t work, try adjusting the chime settings in the Ring app or check for loose connections.
Step 6: Set Up the Ring App
The Ring app is essential for configuring your doorbell, connecting to Wi-Fi, and customizing settings.
Download the Ring App
If you haven’t already, download the free Ring app from the Apple App Store or Google Play Store. Create an account or log in.
Add a New Device
Open the app and tap the three-line menu (☰), then select “Set up a device.” Choose “Doorbells” and follow the prompts.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the Ring Doorbell. This links the device to your account.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The doorbell only supports 2.4 GHz networks—make sure you’re not trying to connect to a 5 GHz band.
Name Your Doorbell
Give your doorbell a name (e.g., “Front Door”) so you can identify it in the app.
Complete Setup
Follow the on-screen instructions to finish setup. The app will guide you through motion zones, alert preferences, and video quality settings.
Pro Tip: Enable “Motion Alerts” and “Live View” during setup so you can start monitoring your doorstep right away.
Step 7: Customize Settings and Features
Once your doorbell is online, take time to personalize it for your needs.
Adjust Motion Zones
In the app, go to Device Settings > Motion Settings > Motion Zones. Draw zones to focus on areas like your walkway or driveway. This reduces false alerts from passing cars or trees.
Set Alert Schedules
Use “Smart Alerts” to receive notifications only during certain hours (e.g., 7 AM–10 PM). This prevents nighttime disturbances.
Enable Two-Way Talk
Test the microphone and speaker by using Live View and speaking through the app. Adjust volume if needed.
Review Video Quality
Check the live feed for clarity. If the image is blurry or dark, adjust the doorbell’s angle or clean the lens.
Link to Other Ring Devices
If you have other Ring products (like cameras or alarms), link them in the app for a unified security system.
Pro Tip: Enable “People Only Mode” to reduce alerts from animals or moving objects. This uses AI to detect human shapes.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check that the breaker is on.
- Verify wire connections are tight.
- Test the transformer voltage with a multimeter.
- Ensure the wires aren’t touching each other (short circuit).
Chime Doesn’t Ring
- Confirm the chime is compatible (check Ring’s website).
- Adjust chime settings in the app.
- Try bypassing the chime temporarily to test the doorbell.
Poor Wi-Fi Connection
- Move your router closer or use a Wi-Fi extender.
- Ensure you’re on a 2.4 GHz network.
- Reduce interference from microwaves or cordless phones.
Blurry or Dark Video
- Clean the lens with a soft, dry cloth.
- Adjust the doorbell angle for better lighting.
- Enable “Night Vision” in the app settings.
False Motion Alerts
- Refine motion zones to exclude busy streets or trees.
- Lower motion sensitivity in the app.
- Enable “People Only Mode.”
Pro Tip: If problems persist, contact Ring Support through the app. They offer live chat and phone assistance.
Maintenance and Upkeep
To keep your Ring Doorbell working smoothly, perform regular maintenance.
Clean the Lens Monthly
Use a microfiber cloth to wipe away dust, dirt, or spider webs. Avoid harsh chemicals.
Check Wi-Fi Signal
Periodically test the connection in the app. A weak signal can cause lag or disconnections.
Update Firmware
The Ring app will notify you when updates are available. Install them to improve performance and security.
Inspect Wiring Annually
Make sure wires are secure and not frayed. Loose connections can cause power issues.
Pro Tip: Add your Ring Doorbell to a smart home routine. For example, have it turn on exterior lights when motion is detected.
Conclusion
Installing the Ring Doorbell Wired 2nd Generation is a smart, cost-effective way to upgrade your home security. With clear wiring, proper tools, and this step-by-step guide, you can complete the installation in under 30 minutes. From turning off the power to customizing motion zones in the app, every step ensures your doorbell works reliably and efficiently.
Remember to check compatibility, use the mounting bracket, and test everything before finishing. And don’t forget to keep your device updated and clean for the best performance. Once installed, you’ll enjoy real-time alerts, crystal-clear video, and the peace of mind that comes with knowing your home is protected—day and night.
Whether you’re a DIY beginner or a seasoned home improver, this project is well within your reach. So grab your tools, download the Ring app, and take the first step toward a smarter, safer home today.
