This guide walks you through installing your Ring Doorbell Wired with Chime from start to finish. You’ll learn how to safely wire it, connect the chime, and test everything for reliable performance.
Key Takeaways
- Turn off power at the breaker: Always shut off electricity before working on doorbell wiring to prevent shocks or damage.
- Use the right tools: A voltage tester, screwdriver, drill, and wire strippers are essential for a smooth installation.
- Check compatibility: Ensure your existing doorbell transformer provides 8–24V AC and your chime is mechanical (not digital).
- Follow the Ring app: The app guides setup, Wi-Fi connection, and chime pairing for a seamless experience.
- Test before finalizing: Power on and test the doorbell and chime before securing everything in place.
- Troubleshoot common issues: No sound? Check wiring, voltage, or chime settings in the app.
- Keep wires neat and secure: Use wire nuts and clips to prevent loose connections and tripping hazards.
How to Install Ring Doorbell Wired with Chime
Installing a Ring Doorbell Wired with Chime is a smart way to upgrade your home security without breaking the bank. Unlike battery-powered models, the wired version connects directly to your home’s existing doorbell wiring, giving you constant power and reliable performance. Plus, when someone presses the button, both the doorbell and your indoor chime will sound—just like a traditional doorbell, but with modern features like motion alerts, live video, and two-way talk.
In this guide, we’ll walk you through every step of installing your Ring Doorbell Wired with Chime. Whether you’re a DIY beginner or a seasoned home improver, you’ll find clear, easy-to-follow instructions. We’ll cover everything from checking compatibility and gathering tools to wiring, mounting, and troubleshooting. By the end, you’ll have a fully functional smart doorbell that keeps your home safe and connected.
Let’s get started!
What You’ll Need Before You Begin

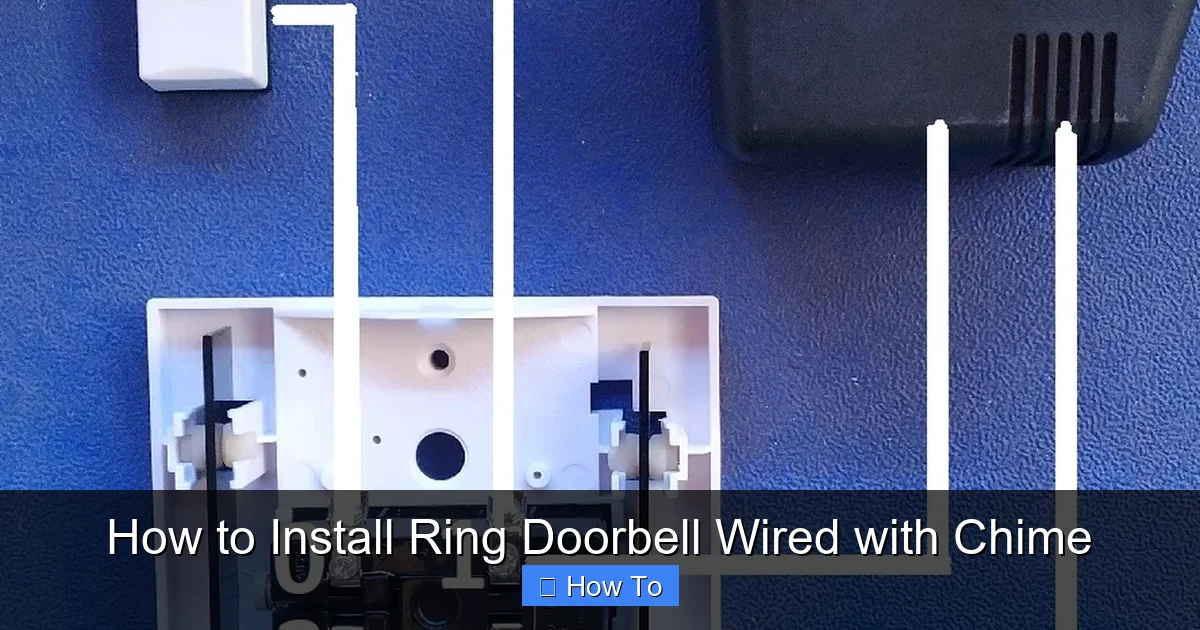

Visual guide about How to Install Ring Doorbell Wired with Chime
Image source: mrdoorbells.com.au
Before you touch a single wire, make sure you have all the right tools and materials. Skipping this step can lead to frustration, delays, or even safety risks.
Here’s a checklist of what you’ll need:
- Ring Doorbell Wired with Chime kit – This includes the doorbell, mounting bracket, screws, wire nuts, and the chime unit.
- Screwdriver (Phillips and flathead) – For removing old doorbell and mounting new hardware.
- Drill and drill bits – To create pilot holes for mounting screws.
- Voltage tester – To confirm power is off and check transformer voltage.
- Wire strippers – To expose fresh wire ends if needed.
- Pencil or marker – For marking drill spots.
- Level – To ensure your doorbell is straight.
- Smartphone with Ring app installed – Required for setup and configuration.
- Ladder (if needed) – For reaching high doorbell locations.
Having these tools ready will save you time and help you avoid mid-installation trips to the hardware store.
Step 1: Turn Off the Power
Safety first! Working with electrical wiring can be dangerous if you don’t take proper precautions. Even though doorbell systems use low voltage, there’s still a risk of shock or short-circuiting your device.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for the breaker labeled “doorbell,” “chime,” or something similar. If you don’t see a label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “OFF” position. To be extra safe, use a voltage tester on the doorbell wires at the doorbell location to confirm no power is flowing.
Pro Tip: Place a piece of tape over the breaker switch with a note like “Do not turn on – working on doorbell.” This prevents someone else from accidentally restoring power while you’re working.
Step 2: Remove Your Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell.
Unscrew the Old Doorbell
Use a screwdriver to remove the screws holding your current doorbell to the wall. Gently pull the doorbell away from the wall to expose the two wires connected to it.
Disconnect the Wires
Loosen the terminal screws or pull the wires out of the back of the old doorbell. Be careful not to let the wires slip back into the wall. If they do, you may need a fish tape or wire puller to retrieve them.
Cap the Wires (Temporarily)
Twist a wire nut onto each exposed wire to prevent them from touching each other or any metal surface. This keeps things safe while you prepare for the new installation.
Step 3: Check Compatibility
Not all doorbell systems are compatible with Ring Doorbell Wired. Before you proceed, verify that your setup meets the requirements.
Check Transformer Voltage
Your doorbell transformer should output between 8 and 24 volts AC. Most older homes have 16V transformers, which work perfectly. Use a multimeter or voltage tester to check the voltage across the two doorbell wires.
What if your voltage is too low? If it’s below 8V, your Ring doorbell may not work reliably. You’ll need to upgrade your transformer. Ring sells compatible transformers, or you can hire an electrician.
Confirm Chime Type
The Ring Doorbell Wired with Chime is designed to work with mechanical chimes—the kind with physical hammers that strike metal bars. It does not work with digital or electronic chimes that use circuits and speakers.
To check, open your indoor chime box (usually near the front door). If you see two wires connected to terminals labeled “Front” and “Trans,” and the chime makes a physical “ding-dong” sound, it’s mechanical.
If you have a digital chime, you can still use the Ring Doorbell Wired, but you’ll need to bypass the chime or use a Ring Chime Pro (sold separately) for indoor alerts.
Step 4: Install the Ring Chime
The Ring Chime is a small device that plugs into a standard wall outlet inside your home. It syncs with your doorbell and plays a customizable sound when the button is pressed.
Choose a Location
Pick a spot near your existing chime or in a central area where you’ll hear it clearly. Avoid placing it behind furniture or in a closet.
Plug in the Chime
Insert the Ring Chime into a grounded (three-prong) outlet. Make sure the outlet is working—test it with a lamp or phone charger if needed.
Pair the Chime with the Doorbell
Open the Ring app on your phone. Tap the three lines in the top-left corner, then go to Devices > Set Up a Device > Chime. Follow the on-screen instructions to connect the chime to your Wi-Fi network.
The app will guide you through naming the chime, selecting a sound, and testing it. You can choose from classic “ding-dong,” modern tones, or even seasonal sounds like “Jingle Bells.”
Pro Tip: You can adjust the volume and disable the chime during certain hours (like nighttime) in the app settings.
Step 5: Prepare the Doorbell Wires
Now it’s time to get the wires ready for your new Ring Doorbell.
Strip the Wire Ends
If the exposed ends of your doorbell wires are frayed or too short, use wire strippers to remove about 1/4 inch of insulation. This ensures a clean, solid connection.
Twist the Wires
Twist the bare copper ends gently to keep them neat and prevent stray strands.
Keep Wires Separated
Make sure the two wires don’t touch each other. If they do, it could cause a short circuit when power is restored.
Step 6: Mount the Ring Doorbell
With the wires ready, it’s time to install the doorbell itself.
Attach the Mounting Bracket
Hold the Ring mounting bracket against the wall where you want the doorbell. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill pilot holes if needed, then secure the bracket with the provided screws. Make sure it’s tight and stable.
Connect the Wires
Thread the two doorbell wires through the back of the Ring Doorbell. Connect one wire to each terminal screw on the back of the device. It doesn’t matter which wire goes where—Ring doorbells are not polarity-sensitive.
Tighten the screws securely, but don’t over-tighten, as this can damage the terminals.
Snap the Doorbell into Place
Align the doorbell with the mounting bracket and press it firmly until it clicks into place. Give it a gentle tug to make sure it’s secure.
Step 7: Restore Power and Test
You’re almost done! Now it’s time to turn the power back on and test your setup.
Turn the Breaker Back On
Return to your electrical panel and switch the doorbell breaker back to “ON.”
Wait for the Doorbell to Power Up
The Ring Doorbell will light up and begin initializing. This may take a minute or two.
Open the Ring App
Launch the Ring app and follow the setup prompts. The app will detect your new doorbell and guide you through connecting it to your Wi-Fi network.
You’ll need to enter your Wi-Fi password and wait for the connection to complete. A solid green light on the doorbell means it’s online.
Test the Doorbell and Chime
Press the doorbell button. You should hear the sound from both the doorbell itself and the indoor chime.
If the chime doesn’t sound, check the following:
- Is the chime plugged in and powered?
- Is it paired correctly in the app?
- Are the doorbell wires connected properly?
You can also test motion detection by walking in front of the doorbell. The app should send you a notification.
Step 8: Adjust Settings and Customize
Once everything is working, take a few minutes to personalize your Ring Doorbell.
Set Motion Zones
In the Ring app, go to your device settings and adjust the motion zones. You can exclude areas like busy sidewalks or trees to reduce false alerts.
Choose Notification Preferences
Decide when you want to receive alerts—immediately, during certain hours, or only for specific events.
Enable Two-Way Talk
Test the microphone and speaker by talking through the app when someone is at the door. Adjust volume levels if needed.
Update Firmware
Ring regularly releases updates to improve performance and security. The app will notify you when an update is available.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Doorbell Doesn’t Power On
- Double-check that the breaker is on.
- Use a voltage tester to confirm power at the wires.
- Ensure wires are securely connected and not touching.
- Try reseating the doorbell on the bracket.
Chime Doesn’t Ring
- Verify the chime is plugged in and paired in the app.
- Check that your indoor chime is mechanical (not digital).
- Test the doorbell wires with a multimeter—low voltage can prevent chime activation.
Poor Wi-Fi Connection
- Move your router closer or use a Wi-Fi extender.
- Ensure the doorbell is within range (typically 100–150 feet).
- Restart your router and the doorbell.
False Motion Alerts
- Adjust motion zones to exclude moving branches or passing cars.
- Lower the motion sensitivity in the app.
- Clean the doorbell lens to remove dirt or spider webs.
App Not Connecting
- Make sure your phone is on the same Wi-Fi network.
- Restart the app and your phone.
- Reinstall the Ring app if needed.
Final Tips for a Successful Installation
- Label your wires if you ever need to remove the doorbell later.
- Use wire clips to secure loose wires to the wall and prevent them from slipping back.
- Clean the doorbell lens monthly to maintain video quality.
- Check battery levels on the chime (if it’s a battery-powered model) every few months.
- Keep the app updated to access new features and security patches.
Conclusion
Installing a Ring Doorbell Wired with Chime is a straightforward project that can significantly boost your home’s security and convenience. By following this guide, you’ve safely connected your doorbell to your home’s wiring, set up the indoor chime, and customized your settings for the best experience.
Remember, the key to success is preparation—turning off the power, checking compatibility, and using the right tools. With a little patience and attention to detail, you’ll have a reliable smart doorbell that alerts you to visitors, packages, and unexpected motion.
Now that your Ring Doorbell is up and running, enjoy peace of mind knowing you can see and speak to anyone at your door—no matter where you are. Welcome to the future of home security!
