This guide walks you through installing a Ring Doorbell Wired even if you don’t have an existing doorbell chime. You’ll learn how to wire it directly to your home’s electrical system, use a plug-in chime, or go completely chime-free with app notifications.
Key Takeaways
- No existing chime? No problem: You can still install Ring Doorbell Wired using alternative power and notification methods.
- Use a plug-in chime for sound: If you want audible alerts, a compatible plug-in chime lets you hear the doorbell inside your home.
- Direct wiring is possible: With basic electrical knowledge, you can connect the doorbell directly to your home’s low-voltage transformer.
- App notifications replace chimes: The Ring app sends real-time alerts to your phone, tablet, or Echo device—no physical chime needed.
- Always turn off power first: Safety is critical—always shut off power at the breaker before working with wires.
- Check voltage requirements: Your doorbell transformer must output 8–24V AC for the Ring Doorbell Wired to work properly.
- Test before final mounting: Always test the doorbell and app connection before securing it permanently to your doorframe.

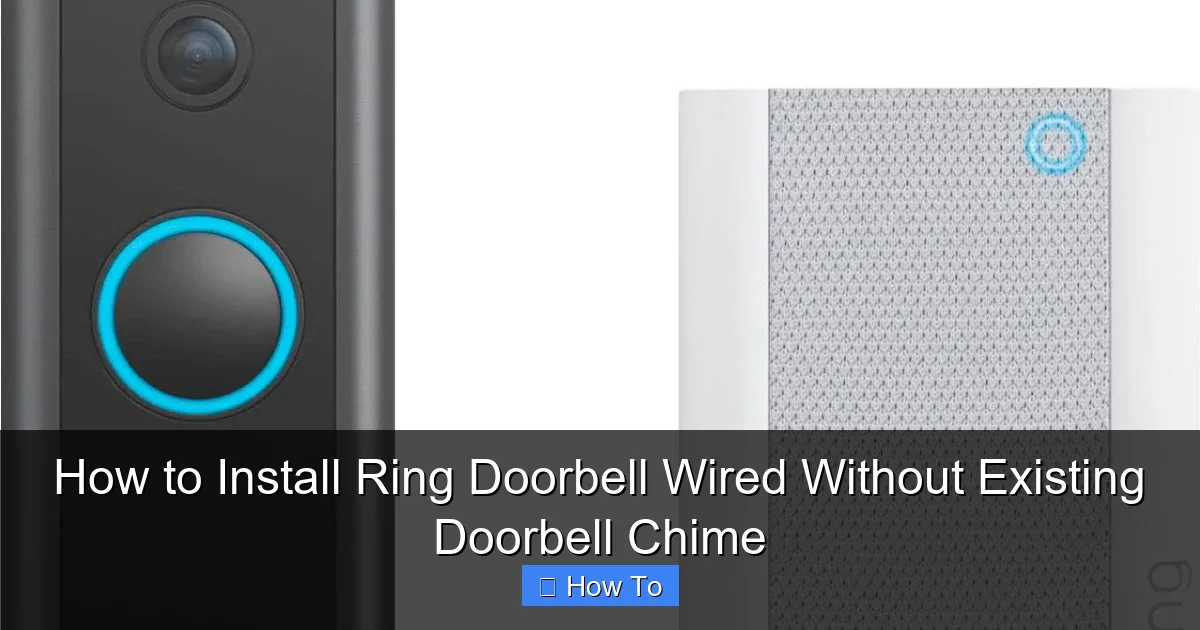

How to Install Ring Doorbell Wired Without Existing Doorbell Chime
So, you’ve got a new Ring Doorbell Wired—congrats! It’s a smart upgrade that brings peace of mind, motion alerts, and two-way talk right to your smartphone. But here’s the catch: you don’t have an existing doorbell chime. Maybe your old doorbell was wireless, or the wiring was removed years ago. No worries! You can still install your Ring Doorbell Wired and enjoy all its features—even without a traditional chime.
In this guide, we’ll walk you through every step of installing your Ring Doorbell Wired when there’s no existing doorbell chime. Whether you want to wire it directly to your home’s electrical system, use a plug-in chime, or go completely chime-free with app notifications, we’ve got you covered. We’ll explain the tools you need, safety tips, wiring options, and troubleshooting advice—all in simple, easy-to-follow steps.
By the end of this guide, you’ll have a fully functional smart doorbell that keeps you connected to your front door, no matter where you are. Let’s get started!
What You’ll Need Before You Begin
Visual guide about How to Install Ring Doorbell Wired Without Existing Doorbell Chime
Image source: storables.com
Before you grab your screwdriver, take a moment to gather everything you’ll need. Having the right tools and materials on hand will make the installation smoother and safer.
Tools and Materials
- Ring Doorbell Wired (obviously!)
- Phillips-head screwdriver
- Drill (optional, for mounting)
- Wire strippers
- Voltage tester (non-contact)
- Electrical tape
- Wire nuts (usually included with Ring)
- Smartphone with the Ring app installed
- Wi-Fi network (2.4 GHz recommended)
- Ladder (if your doorbell location is high)
Optional Items
- Plug-in doorbell chime (like the Ring Chime or Chime Pro)
- Low-voltage transformer (if your current one is incompatible)
- Wireless chime kit (if you prefer a battery-powered option)
- Wall anchors (for brick, concrete, or stucco surfaces)
Safety First
Always turn off the power at the circuit breaker before working with any electrical wiring. Even though doorbell systems use low voltage, it’s still important to avoid accidental shocks or short circuits. Use a non-contact voltage tester to confirm the wires are not live before touching them.
Understanding Your Doorbell Wiring Options
Since you don’t have an existing doorbell chime, you have a few options for powering and alerting your Ring Doorbell Wired. Let’s break them down so you can choose the best one for your home.
Option 1: Wire Directly to a Transformer
This is the most common and reliable method. Most homes have a doorbell transformer—a small device that steps down your home’s 120V power to 8–24V AC, which is safe for doorbells. Even if you don’t have a chime, the transformer might still be in place, usually located in your basement, garage, or electrical panel.
If your transformer is working and outputs the correct voltage (8–24V AC), you can wire your Ring Doorbell Wired directly to it. This provides constant power and allows the doorbell to function fully, including live view and motion detection.
Option 2: Use a Plug-in Chime
If you want to hear a traditional doorbell sound inside your home, a plug-in chime is a great solution. Devices like the Ring Chime or Chime Pro plug into any standard outlet and sync with your Ring Doorbell via Wi-Fi. When someone presses the button, the chime plays a sound—just like an old-school doorbell.
This option is perfect if you don’t have existing wiring or prefer a wireless setup. It’s also ideal for renters who can’t modify walls.
Option 3: Go Chime-Free with App Notifications
If you don’t mind skipping the audible chime, you can rely entirely on the Ring app for alerts. When someone rings the doorbell or motion is detected, you’ll get a notification on your phone, tablet, or smart speaker (like an Echo device). You can also set up Alexa routines to announce visitors through your Echo speakers.
This is the simplest option if you’re okay with digital alerts and don’t need a physical sound inside your home.
Step-by-Step Installation Guide
Now that you know your options, let’s walk through the installation process. We’ll cover wiring directly to a transformer, using a plug-in chime, and setting up app notifications.
Step 1: Turn Off the Power
Safety first! Go to your home’s main electrical panel and locate the breaker that controls your doorbell circuit. It’s often labeled “doorbell,” “chime,” or “front door.” Flip the breaker to the OFF position.
Use a non-contact voltage tester to double-check that the wires at your doorbell location are not live. Touch the tester to the wires—if it beeps or lights up, the power is still on. Wait a few minutes and test again.
Step 2: Remove the Old Doorbell (If Any)
If there’s an old doorbell button or mounting plate, unscrew it from the wall. Carefully pull it away to expose the wires. You should see two wires—usually labeled “front” and “trans” or “transformer.”
Take a photo of the wiring before disconnecting anything. This will help you remember how to reconnect them later.
Step 3: Check Your Transformer Voltage
Your Ring Doorbell Wired needs 8–24V AC to work properly. If your transformer is old or outputs too little voltage (below 8V), the doorbell may not function correctly.
To check the voltage:
- Turn the power back on temporarily.
- Set a multimeter to AC voltage.
- Touch the probes to the two doorbell wires.
- Read the voltage on the display.
If the voltage is within 8–24V, you’re good to go. If it’s too low, you may need to replace the transformer. Ring sells a compatible transformer, or you can buy one from a hardware store.
Step 4: Prepare the Wires
Strip about 1/4 inch of insulation from the ends of the two wires using wire strippers. This exposes the copper so they can make a solid connection with the Ring Doorbell.
If the wires are frayed or damaged, trim them back and strip fresh ends.
Step 5: Connect the Wires to the Ring Doorbell
Take your Ring Doorbell Wired out of the box. You’ll see two terminals on the back—usually labeled “Front” and “Trans.”
Loosen the screws on the terminals, insert the stripped wires, and tighten the screws to secure them. It doesn’t matter which wire goes where—the Ring Doorbell is non-polarized.
Wrap the connections with electrical tape for extra safety, especially if the wires are close to each other.
Step 6: Mount the Doorbell
Hold the doorbell against the wall where you want to install it. Use the included mounting bracket as a template to mark screw holes.
Drill pilot holes if needed, then secure the bracket with screws. Make sure it’s level—use a bubble level if you have one.
Snap the doorbell onto the bracket. It should click into place.
Step 7: Turn the Power Back On
Go back to the breaker panel and flip the doorbell breaker back to ON.
Wait about 30 seconds for the doorbell to power up. The LED on the front should light up.
Step 8: Set Up the Ring App
Open the Ring app on your smartphone. If you don’t have it, download it from the App Store or Google Play.
Tap “Set Up a Device” and select “Doorbells.” Choose “Ring Doorbell Wired.”
Follow the on-screen instructions to connect the doorbell to your Wi-Fi network. You’ll need to scan the QR code on the doorbell or enter the serial number manually.
Once connected, the app will guide you through motion zones, notification settings, and chime options.
Step 9: Test the Doorbell
Press the doorbell button. You should see a live video feed in the app and hear a sound (if you have a chime or Echo device set up).
Walk around your property to test motion detection. Adjust the motion zones in the app if needed.
Using a Plug-in Chime (Optional)
If you want to hear a traditional doorbell sound, a plug-in chime is a great addition. Here’s how to set it up.
Choose a Compatible Chime
Ring offers two plug-in options:
- Ring Chime: Plays a variety of sounds and connects via Wi-Fi.
- Ring Chime Pro: Includes a Wi-Fi extender to boost your signal and improve doorbell performance.
You can also use third-party wireless chimes, but Ring’s own devices are easiest to set up.
Plug In the Chime
Find a nearby outlet—ideally within 100 feet of your doorbell. Plug in the chime and wait for it to power on.
Open the Ring app and go to “Devices” > “Chime” > “Set Up.” Follow the prompts to pair it with your doorbell.
Customize the Sound
In the app, you can choose from different chime sounds, adjust the volume, and set quiet hours.
Now, when someone presses your doorbell, you’ll hear the sound from the chime—even if you’re in another room.
Going Chime-Free: Relying on App Notifications
If you don’t want or need a physical chime, you can use the Ring app and smart speakers for alerts.
Enable Push Notifications
In the Ring app, go to “Device Settings” > “Notifications.” Make sure “Doorbell Press” and “Motion” are turned on.
You’ll get a pop-up notification on your phone whenever someone rings the doorbell or motion is detected.
Connect to Alexa
If you have an Echo device, link your Ring account to Alexa:
- Open the Alexa app.
- Go to “Skills & Games” and search for “Ring.”
- Enable the skill and log in with your Ring account.
Now, when the doorbell is pressed, Alexa can say, “Someone is at the front door,” or play a custom sound.
You can also say, “Alexa, show me the front door,” to view the live feed on an Echo Show.
Use Smart Displays and Tablets
If you have a Fire tablet or Echo Show, you can set it to display the doorbell feed when motion is detected. This is great for kitchens or living rooms.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Doorbell Won’t Power On
- Check that the breaker is on.
- Use a voltage tester to confirm power at the wires.
- Make sure the wires are securely connected to the terminals.
- Test with a multimeter—voltage should be 8–24V AC.
Weak or No Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Consider the Ring Chime Pro, which boosts signal.
- Avoid installing the doorbell behind metal doors or thick walls.
App Notifications Not Working
- Check that notifications are enabled in the Ring app and your phone’s settings.
- Make sure your phone isn’t in Do Not Disturb mode.
- Reconnect the doorbell to Wi-Fi if needed.
Chime Not Playing Sound
- Ensure the chime is plugged in and paired with the doorbell.
- Check the volume and sound settings in the app.
- Restart the chime by unplugging it for 10 seconds.
Video Quality Is Poor
- Clean the camera lens with a soft cloth.
- Adjust the angle to avoid glare from sunlight.
- Ensure strong Wi-Fi signal for HD streaming.
Tips for a Successful Installation
Here are a few pro tips to make your installation even smoother:
- Choose the right height: Mount the doorbell about 48 inches from the ground—eye level for most adults.
- Angle it slightly: Tilt the doorbell slightly toward the walkway to improve motion detection.
- Use weatherproofing: If installing in a rainy area, consider a weatherproof cover or overhang.
- Label your wires: If you ever need to remove the doorbell, labeled wires save time.
- Update firmware: Check the Ring app regularly for firmware updates to keep your doorbell running smoothly.
Conclusion
Installing a Ring Doorbell Wired without an existing doorbell chime is totally doable—and doesn’t have to be complicated. Whether you wire it directly to your transformer, add a plug-in chime, or rely on app notifications, you can enjoy all the benefits of smart doorbell technology.
The key is to take your time, follow safety steps, and test everything before finalizing the setup. With the right tools and a little patience, you’ll have a secure, connected front door in no time.
Remember: no chime? No problem. Your phone, tablet, or smart speaker can do the job just fine. And if you ever change your mind, you can always add a chime later.
So go ahead—upgrade your entryway with confidence. Your future self will thank you every time you see a delivery person on your screen instead of opening the door blind.
