This guide walks you through how to install Ring Doorbell with angle bracket for optimal viewing angles on sloped or uneven walls. You’ll learn tools needed, step-by-step mounting, wiring tips, and troubleshooting for a secure, professional setup.
Key Takeaways
- Angle brackets improve video coverage: They help position your Ring Doorbell at the ideal angle for better motion detection and clearer footage, especially on sloped or corner walls.
- Use the right tools: A drill, level, screwdriver, and voltage tester are essential for a safe and secure installation.
- Check power compatibility: Most Ring Doorbells work with standard doorbell transformers (8–24V AC), but verify your system before wiring.
- Follow the Ring app setup: The app guides you through Wi-Fi connection, device registration, and angle adjustment after mounting.
- Secure the bracket properly: Tighten all screws and ensure the bracket is flush against the wall to prevent wobbling or misalignment.
- Test before finalizing: Always test the doorbell’s view and motion zones before completing the installation.
- Troubleshoot common issues: If the doorbell doesn’t power on or the view is off, check wiring, Wi-Fi, or bracket alignment.
How to Install Ring Doorbell with Angle Bracket
Installing a Ring Doorbell is a smart way to boost your home security. But if your front door is on a sloped wall, near a corner, or surrounded by uneven surfaces, the standard flat mounting might not give you the best view. That’s where the Ring Doorbell angle bracket comes in. This simple accessory adjusts the angle of your doorbell so you get a clear, wide view of your doorstep, driveway, or walkway.
In this guide, we’ll walk you through how to install Ring Doorbell with angle bracket step by step. Whether you’re replacing an old doorbell or installing a new one, this guide covers everything—from tools and prep to wiring, mounting, and testing. By the end, you’ll have a securely mounted, perfectly angled Ring Doorbell ready to protect your home.
Why Use an Angle Bracket?

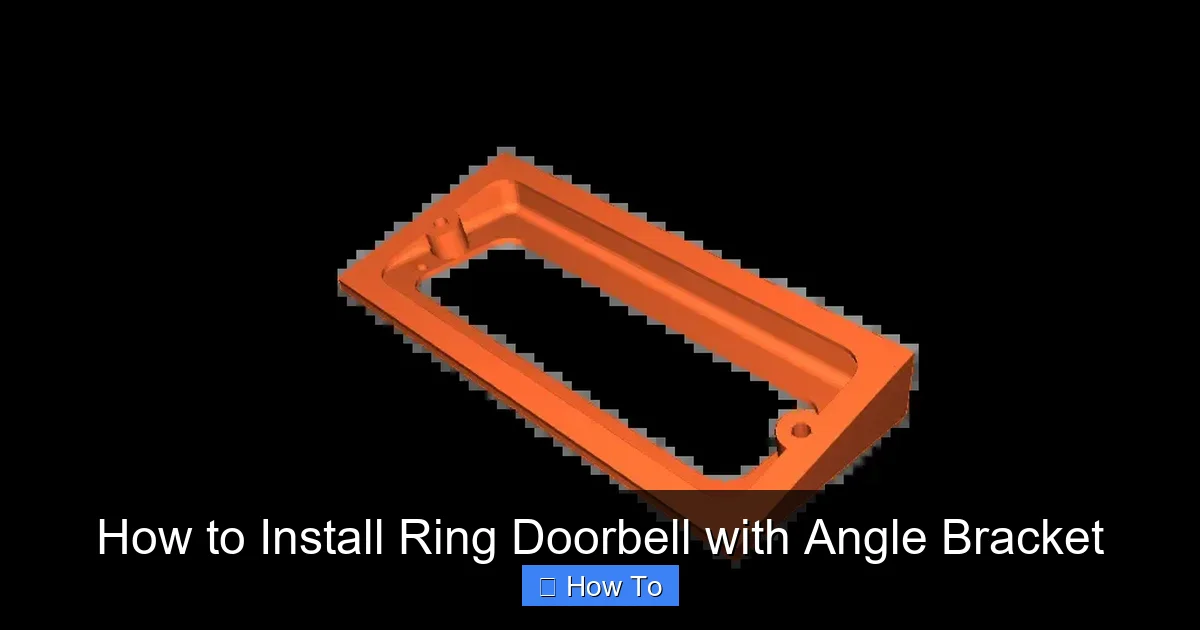

Visual guide about How to Install Ring Doorbell with Angle Bracket
Image source: media.printables.com
Before diving into the installation, it’s important to understand why you might need an angle bracket. Ring Doorbells are designed to be mounted flat against a wall. But in real-world homes, walls aren’t always perfect. You might have:
– A door that’s set back from the wall
– A sloped or angled exterior wall
– A corner entryway
– A doorbell box that’s not aligned with the door
In these cases, mounting the doorbell flat can result in a skewed view—missing packages, cutting off visitors’ faces, or failing to detect motion. The angle bracket solves this by letting you tilt the doorbell forward, backward, or sideways for optimal coverage.
Ring offers two types of angle brackets:
– Wedge Kit: Tilts the doorbell forward (up to 15 degrees)
– Corner Kit: Mounts the doorbell at a 30- or 45-degree angle for corner installations
Both kits include mounting screws, anchors, and instructions. They’re compatible with most Ring Doorbell models, including Ring Video Doorbell (2nd Gen), Ring Video Doorbell 3, 3 Plus, 4, Pro, and Pro 2.
Tools and Materials You’ll Need
Before starting, gather these tools and materials to ensure a smooth installation:
- Ring Doorbell (with included mounting plate)
- Ring Angle Bracket (Wedge or Corner Kit)
- Power drill with drill bits (2.5mm and 4mm recommended)
- Screwdriver (Phillips head)
- Level (to ensure straight mounting)
- Pencil (for marking drill points)
- Voltage tester (to confirm power is off)
- Wire strippers (if reusing existing wires)
- Safety goggles and gloves
- Optional: Stud finder (if mounting into wood or studs)
Most Ring kits include the necessary screws and anchors, but double-check your angle bracket package to confirm.
Step 1: Turn Off Power and Remove Old Doorbell
Safety first! Before touching any wires, turn off the power to your doorbell at the circuit breaker. Use a voltage tester to confirm the wires are not live.
Remove the Existing Doorbell
If you’re replacing an old doorbell:
- Unscrew the old doorbell from the wall.
- Gently pull it away to expose the wires.
- Take a photo of the wiring setup for reference.
- Disconnect the wires by loosening the terminal screws.
- Cap the wires with wire nuts or electrical tape to prevent shorting.
If you’re installing on a new location with no existing doorbell, skip to the next step—but you’ll still need to run wires from your doorbell transformer (usually located in the basement, attic, or near your electrical panel).
Step 2: Choose the Right Angle Bracket
Decide which angle bracket fits your setup:
– Use the Wedge Kit if your door is set back or the wall slopes inward. This tilts the doorbell forward for a better downward view.
– Use the Corner Kit if your door is in a corner or you want to monitor a side walkway. This mounts the doorbell at an angle to cover more area.
Each kit includes a base plate that attaches to the wall and a mounting plate that holds the doorbell. The angle is fixed, so choose wisely based on your home’s layout.
Step 3: Plan the Mounting Location
The ideal height for a Ring Doorbell is between 48 and 52 inches from the ground. This ensures clear facial recognition and minimizes tampering.
Check for Obstructions
Look for:
– Overhangs or gutters that block the view
– Windows or reflective surfaces that cause glare
– Plants or decorations that might trigger false motion alerts
Test the Wi-Fi Signal
Use your phone to check Wi-Fi strength at the installation spot. Ring recommends at least -60 dBm for reliable streaming. If the signal is weak, consider a Wi-Fi extender or mesh network.
Mark the Drill Points
Hold the angle bracket’s base plate against the wall at the desired height. Use a level to ensure it’s straight. Mark the screw holes with a pencil.
Step 4: Drill Holes and Install the Angle Bracket
Now it’s time to mount the bracket.
Drill Pilot Holes
Using a 2.5mm drill bit, drill pilot holes at the marked points. This prevents the wall from cracking, especially on brick or stucco.
Insert Wall Anchors (If Needed)
If you’re mounting into drywall, plaster, or masonry, use the included wall anchors. Tap them gently into the pilot holes with a hammer until flush.
Attach the Base Plate
Line up the base plate with the holes and secure it using the provided screws. Tighten firmly, but don’t over-tighten—this can strip the anchors or damage the bracket.
Double-Check Alignment
Use the level again to confirm the bracket is straight. Adjust if needed before the screws are fully tightened.
Step 5: Connect the Wires
Now connect your doorbell wires to the Ring Doorbell.
Strip the Wire Ends
If reusing old wires, strip about 1/4 inch of insulation from each wire using wire strippers. Twist the exposed copper to prevent fraying.
Attach Wires to the Doorbell
Most Ring Doorbells have two terminal screws (labeled “Front” and “Trans”). It doesn’t matter which wire goes where—just ensure both are connected securely.
- Loosen the terminal screws.
- Insert one wire under each screw.
- Tighten the screws to hold the wires in place.
If your doorbell has a wire harness (like the Ring Video Doorbell Pro), connect the wires to the harness instead.
Secure the Wires
Tuck the wires neatly behind the bracket to avoid pinching or damage.
Step 6: Attach the Ring Doorbell to the Bracket
With the bracket mounted and wires connected, it’s time to attach the doorbell.
Align the Mounting Plate
Slide the Ring Doorbell’s mounting plate onto the angle bracket. It should click into place.
Secure with Screws
Use the security screw (included in the Ring kit) to lock the doorbell to the bracket. Insert it through the bottom of the mounting plate and tighten with a screwdriver. This prevents tampering.
Check the Angle
Look through the Ring app (once powered on) to confirm the camera view is correct. If the angle is off, you may need to adjust the bracket or choose a different kit.
Step 7: Power On and Set Up in the Ring App
Turn the power back on at the circuit breaker. The Ring Doorbell should light up and begin charging (if battery-powered) or power on immediately (if wired).
Download the Ring App
If you haven’t already, download the free Ring app on your smartphone (iOS or Android).
Add Your Device
- Open the app and tap “Set Up a Device.”
- Select “Doorbells” and follow the prompts.
- Scan the QR code on the back of your doorbell.
- Connect to your Wi-Fi network (2.4 GHz recommended for better range).
- Name your doorbell (e.g., “Front Door”).
Adjust Motion Zones and Settings
Once connected:
– Go to Device Settings > Motion Settings.
– Adjust the motion zones to focus on your doorstep and avoid false alerts from passing cars or trees.
– Enable Smart Alerts if available (uses AI to distinguish people, packages, etc.).
Test the View
Use the Live View feature to check the camera angle. Make sure visitors’ faces are visible and packages are in frame. If the angle is wrong, you may need to reposition the bracket or try a different angle kit.
Step 8: Final Checks and Troubleshooting
Before calling the job done, perform these final checks:
Test the Doorbell Button
Press the button to ensure it chimes inside your home and sends a notification to your phone.
Check Night Vision and Audio
Test the doorbell at night to confirm infrared night vision works. Speak to the camera to test two-way audio.
Verify Power Supply
If your doorbell keeps losing power or won’t turn on, check:
– The transformer voltage (should be 8–24V AC)
– Wire connections (loose wires can cause intermittent power)
– Use a Ring Chime Pro or Ring Bridge if needed for stable power
Troubleshooting Common Issues
- Doorbell won’t power on: Check circuit breaker, wire connections, and transformer voltage. Use a multimeter to test.
- Blurry or dark video: Clean the lens with a microfiber cloth. Ensure the doorbell isn’t facing direct sunlight or bright lights.
- Weak Wi-Fi signal: Move your router closer or install a Wi-Fi extender. Avoid mounting near metal objects or thick walls.
- False motion alerts: Adjust motion zones in the app. Exclude areas like roads or trees.
- Doorbell falls off: Ensure the security screw is tightened and the bracket is securely mounted. Use longer screws if needed for stud mounting.
Tips for a Professional-Looking Installation
– Use cable clips: Secure wires along the wall with adhesive or screw-in clips for a clean look.
– Paint the bracket: If the bracket doesn’t match your wall, use outdoor paint to blend it in.
– Label wires: If you ever need to remove the doorbell, labeled wires make reinstallation easier.
– Schedule regular checks: Every few months, inspect the mount for looseness and clean the camera lens.
Conclusion
Installing a Ring Doorbell with an angle bracket is a straightforward DIY project that can dramatically improve your home security. By using the right bracket for your wall type and following these steps carefully, you’ll get a clear, wide-angle view of your entryway—no more missed deliveries or blurry footage.
Remember: the key to success is planning. Choose the correct angle bracket, test your Wi-Fi, and double-check alignment before drilling. With the right tools and a little patience, you’ll have a secure, professional-looking installation in under an hour.
Whether you’re upgrading from an old doorbell or adding smart security for the first time, the Ring Doorbell with angle bracket gives you peace of mind and better visibility. So grab your drill, follow this guide, and enjoy smarter, safer home monitoring.
