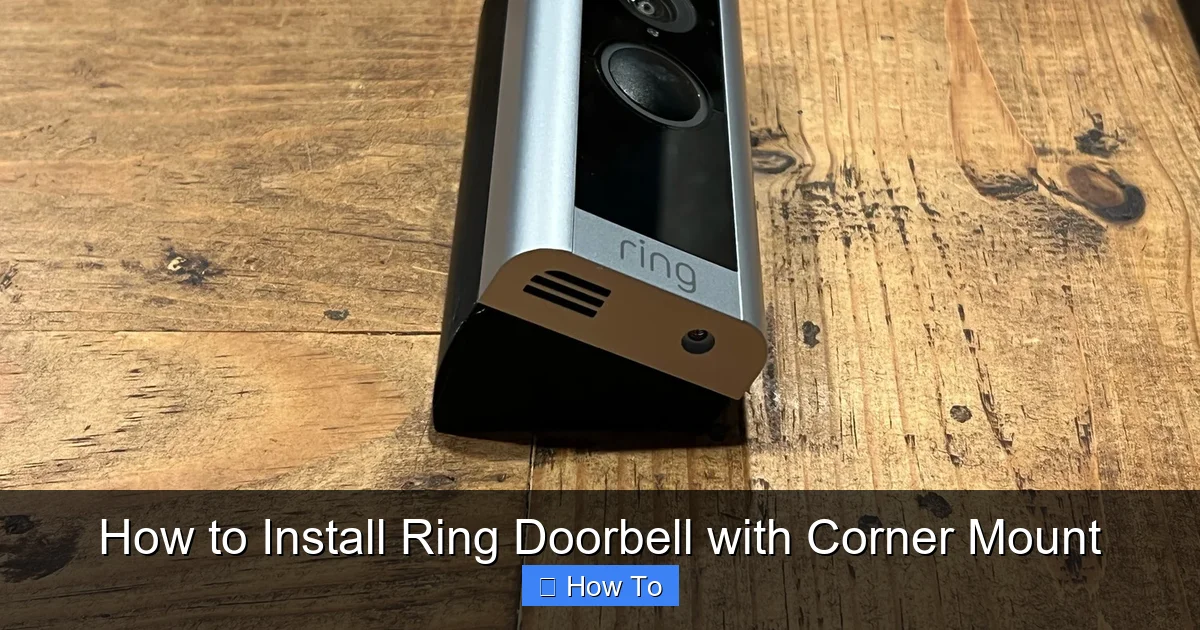

How to Install Ring Doorbell with Corner Mount

Installing a Ring Doorbell with a corner mount gives you better coverage and a cleaner look, especially on angled exterior walls. This guide walks you through every step—from choosing the right spot to testing your device—so you can secure your home with confidence.

Key Takeaways

• Choose the right corner: Pick a corner that offers a clear view of your entryway and is within Wi-Fi range for reliable connectivity.
• Use the correct mounting bracket: The Ring Corner Mount Kit is specifically designed for angled surfaces and ensures a secure, level installation.
• Turn off power before wiring: Always shut off electricity at the breaker when connecting to existing doorbell wires to avoid shocks or damage.
• Level your device properly: A crooked doorbell affects video quality and motion detection—use a bubble level during installation.
• Test Wi-Fi signal strength: Use the Ring app’s signal checker before finalizing placement to prevent connectivity issues.
• Secure all screws tightly: Loose hardware can cause vibration, poor video, or even device detachment over time.
• Update firmware post-installation: Ensure your Ring Doorbell runs the latest software for optimal performance and security.

Introduction: Why Install a Ring Doorbell with a Corner Mount?

If you’re upgrading your home security, a Ring Doorbell is a smart, user-friendly choice. But if your front door sits at an angle—like on a corner house or a wraparound porch—you might find that a standard flat wall mount doesn’t give you the best view. That’s where the Ring Doorbell with corner mount comes in.

The corner mount allows you to position your Ring device at an optimal angle, giving you a wider field of view and better motion detection coverage. It’s especially useful if your entryway is on the side of your house or if you want to monitor both the front walkway and the side yard. Plus, it looks cleaner and more professional than trying to angle a flat-mounted device.

In this guide, we’ll walk you through the entire process of installing your Ring Doorbell using the official corner mount kit. Whether you’re a DIY beginner or a seasoned home improver, you’ll find clear, step-by-step instructions, helpful tips, and troubleshooting advice to ensure a smooth, successful installation. By the end, you’ll have a secure, well-positioned doorbell that enhances your home’s safety and convenience.

What You’ll Need Before You Start

Before you begin, gather all the tools and materials to avoid mid-installation trips to the hardware store. Here’s a complete checklist:

Required Tools

• Phillips-head screwdriver
• Drill with 1/4-inch drill bit (for masonry or wood)
• Level (bubble or digital)
• Tape measure
• Pencil or marker
• Wire strippers (if connecting to existing doorbell wiring)
• Voltage tester (optional, but recommended for safety)

Ring-Specific Components

• Ring Doorbell (any model: Video Doorbell, Doorbell 2, 3, 3 Plus, 4, or Pro)
• Ring Corner Mount Kit (includes angled bracket, screws, and anchors)
• Ring mounting bracket (usually included with the doorbell)
• Ring security screwdriver (included in the box)
• Chime connector (if connecting to a mechanical chime)

Optional but Helpful

• Smartphone with the Ring app installed
• Wi-Fi signal booster (if your signal is weak at the corner)
• Cable clips or wire covers (for neat wiring)
• Assistant (to hold the device while you work)

Make sure your smartphone has the latest version of the Ring app downloaded and that your Wi-Fi network is active. Also, check that your Ring Doorbell is fully charged if it’s a battery-powered model, or that your existing doorbell wiring provides sufficient voltage (16–24V AC).

Step 1: Choose the Right Location

The success of your installation starts with choosing the best spot. A poorly placed doorbell can lead to blind spots, weak Wi-Fi, or false motion alerts.

Ideal Placement Criteria

• Height: Mount the doorbell between 48 and 60 inches from the ground. This ensures clear facial recognition and avoids tampering.
• Angle: The corner mount should face the main approach to your door—usually the sidewalk or driveway.
• Wi-Fi Range: Stay within 30–50 feet of your router. Use the Ring app’s signal strength tool to test.
• Clear Line of Sight: Avoid obstructions like trees, mailboxes, or overhangs that could block the camera.

Testing Wi-Fi Signal

Open the Ring app and go to Device Health > Signal Strength. Hold your phone where you plan to install the doorbell and check the reading. A green signal (–50 dBm or higher) is ideal. Yellow (–60 to –70 dBm) is acceptable but may cause occasional lag. Red (below –70 dBm) means you’ll need a Wi-Fi extender or a different location.

Example Scenario

Imagine your front door is on the left side of a corner house. The sidewalk approaches from the right. You’d install the corner mount on the right-side wall, angled toward the sidewalk. This gives you a full view of visitors approaching from the main path while keeping the device out of direct sunlight (which can cause glare).

Step 2: Turn Off Power and Remove Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, safety comes first. Even low-voltage systems can cause shocks or damage your new device if mishandled.

Shut Off the Power

1. Locate your home’s electrical panel (breaker box).
2. Find the breaker labeled “doorbell” or “chime.” If unsure, turn off the main power temporarily.
3. Use a voltage tester on the existing doorbell wires to confirm no current is flowing.

Remove the Old Doorbell

• Unscrew the old doorbell from the wall.
• Carefully pull the wires out—don’t cut them yet.
• Cap the wires with wire nuts to prevent them from touching each other or the wall.

If you’re installing on a wall with no existing doorbell, skip to Step 3. But if you’re using the old wires, keep them accessible—they’ll power your Ring Doorbell.

Step 3: Install the Corner Mount Bracket

The corner mount bracket is the key to a secure, angled installation. It’s designed to fit snugly on 90-degree corners and provides a stable base for your Ring device.

Position the Bracket

1. Hold the corner mount bracket against the corner where you want to install the doorbell.
2. Use a level to ensure it’s straight. The bubble should be centered.
3. Mark the screw holes with a pencil.

Drill Pilot Holes

• Use a 1/4-inch drill bit to create pilot holes at the marked spots.
• If drilling into brick, concrete, or stucco, use a masonry bit and wall anchors.
• For wood or siding, pilot holes prevent splitting.

Secure the Bracket

1. Align the bracket with the pilot holes.
2. Insert the provided screws and tighten them with a screwdriver or drill (on low torque).
3. Double-check that the bracket is level and firmly attached.

Pro Tip: If your corner isn’t perfectly 90 degrees, use the adjustable spacers included in the kit to fine-tune the angle. This ensures your doorbell points in the right direction.

Step 4: Connect the Wiring (For Wired Models)

If your Ring Doorbell model supports hardwired installation (like the Ring Video Doorbell Pro or Ring Doorbell 3 Plus), connecting to existing wires provides continuous power and enables advanced features like pre-roll.

Prepare the Wires

• Strip about 1/4 inch of insulation from the ends of the doorbell wires.
• Twist the exposed copper strands to prevent fraying.

Attach Wires to the Bracket

1. Loosen the terminal screws on the back of the corner mount bracket.
2. Insert one wire under each screw (polarity doesn’t matter for AC systems).
3. Tighten the screws securely to hold the wires in place.

Optional: Use a Chime Connector

If you have a mechanical doorbell chime and want it to ring when the button is pressed, install the Ring Chime Connector inside your chime box. This device bridges the gap between your old chime and the new Ring system. Follow the instructions in the Ring app for setup.

Note: Battery-only models (like the standard Ring Video Doorbell) don’t require wiring. Skip this step and proceed to mounting the device.

Step 5: Mount the Ring Doorbell

Now it’s time to attach your Ring Doorbell to the corner mount bracket. This step is straightforward but requires care to avoid dropping the device.

Align the Device

1. Hold the Ring Doorbell against the bracket, aligning the mounting slots.
2. Gently slide the device down until it clicks into place.

Secure with Security Screw

• Use the included security screwdriver to tighten the anti-theft screw at the bottom of the device.
• Do not overtighten—this can crack the casing.

Check the Angle

Look through the Ring app’s live view to confirm the camera angle is correct. You should see the walkway, not the sky or your neighbor’s yard. If needed, slightly adjust the bracket or use the app’s motion zone settings to fine-tune detection areas.

Step 6: Power On and Set Up in the Ring App

With the device mounted, it’s time to bring it to life using the Ring app.

Power Up the Device

• For wired models: Turn the power back on at the breaker. The device should light up.
• For battery models: Insert the charged battery and close the compartment.

Open the Ring App

1. Tap Set Up a Device and select Doorbells.
2. Scan the QR code on the back of your Ring Doorbell or enter the serial number manually.
3. Follow the on-screen prompts to connect to your Wi-Fi network.

Complete Setup

• Name your doorbell (e.g., “Front Door” or “Corner Entry”).
• Set up motion zones to focus on high-traffic areas.
• Enable notifications and choose alert preferences.
• Test the doorbell by pressing the button and checking the live view.

Pro Tip: During setup, the app will ask if you’re using a corner mount. Select “Yes” so the motion detection algorithms adjust for the angled view.

Step 7: Final Adjustments and Testing

A successful installation isn’t complete until you’ve tested everything and made final tweaks.

Test Video Quality

• Check the live view for clarity, color accuracy, and field of view.
• Ensure there’s no glare from windows or bright lights.
• Adjust the angle slightly if needed by loosening the bracket screws.

Test Motion Detection

Walk across the detection zone and verify that the app sends a notification. Adjust the motion zones in the app if the device triggers too often (e.g., from passing cars) or not enough.

Test the Chime

If you connected to a mechanical chime, press the button and listen for the ring. If it doesn’t work, double-check the chime connector installation or consider using the Ring Chime (a standalone device that plugs into an outlet).

Update Firmware

Go to Device Health > Firmware in the app. If an update is available, install it. This ensures your doorbell has the latest security patches and features.

Troubleshooting Common Issues

Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.

Weak Wi-Fi Signal

• Symptom: Video lags, device goes offline frequently.
• Solution: Move your router closer, use a Wi-Fi extender, or switch to a 2.4 GHz network (better range than 5 GHz).

Doorbell Not Powering On

• Symptom: No lights, device unresponsive.
• Solution: Check breaker, verify wire connections, or recharge the battery.

Blurry or Glared Video

• Symptom: Image is washed out or dark.
• Solution: Reposition to avoid direct sunlight, clean the lens, or adjust the angle.

False Motion Alerts

• Symptom: Alerts from wind, trees, or passing cars.
• Solution: Narrow motion zones in the app, lower sensitivity, or install a privacy shield.

Chime Not Ringing

• Symptom: Doorbell lights up but chime doesn’t sound.
• Solution: Ensure the chime connector is properly installed, or use the Ring Chime device.

Maintenance Tips for Long-Term Performance

To keep your Ring Doorbell working smoothly for years, follow these simple maintenance steps:

• Clean the lens monthly with a microfiber cloth to prevent smudges and dirt buildup.
• Check battery levels every 2–3 months (for battery models) and recharge as needed.
• Inspect screws and brackets annually to ensure they’re tight and secure.
• Update the app and firmware regularly to benefit from new features and security improvements.
• Review motion settings seasonally—tree growth or new landscaping may require adjustments.

Conclusion: Enjoy Your Secure, Smart Entryway

Installing a Ring Doorbell with a corner mount might seem intimidating at first, but with the right tools and guidance, it’s a manageable project that pays off in enhanced security and convenience. By following this step-by-step guide, you’ve not only mounted your device securely but also optimized its performance for your unique home layout.

Remember, the key to a successful installation is careful planning—choosing the right spot, testing Wi-Fi, and using the correct mounting hardware. Whether you’re monitoring a busy sidewalk or a quiet side entrance, your Ring Doorbell now provides a clear, reliable view of who’s at your door.

Take a moment to test everything, adjust your settings, and enjoy the peace of mind that comes with smart home security. And if you ever run into issues, the Ring support team and online community are great resources. Welcome to the future of home safety—your corner-mounted Ring Doorbell is ready to protect what matters most.
