Installing a Ring Doorbell with a wedge mount improves camera angle and field of view, especially on uneven walls. This guide walks you through every step—from choosing the right wedge to final setup—ensuring a secure, professional-looking installation.
Key Takeaways
- Wedge mounts adjust the viewing angle: They tilt the Ring Doorbell downward or sideways for better coverage of your doorstep and walkway.
- Choose the correct wedge angle: Ring offers 5°, 10°, and 15° wedges—select based on your wall slope and desired camera perspective.
- Use the right tools: A drill, level, screwdriver, and measuring tape are essential for a precise and secure installation.
- Turn off power at the breaker: Safety first—always shut off electricity before removing an existing doorbell.
- Test the signal before final mounting: Ensure strong Wi-Fi connectivity at the installation spot to avoid connectivity issues later.
- Secure wiring properly: Use wire nuts and electrical tape to protect connections, especially in outdoor environments.
- Calibrate motion zones after installation: Adjust settings in the Ring app to reduce false alerts and improve detection accuracy.
How to Install Ring Doorbell with Wedge: A Complete Step-by-Step Guide
So, you’ve got your new Ring Doorbell—congratulations! But now you’re wondering: “How do I install it with a wedge?” Maybe your wall isn’t flat, or you want a better angle to capture packages, visitors, or that sneaky raccoon raiding your trash. Whatever the reason, using a wedge mount can make a big difference in your doorbell’s performance.
In this guide, we’ll walk you through the entire process of installing your Ring Doorbell with a wedge mount. Whether you’re a DIY beginner or a seasoned home improver, we’ve got you covered. You’ll learn how to choose the right wedge, prepare your installation site, mount the device securely, and fine-tune settings in the Ring app. By the end, your Ring Doorbell will be perfectly angled, fully functional, and ready to keep your home safe.
Let’s get started!
Why Use a Wedge Mount with Your Ring Doorbell?

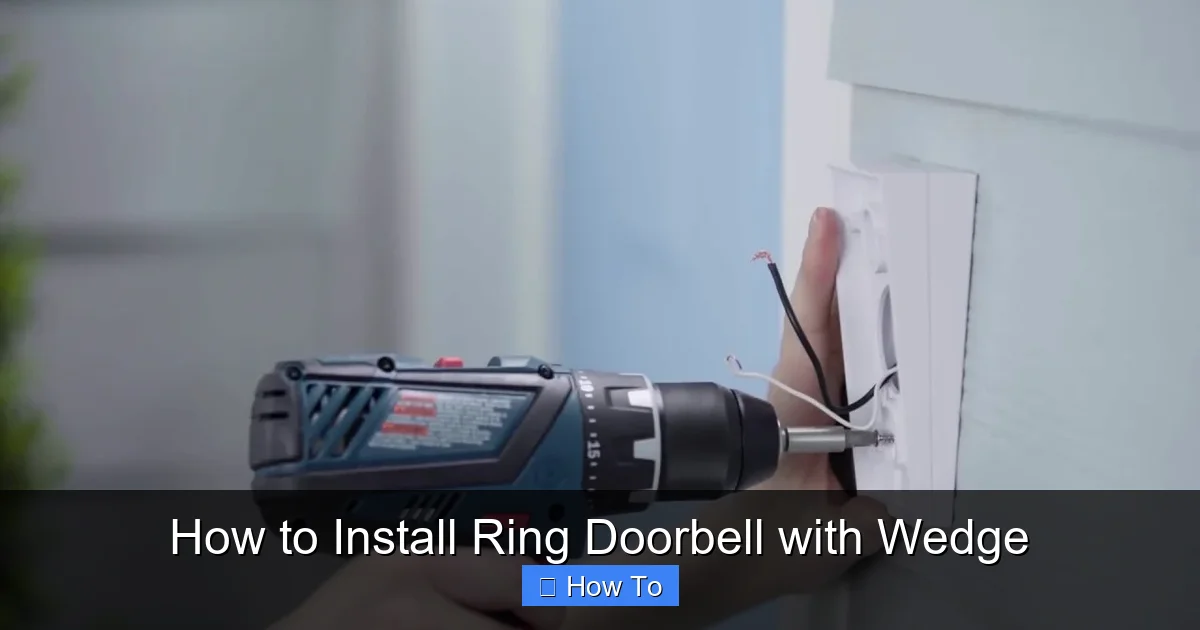

Visual guide about How to Install Ring Doorbell with Wedge
Image source: i.ytimg.com
Before we dive into the installation, let’s talk about why you might need a wedge in the first place. Ring Doorbells are designed to mount flush against a wall, but not all walls are created equal. If your doorframe is recessed, your wall slopes inward, or you want to angle the camera downward to better monitor your porch, a wedge mount is the solution.
A wedge mount is a small, angled adapter that attaches between the doorbell and the wall. It allows you to tilt the camera up to 15 degrees, giving you a clearer, more comprehensive view of your entryway. This is especially helpful if:
– Your front door is set back from the wall.
– You want to reduce glare from sunlight hitting the lens.
– You’re installing the doorbell on a corner or angled surface.
– You want to focus the camera on a specific area, like a package drop zone.
Ring offers official wedge mounts in 5°, 10°, and 15° angles. You can purchase them separately or as part of a mounting kit. Choosing the right angle depends on your specific setup—we’ll cover how to pick the best one in the next section.
What You’ll Need Before You Begin
Before you start drilling or unscrewing anything, make sure you have all the necessary tools and materials. Here’s a checklist to get you prepared:
- Ring Doorbell (wired or battery) – Make sure it’s compatible with wedge mounts (most models are).
- Ring Wedge Mount – Choose 5°, 10°, or 15° based on your needs.
- Screws and anchors – Usually included with the wedge or doorbell kit.
- Drill and drill bits – A cordless drill with a 3/16” bit works well for most surfaces.
- Screwdriver – Phillips head is standard for Ring installations.
- Level – A small bubble level ensures your doorbell is straight.
- Measuring tape – Helps position the doorbell at the ideal height (48–52 inches from the ground).
- Pencil or marker – For marking drill spots.
- Wire strippers (for wired models) – If you’re replacing an existing doorbell.
- Electrical tape and wire nuts – To secure and insulate wire connections.
- Smartphone with Ring app installed – Essential for setup and testing.
- Wi-Fi network name and password – You’ll need this during setup.
Optional but helpful:
– A helper to hold the doorbell while you drill.
– A voltage tester (if working with wired doorbells).
– A stud finder (if mounting into wood or drywall with studs).
Having everything ready will save you time and frustration. Now, let’s move on to choosing the right wedge.
Choosing the Right Wedge Angle
Not all wedges are the same—Ring offers three angles: 5°, 10°, and 15°. The right choice depends on your wall configuration and how much you need to tilt the camera.
When to Use a 5° Wedge
A 5° wedge provides a slight downward tilt. It’s ideal if your doorbell is mounted slightly too high or if you want to gently angle the camera toward your doorstep. This is a good option for minor adjustments and works well on nearly flat walls.
When to Use a 10° Wedge
The 10° wedge is the most versatile. It offers a moderate tilt, perfect for doors that are recessed or for improving the field of view without over-angling. Most users find this angle provides the best balance between coverage and image quality.
When to Use a 15° Wedge
A 15° wedge gives the steepest tilt. Use this if your wall slopes significantly inward or if your door is deeply recessed. It’s also helpful if you want to focus the camera on a specific spot, like a mailbox or package shelf. However, be cautious—too much tilt can cause the image to look distorted or cut off parts of the scene.
Pro Tip: If you’re unsure which angle to use, start with the 10° wedge. It’s the most commonly recommended and works well in most situations. You can always adjust later if needed.
Step 1: Turn Off Power (For Wired Installations)
If you’re replacing an existing wired doorbell, safety is your top priority. Electricity and water don’t mix—and neither do live wires and DIY projects.
Locate Your Circuit Breaker
Go to your home’s electrical panel and find the breaker that controls your doorbell. It’s often labeled “Doorbell,” “Chime,” or “Front Door.” If you’re not sure, turn off the main breaker to be safe.
Test the Wires
Once the power is off, remove the old doorbell and use a voltage tester to confirm there’s no current flowing through the wires. This step is crucial—even if the breaker is off, there could be residual power.
Label the Wires
Before disconnecting anything, take a photo or label the wires (e.g., “Front,” “Trans”) so you know how to reconnect them later. Most doorbells have two wires: one from the transformer and one to the chime.
Safety Note: If you’re not comfortable working with electricity, consider hiring a licensed electrician. It’s better to be safe than sorry.
Step 2: Prepare the Installation Site
Now that the power is off (or if you’re using a battery-powered model), it’s time to prepare the area where your Ring Doorbell will go.
Choose the Right Height
The ideal mounting height for a Ring Doorbell is between 48 and 52 inches from the ground. This ensures the camera captures faces clearly and avoids obstructions like mailboxes or plants.
Check for Obstructions
Look around the area. Are there lights, vents, or decorations that could block the camera or interfere with motion detection? Trim any overhanging branches or move objects that might cause false alerts.
Test Wi-Fi Signal
Use your smartphone to check the Wi-Fi signal strength at the installation spot. Ring recommends a minimum of -65 dBm for reliable performance. If the signal is weak, consider using a Wi-Fi extender or moving your router closer.
Mark the Mounting Holes
Hold the wedge mount (without the doorbell) against the wall at the desired height. Use a level to make sure it’s straight, then mark the screw holes with a pencil. Double-check the alignment—once you drill, there’s no going back!
Step 3: Install the Wedge Mount
With the site prepared, it’s time to mount the wedge.
Drill Pilot Holes
Using a 3/16” drill bit, carefully drill pilot holes at the marked spots. Pilot holes prevent the wall from cracking and make screwing in the anchors easier.
Insert Wall Anchors (If Needed)
If you’re mounting into drywall, brick, or concrete, use the included wall anchors. Tap them gently into the pilot holes with a hammer until they’re flush with the wall.
Attach the Wedge
Line up the wedge mount with the holes and secure it using the provided screws. Don’t overtighten—this can crack the plastic or damage the wall. Use a screwdriver for better control.
Double-Check Alignment
Place the level on top of the wedge to ensure it’s perfectly horizontal. Adjust if necessary before the screws are fully tightened.
Pro Tip: If you’re installing on brick or concrete, use a masonry drill bit and plastic anchors for a secure hold.
Step 4: Connect the Wires (For Wired Models)
If you’re using a wired Ring Doorbell, now’s the time to connect the wires.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire. This exposes the copper for a solid connection.
Attach to the Doorbell
Most Ring Doorbells have two terminals: “Front” and “Trans.” Connect the wires to the corresponding terminals on the back of the doorbell. It doesn’t matter which wire goes where—Ring uses low-voltage AC, so polarity isn’t an issue.
Secure with Wire Nuts
Twist the exposed wires together and cover them with a wire nut. Wrap the connection with electrical tape for extra protection against moisture.
Tuck Wires Neatly
Gently push the wires back into the wall cavity to avoid pinching them when you attach the doorbell.
Important: Never leave bare wires exposed. Always use wire nuts and tape to prevent short circuits.
Step 5: Attach the Ring Doorbell to the Wedge
Now for the fun part—mounting your Ring Doorbell!
Align the Doorbell
Hold the doorbell against the wedge, aligning the screw holes on the back of the device with the mounting points on the wedge.
Secure with Screws
Use the included security screws to attach the doorbell to the wedge. These screws require a special tool (usually included) to prevent tampering. Tighten them just enough to hold the doorbell firmly—don’t over-tighten.
Check the Angle
Step back and look at the camera angle. Does it point where you want it? Can you see the doorstep, walkway, and any package drop zones? Adjust the wedge if needed (though this may require remounting).
Ensure a Snug Fit
The doorbell should sit flush against the wedge with no wobbling. If it feels loose, double-check the screws and mounting hardware.
Step 6: Restore Power and Test
If you turned off the power earlier, now’s the time to turn it back on.
Flip the Breaker
Go back to your electrical panel and turn the doorbell breaker back on. Wait a few seconds for the system to power up.
Check the Chime
Press the doorbell button to see if your indoor chime rings. If it doesn’t, double-check the wire connections.
Open the Ring App
Launch the Ring app on your smartphone and follow the on-screen prompts to set up your device. You’ll need to scan the QR code on the doorbell or enter the serial number manually.
Connect to Wi-Fi
Select your Wi-Fi network and enter the password. The app will guide you through the connection process. Make sure your phone is on the same network.
Test the Live View
Once connected, tap “Live View” in the app to see the camera feed. Check for clarity, angle, and field of view. If something looks off, you may need to adjust the wedge or reposition the doorbell.
Step 7: Adjust Settings in the Ring App
Your doorbell is installed, but the setup isn’t complete until you customize the settings.
Set Motion Zones
Go to Device Settings > Motion Settings > Motion Zones. Draw zones around areas you want to monitor (like your doorstep) and exclude areas that cause false alerts (like a busy street).
Adjust Motion Sensitivity
If you’re getting too many alerts, lower the sensitivity. For better detection, increase it—but be aware this may trigger more notifications.
Enable Smart Alerts
Turn on features like “People Only Mode” to reduce alerts from cars, animals, or moving shadows.
Set Up Chime Pro (Optional)
If you have a Chime Pro, connect it to boost Wi-Fi signal and enable louder indoor alerts.
Test the Doorbell Button
Press the button again and confirm you receive a notification on your phone. Check the video recording to ensure it captures the event clearly.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Doorbell Not Powering On
– Check that the breaker is on.
– Verify wire connections are secure.
– Test the transformer voltage (should be 8–24V AC).
Weak Wi-Fi Signal
– Move your router closer.
– Use a Wi-Fi extender or Ring Chime Pro.
– Avoid mounting near metal objects or thick walls.
Blurry or Distorted Video
– Clean the camera lens with a microfiber cloth.
– Ensure the wedge isn’t over-tilting the camera.
– Check for condensation inside the lens (rare, but possible in humid climates).
False Motion Alerts
– Adjust motion zones to exclude trees, cars, or pets.
– Lower motion sensitivity.
– Enable “People Only Mode.”
Doorbell Falls Off or Wobbles
– Tighten all screws.
– Ensure the wedge is securely mounted.
– Use longer screws or stronger anchors if needed.
Maintenance Tips for Long-Term Performance
To keep your Ring Doorbell working smoothly, follow these maintenance tips:
- Clean the lens monthly – Use a soft, dry cloth to remove dust, dirt, or spiderwebs.
- Check screws periodically – Vibration and weather can loosen them over time.
- Update the app and firmware – Ring regularly releases updates with new features and bug fixes.
- Inspect wiring annually – Look for fraying, corrosion, or loose connections.
- Replace batteries (if applicable) – Battery-powered models need new batteries every 6–12 months.
Conclusion
Installing a Ring Doorbell with a wedge mount might seem intimidating at first, but with the right tools and a little patience, it’s a straightforward DIY project. By using a wedge, you’re not just mounting a doorbell—you’re optimizing your home security setup for better visibility, fewer false alerts, and clearer footage.
From choosing the right angle to securing the wiring and fine-tuning app settings, every step matters. Remember to prioritize safety, test your connections, and customize your motion zones for the best experience.
Now that your Ring Doorbell is perfectly angled and fully functional, you can enjoy peace of mind knowing your home is protected—rain or shine, day or night. Welcome to the smart home revolution!
