How to Install Ring Elite Doorbell

Installing the Ring Elite Doorbell is a straightforward process when you follow the right steps. This guide walks you through everything from checking compatibility to final setup, ensuring a secure and reliable smart doorbell experience.

Key Takeaways

Check compatibility first: The Ring Elite requires a strong Ethernet connection and compatible transformer to function properly.
Use the mounting bracket correctly: Proper alignment ensures a secure fit and optimal camera angle.
Connect via Ethernet for reliability: Unlike Wi-Fi models, the Elite uses wired internet for faster response and better video quality.
Test before finalizing installation: Power on and verify connectivity before tightening all screws.
Use the Ring app for setup: The app guides you through configuration, including motion zones and notifications.
Have tools ready: A drill, screwdriver, level, and voltage tester make the job easier.
Contact support if needed: Ring offers customer support for installation issues or hardware problems.

So, you’ve decided to upgrade your home security with the Ring Elite Doorbell—great choice! This premium smart doorbell offers top-tier video quality, fast response times, and advanced features like customizable motion zones and two-way audio. Unlike standard Ring models that rely on Wi-Fi, the Ring Elite connects directly to your home’s Ethernet network, giving you a more stable and reliable connection. But with that added power comes a slightly more involved installation process.

Don’t worry—this guide will walk you through every step, from checking your home’s compatibility to finalizing the setup in the Ring app. Whether you’re a DIY enthusiast or a first-time installer, we’ve got you covered. By the end of this guide, you’ll have your Ring Elite Doorbell securely mounted, powered, and ready to protect your home.

Let’s get started!

What You’ll Need Before You Begin

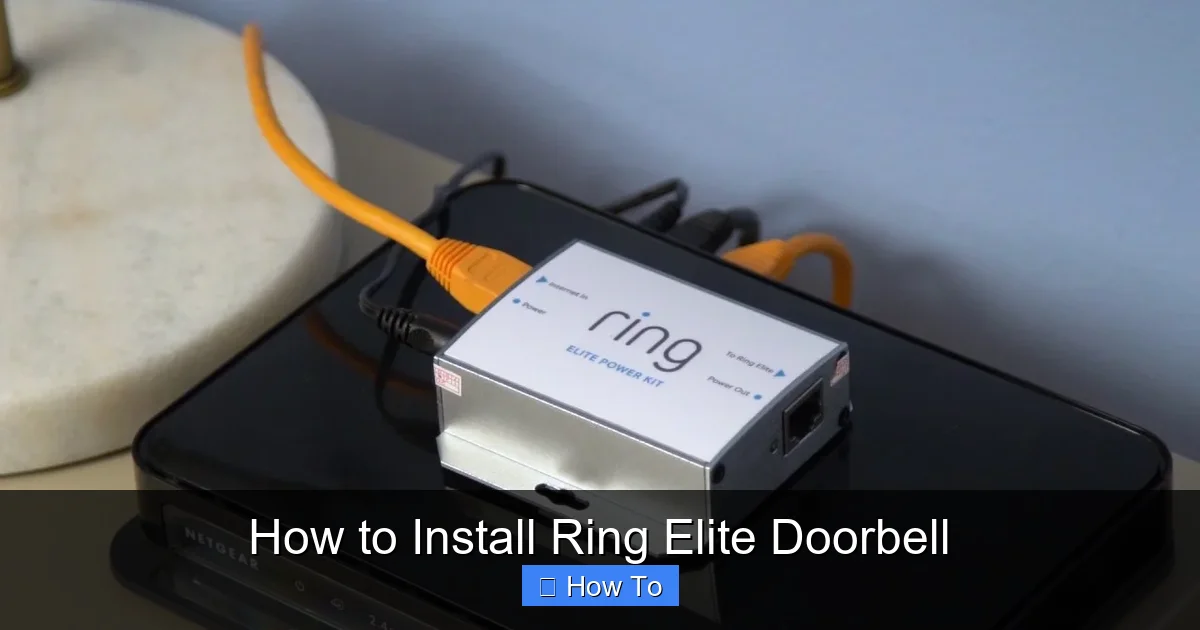

Visual guide about How to Install Ring Elite Doorbell

Image source: urbanglobal.co.nz

Before you even think about drilling holes or connecting wires, it’s important to gather all the necessary tools and materials. Having everything ready will save you time and frustration during the installation.

Here’s a checklist of what you’ll need:

Ring Elite Doorbell kit: Includes the doorbell unit, mounting bracket, screws, anchors, and Ethernet adapter.
Power drill and drill bits: For creating pilot holes in your wall or door frame.
Screwdriver (Phillips head): For tightening screws on the mounting bracket and doorbell.
Level: To ensure your doorbell is mounted straight.
Voltage tester: To check if your existing doorbell wiring is live and compatible.
Ethernet cable (Cat5e or Cat6): At least 25 feet long, preferably outdoor-rated if running externally.
Wire strippers: To prepare the Ethernet and doorbell wires.
Tape measure: To determine the ideal mounting height.
Pencil: For marking drill points.
Safety gear: Gloves and safety glasses, especially if drilling into brick or concrete.

Having these tools on hand will make the process smoother and safer. If you’re missing anything, most items can be found at your local hardware store.

Step 1: Check Compatibility and Power Requirements

The Ring Elite Doorbell isn’t your average smart doorbell. It requires both a strong power source and a direct Ethernet connection to function. Before you start installing, you need to verify that your home setup can support it.

Check Your Existing Doorbell Transformer

The Ring Elite needs a transformer that delivers between 16 and 24 volts AC and at least 30VA (volt-amperes). Most older doorbells use 8–16V transformers, which won’t be enough.

To check your current transformer:

Turn off power to your doorbell at the circuit breaker.
Remove your existing doorbell button.
Locate the two wires connected to the button—these lead back to the transformer, usually found in your basement, garage, or electrical panel.
Use a voltage tester to check the voltage across the wires. If it’s below 16V, you’ll need to upgrade your transformer.

If you’re unsure about handling electrical components, consider hiring a licensed electrician. Upgrading the transformer ensures your Ring Elite gets the power it needs without overloading your system.

Ensure Ethernet Connectivity

Unlike Wi-Fi models, the Ring Elite connects directly to your home network via Ethernet. This means you’ll need to run an Ethernet cable from your router or a network switch to your doorbell location.

Ask yourself:

Is there already an Ethernet cable near your front door?
Can you run a new cable through walls, under siding, or along the exterior?
Do you have a network switch or PoE (Power over Ethernet) injector if needed?

If you don’t have Ethernet near your door, you may need to run a new cable. This can be challenging depending on your home’s construction, but it’s worth it for the reliability the Elite offers.

Step 2: Plan the Installation Location

Choosing the right spot for your Ring Elite Doorbell is crucial for both security and functionality. You want a location that provides a clear view of your entryway, is within reach of power and Ethernet, and is mounted at the correct height.

Ideal Mounting Height

Ring recommends mounting the doorbell between 48 and 60 inches (4 to 5 feet) from the ground. This height ensures the camera captures faces clearly while minimizing the risk of tampering.

Use a tape measure and pencil to mark the spot. If you have a tall household or frequent visitors, aim for the higher end of that range.

Consider the Angle and View

The Ring Elite has a 155-degree diagonal field of view, but you still want to position it so it captures the full approach to your door. Avoid mounting it too close to a wall or corner, which could limit the view.

If your door is set back in a porch or alcove, you may need an angled mounting bracket (sold separately) to point the camera outward.

Check for Obstructions

Make sure there are no bushes, mailboxes, or overhangs blocking the camera’s view. Also, avoid placing it directly under bright lights or in areas with heavy backlighting, which can cause glare or washed-out video.

Step 3: Turn Off Power and Remove Old Doorbell

Safety first! Before touching any wires, you must turn off the power to your doorbell circuit.

Locate and Turn Off the Circuit Breaker

Go to your home’s electrical panel and find the breaker labeled “doorbell” or “chime.” If it’s not labeled, turn off the main breaker to be safe.

Use a non-contact voltage tester to confirm the power is off at the doorbell location. Touch the tester to the wires—if it doesn’t beep or light up, you’re good to proceed.

Remove the Old Doorbell Button

Unscrew the existing doorbell button from the wall. Carefully pull it away to expose the two wires underneath. Take a photo of the wiring setup for reference.

Loosen the terminal screws and disconnect the wires. Cap each wire with a wire nut to prevent them from touching or shorting out.

Set the old doorbell aside—you won’t need it anymore.

Step 4: Run Ethernet Cable (If Needed)

This is often the most challenging part of installing the Ring Elite. Running an Ethernet cable from your router to the doorbell location requires planning and patience.

Choose the Best Route

Look for the shortest and least obstructed path. Common routes include:

Through interior walls (if accessible from a basement or attic)
Under siding or along the exterior with conduit
Through a drilled hole in the wall near the door

If you’re running the cable externally, use outdoor-rated Ethernet cable (Cat5e or Cat6) and protect it with weatherproof conduit or clips.

Drill a Hole (If Necessary)

If you need to drill through an exterior wall, use a ¾-inch drill bit. Drill from the inside out to avoid damaging the exterior finish. Insert a grommet or rubber bushing to protect the cable from sharp edges.

Connect to Your Network

On the router end, plug the Ethernet cable into an available LAN port. If all ports are in use, connect a network switch to expand your connections.

At the doorbell end, strip about 1 inch of the Ethernet cable’s outer jacket and connect the wires to the included Ethernet adapter. Follow the color-coded wiring diagram in the Ring manual (usually T568B standard).

Secure the connection with electrical tape or heat shrink tubing.

Step 5: Install the Mounting Bracket

With the wiring in place, it’s time to mount the bracket that will hold your Ring Elite Doorbell.

Position the Bracket

Hold the mounting bracket against the wall at your marked height. Use a level to ensure it’s straight. The bracket has two keyhole slots for screws, so alignment is important.

Mark the screw holes with a pencil.

Drill Pilot Holes

Use a drill bit slightly smaller than your screws to create pilot holes. This prevents the wall from cracking, especially if you’re mounting into brick, concrete, or hard siding.

If you’re drilling into drywall, use wall anchors for extra support.

Secure the Bracket

Insert the screws through the bracket and into the pilot holes. Tighten them firmly, but don’t over-tighten, as this can strip the holes or damage the bracket.

Double-check that the bracket is level and secure.

Step 6: Connect the Wires

Now it’s time to connect the power and Ethernet to your Ring Elite Doorbell.

Connect the Doorbell Wires

Take the two wires from your doorbell transformer (the ones you disconnected earlier) and connect them to the terminal screws on the back of the Ring Elite unit. It doesn’t matter which wire goes where—the doorbell is not polarity-sensitive.

Tighten the screws to secure the wires.

Connect the Ethernet Adapter

Plug the Ethernet adapter into the port on the back of the Ring Elite. Make sure it clicks into place.

Run the Ethernet cable from the adapter back through the wall to your network connection. Keep the cable neat and secure with clips or tape.

Step 7: Attach the Doorbell to the Bracket

With the wires connected, you can now mount the doorbell.

Align and Secure

Slide the Ring Elite onto the mounting bracket. The keyhole slots on the back of the doorbell should fit over the screws on the bracket.

Gently press down until the doorbell clicks into place.

Tighten the Security Screws

Use the included security screws and a screwdriver to secure the bottom of the doorbell. This prevents tampering and ensures the unit stays in place.

Don’t overtighten—just snug enough to hold it firmly.

Step 8: Restore Power and Test

You’re almost done! Now it’s time to turn the power back on and test your installation.

Turn On the Circuit Breaker

Go back to your electrical panel and turn the doorbell breaker back on.

Wait about 30 seconds for the system to power up.

Check the Doorbell Light

The Ring Elite has a status light on the front. When powered correctly, it should glow solid white or blue.

If the light doesn’t turn on, double-check your wiring and power source.

Test the Doorbell

Press the doorbell button. You should hear a chime inside your home (if you have a compatible chime) and receive a notification on your phone.

Open the Ring app and check the live view. Make sure the video is clear and the audio works during two-way communication.

Step 9: Complete Setup in the Ring App

The final step is configuring your Ring Elite Doorbell through the Ring app.

Download and Open the Ring App

If you don’t already have it, download the Ring app from the App Store or Google Play.

Add a New Device

Tap the menu icon (three lines) and select “Set Up a Device.” Choose “Doorbells” and then “Ring Elite.”

Follow the on-screen instructions. The app will guide you through connecting to your network, naming your doorbell, and setting up motion zones.

Customize Settings

Take time to adjust:

Motion Zones: Define areas where you want motion alerts (e.g., driveway, walkway).
Motion Sensitivity: Adjust how sensitive the doorbell is to movement.
Notifications: Choose when and how you receive alerts.
Linked Chimes: Connect to a Ring Chime or Echo device for indoor alerts.

Troubleshooting Common Installation Issues

Even with careful planning, you might run into a few hiccups. Here’s how to solve the most common problems.

Doorbell Won’t Power On

Check that the circuit breaker is on.
Verify the transformer voltage (must be 16–24V).
Ensure the doorbell wires are securely connected.
Test the Ethernet connection—no internet means no power via PoE.

No Video or Poor Connection

Confirm the Ethernet cable is properly wired and connected.
Check your router or switch for activity lights.
Restart the doorbell by removing and reattaching it.
Update the Ring app and doorbell firmware.

Motion Alerts Not Working

Adjust motion zones in the app.
Increase motion sensitivity.
Ensure the doorbell is not facing direct sunlight or heat sources.

Two-Way Audio Issues

Check your phone’s microphone and speaker permissions.
Ensure you’re on a strong Wi-Fi or cellular connection.
Restart the app and try again.

Final Tips for a Successful Installation

Label your wires: If you ever need to remove the doorbell, labeled wires make reinstallation easier.
Use weatherproofing: If running cables externally, seal connections with silicone or use outdoor junction boxes.
Schedule regular checks: Inspect the doorbell every few months for dirt, damage, or loose connections.
Update firmware: Keep your Ring Elite updated for the latest features and security patches.

Conclusion

Installing the Ring Elite Doorbell is a smart investment in your home’s security. While it requires a bit more effort than wireless models—thanks to the Ethernet and power requirements—the result is a fast, reliable, and high-performing smart doorbell.

By following this guide, you’ve ensured a professional-quality installation that maximizes the Elite’s features. From checking compatibility to finalizing the app setup, every step has been designed to help you succeed.

Now, enjoy peace of mind knowing your front door is protected by one of the best smart doorbells on the market. Whether you’re at home or away, the Ring Elite keeps you connected and in control.

Welcome to the future of home security!
