How to Install Smart Doorbell

This guide walks you through how to install a smart doorbell—whether wired or wireless—with clear, beginner-friendly steps. You’ll learn about tools, wiring, app setup, and common pitfalls to avoid for a smooth installation.

Key Takeaways

• Choose the right smart doorbell: Decide between wired (e.g., Ring Video Doorbell Pro) or battery-powered (e.g., Ring Video Doorbell 4) models based on your home’s wiring and power access.
• Turn off power before wiring: Safety first—always shut off the circuit breaker when working with electrical components to avoid shocks or damage.
• Use the right tools: A voltage tester, screwdriver, drill, and possibly a level and wire strippers are essential for a clean, secure installation.
• Follow the app setup carefully: Most smart doorbells rely on a mobile app for Wi-Fi pairing, motion settings, and notifications—don’t skip this step.
• Test and adjust after installation: Check video quality, motion detection zones, and chime settings to ensure everything works as expected.
• Troubleshoot common issues: If your doorbell won’t connect or the chime doesn’t ring, check Wi-Fi strength, wiring, or compatibility with your existing doorbell system.
• Maintain your device: Regularly clean the lens, update firmware, and replace batteries (if applicable) to keep your smart doorbell running smoothly.

How to Install Smart Doorbell: A Complete Step-by-Step Guide

So, you’ve decided to upgrade your front door with a smart doorbell. Great choice! Whether you’re looking to enhance home security, see who’s at the door when you’re not home, or just enjoy the convenience of video calls with delivery drivers, a smart doorbell is a smart investment.

But how do you actually install one? Don’t worry—this guide will walk you through the entire process, from choosing the right model to final testing. We’ll cover both wired and battery-powered options, so no matter your home setup, you’ll be ready to go.

By the end of this guide, you’ll know exactly how to install a smart doorbell safely and correctly. You’ll also learn tips to avoid common mistakes, troubleshoot issues, and get the most out of your new device.

Let’s get started!

Step 1: Choose the Right Smart Doorbell for Your Home

Before you even think about drilling holes or connecting wires, you need to pick the right smart doorbell. Not all models are created equal, and your choice will depend on a few key factors.

Wired vs. Battery-Powered Doorbells

The first decision is whether you want a wired or battery-powered doorbell.

Wired smart doorbells (like the Ring Video Doorbell Pro or Nest Hello) connect directly to your home’s existing doorbell wiring. They draw power from your doorbell circuit, so you don’t have to worry about recharging batteries. However, they require a bit more installation effort and may need a compatible transformer (usually 16–24V AC).

Battery-powered doorbells (like the Ring Video Doorbell 4 or Arlo Essential Wire-Free) are easier to install because they don’t need wiring. You simply mount them and insert the battery. The downside? You’ll need to recharge or replace the battery every few months, depending on usage.

Tip: If you already have a working doorbell with wires, a wired model might be more convenient. If you’re renting or don’t want to mess with wiring, go battery-powered.

Check Compatibility

Not all smart doorbells work with every home. Before buying, check:

– Existing wiring: Use a voltage tester to confirm your doorbell has power and is within the required voltage range (usually 16–24V AC).
– Chime compatibility: Some wired doorbells require a mechanical chime or a specific type of digital chime. Others come with a plug-in chime that works independently.
– Wi-Fi strength: Your doorbell needs a strong Wi-Fi signal. Test your signal strength at the door using your phone. If it’s weak, consider a Wi-Fi extender.

Popular Smart Doorbell Brands

Here are a few top options to consider:

– Ring: Offers both wired and battery models, strong app integration, and affordable pricing.
– Nest (Google): High-quality video, works well with Google Assistant, but requires a strong Wi-Fi connection.
– Arlo: Great for wire-free setups with long battery life and clear video.
– Eufy: No monthly fees, local storage, and solid performance.

Choose one that fits your budget, ecosystem (Apple HomeKit, Google, Alexa), and needs.

Step 2: Gather Your Tools and Materials

Once you’ve picked your doorbell, it’s time to gather what you’ll need for installation. Having the right tools on hand will make the process faster and safer.

Essential Tools

Here’s a checklist of tools you’ll likely need:

– Screwdriver (Phillips and flathead): For removing your old doorbell and mounting the new one.
– Drill and drill bits: To create mounting holes if needed.
– Voltage tester: To check if your doorbell wires are live.
– Wire strippers (for wired models): To expose fresh wire ends if necessary.
– Level: To ensure your doorbell is straight.
– Pencil or marker: For marking drill spots.
– Smartphone or tablet: To download the app and complete setup.

Optional but Helpful Tools

– Stud finder: If you’re mounting into wood or need to avoid studs.
– Wire nuts: For securing loose wires temporarily.
– Electrical tape: To insulate exposed wires.
– Wi-Fi extender: If your signal is weak at the door.

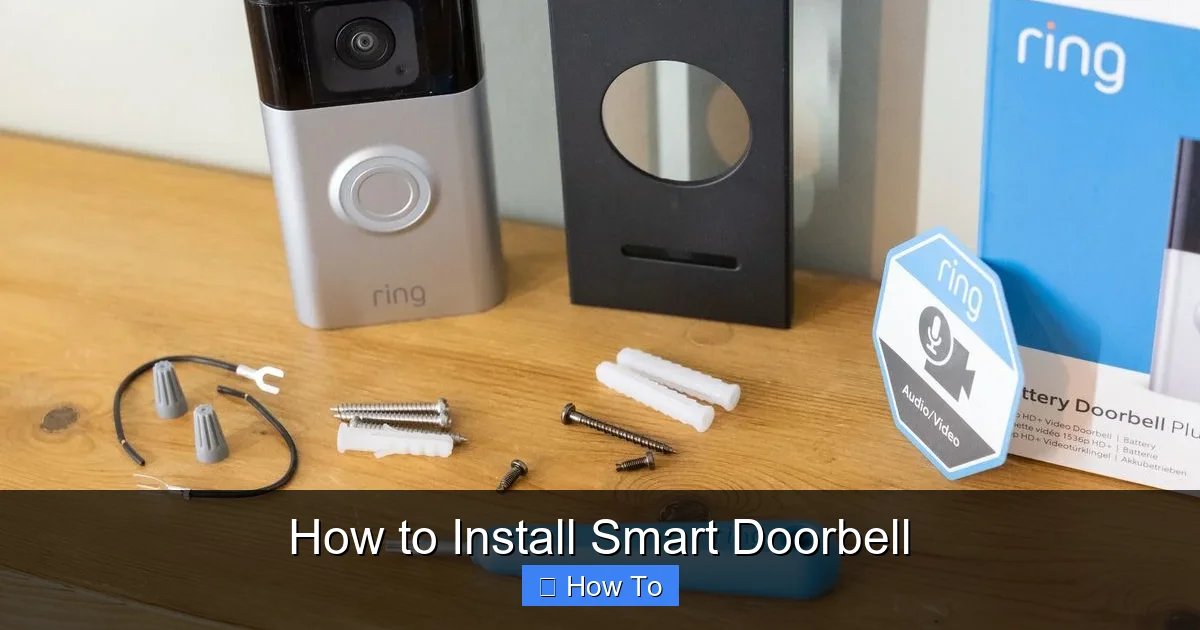

Most smart doorbells come with a mounting bracket, screws, and sometimes a screwdriver. But it’s always good to have your own tools ready.

Step 3: Turn Off Power and Remove the Old Doorbell

Safety is crucial when working with electricity. Even though doorbell voltage is low, it’s still important to turn off the power before touching any wires.

Turn Off the Circuit Breaker

1. Go to your home’s electrical panel (usually in the basement, garage, or utility closet).
2. Look for the breaker labeled “doorbell,” “chime,” or something similar. If you can’t find it, turn off the main breaker to be safe.
3. Use a voltage tester on the doorbell wires to confirm the power is off. Touch one probe to each wire—if the tester doesn’t light up, you’re good to go.

Warning: Never assume the power is off. Always test the wires before touching them.

Remove the Old Doorbell

1. Unscrew the old doorbell from the wall.
2. Gently pull it away to expose the two wires.
3. Loosen the terminal screws and disconnect the wires. Don’t let them fall back into the wall.
4. If the wires are short, use wire nuts or electrical tape to cap them temporarily.

Tip: Take a photo of the wiring before disconnecting. This can help if you need to reconnect something later.

Step 4: Install the Mounting Bracket

Now it’s time to prepare the spot for your new smart doorbell.

Position the Bracket

1. Hold the mounting bracket against the wall where you want the doorbell.
2. Use a level to make sure it’s straight.
3. Mark the screw holes with a pencil.

Tip: The ideal height is about 48 inches from the ground—eye level for most adults.

Drill Holes and Secure the Bracket

1. Drill pilot holes at the marked spots.
2. If you’re mounting into brick, stucco, or concrete, use wall anchors.
3. Screw the bracket into place using the provided screws.

Note: Some doorbells come with a wedge or corner kit to adjust the angle if your door is recessed or at an angle.

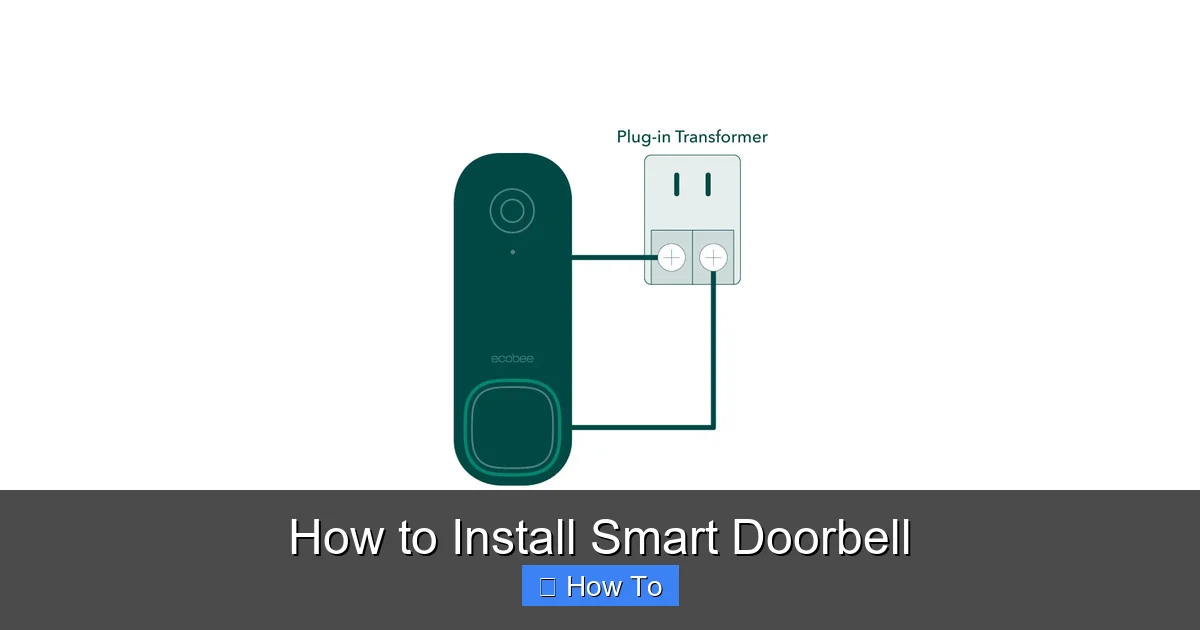

Step 5: Connect the Wires (For Wired Models)

If you’re installing a wired smart doorbell, now’s the time to connect the wires.

Prepare the Wires

1. Strip about 1/4 inch of insulation from the ends of the two doorbell wires if they’re not already exposed.
2. Make sure the wires are clean and not frayed.

Attach to the Bracket or Doorbell

Most wired doorbells have terminal screws or push-in connectors on the back or side.

1. Loosen the terminal screws on the doorbell or bracket.
2. Wrap the exposed wire around the screw in a clockwise direction.
3. Tighten the screw to secure the wire.
4. Repeat for the second wire.

Important: It doesn’t matter which wire goes to which terminal—doorbell circuits are not polarized.

Use a Power Kit (If Needed)

Some older homes have weak transformers that can’t power a smart doorbell. If your doorbell doesn’t work or the chime is weak, you may need a power kit (often included with the doorbell).

This small device connects across the chime terminals inside your doorbell box and helps regulate power. Follow the manufacturer’s instructions to install it.

Step 6: Mount the Smart Doorbell

With the bracket in place and wires connected, it’s time to attach the doorbell.

Snap or Screw the Doorbell into Place

1. Align the doorbell with the mounting bracket.
2. Push it firmly until it clicks into place (for snap-on models).
3. For screw-on models, use the provided security screw to secure it.

Tip: Some doorbells have a small security screw that prevents theft. Use a screwdriver or the included tool to tighten it.

Reconnect Power

1. Go back to the circuit breaker and turn the power back on.
2. Wait a few seconds for the doorbell to power up.

You should see lights or hear a chime if everything is connected correctly.

Step 7: Set Up the Smart Doorbell App

Now comes the fun part—connecting your doorbell to your phone and customizing settings.

Download the App

1. On your smartphone, go to the App Store (iOS) or Google Play (Android).
2. Search for the app that matches your doorbell brand (e.g., “Ring,” “Nest,” “Arlo”).
3. Download and install it.

Create an Account

1. Open the app and tap “Sign Up” or “Create Account.”
2. Enter your email, create a password, and follow the prompts.
3. Verify your email if required.

Add Your Doorbell

1. Tap “Add Device” or “Set Up a New Device.”
2. Select your doorbell model from the list.
3. Follow the on-screen instructions.

Most apps will guide you through:

– Scanning a QR code on the doorbell
– Connecting to Wi-Fi (enter your network password)
– Naming the doorbell (e.g., “Front Door”)
– Setting up motion zones and alerts

Tip: Choose a strong, unique password for your Wi-Fi network to keep your doorbell secure.

Test the Connection

Once setup is complete, test the doorbell:

– Press the button to see if you get a notification.
– Check the live video feed in the app.
– Walk in front of the doorbell to test motion detection.

Step 8: Configure Settings and Preferences

Your doorbell is installed, but you’re not done yet. Take a few minutes to customize settings for the best experience.

Adjust Motion Zones

Most apps let you draw motion zones—areas where you want the camera to detect movement.

– Avoid areas like busy sidewalks or tree branches that could cause false alerts.
– Focus on the walkway, driveway, or porch.

Set Notification Preferences

Choose when and how you want to be alerted:

– Instant alerts: Get notified every time motion is detected.
– Smart alerts: Only notify you for people (uses AI to filter out animals or cars).
– Quiet hours: Silence alerts during certain times (e.g., overnight).

Enable Two-Way Audio

This lets you talk to visitors through your phone. Test it by pressing the talk button in the app.

Set Up Chime (If Applicable)

If you have a wired doorbell with a mechanical chime:

– Make sure the chime is compatible (check the manufacturer’s list).
– If it doesn’t ring, you may need a Ring Chime or Nest Chime (plug-in device).

For battery models, the chime usually comes through the app or a separate plug-in device.

Step 9: Test and Troubleshoot

Before you call it a day, make sure everything works as expected.

Test the Doorbell Button

Press the button and check:

– Does your phone get a notification?
– Does the chime ring (if applicable)?
– Can you see and hear the visitor?

Check Video Quality

Look at the live feed:

– Is the image clear and stable?
– Are colors accurate, even at night (if it has night vision)?
– Is the field of view wide enough?

Test Motion Detection

Walk in front of the doorbell:

– Do you get a motion alert?
– Is the recording saved in the app?

Common Issues and Fixes

Problem: Doorbell won’t connect to Wi-Fi
Solution: Move closer to your router, restart your router, or use a Wi-Fi extender.

Problem: Chime doesn’t ring
Solution: Check wiring, ensure the chime is compatible, or use a plug-in chime.

Problem: Battery drains quickly
Solution: Reduce motion sensitivity, disable unnecessary alerts, or switch to a wired model.

Problem: Video is blurry or laggy
Solution: Clean the lens, check Wi-Fi signal, or lower video quality in settings.

Step 10: Maintain Your Smart Doorbell

To keep your doorbell working well for years, regular maintenance is key.

Clean the Lens

Wipe the camera lens with a soft, dry cloth every few weeks to remove dust, dirt, or fingerprints.

Update Firmware

Check the app regularly for firmware updates. These improve performance, security, and features.

Replace or Recharge Batteries

For battery models, recharge or replace the battery every 3–6 months, depending on usage.

Check Mounting

Every few months, make sure the doorbell is still securely attached and hasn’t loosened over time.

Conclusion

Congratulations! You’ve successfully learned how to install a smart doorbell from start to finish. Whether you chose a wired or battery-powered model, you now have a powerful tool to enhance your home’s security and convenience.

Remember, the key to a smooth installation is preparation—choosing the right model, gathering the right tools, and following safety steps. Once it’s set up, take time to customize the settings so your doorbell works exactly how you want.

With regular maintenance and updates, your smart doorbell will keep your home safe and connected for years to come.

Now go enjoy that peace of mind—every time someone rings the bell, you’ll know exactly who’s there.
