Installing a doorbell ring is easier than you think. This guide walks you through every step—from choosing the right model to testing your new system—so you can boost your home’s security and convenience in under an hour.
Key Takeaways
- Choose the right doorbell: Wired or wireless? Pick based on your home setup and power access.
- Turn off power first: Safety is key—always shut off electricity at the breaker before working with wired systems.
- Gather the right tools: You’ll need a screwdriver, drill (optional), voltage tester, and possibly a ladder.
- Follow manufacturer instructions: Each model is slightly different—read the manual carefully.
- Test before finishing: Make sure the chime sounds and the button works before calling the job done.
- Troubleshoot common issues: No sound? Check wiring, batteries, or Wi-Fi connection for smart models.
- Upgrade for smart features: Consider video doorbells for added security and remote access.
How to Install the Doorbell Ring: A Complete Step-by-Step Guide
So, you’ve decided it’s time to install a doorbell ring. Maybe your old one stopped working, or you’re moving into a new home and want to add this simple but useful upgrade. Whatever the reason, you’re in the right place.
Installing a doorbell might sound like a job for an electrician, but the truth is, most homeowners can do it themselves—especially with the right guidance. Whether you’re going for a classic wired model or a modern wireless smart doorbell, this guide will walk you through every step. By the end, you’ll have a fully functioning doorbell that alerts you whenever someone’s at the door.
In this guide, you’ll learn how to choose the right doorbell, prepare your tools, safely install the unit, connect the wiring (if needed), and test the system. We’ll also cover common problems and how to fix them. No prior experience? No problem. We’ll keep things simple, clear, and stress-free.
Let’s get started!
Step 1: Choose the Right Doorbell Ring

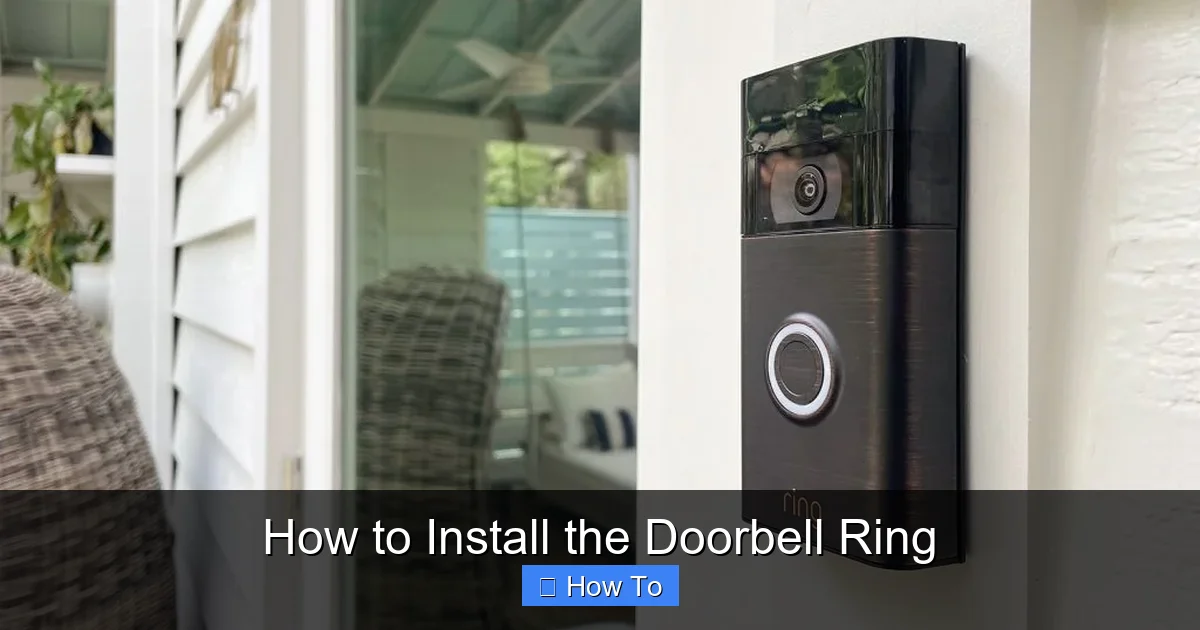

Visual guide about How to Install the Doorbell Ring
Image source: storables.com
Before you grab your tools, you need to pick the right doorbell for your home. Not all doorbells are created equal, and your choice will depend on a few key factors.
Wired vs. Wireless Doorbell
The first decision is whether to go with a wired or wireless doorbell.
A wired doorbell connects to your home’s electrical system through low-voltage wires. It typically includes a button at the front door and a chime unit inside the house. These are reliable and don’t require battery changes, but they do need existing wiring or new installation.
A wireless doorbell uses batteries and communicates via radio frequency or Wi-Fi. The button sends a signal to the chime unit, which can be placed anywhere within range. These are easier to install and ideal for renters or homes without existing doorbell wiring.
Smart Doorbell Options
If you want more than just a chime, consider a smart doorbell. These models often include video cameras, motion detection, two-way audio, and smartphone alerts. Popular brands include Ring, Nest, and Arlo.
Smart doorbells can be wired or battery-powered. Wired versions connect to your existing doorbell wires for continuous power, while battery models offer more flexibility in placement.
Consider Your Home’s Layout
Think about where you want the chime to be heard. If your home is large, you might need multiple chime units or a model with a loud, clear sound. Also, consider the style—do you want something modern and sleek or traditional and classic?
Check Compatibility
If you’re replacing an old doorbell, check the wiring and voltage. Most homes use 8–24 volts, but some older systems may differ. Use a voltage tester (more on that later) to confirm.
For smart doorbells, ensure your Wi-Fi signal reaches the front door. Weak signals can cause connectivity issues.
Budget and Features
Doorbell prices range from $20 for basic wireless models to $200+ for advanced smart doorbells. Decide what features matter most: video, night vision, cloud storage, or simple audio alerts.
Once you’ve chosen your doorbell, it’s time to gather your tools.
Step 2: Gather Your Tools and Materials
Having the right tools on hand will make the installation smoother and safer. Here’s what you’ll likely need:
- Screwdriver (Phillips and flathead): For removing old plates and securing new ones.
- Voltage tester: Essential for checking if power is off (for wired systems).
- Drill and drill bits (optional): Needed if you’re mounting on brick, stucco, or need to run new wires.
- Pencil or marker: For marking screw holes.
- Level: To ensure the doorbell is straight.
- Ladder: If your doorbell is mounted high.
- Wire strippers (for wired models): To expose fresh wire ends.
- Batteries (for wireless models): Usually included, but good to have extras.
- Electrical tape: For securing wires.
- Mounting screws and anchors: Often included with the doorbell kit.
Most doorbell kits come with basic mounting hardware, but it’s smart to double-check the package contents before starting.
Step 3: Turn Off the Power (For Wired Doorbells)
Safety first! If you’re installing a wired doorbell, you must turn off the power before touching any wires.
Locate Your Electrical Panel
Find your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility closet.
Identify the Doorbell Circuit
Look for a breaker labeled “doorbell,” “chime,” or something similar. If there’s no label, you may need to test each breaker by turning them off one at a time and checking if the existing doorbell stops working.
Turn Off the Breaker
Switch the correct breaker to the “off” position. Use a voltage tester at the doorbell button to confirm no power is flowing. Touch the tester to the wire terminals—if it doesn’t light up or beep, you’re safe to proceed.
Label the Breaker (Optional but Helpful)
Use a label maker or tape to mark the breaker for future reference. This saves time if you ever need to turn it off again.
Step 4: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, start by removing the old unit.
Unscrew the Button
Use a screwdriver to remove the screws holding the doorbell button to the wall. Gently pull the button away from the wall.
Disconnect the Wires
You’ll see two small wires connected to the back of the button. Loosen the terminal screws and pull the wires free. Don’t let them fall back into the wall—tape them to the outside of the wall or hold them with a clip.
Remove the Chime Unit
Go inside to the chime unit (usually near the front door). Unscrew the cover and disconnect the wires. Note which wire goes to which terminal (usually labeled “Front” and “Trans”). Take a photo for reference.
Patch Holes (Optional)
If you’re not reusing the same holes, fill them with spackle or wall filler. Let it dry and sand smooth.
Step 5: Install the New Doorbell Button
Now it’s time to install your new doorbell ring.
Position the Button
Hold the new button against the wall where you want it. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re mounting on wood, you can often screw directly into the wall. For brick, stucco, or concrete, drill pilot holes and use wall anchors.
Connect the Wires
For wired models, connect the two wires to the terminals on the back of the button. It doesn’t matter which wire goes where—doorbell circuits are not polarized. Tighten the screws securely.
For wireless models, skip this step. Just insert the batteries.
Secure the Button
Line up the button with the screw holes and fasten it to the wall with screws. Don’t overtighten—this can crack the plastic.
Test the Connection (Wired Only)
Turn the power back on at the breaker. Press the button to see if the chime sounds. If it does, great! If not, turn the power off and double-check the wiring.
Step 6: Install the Chime Unit
Next, install the indoor chime unit.
Choose a Location
Pick a spot inside your home where the chime can be heard clearly—near the front door, in a hallway, or in a central living area. Avoid placing it behind thick walls or in noisy rooms.
Mount the Chime
Hold the chime unit against the wall and mark the screw holes. Drill pilot holes if needed, then secure the unit with screws.
Connect the Wires
For wired models, connect the wires to the corresponding terminals. Usually, one wire goes to “Front” and the other to “Trans” (transformer). If your old chime had labels, match them. If not, it usually doesn’t matter which wire goes where.
For wireless models, plug in the chime or insert batteries. Some models sync automatically; others require you to press a sync button on both the button and chime.
Secure the Cover
Attach the cover or faceplate to the chime unit. Make sure it’s snug and aligned.
Step 7: Test the Doorbell Ring
Now for the moment of truth—testing your new doorbell.
Press the Button
Have someone press the doorbell button while you listen for the chime. It should sound clearly and consistently.
Check Volume and Tone
Many chimes have adjustable volume or multiple tones. Test different settings to find one you like.
Test Range (Wireless Models)
If you’re using a wireless doorbell, test the range. Walk to different parts of your home and press the button. The chime should work within the advertised range (usually 100–300 feet).
Check Smart Features (If Applicable)
For smart doorbells, open the companion app on your phone. Make sure you receive notifications when the button is pressed. Test the camera, audio, and motion detection.
Step 8: Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring
- Check power: For wired models, ensure the breaker is on and the voltage tester confirms power.
- Check batteries: For wireless or smart models, replace the batteries.
- Inspect wires: Loose or corroded wires can break the circuit. Reconnect or strip fresh ends.
- Test the transformer: A faulty transformer may not supply enough power. Use a multimeter to check voltage (should be 8–24V).
Chime Sounds Weak or Intermittent
- Loose connections: Tighten all wire terminals.
- Low voltage: The transformer may be underpowered. Consider upgrading to a higher-voltage model.
- Faulty chime unit: The internal mechanism may be worn out. Replace the chime.
Wireless Doorbell Out of Range
- Move the chime closer: Place it within 100–300 feet of the button.
- Remove obstructions: Thick walls, metal, or electronic devices can block signals.
- Use a signal extender: Some brands offer range extenders for larger homes.
Smart Doorbell Not Connecting to Wi-Fi
- Check signal strength: Use a Wi-Fi analyzer app to test signal at the door.
- Restart the router: Power cycle your router and try reconnecting.
- Reset the doorbell: Follow the manufacturer’s reset procedure.
- Update firmware: Ensure the doorbell and app are running the latest software.
Button Sticks or Doesn’t Press Smoothly
- Clean the button: Dirt or debris can interfere with the mechanism.
- Check mounting: If the button is too tight against the wall, it may not depress fully. Loosen the screws slightly.
- Replace the button: If it’s damaged, order a replacement from the manufacturer.
Step 9: Final Tips and Maintenance
Once your doorbell is working, a little maintenance keeps it running smoothly.
Clean Regularly
Wipe the button and chime with a dry or slightly damp cloth every few months. Avoid harsh chemicals.
Replace Batteries
For wireless or smart models, replace batteries once a year or when you notice reduced performance.
Check Connections
Every six months, inspect wire connections for looseness or corrosion—especially in humid climates.
Update Smart Features
Keep your smart doorbell’s app and firmware updated for the latest security and features.
Consider Upgrades
If you started with a basic model, you can always upgrade later. Add a second chime, install a video doorbell, or integrate with a smart home system like Alexa or Google Home.
Conclusion
Installing a doorbell ring is a simple DIY project that can make a big difference in your home’s functionality and security. Whether you chose a classic wired model or a high-tech smart doorbell, following these steps ensures a safe and successful installation.
Remember to prioritize safety—especially when working with electricity. Take your time, follow the manufacturer’s instructions, and don’t hesitate to test as you go. With the right tools and a little patience, you’ll have a reliable doorbell that works perfectly.
Now that your doorbell is installed, you can enjoy the peace of mind that comes with knowing when someone’s at the door—whether you’re home or away. So go ahead, press that button, and listen to your new doorbell ring loud and clear.
