How to Install the Iq America Dw2405 Wired Doorbell

Installing the IQ America DW2405 wired doorbell is simple with the right tools and steps. This guide walks you through everything from turning off power to testing your new doorbell safely and effectively.

Key Takeaways

• Turn off power at the breaker: Always shut off electricity before working on wiring to prevent shocks or damage.
• Use the right tools: A voltage tester, screwdriver, wire strippers, and drill are essential for a smooth installation.
• Follow wiring labels carefully: The DW2405 uses standard low-voltage wires—match them correctly to avoid malfunctions.
• Mount the chime unit securely: Choose an indoor location away from moisture and near existing wiring for best results.
• Test before finalizing: Power up and ring the button to confirm sound and volume settings work properly.
• Adjust volume and melody: The DW2405 offers multiple tones and volume levels—customize to your preference after install.
• Call an electrician if unsure: If you’re uncomfortable with electrical work, professional help ensures safety and compliance.

Introduction: Why Upgrade to the IQ America DW2405 Wired Doorbell?

Upgrading your home’s doorbell might not be the first thing on your home improvement list—but it should be. A reliable, clear-sounding doorbell improves security, convenience, and even curb appeal. The IQ America DW2405 wired doorbell is a popular choice for homeowners who want a durable, feature-rich system without the hassle of batteries or Wi-Fi setup.

Unlike wireless models that can lose signal or run out of power, the DW2405 uses existing low-voltage wiring, ensuring consistent performance. It comes with a sleek chime unit, a weather-resistant push button, and multiple melody and volume options. Best of all, it’s designed for DIY installation—no electrician required if you follow the steps carefully.

In this guide, you’ll learn exactly how to install the IQ America DW2405 wired doorbell from start to finish. We’ll cover safety precautions, tools needed, step-by-step wiring, mounting tips, and troubleshooting common issues. Whether you’re replacing an old doorbell or installing one for the first time, this guide will help you get it done safely and correctly.

By the end, you’ll have a fully functional, high-quality doorbell that enhances your home’s functionality and style. Let’s get started!

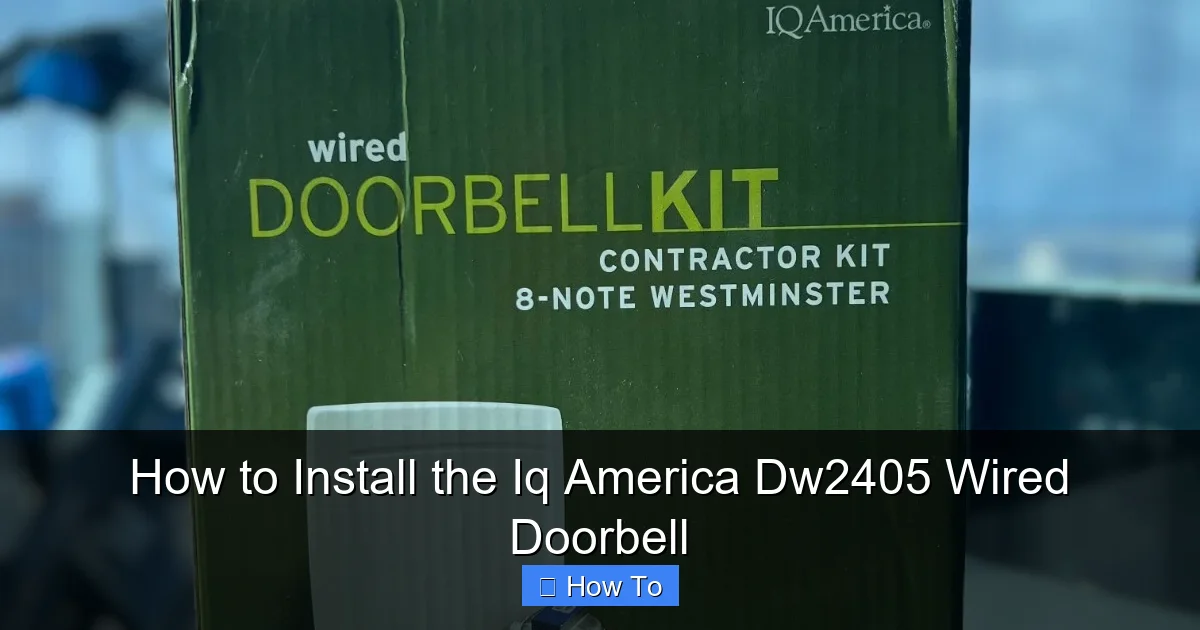

What’s in the Box? Unboxing the IQ America DW2405

Before you begin, it’s important to know what you’re working with. The IQ America DW2405 comes as a complete kit, so you won’t need to buy extra parts—unless you’re replacing an old system and need additional wire or mounting hardware.

Here’s what you’ll typically find inside the box:

• Chime unit (indoor receiver): This is the main box that produces the sound when someone rings the doorbell. It’s usually white or off-white with a modern, slim design.

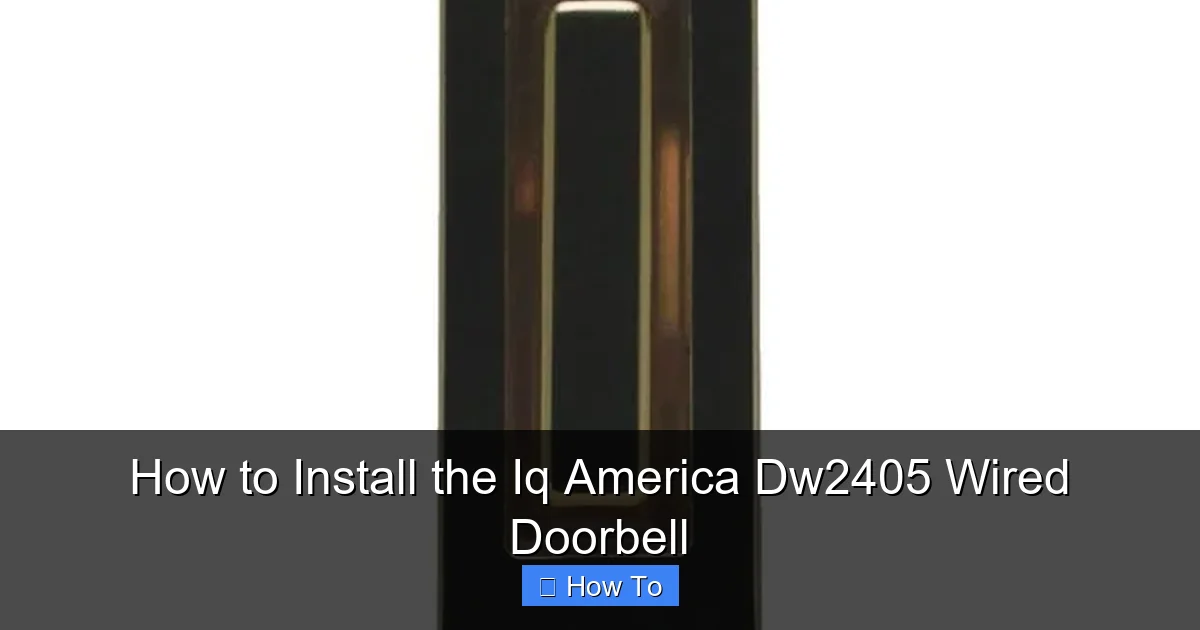

• Doorbell push button: A weather-resistant button that mounts outside your door. It often has a lighted LED for visibility at night.
• Transformer (if included): Some kits include a 16V AC transformer, but most homes already have one installed. Check your existing setup before assuming you need this.
• Mounting screws and anchors: For securing both the chime and the button to walls or frames.
• Wire nuts: Small plastic caps used to connect and insulate wires.
• Instruction manual: Always keep this handy for reference, especially for wiring diagrams and troubleshooting.

Take a moment to inspect all components. Make sure nothing is damaged during shipping. If anything is missing or broken, contact IQ America customer support before proceeding.

Tools and Materials You’ll Need

You don’t need to be a professional electrician to install the DW2405, but having the right tools makes the job safer and easier. Here’s a checklist of what to gather before you start:

• Non-contact voltage tester: This is critical for confirming the power is off. Never skip this step.
• Screwdriver set: Both flathead and Phillips head screwdrivers will be useful for removing covers and tightening screws.
• Wire strippers: To remove insulation from the ends of wires without damaging the copper inside.
• Drill and drill bits: For making pilot holes if you’re mounting into brick, concrete, or hard surfaces.
• Pencil or marker: For marking drill points and wire locations.
• Electrical tape: Optional, but helpful for extra insulation or labeling wires.
• Ladder: If your doorbell is mounted high, use a stable ladder for safety.
• Safety glasses: Protect your eyes when drilling or working near electrical components.

Optional but helpful:

• Fish tape or wire puller: If you need to run new wires through walls.
• Multimeter: For advanced users who want to test voltage or continuity.

Having everything ready before you begin saves time and reduces frustration. Lay out your tools in a clean, well-lit workspace near the installation area.

Step 1: Turn Off the Power

Safety first! Working with electricity—even low-voltage systems—can be dangerous if you don’t take proper precautions. The most important step before touching any wires is to turn off the power at the circuit breaker.

Locate Your Electrical Panel

Your home’s electrical panel (also called a breaker box or fuse box) is usually found in a basement, garage, utility room, or closet. Open the panel door and look for the breaker labeled “doorbell,” “chime,” or “low voltage.” If you don’t see a specific label, you may need to test breakers one by one.

Turn Off the Correct Breaker

Flip the breaker switch to the “OFF” position. If you’re unsure which breaker controls the doorbell, turn off the main breaker to be safe—this cuts power to the entire house.

Test the Power

Use your non-contact voltage tester to check the wires at the existing doorbell button and chime unit. Touch the tester near the wires—if it beeps or lights up, power is still on. Do not proceed until the tester confirms no voltage is present.

Pro Tip: Place a piece of tape over the breaker switch and write “DO NOT TURN ON” to prevent someone else from accidentally restoring power while you’re working.

Step 2: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, you’ll need to remove the old components before installing the DW2405.

Remove the Old Button

Unscrew the old doorbell button from the wall. Gently pull it away to expose the two wires connected to it. These are typically labeled “Front” and “Trans” (for transformer) or just two bare copper wires.

Disconnect the Wires

Loosen the terminal screws or remove the wire nuts to free the wires. Label them with tape if needed—this helps when connecting the new button.

Remove the Old Chime Unit

Go inside to where the chime box is mounted (usually in a hallway or entryway). Unscrew the cover and remove it. You’ll see two or more wires connected to terminals labeled “Front,” “Trans,” and sometimes “Rear” (for a second door).

Disconnect these wires and remove the old chime unit from the wall. Set it aside—you can recycle or donate it.

Note: If you’re installing a doorbell for the first time, skip to Step 3. You’ll need to run wires from the transformer to the button and chime locations.

Step 3: Prepare the Wiring

The IQ America DW2405 uses standard low-voltage doorbell wiring, typically 16-18 gauge. Most homes already have this wiring in place, but it’s important to inspect and prepare it properly.

Check Wire Condition

Look at the exposed ends of the wires. If they’re frayed, corroded, or too short, trim them back with wire strippers and strip about 1/2 inch of insulation from each end. This ensures a clean, solid connection.

Identify the Wires

You should have two wires coming from the wall at the button location:

• Front wire: Connects the front doorbell button to the chime.
• Transformer wire: Connects to the doorbell transformer (usually located near your HVAC system or electrical panel).

At the chime location, you’ll see the same two wires, plus possibly a third if you have a rear door.

Test Wire Continuity (Optional)

If you have a multimeter, set it to continuity mode and test the wires to ensure there are no breaks. Touch one probe to each wire end—if the meter beeps, the circuit is complete.

Pro Tip: If your wires are too short to reach the new terminals, use wire nuts to splice in extensions. Make sure all connections are tight and insulated.

Step 4: Install the Doorbell Button

Now it’s time to mount the new IQ America DW2405 push button at your front door.

Position the Button

Hold the new button against the wall where you want it installed. Make sure it’s at a comfortable height (usually 48–52 inches from the ground) and aligned with the door frame. Use a pencil to mark the screw holes.

Drill Pilot Holes

If you’re mounting into wood, you can screw directly into the wall. For brick, concrete, or siding, drill pilot holes and insert wall anchors for a secure fit.

Connect the Wires

The DW2405 button has two terminals—usually labeled “Front” and “Trans.” It doesn’t matter which wire goes where, as doorbell circuits are not polarity-sensitive. However, for consistency:

• Connect the wire from the transformer to one terminal.
• Connect the wire leading to the chime to the other terminal.

Loosen the terminal screws, wrap the stripped wire around them clockwise, and tighten securely. Avoid loose strands that could cause shorts.

Mount the Button

Align the button with the screw holes and secure it with the provided screws. Make sure it’s snug but don’t overtighten, as this can crack the plastic.

Pro Tip: If your button has a light, make sure it faces the right direction for visibility at night.

Step 5: Install the Chime Unit

The chime unit is the heart of your doorbell system. It receives the signal and plays the sound.

Choose a Location

Mount the chime indoors, ideally in a central hallway or near the front door. Avoid damp areas like basements or near windows. The unit should be within reach of the existing wires.

Mount the Backplate

The DW2405 chime comes with a mounting plate. Hold it against the wall and mark the screw holes. Drill pilot holes if needed, then secure the plate with screws.

Connect the Wires

The chime unit has three terminals:

• Front: Connects to the front doorbell button.
• Trans: Connects to the transformer.
• Rear (optional): For a second doorbell button (not used in this installation).

Match the wires from the wall to the correct terminals. Again, use wire strippers to expose fresh copper if needed, then secure under the screws.

Important: Do not connect the “Rear” terminal unless you’re installing a second button. Leaving it empty is fine.

Attach the Chime Cover

Once the wires are connected, snap the chime cover onto the backplate. Make sure it’s secure and flush with the wall.

Step 6: Restore Power and Test the System

You’re almost done! Now it’s time to turn the power back on and test your new doorbell.

Turn On the Breaker

Go back to your electrical panel and flip the breaker (or main breaker) back to the “ON” position.

Test the Doorbell

Press the doorbell button. You should hear a clear, pleasant chime from the indoor unit. If it works, great! If not, don’t panic—check the troubleshooting section below.

Adjust Volume and Melody

The IQ America DW2405 allows you to customize the sound. Most models have a small switch or button on the side or back of the chime unit to:

• Change the melody (e.g., two-tone, Westminster, single chime).
• Adjust the volume (low, medium, high).

Experiment with the settings until you find one you like. Some users prefer a louder chime for large homes, while others like a softer tone.

Troubleshooting Common Issues

Even with careful installation, problems can occur. Here are some common issues and how to fix them:

Doorbell Doesn’t Ring

• Check power: Use your voltage tester to confirm the breaker is on and power is reaching the chime.
• Inspect connections: Loose or reversed wires are a common cause. Double-check all terminals.
• Test the button: Use a multimeter to check if the button completes the circuit when pressed.

Weak or Intermittent Sound

• Low voltage: The transformer may be underpowered. The DW2405 requires 16V AC. Test the transformer output with a multimeter.
• Corroded wires: Replace old or damaged wiring.

Button Light Doesn’t Work

• Check wiring: Ensure the button is properly connected.
• Transformer issue: Some LED-lit buttons need a minimum voltage to light up. Upgrade to a 16V transformer if needed.

Chime Makes a Buzzing Sound

• Loose connection: Tighten all wire terminals.
• Faulty chime unit: Contact IQ America for a replacement if the issue persists.

If you’ve tried these steps and the doorbell still doesn’t work, consider consulting a licensed electrician. Electrical issues can be complex and unsafe to diagnose without experience.

Maintenance and Long-Term Care

Once installed, the IQ America DW2405 requires minimal maintenance—but a little care goes a long way.

• Clean the button: Wipe the exterior with a damp cloth every few months to remove dirt and debris.
• Check connections annually: Over time, wires can loosen. Inspect terminals during routine home maintenance.
• Test the system: Ring the doorbell monthly to ensure it’s working properly.
• Replace the transformer if needed: If the chime becomes weak or inconsistent, the transformer may be failing.

With proper care, your DW2405 can last 10–15 years or more.

Conclusion: Enjoy Your New Doorbell!

Installing the IQ America DW2405 wired doorbell is a straightforward project that most homeowners can complete in under an hour. By following this guide, you’ve upgraded your home with a reliable, customizable doorbell that enhances both safety and convenience.

Remember the key steps: turn off the power, prepare the wiring, mount the button and chime, and test thoroughly. And always prioritize safety—when in doubt, call a professional.

Now that your doorbell is working, take a moment to enjoy the peace of mind that comes with a system you installed yourself. Whether it’s a guest at the door or a delivery person, you’ll hear it clearly—every time.

Welcome to the world of smart, simple home upgrades. Your front door just got a whole lot smarter.
