This guide walks you through how to install the Nest Doorbell—whether you’re using the battery-powered or wired version. You’ll get clear, step-by-step instructions, helpful tips, and solutions to common problems so your smart doorbell works perfectly from day one.
Key Takeaways
- Choose the right model: Decide between the Nest Doorbell (battery) or (wired) based on your home’s setup and power source.
- Gather the right tools: You’ll need a drill, screwdriver, level, and possibly a voltage tester for wired installations.
- Use the Google Home app: This is essential for setup, Wi-Fi connection, and customizing alerts and motion zones.
- Ensure strong Wi-Fi signal: Place your doorbell within range of your router or use a Wi-Fi extender for reliable performance.
- Test before final mounting: Always do a trial run to confirm power, video, and connectivity before securing the device permanently.
- Follow safety precautions: Turn off power at the breaker when installing wired models to avoid electrical shock.
- Keep firmware updated: Regular updates improve performance, security, and add new features automatically.
Introduction: Why Install a Nest Doorbell?
Installing a Nest Doorbell is one of the smartest upgrades you can make to your home security. Whether you’re looking to see who’s at the door when you’re not home, get alerts when someone approaches your porch, or simply keep an eye on package deliveries, the Nest Doorbell offers reliable, high-quality video and smart features powered by Google.
In this comprehensive guide, you’ll learn how to install the Nest Doorbell—step by step—whether you’re using the battery-powered version or the wired model. We’ll cover everything from choosing the right location and gathering tools to connecting to Wi-Fi and troubleshooting common issues. By the end, your doorbell will be up, running, and keeping your home safer.
This guide is designed for beginners and DIY enthusiasts alike. No prior experience with smart home devices is required. Just follow along, take your time, and you’ll have a fully functional Nest Doorbell in under an hour.
What You’ll Need Before You Start
Before you begin the installation, it’s important to gather all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-installation.
Visual guide about How to Install the Nest Doorbell
Image source: i.ytimg.com
Tools and Materials Checklist
- Nest Doorbell (battery or wired model)
- Smartphone or tablet with the Google Home app installed
- Drill with a 3/16-inch drill bit (for mounting)
- Screwdriver (Phillips head)
- Level (to ensure the doorbell is straight)
- Pencil (for marking drill holes)
- Voltage tester (required for wired installations)
- Wire strippers (if installing the wired model and reusing existing wires)
- Optional: Wire nuts, electrical tape, or a Nest Power Connector (for wired setups)
- Optional: Wi-Fi extender (if your front door has weak signal)
Make sure your smartphone is connected to your home Wi-Fi network and that you have your Wi-Fi password handy. The Google Home app is free and available on both iOS and Android.
Step 1: Choose the Right Nest Doorbell Model
Google offers two main versions of the Nest Doorbell: the Nest Doorbell (battery) and the Nest Doorbell (wired, 1st gen). Choosing the right one depends on your home’s existing setup and your preferences.
Nest Doorbell (Battery)
This model is powered by a rechargeable battery and is ideal if your door doesn’t have existing doorbell wiring or if you prefer a cleaner, wire-free look. It’s also easier to install since you don’t need to deal with electrical wiring.
Pros: No wiring required, easy to install, can be mounted anywhere within Wi-Fi range.
Cons: Requires periodic charging (every 1–6 months depending on usage), may not support continuous recording.
Nest Doorbell (Wired)
This version connects directly to your home’s existing doorbell wiring and transformer. It provides continuous power, so you never have to worry about charging. It also supports 24/7 video recording if you have a Nest Aware subscription.
Pros: No battery maintenance, supports always-on recording, more reliable power source.
Cons: Requires existing wiring and compatible transformer (16–24V AC), more complex installation.
Tip: If you’re unsure which model to choose, consider your home’s wiring and how often you want to maintain the device. Most users find the battery model sufficient for basic needs.
Step 2: Pick the Perfect Location
Where you mount your Nest Doorbell affects its performance, visibility, and security. A good location ensures clear video, reliable motion detection, and strong Wi-Fi signal.
Ideal Mounting Height
Mount the doorbell at a height of 48 to 60 inches from the ground. This angle captures faces clearly and reduces glare from the sun or porch lights.
Check Wi-Fi Signal Strength
Use your smartphone to check the Wi-Fi signal at the installation spot. If the signal is weak, consider using a Wi-Fi extender or mesh network to boost coverage. The Nest Doorbell requires a stable 2.4 GHz or 5 GHz connection.
Avoid Obstructions
Make sure the camera’s view isn’t blocked by plants, mailboxes, or decorative items. The doorbell should have a clear line of sight to your walkway and front door.
Consider Lighting
Install the doorbell where it gets good lighting during the day and has night vision support at night. Avoid pointing it directly at bright lights, which can cause glare.
Example: If your front door is on the east side of your house, mounting the doorbell slightly to the north or south can reduce morning sun glare.
Step 3: Prepare for Installation
Before drilling any holes or connecting wires, take a few minutes to prepare. This ensures a smooth and safe installation process.
Download and Set Up the Google Home App
If you haven’t already, download the Google Home app from the App Store or Google Play. Create a Google account or sign in with your existing one. The app is essential for setup, configuration, and remote access.
Charge the Battery (For Battery Models)
If you’re installing the battery-powered Nest Doorbell, charge the battery fully before installation. It typically takes about 4–6 hours using the included USB-C cable. A fully charged battery lasts 1–6 months, depending on usage.
Turn Off Power (For Wired Models)
Safety first! If you’re installing the wired Nest Doorbell, turn off the power to your doorbell at the circuit breaker. Use a voltage tester to confirm the wires are not live before touching them.
Warning: Never work on electrical wiring without turning off the power. If you’re unsure, consult a licensed electrician.
Step 4: Remove Your Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it first. This step is especially important for wired installations.
Remove the Faceplate
Unscrew the old doorbell from the wall. Carefully pull it away to expose the wiring underneath.
Disconnect the Wires
Take a photo of the wiring setup for reference. Then, loosen the terminal screws and disconnect the wires. Label them if needed (e.g., “Front” and “Transformer”).
Cap the Wires
Use wire nuts to cap the exposed wires and tuck them safely into the wall. This prevents accidental contact and keeps the area tidy.
Tip: If your old doorbell had a chime, make sure the wires are long enough to reach the new Nest Doorbell. If not, you may need to extend them.

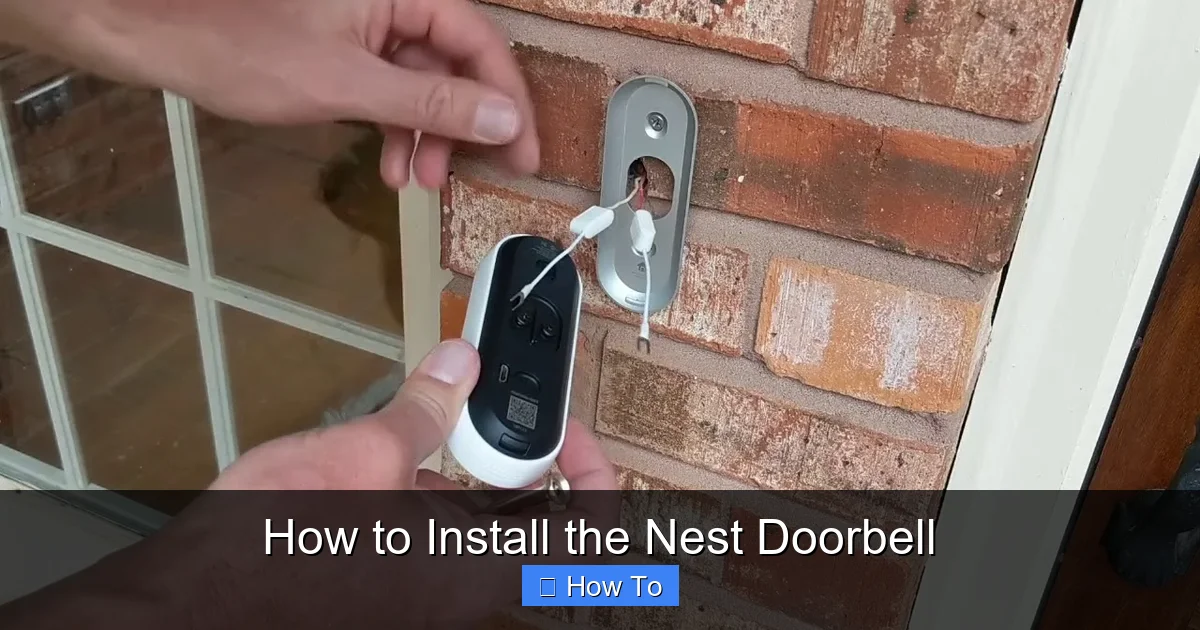

Step 5: Install the Mounting Plate
The mounting plate is the backbone of your Nest Doorbell installation. It holds the device securely and allows for easy removal for charging or maintenance.
Position the Plate
Hold the mounting plate against the wall at your chosen height. Use a level to ensure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes
Use a 3/16-inch drill bit to create pilot holes at the marked spots. This prevents the wall from cracking and makes screwing easier.
Secure the Plate
Align the plate with the holes and screw it into place using the included screws. Make sure it’s tight and level.
Optional: If mounting on brick or concrete, use wall anchors for extra support.

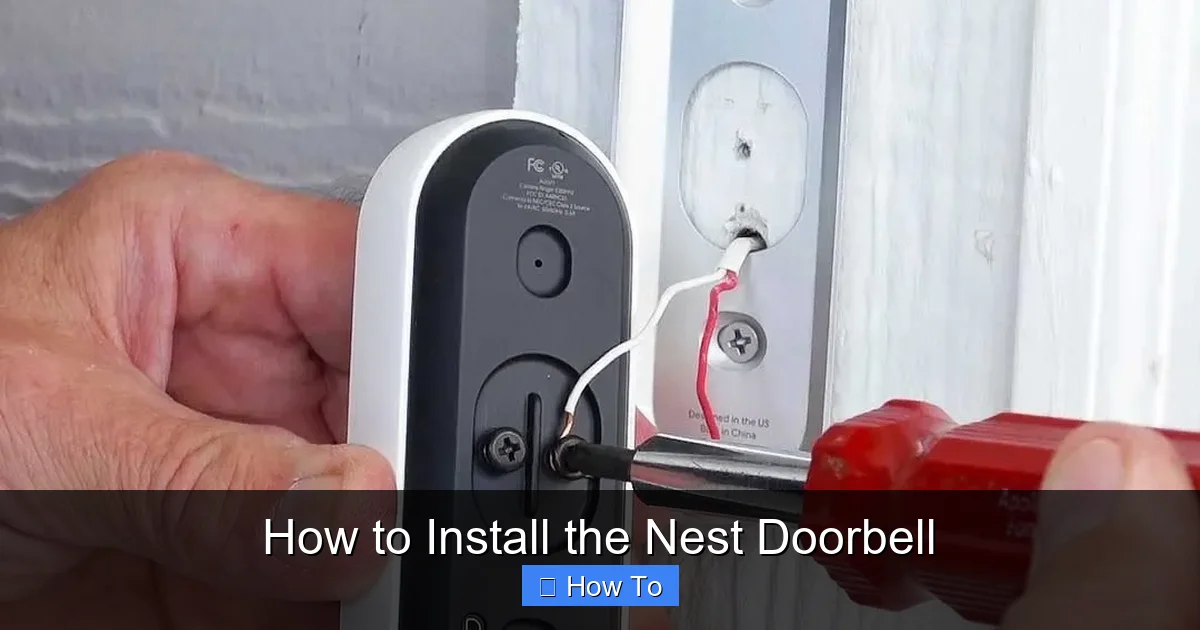

Step 6: Connect the Wires (Wired Model Only)
If you’re installing the wired Nest Doorbell, now is the time to connect the wires. This step requires caution and basic electrical knowledge.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire end. This ensures a solid connection.
Attach to Terminal Screws
Loosen the terminal screws on the back of the Nest Doorbell. Insert the wires and tighten the screws. It doesn’t matter which wire goes where—Nest Doorbell is non-polarized.
Use a Nest Power Connector (If Needed)
If your doorbell transformer is under 16V or you’re experiencing power issues, use the Nest Power Connector. It helps regulate voltage and ensures stable operation.
Tip: Wrap the connected wires with electrical tape for extra safety and to prevent shorts.
Step 7: Attach the Nest Doorbell
Now it’s time to mount the actual doorbell to the plate. This step is quick and straightforward.
Align and Snap
Hold the Nest Doorbell at an angle and align the bottom hooks with the mounting plate. Gently push it upward until it clicks into place.
Secure with Screw (Optional)
For added security, use the included anti-theft screw to lock the doorbell to the plate. This prevents tampering or theft.
Note: The doorbell should fit snugly and not wobble. If it does, double-check the mounting plate alignment.
Step 8: Set Up the Doorbell in the Google Home App
The Google Home app is where the magic happens. This is where you connect your doorbell to Wi-Fi, customize settings, and start receiving alerts.
Open the Google Home App
Launch the app and tap the “+” icon in the top-left corner. Select “Set up device” and then “New device.”
Scan the QR Code
Point your phone’s camera at the QR code on the back of the Nest Doorbell. The app will detect it and begin the setup process.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The doorbell will connect and download any necessary updates.
Name Your Doorbell
Give your doorbell a name, like “Front Door” or “Porch.” This helps if you have multiple Nest devices.
Test the Connection
Once connected, the app will prompt you to test the video feed and motion detection. Make sure everything is working properly.
Tip: Enable “Motion Alerts” and “Person Alerts” in the app to get notified when someone approaches your door.
Step 9: Customize Settings and Features
After setup, take time to personalize your Nest Doorbell to fit your lifestyle and security needs.
Adjust Motion Zones
In the Google Home app, go to your doorbell’s settings and select “Motion zones.” Draw areas where you want to receive alerts (e.g., your walkway) and ignore others (e.g., busy street).
Set Activity Zones
Create activity zones to focus on specific areas, like your driveway or front steps. This reduces false alerts from passing cars or animals.
Enable Familiar Face Alerts (With Nest Aware)
If you subscribe to Nest Aware, you can enable “Familiar Face Alerts” to recognize family members and regular visitors.
Schedule Quiet Hours
Set times when you don’t want to receive alerts, such as during nighttime or when you’re expecting a delivery.
Example: If you work from home, you might disable motion alerts between 9 AM and 5 PM to avoid constant notifications.
Step 10: Test and Troubleshoot
Before considering the installation complete, run a few tests to ensure everything is working as expected.
Check Video Quality
Open the live feed in the Google Home app. Look for clear video, good lighting, and smooth playback. Adjust the angle if needed.
Test Motion and Sound Detection
Walk in front of the doorbell and ring it (if wired). Confirm that you receive alerts on your phone and that the chime sounds (if connected).
Verify Night Vision
Test the doorbell at night to ensure the infrared night vision is working and the image is clear.
Check Battery Level (Battery Models)
Monitor the battery level in the app. If it drains quickly, reduce motion sensitivity or enable “Battery Saver” mode.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Doorbell Won’t Connect to Wi-Fi
Make sure you’re within range of your router. Try restarting your router and the doorbell. If the signal is weak, use a Wi-Fi extender.
No Power (Wired Model)
Check that the power is on at the breaker. Use a voltage tester to confirm the transformer is outputting 16–24V. Consider using a Nest Power Connector.
Blurry or Dark Video
Clean the camera lens with a soft cloth. Adjust the mounting angle to reduce glare. Ensure night vision is enabled in settings.
Frequent Battery Drain
Reduce motion sensitivity, disable unnecessary alerts, or switch to “Battery Saver” mode. Avoid placing the doorbell in direct sunlight, which can overheat the battery.
Chime Not Working
For wired models, ensure the chime is compatible and properly connected. Some mechanical chimes may require a Nest Chime Connector.
Maintenance Tips for Long-Term Use
To keep your Nest Doorbell performing at its best, follow these simple maintenance tips.
Clean the Lens Regularly
Wipe the camera lens monthly with a microfiber cloth to remove dust, dirt, and fingerprints.
Update Firmware
The Nest Doorbell updates automatically, but check the app periodically to ensure it’s running the latest software.
Recharge the Battery
For battery models, recharge the battery every 1–6 months. Remove the doorbell from the mount and charge via USB-C.
Check Mounting Security
Every few months, ensure the mounting plate and screws are tight. Vibrations from doors or weather can loosen them over time.
Conclusion: Enjoy Your Smart Doorbell
Congratulations! You’ve successfully learned how to install the Nest Doorbell and set it up for optimal performance. Whether you chose the battery or wired model, your home is now equipped with a powerful security tool that keeps you connected and informed.
From choosing the right location to customizing alerts and troubleshooting issues, this guide covered everything you need for a smooth installation. Remember to maintain your doorbell regularly and keep an eye on software updates to enjoy the latest features.
With your Nest Doorbell in place, you can answer the door from anywhere, protect your packages, and feel more secure—all from the convenience of your smartphone. Welcome to the future of home security!
