This guide walks you through how to install the Ring Doorbell 2 on brick without damaging your wall. You’ll get clear steps, essential tools, and expert tips for a secure, professional-looking setup.
Key Takeaways
- Use a masonry drill bit: Standard wood bits won’t work on brick—always use a carbide-tipped masonry bit to avoid cracking or damaging the surface.
- Anchor screws with wall plugs: Brick is hard but brittle; use plastic or metal wall plugs (anchors) to ensure the mounting bracket stays firmly in place.
- Turn off power at the breaker: If replacing an existing doorbell, always shut off electricity at the circuit breaker to prevent shocks or short circuits.
- Level the device during installation: Use a spirit level to keep your Ring Doorbell 2 straight—this ensures optimal motion detection and video framing.
- Test Wi-Fi signal strength beforehand: Place your phone where you plan to install the doorbell and check signal strength; weak Wi-Fi can cause connectivity issues.
- Seal screw holes with silicone caulk: After mounting, apply a small bead of exterior-grade silicone around the screws to prevent water infiltration and improve longevity.
- Use the Ring app for final setup: The app guides you through Wi-Fi pairing, motion zones, and notifications—don’t skip this step!
How to Install the Ring Doorbell 2 on Brick
Installing a Ring Doorbell 2 on brick might seem intimidating at first—after all, brick is tough, uneven, and unforgiving compared to wood or siding. But with the right tools, a bit of patience, and this detailed guide, you’ll have your smart doorbell up and running in under an hour. Whether you’re upgrading from a wired doorbell or installing one for the first time, this step-by-step walkthrough covers everything from prep work to final testing.
In this guide, you’ll learn how to safely drill into brick, securely mount your Ring Doorbell 2, connect it to your home’s wiring (if applicable), and configure it using the Ring app. We’ll also share pro tips to avoid common pitfalls—like cracked bricks, loose mounts, or poor Wi-Fi reception—so your installation looks clean, functions reliably, and lasts for years.
Let’s get started!
What You’ll Need Before You Begin

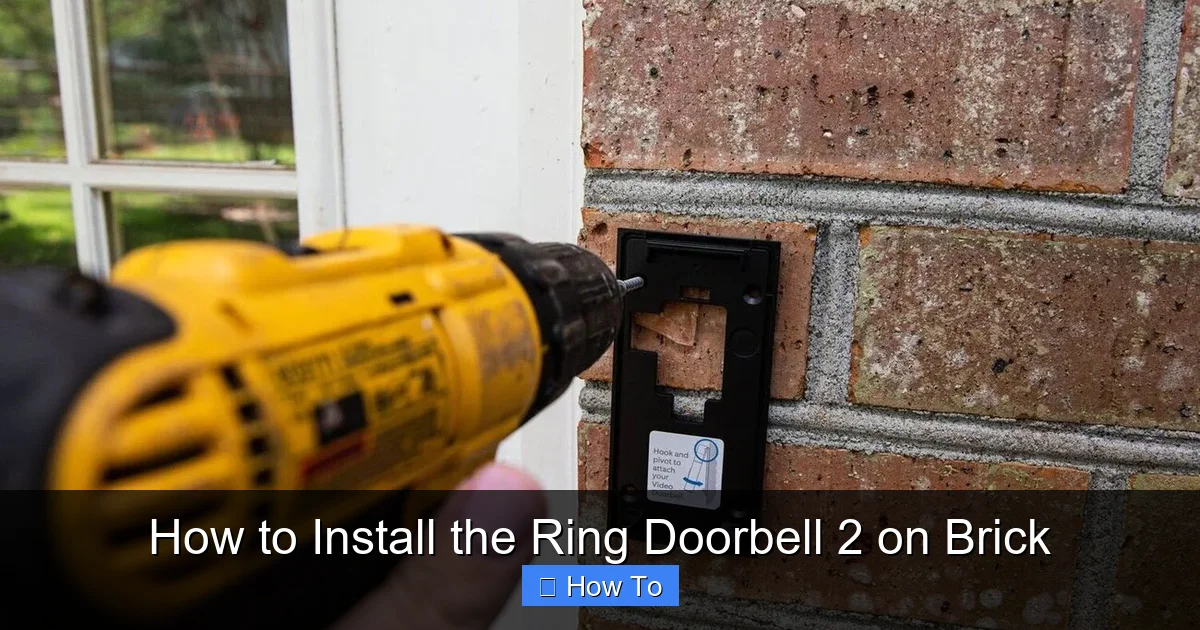

Visual guide about How to Install the Ring Doorbell 2 on Brick
Image source: storables.com
Before picking up your drill, gather all the necessary tools and materials. Having everything ready saves time and prevents mid-project trips to the hardware store.
You’ll need:
- Ring Doorbell 2 (with included mounting bracket and screws)
- Masonry drill bit (¼-inch or 6mm carbide-tipped)
- Power drill (corded or cordless)
- Hammer
- Plastic or metal wall plugs (anchors)—usually 4 required
- Screwdriver (Phillips head)
- Spirit level
- Pencil or chalk
- Measuring tape
- Wire strippers (only if connecting to existing doorbell wires)
- Electrical tape (for wiring)
- Exterior-grade silicone caulk (optional but recommended)
- Safety goggles and dust mask
- Smartphone with the Ring app installed
Pro Tip: If you’re replacing an old doorbell, take a photo of the existing wiring before disconnecting anything. This helps you remember which wire goes where.
Step 1: Choose the Right Location
Picking the perfect spot is crucial for both functionality and aesthetics. Your Ring Doorbell 2 should be mounted about 4 feet (1.2 meters) above the ground—this height captures most visitors’ faces while staying out of easy reach for tampering.
Consider these factors:
- Field of view: Aim for a clear view of your walkway, driveway, or front door. Avoid pointing it directly at a bright light source (like a porch light) to prevent glare.
- Wi-Fi signal: Brick walls can weaken Wi-Fi signals. Stand near the installation spot with your phone and check the signal bars. If it’s weak, consider a Wi-Fi extender or mesh network.
- Accessibility: Make sure you can easily reach the area with a ladder if needed. Avoid spots blocked by trees, railings, or overhangs.
- Wiring access (if applicable): If you’re using existing doorbell wires, ensure they’re long enough to reach the new mounting location.
Once you’ve chosen the spot, use a pencil to lightly mark the center point where the doorbell will go.
Step 2: Turn Off Power (For Wired Installations)
If you’re replacing a wired doorbell, safety comes first. Even low-voltage doorbell circuits can give a mild shock or damage your Ring device if mishandled.
How to Safely Disconnect Power
- Locate your home’s main electrical panel (breaker box).
- Find the breaker labeled “doorbell,” “chime,” or something similar. If unsure, turn off the main breaker temporarily.
- Test the old doorbell by pressing it—if it doesn’t ring, power is off.
- Carefully remove the old doorbell plate and disconnect the wires. Twist them together with a wire nut or wrap with electrical tape to prevent accidental contact.
Important: Never skip this step if working with existing wiring. Ring recommends using their optional Ring Transformer (sold separately) if your current transformer doesn’t provide enough power (needs 16–24V AC).
Step 3: Mark and Drill Pilot Holes in Brick
Now comes the trickiest part: drilling into brick. Unlike drywall or wood, brick requires special technique to avoid cracks or crumbling.
Prepare the Surface
Clean the brick area with a brush to remove dirt, dust, or loose mortar. This ensures a clear view and better adhesion for markings.
Mark the Mounting Points
Hold the Ring mounting bracket against the brick where you want to install it. Use a spirit level to make sure it’s perfectly horizontal—this keeps your doorbell straight and improves video quality. Once level, trace the screw holes with a pencil.
Pro Tip: Use a small piece of painter’s tape over the drill spot. This reduces “walking” (when the bit slips) and helps the drill bit grip the surface better.
Drill the Holes
- Put on safety goggles and a dust mask—brick dust is harmful if inhaled.
- Insert the ¼-inch (6mm) masonry drill bit into your drill.
- Set your drill to hammer mode (if it has one). Hammer mode combines rotation with a pounding action, ideal for masonry.
- Drill slowly and steadily. Apply gentle pressure—let the drill do the work. Forcing it can crack the brick.
- Drill each hole about 1.5 to 2 inches (4–5 cm) deep to accommodate the wall plug and screw.
- Blow out dust from the holes using a straw or compressed air.
Warning: Avoid drilling into mortar joints if possible—they’re softer and may crumble. Aim for the center of the brick for maximum hold.
Step 4: Insert Wall Plugs and Secure the Mounting Bracket
Wall plugs (also called anchors) are essential for creating a strong anchor point in hard brick.
Install the Anchors
- Tap each plastic or metal wall plug gently into the drilled hole using a hammer. They should fit snugly—don’t force them.
- If a plug feels loose, remove it and try a slightly larger size or use epoxy-based anchor adhesive for extra hold.
Attach the Bracket
- Align the mounting bracket with the holes.
- Insert the provided screws through the bracket and into the wall plugs.
- Tighten with a screwdriver until the bracket is flush against the brick. Don’t overtighten—this can strip the anchor or crack the brick.
- Double-check with the spirit level to ensure the bracket is still straight.
Pro Tip: If your brick is very old or crumbly, consider using heavy-duty metal anchors or consulting a professional. A wobbly mount leads to poor video and potential damage.
Step 5: Connect the Wiring (If Applicable)
If you’re using existing doorbell wires, now’s the time to connect them.
Prepare the Wires
Strip about ½ inch (1.3 cm) of insulation from each wire using wire strippers. Twist the exposed copper strands to keep them neat.
Attach to the Ring Doorbell
- Loosen the terminal screws on the back of the Ring Doorbell 2.
- Insert one wire under each screw (polarity doesn’t matter for Ring devices).
- Tighten the screws securely to hold the wires in place.
- Wrap the connections with electrical tape for added insulation.
Note: If you’re installing a battery-powered Ring Doorbell 2 (no wires), skip this step. The device runs on a rechargeable battery that lasts 6–12 months.
Step 6: Mount the Ring Doorbell 2
With the bracket secured and wires connected, it’s time to attach the doorbell.
Snap It Into Place
- Align the back of the Ring Doorbell 2 with the mounting bracket.
- Gently press it forward until you hear a click—it should lock securely.
- Give it a light tug to confirm it’s firmly attached.
Pro Tip: If the fit feels loose, check that the bracket is level and the screws are tight. A loose mount can cause vibration and blurry video.
Step 7: Seal and Protect (Optional but Recommended)
Brick is porous and can allow water to seep behind the doorbell, leading to mold or electrical issues over time.
Apply Silicone Caulk
- Use a small tube of exterior-grade silicone caulk.
- Apply a thin bead around the edges of the mounting bracket where it meets the brick.
- Smooth it with your finger or a caulk tool for a clean finish.
- Let it dry for at least 2 hours before exposing to rain.
This simple step adds weather resistance and gives your installation a polished, professional look.
Step 8: Power On and Set Up via the Ring App
Now for the fun part—getting your doorbell online and customized.
Turn Power Back On
If you disconnected power earlier, go back to the breaker box and restore electricity.
Download and Open the Ring App
If you haven’t already, download the free Ring app (available on iOS and Android). Create an account or log in.
Follow the Setup Wizard
- Tap “Set Up a Device” and select “Doorbell.”
- Scan the QR code on the back of your Ring Doorbell 2 (or enter the serial number manually).
- The app will guide you through connecting to your Wi-Fi network. Make sure you’re on a 2.4 GHz band—Ring devices don’t support 5 GHz.
- Test the connection by viewing the live video feed.
- Adjust motion zones, notification settings, and recording preferences.
- Enable features like “Motion Alerts,” “Live View,” and “Two-Way Talk.”
Pro Tip: Name your doorbell (e.g., “Front Door”) and add it to a Ring Location for better organization if you have multiple devices.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix them:
Problem: Doorbell Won’t Power On
- Check wiring: Ensure wires are securely connected and not touching each other.
- Verify power: Use a multimeter to test voltage at the terminals (should be 16–24V AC).
- Battery issue: If using battery mode, charge the battery fully before setup.
Problem: Weak or No Wi-Fi Signal
- Move your router closer or install a Wi-Fi extender.
- Avoid placing the doorbell behind metal doors or thick walls.
- Use the Ring app’s “Signal Strength” tool to test connectivity.
Problem: Blurry or Glared Video
- Clean the camera lens with a microfiber cloth.
- Reposition the doorbell to avoid direct sunlight or bright lights.
- Adjust the angle slightly downward for better face capture.
Problem: Mount Feels Loose
- Double-check that wall plugs are fully seated.
- Replace plastic anchors with metal ones for extra grip.
- Re-drill and re-mount if necessary—better safe than sorry!
Maintenance Tips for Long-Term Performance
To keep your Ring Doorbell 2 working smoothly:
- Clean the lens and motion sensor monthly with a soft, dry cloth.
- Check battery level in the app every few months (if applicable).
- Inspect the mount and caulk annually for cracks or wear.
- Update the Ring app and firmware regularly for security and feature improvements.
Conclusion
Installing the Ring Doorbell 2 on brick doesn’t have to be daunting. With the right tools—especially a masonry drill bit and wall plugs—and careful attention to detail, you can achieve a secure, weather-resistant mount that enhances your home’s security and curb appeal. Remember to prioritize safety, test your Wi-Fi, and use the Ring app to unlock the full potential of your smart doorbell.
Whether you’re a DIY beginner or a seasoned home improver, this guide equips you with everything needed for a successful installation. Now go enjoy peace of mind knowing your front door is always in view—even when you’re not home.
