Installing your Ring Doorbell Video is simpler than you think. This guide walks you through every step—from choosing the right model to mounting and connecting to Wi-Fi—so you can secure your home in under an hour.
Key Takeaways
- Choose the right model: Ring offers several doorbell models, including battery-powered and wired versions. Pick one that fits your home’s setup and power source.
- Gather the right tools: You’ll need a drill, screwdriver, level, and possibly a voltage tester. Most kits include mounting hardware and screws.
- Check your Wi-Fi signal: A strong 2.4 GHz Wi-Fi connection is essential. Use the Ring app to test signal strength before installing.
- Follow the app instructions: The Ring app guides you through setup, pairing, and testing. Always use the latest version for the best experience.
- Test after installation: Once mounted, test motion detection, live view, and two-way audio to ensure everything works properly.
- Secure your account: Enable two-factor authentication in the app to protect your video footage and personal data.
- Maintain regularly: Clean the lens, check battery life, and update firmware to keep your doorbell performing at its best.

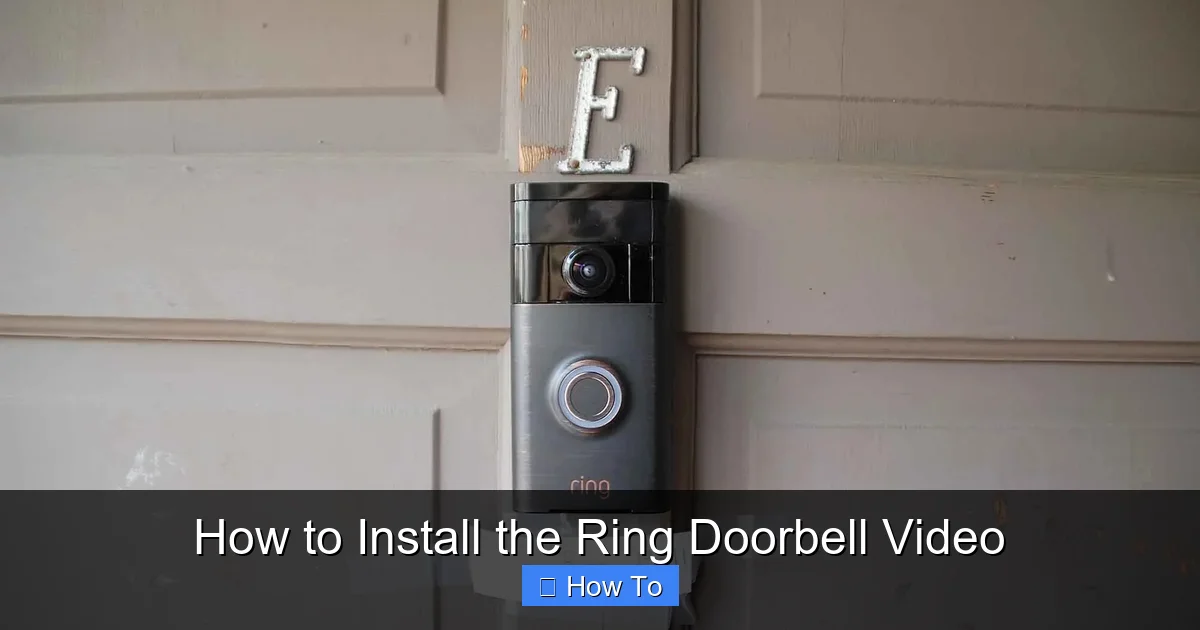

How to Install the Ring Doorbell Video
So, you’ve decided to upgrade your home security with a Ring Doorbell Video. Great choice! These smart doorbells let you see, hear, and speak to anyone at your door—even when you’re not home. Whether you’re replacing an old doorbell or installing one for the first time, this step-by-step guide will help you get your Ring Doorbell up and running quickly and safely.
In this guide, you’ll learn everything from choosing the right model to mounting it on your wall and connecting it to your Wi-Fi. We’ll also cover common issues and how to fix them. By the end, you’ll have a fully functional smart doorbell that keeps your home secure and gives you peace of mind.
Step 1: Choose the Right Ring Doorbell Model
Before you start installing, make sure you have the right Ring Doorbell for your home. Ring offers several models, each with different features and power options. Here’s a quick rundown:

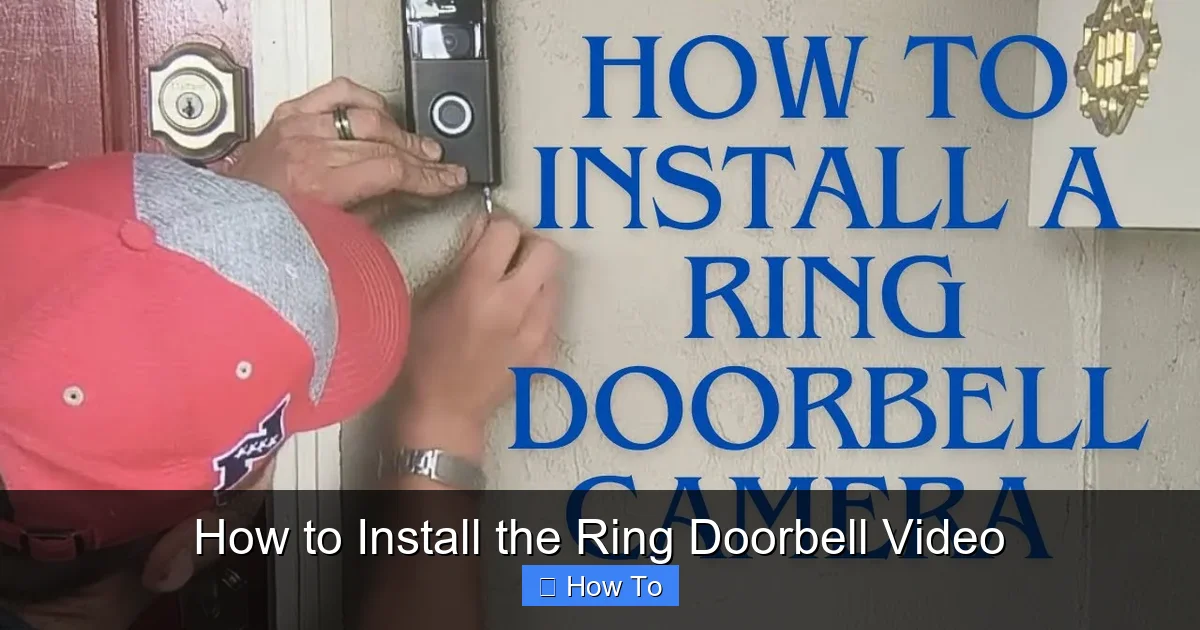

Visual guide about How to Install the Ring Doorbell Video
Image source: i.ytimg.com
- Ring Video Doorbell (2nd Gen): Battery-powered, easy to install, and works with most homes. Great for renters or homes without existing doorbell wiring.
- Ring Video Doorbell Pro 2: Wired only, offers advanced features like 3D motion detection and color night vision. Best for homes with existing doorbell wiring.
- Ring Video Doorbell Wired: Affordable wired option that connects directly to your home’s power. Requires a transformer with at least 8-24V AC.
- Ring Video Doorbell Elite: Professional-grade, powered via Ethernet. Ideal for businesses or homes with PoE (Power over Ethernet) setups.
If you’re unsure, the battery-powered models are the most beginner-friendly. They don’t require electrical work and can be installed in minutes. However, if you already have a working doorbell and wiring, a wired model may give you more consistent performance.
Check Compatibility
Before buying, check if your home is compatible. Most homes built after the 1980s have doorbell wiring, but older homes might not. Use a voltage tester (available at hardware stores) to check if your current doorbell has power. If it does, a wired Ring model will likely work.
Also, make sure your Wi-Fi network supports 2.4 GHz. Ring Doorbells do not work with 5 GHz-only networks. Most modern routers broadcast both bands, but double-check in your router settings.
Step 2: Gather Your Tools and Materials
You don’t need a full toolbox, but having the right tools makes installation smoother. Here’s what you’ll need:
- Drill (with a 3/32” drill bit)
- Screwdriver (Phillips head)
- Level (to ensure the doorbell is straight)
- Pencil (for marking drill holes)
- Voltage tester (if installing a wired model)
- Smartphone with the Ring app installed
- Ladder (if your doorbell is high up)
Most Ring Doorbell kits come with mounting screws, anchors, a mounting bracket, and a screwdriver bit for the drill. Some models also include a wedge or corner kit to adjust the viewing angle.
Download the Ring App
Before you begin, download the Ring app from the App Store (iOS) or Google Play (Android). You’ll use this app to set up your doorbell, connect it to Wi-Fi, and manage settings. Make sure your phone is connected to your home Wi-Fi network.
Step 3: Turn Off Power (For Wired Models Only)
If you’re installing a wired Ring Doorbell (like the Pro 2 or Wired model), safety first! Turn off the power to your doorbell at the circuit breaker. This prevents electric shock while you’re working with wires.
After turning off the power, remove your old doorbell by unscrewing it from the wall. You’ll see two wires connected to the back. Gently pull them out and label them (e.g., “Front” and “Trans”) so you know where to reconnect them later.
Test the Wiring
Use a voltage tester to confirm the power is off. Touch the probes to the two wires. If the tester doesn’t light up, it’s safe to proceed. If it does, double-check your circuit breaker.
Next, check the voltage of your existing doorbell transformer. It should be between 8 and 24 volts AC. If it’s below 8V, your Ring Doorbell may not work properly. You may need to upgrade your transformer—this is a job for an electrician if you’re not comfortable doing it yourself.
Step 4: Install the Mounting Bracket
Now it’s time to mount the bracket that holds your Ring Doorbell. The bracket ensures the doorbell is secure and angled correctly for the best view.
Position the Bracket
Hold the mounting bracket against the wall where you want to install the doorbell. The ideal height is about 48 inches from the ground—this gives a clear view of visitors and packages.
Use a level to make sure the bracket is straight. Mark the screw holes with a pencil. If you’re installing on brick, stucco, or concrete, you’ll need wall anchors. Drill pilot holes first to prevent cracking.
Attach the Bracket
Secure the bracket using the screws provided. Make sure it’s tight and doesn’t wobble. If your doorbell is on a corner or you want a better angle, use the included wedge or corner kit. These tilt the doorbell slightly for a wider field of view.
For battery-powered models, you can skip the wiring step and go straight to attaching the bracket. For wired models, feed the two wires through the center hole of the bracket before securing it.
Step 5: Connect the Wires (Wired Models Only)
If you’re installing a wired Ring Doorbell, now’s the time to connect the wires. This step is crucial for powering your device.
Strip the Wire Ends
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. Be careful not to cut too much insulation.
Attach to the Doorbell
On the back of the Ring Doorbell, you’ll see two screw terminals. Loosen the screws, insert the wires, and tighten them securely. It doesn’t matter which wire goes where—Ring doorbells are not polarity-sensitive.
Once connected, gently tuck the wires back into the wall so they don’t interfere with the doorbell when you attach it.
Step 6: Attach the Ring Doorbell
Now for the fun part—mounting your Ring Doorbell!
Snap It Into Place
Align the doorbell with the mounting bracket and press it firmly until it clicks into place. You should hear a satisfying snap, indicating it’s secure.
For battery-powered models, insert the battery into the compartment on the back. Make sure it’s fully charged before installation. You can charge it using the included USB cable.
Secure with the Set Screw
To prevent theft, use the included security screw to lock the doorbell to the bracket. Insert the screw into the bottom of the doorbell and tighten it with the provided tool. This makes it much harder for someone to remove your doorbell.
Step 7: Set Up the Ring App
With your doorbell physically installed, it’s time to connect it to your smartphone and Wi-Fi network.
Open the Ring App
Launch the Ring app and log in to your account. If you don’t have one, create a free account using your email address.
Add a New Device
Tap the Menu (three lines) in the top-left corner, then select Set Up a Device. Choose Doorbells and follow the on-screen prompts.
The app will ask you to scan the QR code on the back of your doorbell. Hold your phone close to the code until it scans successfully.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The app will test the connection and let you know if the signal is strong enough. If the signal is weak, consider moving your router or using a Wi-Fi extender.
Once connected, the app will guide you through naming your doorbell (e.g., “Front Door”) and setting up motion zones. You can customize which areas trigger alerts—like your driveway or sidewalk—and ignore others, like a busy street.
Step 8: Test Your Ring Doorbell
Before you call it a day, test your doorbell to make sure everything works.
Check Live View
Open the Ring app and tap Live View. You should see a clear video feed from your doorbell. If the image is blurry or dark, clean the lens with a soft cloth.
Test Two-Way Audio
Speak into your phone and listen for the audio through the doorbell. Ask someone to stand at the door and talk back to you. This confirms the microphone and speaker are working.
Trigger Motion Alerts
Walk in front of the doorbell to trigger a motion alert. You should receive a notification on your phone within a few seconds. Open the app to see the recorded clip.
Ring the Doorbell
Press the doorbell button. Your phone should receive a call or notification. Answer it to see and speak to the visitor. If you don’t hear a chime inside your home, check your chime settings in the app.
Step 9: Customize Settings and Features
Now that your doorbell is working, take a few minutes to personalize it.
Adjust Motion Sensitivity
In the app, go to Device Settings > Motion Settings. You can adjust how sensitive the motion detection is. Lower sensitivity reduces false alerts from passing cars or wind-blown leaves.
Set Up Motion Zones
Draw custom zones on the video feed to focus on important areas. For example, you might want alerts when someone approaches your front step but not when a dog walks by on the sidewalk.
Enable Smart Alerts
Ring offers smart alerts that can distinguish between people, packages, and vehicles. Enable these in the app to reduce unnecessary notifications.
Connect to Alexa or Google Assistant
If you have a smart speaker, link your Ring account to Alexa or Google Assistant. You can then say, “Alexa, show me the front door,” to view the live feed on an Echo Show or Nest Hub.
Step 10: Maintain Your Ring Doorbell
To keep your Ring Doorbell working well, regular maintenance is key.
Clean the Lens
Every few weeks, wipe the lens with a microfiber cloth to remove dust, dirt, or fingerprints. A clean lens ensures clear video quality.
Check Battery Life
For battery-powered models, check the battery level in the app. Most batteries last 6–12 months, depending on usage. Recharge or replace as needed.
Update Firmware
Ring regularly releases firmware updates to improve performance and security. The app will notify you when an update is available. Install it promptly.
Review Recordings
If you have a Ring Protect Plan, you can save and review video recordings. Check them periodically to ensure your doorbell is capturing important events.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Doorbell Not Connecting to Wi-Fi
If your doorbell won’t connect, try these steps:
- Make sure your Wi-Fi network is 2.4 GHz (not 5 GHz only).
- Move your router closer or use a Wi-Fi extender.
- Restart your router and try again.
- Reset the doorbell by holding the setup button for 20 seconds.
Poor Video Quality
Blurry or grainy video? Try these fixes:
- Clean the lens with a soft cloth.
- Check for obstructions like spider webs or dirt.
- Ensure the doorbell is mounted securely—vibrations can blur the image.
- Update the firmware in the app.
Motion Alerts Not Working
If you’re not getting alerts:
- Check motion settings in the app—make sure sensitivity is turned up.
- Verify motion zones are set correctly.
- Ensure your phone’s notifications are enabled for the Ring app.
- Restart the doorbell by removing and reinserting the battery (if applicable).
Doorbell Not Chiming Inside
If your indoor chime isn’t ringing:
- Check the chime settings in the app—make sure it’s enabled.
- For wired models, ensure the existing chime is compatible (most are).
- For battery models, consider buying a Ring Chime or Chime Pro for indoor alerts.
Doorbell Keeps Disconnecting
Frequent disconnections? Try this:
- Move the doorbell closer to your router.
- Reduce interference from other devices (microwaves, cordless phones).
- Reset the doorbell and reconnect to Wi-Fi.
- Contact Ring support if the issue persists.
Conclusion
Installing a Ring Doorbell Video is a smart way to boost your home security. With this guide, you’ve learned how to choose the right model, mount it safely, connect it to Wi-Fi, and customize settings for the best experience.
Remember, the key to success is preparation. Gather your tools, check your Wi-Fi, and follow the app’s instructions carefully. And don’t forget to test everything after installation.
Once your doorbell is up and running, you’ll enjoy peace of mind knowing you can see and speak to visitors from anywhere. Whether you’re at work, on vacation, or just relaxing at home, your Ring Doorbell keeps you connected and secure.
So go ahead—mount that doorbell, connect it, and start protecting your home today!
