This guide walks you through how to install a transformer for a doorbell in the wall, from locating the right spot to wiring and testing. Whether you’re upgrading an old system or installing a new one, we’ll help you do it safely and efficiently.
Key Takeaways
- Safety first: Always turn off power at the circuit breaker before working on electrical components.
- Choose the right transformer: Match voltage (typically 16V or 24V) and wattage to your doorbell chime and doorbell type.
- Locate the best installation spot: Install the transformer near an electrical outlet or junction box inside your home, not outside.
- Use proper wiring: Low-voltage doorbell wire (18-22 gauge) is essential for connecting the transformer to the chime.
- Test before finishing: Always test the system before closing up walls or covering the transformer.
- Follow local codes: Check with your local building department to ensure compliance with electrical regulations.
- Consider professional help: If you’re unsure about any step, consult a licensed electrician.
How to Install Transformer for Doorbell in Wall
Upgrading your doorbell or installing a new one often requires a reliable power source—and that’s where the doorbell transformer comes in. The transformer steps down your home’s standard 120-volt electrical current to a safer, lower voltage (usually 16V or 24V) that powers your doorbell chime and button. While many older homes have transformers already installed, newer smart doorbells or replacement systems may need a fresh setup—especially if you’re mounting the transformer inside the wall for a cleaner look.
In this comprehensive guide, you’ll learn how to install a transformer for a doorbell in the wall safely and effectively. Whether you’re replacing an old unit or setting up a new smart doorbell system, we’ll walk you through every step—from choosing the right transformer to testing your finished installation. We’ll also cover essential safety tips, common mistakes to avoid, and troubleshooting advice to ensure your doorbell works reliably for years to come.
By the end of this guide, you’ll have the confidence and knowledge to handle this DIY project like a pro—no electrician required (though we’ll tell you when it’s smart to call one).
Why You Need a Doorbell Transformer

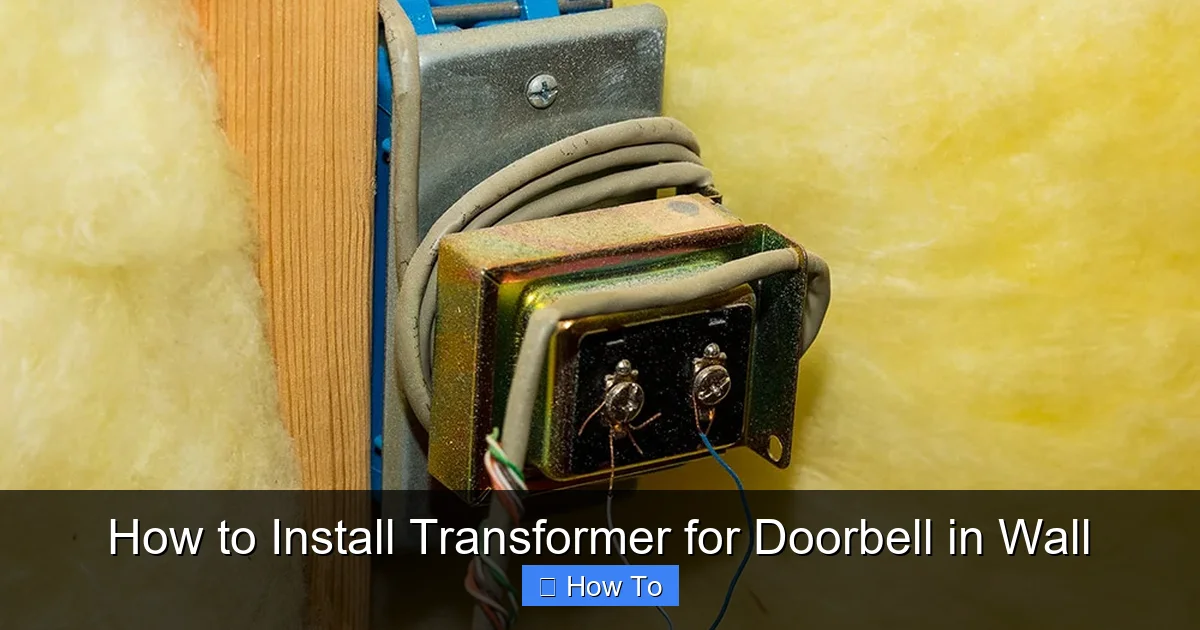

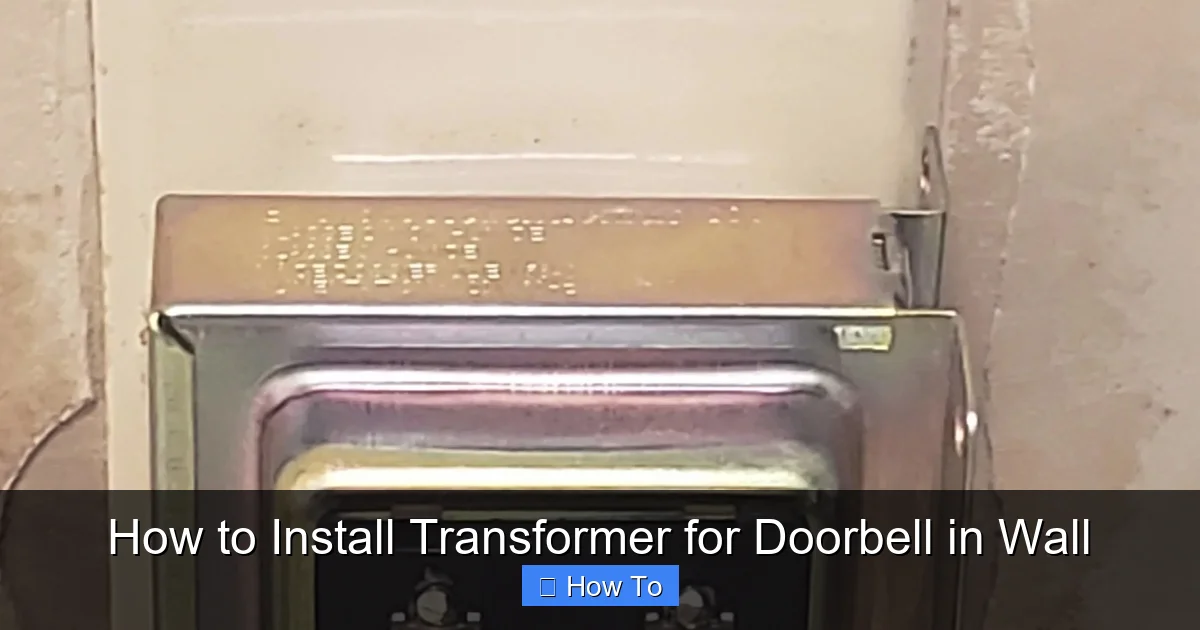

Visual guide about How to Install Transformer for Doorbell in Wall
Image source: contentgrid.homedepot-static.com
Before diving into the installation, it’s important to understand why the transformer is such a critical component. Your doorbell doesn’t run directly off your home’s main electrical supply. Instead, it uses a low-voltage system powered by a transformer. This transformer converts the standard 120V AC from your electrical panel into a safer 16V or 24V AC, which is perfect for doorbell circuits.
Without a properly functioning transformer, your doorbell won’t receive enough power to operate. This is especially true for modern smart doorbells like Ring, Nest, or Arlo, which require consistent voltage to power cameras, Wi-Fi connectivity, and motion sensors. Even traditional mechanical chimes need the right voltage to produce a clear, audible ring.
Installing the transformer inside the wall—often near the doorbell chime or in a basement, closet, or utility room—keeps it out of sight and protects it from weather and tampering. It also allows for a cleaner, more professional installation, especially if you’re running new wires or upgrading your entire doorbell system.
Tools and Materials You’ll Need
Before starting, gather all the necessary tools and materials. Having everything on hand will make the process smoother and safer.
Essential Tools
- Voltage tester (non-contact)
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Drill with bits (for mounting and running wires)
- Fish tape or wire puller (for running wires through walls)
- Pliers (needle-nose and lineman’s)
- Stud finder
- Measuring tape
- Safety glasses and gloves
Materials
- Doorbell transformer (16V or 24V, 10-30VA depending on your doorbell)
- Low-voltage doorbell wire (18-22 gauge, 2-conductor)
- Electrical box (old work or new work, depending on your wall type)
- Wire nuts (usually included with transformer)
- Mounting screws
- Electrical tape
- Wire connectors (if needed)
Optional but Helpful
- Label maker (to mark wires)
- Cable clips or staples (to secure wires)
- Multimeter (for advanced testing)
- Smart doorbell kit (if replacing or upgrading)
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before touching any wires or installing the transformer, you must turn off the power at the source.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (breaker box). Look for the breaker that controls the doorbell circuit. It’s often labeled “doorbell,” “chime,” or “low voltage,” but if not, you may need to test circuits by turning them off one at a time and checking if your doorbell stops working.
Turn Off the Breaker
Switch the correct breaker to the “OFF” position. Use a non-contact voltage tester to double-check that power is off at the doorbell chime and transformer location. Touch the tester to the wires—if it beeps or lights up, power is still on, and you need to find the right breaker.
Lock Out the Breaker (Optional but Recommended)
If you’re working alone or want extra safety, use a breaker lock or tag to prevent someone from accidentally turning the power back on while you’re working.
Step 2: Choose the Right Transformer
Not all transformers are created equal. Choosing the correct one ensures your doorbell works properly and avoids damage to your system.
Check Voltage Requirements
Most doorbells operate on 16V AC, but some smart doorbells require 24V. Check your doorbell’s manual or product specifications. If you’re unsure, 16V is a safe default for most standard systems.
Check Wattage (VA Rating)
The VA (volt-ampere) rating indicates how much power the transformer can supply. A typical doorbell needs 10-15VA, but smart doorbells with cameras and Wi-Fi may need 20-30VA. Choose a transformer with a VA rating equal to or higher than your doorbell’s requirement.
Choose the Right Type
There are two main types:
- Plug-in transformers: Easy to install but sit near an outlet and may look messy.
- Hardwired transformers: Installed inside the wall or electrical box, offering a cleaner look. These are ideal for in-wall installation.
For this guide, we’re focusing on hardwired transformers mounted inside the wall.
Step 3: Locate the Best Installation Spot
Where you install the transformer matters. It should be:
- Inside your home (never outside)
- Near an electrical junction box or outlet
- Accessible for future maintenance
- Close to the doorbell chime (if possible)
Common Installation Locations
- Basement or crawlspace: Near the doorbell chime or electrical panel.
- Closet or utility room: Near an outlet and out of the way.
- Attic (if accessible): Only if it’s climate-controlled and safe.
- Behind the doorbell chime: If the chime is mounted on an interior wall.
Avoid installing the transformer in damp areas, near heat sources, or in enclosed spaces without ventilation.
Step 4: Prepare the Electrical Box
You’ll need an electrical box to mount the transformer securely and protect the wiring.
Choose the Right Box
– New work box: Used when installing in new construction or open walls.
– Old work (remodel) box: Designed for retrofitting into existing walls. It has clips that grip the drywall from behind.
Since most in-wall installations are in existing homes, an old work box is usually the best choice.
Cut the Hole
Use a stud finder to locate studs and avoid cutting into them. Mark the spot for the box, then use a drywall saw or hole cutter to create an opening slightly larger than the box.
Install the Box
Insert the box into the hole and tighten the mounting screws until the clips grip the back of the drywall. Make sure it’s flush with the wall surface.
Step 5: Run the Wires
Now it’s time to connect the transformer to your home’s electrical supply and the doorbell circuit.
Connect to Line Voltage (120V)
The transformer has two primary wires (usually black and white) that connect to your home’s 120V circuit.
Turn Off Power Again
Double-check that the breaker is off.
Locate a Power Source
Find a nearby electrical junction box or outlet with constant power (not switched). You’ll tap into the hot (black), neutral (white), and ground (green or bare) wires.
Splice the Wires
Use wire nuts to connect:
- Transformer black wire → Home’s black (hot) wire
- Transformer white wire → Home’s white (neutral) wire
- Transformer green or bare wire → Home’s ground wire
Secure all connections with electrical tape for extra safety.
Run Low-Voltage Wires to the Doorbell
The transformer’s secondary side has two low-voltage terminals (usually labeled “T” or “16V”). Connect 18-22 gauge doorbell wire to these terminals.
Route the Wire
Run the wire from the transformer location to the doorbell button and chime. Use fish tape to pull wire through walls if needed. Avoid sharp bends or pinching the wire.
Label the Wires
Use a label maker or tape to mark which wire goes to the doorbell button and which goes to the chime. This prevents confusion later.
Step 6: Mount the Transformer
With the wires connected, it’s time to secure the transformer inside the electrical box.
Attach the Transformer
Most transformers have mounting holes or brackets. Use screws to attach it to the electrical box or a nearby stud. Make sure it’s secure and won’t move around.
Organize the Wires
Tuck excess wire neatly into the box. Avoid overcrowding, as this can cause overheating or short circuits.
Close the Box (Optional)
Some transformers come with a cover plate. If yours does, install it now. Otherwise, leave the box open for ventilation unless your local code requires a cover.
Step 7: Connect to the Doorbell and Chime
Now connect the low-voltage wires to your doorbell button and chime.
At the Doorbell Button
Remove the existing button (if replacing) or install a new one. Connect the two low-voltage wires to the terminals on the back of the button. Polarity doesn’t matter for most doorbells.
At the Chime Unit
Open the chime cover and locate the terminals (usually labeled “Front,” “Trans,” and “Rear”). Connect:
- One wire from the transformer → “Trans” terminal
- One wire from the doorbell button → “Front” terminal
If you have a second doorbell (e.g., rear door), connect it to the “Rear” terminal.
Step 8: Restore Power and Test
You’re almost done! Now it’s time to test your work.
Turn the Power Back On
Go to the breaker panel and switch the doorbell circuit back on.
Test the Doorbell
Press the doorbell button. The chime should ring clearly. If it doesn’t, check your connections.
Check for Smart Features
If you’re using a smart doorbell, open the app and verify that it’s receiving power and connecting to Wi-Fi. Some models have a power indicator light that should glow steadily.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring
- Check that power is on at the breaker.
- Test the transformer output with a multimeter (should read 16V or 24V AC).
- Ensure all wire connections are tight and secure.
- Verify the doorbell button isn’t stuck or damaged.
Chime Rings Weakly or Intermittently
- The transformer may be underpowered. Upgrade to a higher VA rating.
- Wires may be too long or too thin. Use shorter, thicker (18-gauge) wire if possible.
- Loose connections can cause voltage drop. Re-tighten all terminals.
Smart Doorbell Won’t Power On
- Ensure the transformer provides enough voltage and current.
- Some smart doorbells require a 24V transformer—double-check the specs.
- If the light flickers, the transformer may be overloaded. Consider a dedicated circuit.
Buzzing or Humming Sound
- This can indicate a loose connection or incompatible transformer.
- Check all wire nuts and terminals.
- Ensure the transformer is rated for continuous use (not a cheap plug-in type).
Safety Tips and Best Practices
Even though doorbell systems use low voltage, safety should never be overlooked.
- Always turn off power at the breaker before working.
- Use a voltage tester to confirm power is off.
- Never work on live wires.
- Wear safety glasses and gloves.
- Keep wires organized and labeled.
- Don’t overload the transformer—match it to your doorbell’s needs.
- If you’re unsure, consult a licensed electrician.
When to Call a Professional
While many homeowners can handle this project, some situations call for expert help:
- You can’t locate the correct breaker.
- Your home has aluminum wiring (requires special handling).
- You’re uncomfortable working with electricity.
- The installation requires major drywall repair or rewiring.
- Local codes require a permit or inspection.
A licensed electrician can ensure the job is done safely and up to code.
Conclusion
Installing a transformer for your doorbell in the wall is a manageable DIY project that can improve the reliability and appearance of your doorbell system. By following this step-by-step guide, you’ve learned how to choose the right transformer, safely connect it to your home’s wiring, and integrate it with your doorbell and chime.
Remember: safety comes first. Always turn off the power, double-check your connections, and test the system before finishing. With the right tools and a little patience, you can enjoy a fully functional doorbell that lasts for years.
Whether you’re upgrading to a smart doorbell or simply replacing an old transformer, this project gives you greater control over your home’s entry system. And if you ever run into trouble, don’t hesitate to seek professional help—your safety is worth it.
Now go ahead, press that button, and enjoy the satisfying chime of a job well done.
