How to Install Video Doorbell with Nutone M&S
Upgrading your home security with a video doorbell is a smart move—especially when you already have a Nutone M&S intercom system in place. These classic intercoms are reliable, but they weren’t designed for modern Wi-Fi-enabled doorbells. That doesn’t mean you can’t integrate one, though! With the right tools, a bit of patience, and this step-by-step guide, you can successfully install a video doorbell with your Nutone M&S system.
In this guide, you’ll learn everything from checking compatibility to wiring your new doorbell safely. We’ll cover common challenges, like power requirements and wire labeling, and offer practical tips to make the process smooth. Whether you’re installing a Ring, Google Nest, Eufy, or another brand, these steps will help you get your video doorbell up and running without frying your intercom or tripping your breaker.
Let’s get started!
What You’ll Need

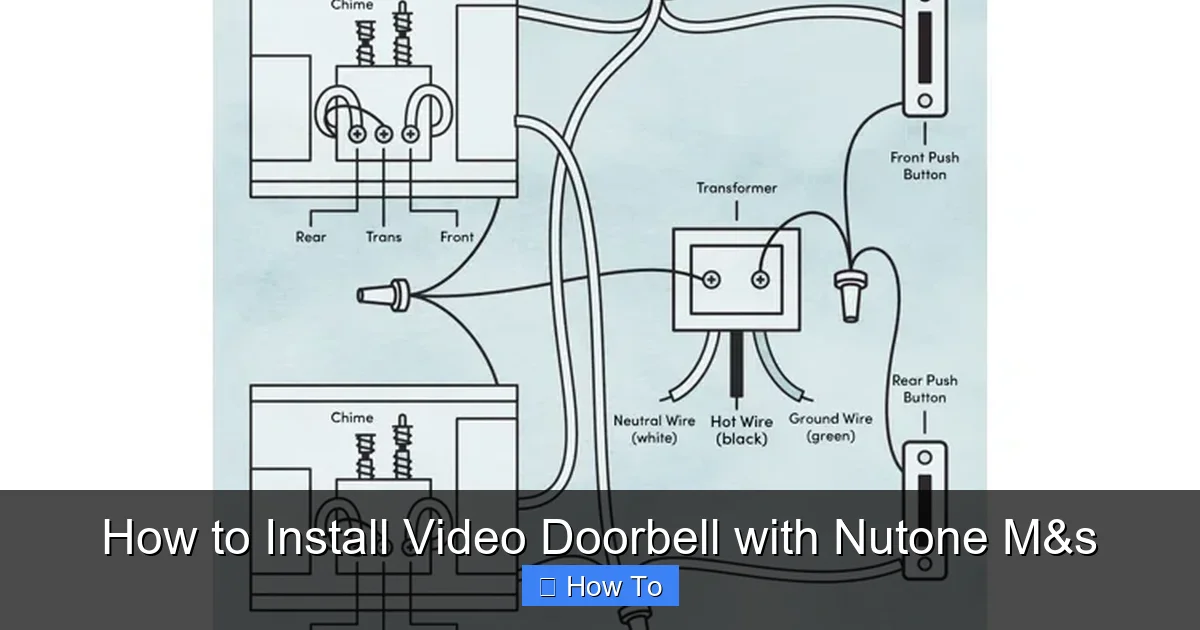

Visual guide about How to Install Video Doorbell with Nutone M&s
Image source: i1.wp.com
Before you begin, gather all the tools and materials. Having everything ready saves time and reduces frustration.
- Video doorbell (compatible with low-voltage systems)
- Screwdriver set (Phillips and flathead)
- Voltage tester or multimeter
- Wire strippers
- Electrical tape or wire labels
- Drill and drill bits (if mounting on brick or concrete)
- Level
- Pencil or marker
- Smartphone or tablet (for setup app)
- Wi-Fi network name and password
- Optional: Power kit (if recommended by doorbell manufacturer)
- Optional: Step-down transformer (if voltage is too high)
Step 1: Check Compatibility with Your Nutone M&S System
Not every video doorbell will work with older Nutone M&S intercom systems. These systems typically use low-voltage wiring (8–24 volts AC), but the exact voltage and wiring configuration can vary.
Why Compatibility Matters
Modern video doorbells need consistent power to run cameras, Wi-Fi, and motion sensors. If your Nutone system doesn’t supply enough power—or if the wiring isn’t compatible—your doorbell may not work, freeze, or drain batteries too fast (even if it’s wired).
How to Check Your System
Start by identifying your Nutone M&S model. Look for a label on the indoor intercom unit or the chime box. Common models include the M&S 8300, 8400, or 8500 series.
Next, check the voltage:
- Turn off power at the breaker.
- Remove the front cover of your existing doorbell or intercom chime.
- Locate the transformer—usually a small black box near the chime or in the basement/attic.
- Use a multimeter to test the voltage across the two low-voltage wires. Most Nutone systems run at 16V AC, but some older models may be 8V or 24V.
If your voltage is below 16V, your video doorbell might not get enough power. If it’s above 24V, you risk damaging the doorbell. In either case, you may need a compatible transformer or power kit.
Recommended Doorbell Brands
Some video doorbells are more forgiving with power variations. These work well with Nutone systems:
- Ring Video Doorbell (2nd Gen or later)
- Google Nest Doorbell (wired)
- Eufy Security Video Doorbell
- Arlo Essential Wired Video Doorbell
Always check the manufacturer’s website for compatibility with intercom systems or low-voltage wiring.
Step 2: Turn Off the Power
Safety first! Working with electrical wiring can be dangerous if you don’t disconnect the power.
Locate Your Breaker Box
Find the circuit breaker that controls your doorbell or intercom. It’s often labeled “Doorbell,” “Intercom,” or “Chime.” If not, turn off the main breaker to be safe.
Test the Power
Even after turning off the breaker, use a non-contact voltage tester to double-check that no electricity is flowing to the wires. Touch the tester to each wire—if it beeps or lights up, the power is still on. Go back and turn off the correct breaker.
Never skip this step. A small shock can be painful, and a strong one can be deadly.
Step 3: Remove the Old Doorbell or Intercom Button
Now it’s time to take off the existing hardware.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding the old doorbell button or intercom speaker in place. Gently pull the unit away from the wall.
Label the Wires
You’ll see two or more wires connected to the back. These carry low-voltage power from the transformer.
Important: Label each wire with tape or a marker. For example:
- “Front Door”
- “Transformer”
- “Chime”
If you don’t label them, you might reconnect them wrong later—and that can damage your new doorbell or intercom.
Disconnect the Wires
Loosen the terminal screws and carefully remove the wires. Keep them separated so they don’t touch each other or the wall.
Set the old unit aside. You won’t need it anymore.
Step 4: Prepare the Wires for the Video Doorbell
Your video doorbell needs two wires: one for power and one for ground (or common). Most Nutone systems use two-wire setups, which is perfect.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire end. This exposes fresh copper for a solid connection.
Check Wire Length
Make sure the wires are long enough to reach the new doorbell. If they’re too short, you may need to extend them with wire nuts and additional low-voltage wire.
Optional: Install a Power Kit
Some video doorbells (like Ring) recommend using a “Power Kit” or “Pro Power Kit” when connecting to older chimes or intercoms. This device helps regulate power and prevents voltage drops.
If your doorbell includes a power kit, install it now:
- Open the intercom chime cover.
- Locate the two terminals where the doorbell wires connect.
- Connect the power kit wires to these terminals (follow the kit’s instructions).
- Mount the power kit inside the chime box using tape or screws.
This step is optional but highly recommended for systems with weak transformers.
Step 5: Mount the Video Doorbell
Now it’s time to install the new doorbell.
Choose the Right Location
Pick a spot near your front door that:
- Has a clear view of the entrance
- Is within Wi-Fi range
- Is protected from direct rain (most doorbells are weather-resistant, not waterproof)
- Is at a comfortable height (about 48 inches from the ground)
Mark the Mounting Holes
Hold the doorbell mounting plate against the wall. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re mounting on brick, stucco, or concrete, drill pilot holes using a masonry bit. Insert wall anchors for a secure fit.
Attach the Mounting Plate
Secure the plate with screws. Make sure it’s tight and level.
Connect the Wires
Thread the labeled wires through the back of the mounting plate. Connect them to the doorbell’s terminals:
- One wire to “Front” or “Doorbell”
- One wire to “Transformer” or “Common”
Most doorbells don’t have polarity, so it doesn’t matter which wire goes where—but follow your model’s instructions to be safe.
Tighten the screws to secure the wires. Don’t over-tighten, or you might strip the terminals.
Attach the Doorbell
Snap the video doorbell onto the mounting plate. Some models require you to secure it with a small screw at the bottom.
Step 6: Restore Power and Test
You’re almost done! Now it’s time to see if everything works.
Turn the Power Back On
Go to the breaker box and flip the breaker back on. Wait a few seconds for the system to power up.
Check the Doorbell
Look at the doorbell. Most models will show a light (like a solid or blinking LED) when powered. If it lights up, great! If not, double-check your wiring and breaker.
Test the Chime or Intercom
Press the doorbell button. You should hear a chime from your Nutone intercom or a notification on your phone.
If the chime doesn’t sound:
- Check that the power kit (if used) is installed correctly.
- Verify the wires are connected to the right terminals.
- Test the transformer voltage again.
Connect to Wi-Fi
Download the doorbell’s app (e.g., Ring, Google Home, Eufy Security). Follow the in-app setup:
- Create an account or log in.
- Select “Add Device” or “Set Up New Doorbell.”
- Scan the QR code on the doorbell or enter the serial number.
- Connect to your Wi-Fi network.
- Complete the setup (name the doorbell, adjust motion zones, etc.).
Test Video and Audio
Open the app and check the live video feed. Make sure the image is clear and the audio works. Test two-way talk by speaking through the app.
Step 7: Final Adjustments and Tips
Once everything is working, make a few final tweaks.
Adjust the Angle
If the video shows too much sky or pavement, loosen the mounting plate slightly and tilt the doorbell. Retighten the screws when satisfied.
Enable Notifications
In the app, turn on motion alerts and doorbell press notifications. You can customize sensitivity to avoid false alarms from passing cars or pets.
Set Up Motion Zones
Most apps let you draw zones where motion should trigger alerts. Focus on the walkway and ignore busy streets.
Check Night Vision
Test the doorbell at night. The infrared LEDs should provide a clear black-and-white image.
Secure the Wires
Use wire clips or conduit to keep loose wires tidy and protected from weather.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check the breaker—make sure it’s on.
- Test the transformer voltage with a multimeter.
- Ensure wires are securely connected and not touching each other.
- Try a different doorbell or power kit to isolate the issue.
Chime Doesn’t Ring
- Verify the power kit is installed (if required).
- Check that the intercom isn’t set to “Do Not Disturb.”
- Test the chime with the old doorbell to confirm it works.
Video is Blurry or Freezes
- Check Wi-Fi signal strength at the doorbell location.
- Move your router closer or use a Wi-Fi extender.
- Reduce video quality in the app if bandwidth is low.
Battery Drains Too Fast (Even When Wired)
- This usually means insufficient power from the transformer.
- Upgrade to a 16V or 24V transformer with at least 20VA output.
- Use a doorbell with a built-in battery backup (like Ring) for stability.
Two-Way Audio Doesn’t Work
- Check microphone and speaker settings in the app.
- Ensure the doorbell isn’t muted.
- Test in a quiet environment—background noise can interfere.
When to Call a Professional
While many homeowners can handle this installation, some situations call for an expert.
Call a licensed electrician if:
- You’re unsure about wiring or voltage.
- The transformer needs replacement and you’re not comfortable working with electrical panels.
- Your home has complex wiring or multiple intercom stations.
- You’ve tried troubleshooting and the doorbell still won’t work.
It’s better to spend $100 on a professional than risk damaging your system or causing a fire.
Conclusion
Installing a video doorbell with a Nutone M&S system is totally doable—even if your intercom is decades old. The key is careful planning: check compatibility, label wires, use the right tools, and test everything before final mounting.
By following this guide, you’ve upgraded your home security without replacing your entire intercom system. Now you can see who’s at the door, talk to visitors, and get alerts—all from your phone.
Remember, safety comes first. Always turn off the power, double-check connections, and don’t hesitate to ask for help if something feels off.
With your new video doorbell in place, you’ll enjoy peace of mind and modern convenience—right at your front door.
