Installing a wired doorbell transformer may seem daunting, but with the right tools and guidance, it’s a manageable DIY project. This guide walks you through the entire process—from safety precautions to final testing—so your doorbell works reliably.
Key Takeaways
- Safety first: Always turn off power at the circuit breaker before working on electrical components to prevent shocks or damage.
- Choose the right transformer: Match the voltage (typically 16V) and wattage to your doorbell’s requirements for optimal performance.
- Locate the best installation spot: Install the transformer near the chime unit or inside the electrical panel for easy access and wiring.
- Use proper tools: A voltage tester, screwdrivers, wire strippers, and electrical tape are essential for a clean, safe installation.
- Follow wiring color codes: Connect low-voltage wires correctly—usually red to terminal “R” and white to “C”—to ensure proper function.
- Test before finalizing: Always test the doorbell after installation and secure all connections to avoid future issues.
- When to call a pro: If you’re unsure about electrical work or encounter complex wiring, consult a licensed electrician.
How to Install Wired Doorbell Transformer: A Complete Step-by-Step Guide
So, you’ve decided to upgrade or replace your old doorbell system—great choice! Whether your current doorbell is silent, flickering, or just outdated, installing a new wired doorbell transformer is often the key to restoring reliable performance. But don’t worry if you’re not an electrician. With the right tools, a bit of patience, and this detailed guide, you can safely and successfully install a wired doorbell transformer yourself.
In this comprehensive how-to, we’ll walk you through every step—from understanding what a doorbell transformer does, to choosing the right model, preparing your workspace, making the electrical connections, and testing your new setup. We’ll also cover common pitfalls, troubleshooting tips, and when it’s best to call in a professional. By the end, you’ll have a fully functional doorbell that chimes clearly every time someone presses the button.
Let’s get started!
What Is a Doorbell Transformer and Why Do You Need One?

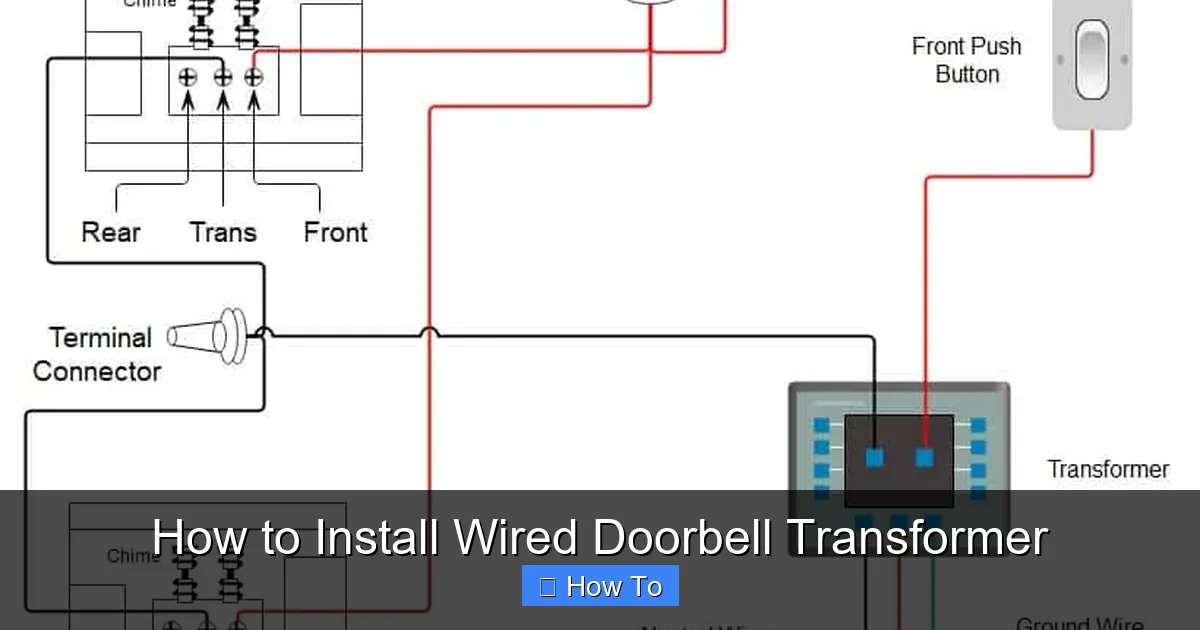

Visual guide about How to Install Wired Doorbell Transformer
Image source: 1800doorbell.com
Before diving into the installation, it’s important to understand what a doorbell transformer actually does. In simple terms, a doorbell transformer is a small electrical device that converts your home’s standard 120-volt household current into a lower voltage—usually 8 to 24 volts—that’s safe and suitable for powering your doorbell system.
Most wired doorbells operate on 16 volts, which is the standard for residential systems. The transformer steps down the high-voltage electricity from your home’s wiring to this lower voltage, ensuring your doorbell chime, button, and wiring aren’t damaged by excessive power.
Without a functioning transformer, your doorbell won’t work. If your doorbell is silent, the chime is weak, or the button feels warm, a faulty or missing transformer is often the culprit. Replacing or installing a new one can breathe new life into your entryway system.
Signs You Need a New Doorbell Transformer
How do you know if your doorbell transformer needs replacing? Here are some common signs:
- No sound when the button is pressed: If pressing the doorbell button produces no chime or only a faint buzz, the transformer may not be delivering enough power.
- Intermittent ringing: If the doorbell works sometimes but not others, the transformer could be failing.
- Burnt smell or visible damage: If you notice scorch marks, melted plastic, or a burning odor near the chime unit or electrical panel, the transformer may be overheating.
- Old or outdated system: If your home is more than 20 years old and hasn’t had electrical updates, the transformer may no longer meet current standards.
- Upgrading to a smart doorbell: Many video doorbells require a consistent 16V transformer to function properly. If your existing transformer is underpowered, you’ll need to replace it.
If you’re experiencing any of these issues, it’s time to install a new wired doorbell transformer.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything on hand will make the process smoother and safer.
Essential Tools
- Screwdrivers: Both flathead and Phillips head for removing covers and securing wires.
- Voltage tester: A non-contact voltage tester is crucial for confirming that power is off before you start working.
- Wire strippers: For removing insulation from low-voltage wires.
- Needle-nose pliers: Helpful for bending and securing small wires.
- Electrical tape: For insulating wire connections.
- Drill and bits (optional): If you need to mount the transformer to a junction box or wall.
- Wire nuts: For connecting wires securely.
Materials
- Doorbell transformer: Choose a 16V, 10-30VA (volt-ampere) transformer, which is standard for most residential doorbells. VA indicates the power capacity—higher VA means more power for multiple chimes or smart doorbells.
- Low-voltage wire: If replacing old wire, use 18-22 gauge doorbell wire (typically two conductors: red and white).
- Wire connectors or terminal screws: Depending on your transformer model.
- Mounting hardware: Screws or brackets to secure the transformer.
Safety Gear
- Safety glasses: Protect your eyes from dust and debris.
- Work gloves: Optional, but helpful for handling sharp edges or tight spaces.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before touching any wires, you must turn off the power to the circuit that supplies your doorbell.
Locate Your Electrical Panel
Head to your home’s main electrical panel (also called the breaker box). It’s usually located in the basement, garage, or utility closet. Open the panel door and look for the breaker labeled “Doorbell,” “Chime,” or something similar. If there’s no label, you may need to test each breaker by turning them off one at a time and checking if the doorbell stops working.
Turn Off the Correct Breaker
Once you’ve identified the correct breaker, switch it to the “OFF” position. Use your non-contact voltage tester to double-check that power is off. Touch the tester to the wires inside the panel or near the doorbell chime unit—if it doesn’t beep or light up, the power is off.
Pro Tip: Place a piece of tape over the breaker switch and write “DO NOT TURN ON” to prevent someone else from accidentally restoring power while you’re working.
Step 2: Locate the Existing Transformer
Most doorbell transformers are installed in one of three places:
- Inside the electrical panel: This is the most common location. Look for a small, rectangular device with wires connected to the main bus bars.
- Near the doorbell chime unit: Some transformers are mounted inside the chime box or on a nearby junction box in the attic or basement.
- In a junction box behind the doorbell button: Less common, but possible in older homes.
To find it, start at the doorbell chime (usually located in a hallway or entryway). Trace the low-voltage wires back to their source. If they disappear into the wall or ceiling, the transformer is likely in the attic, basement, or electrical panel.
How to Identify the Transformer

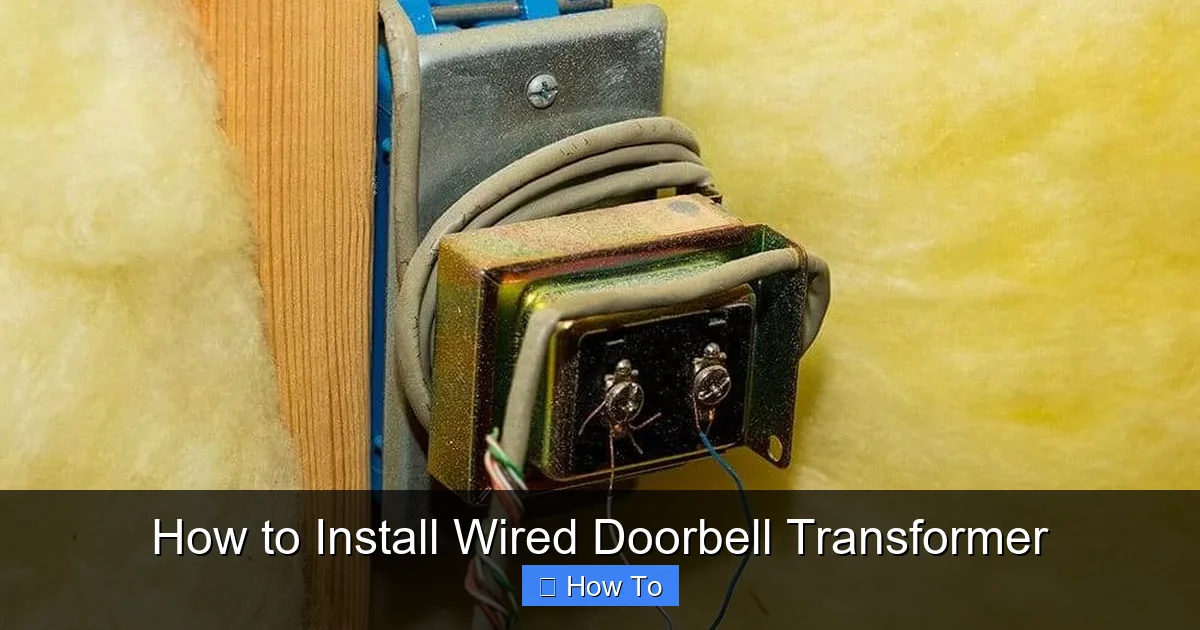

A doorbell transformer typically looks like a small metal or plastic box with two or three wires coming out. It may have labels like “16V,” “20VA,” or “Doorbell.” It’s often mounted on a knockout in the electrical panel or screwed to a junction box.
Once located, take a photo or make a note of how the wires are connected. This will help you reconnect everything correctly later.
Step 3: Remove the Old Transformer
Now that you’ve found the transformer and confirmed the power is off, it’s time to remove it.
Disconnect the Wires
Using your screwdriver, carefully loosen the terminal screws or remove the wire nuts that connect the transformer to the circuit. There are typically two types of connections:
- Line-side wires: These connect the transformer to the 120V household circuit (usually black and white wires).
- Load-side wires: These connect the transformer to the doorbell chime and button (usually red and white low-voltage wires).
Label the wires with tape if needed, so you remember which goes where. For example, write “To Chime” on the red wire and “To Button” on the white wire.
Unmount the Transformer
Once the wires are disconnected, remove the transformer from its mounting location. If it’s screwed into the electrical panel or a junction box, use your screwdriver to remove the mounting screws. Be gentle—older transformers may be brittle.
Set the old transformer aside. You can recycle it at an electronics disposal center.
Step 4: Choose and Prepare the New Transformer
Now it’s time to install the new transformer. Make sure you’ve purchased the correct model.
Selecting the Right Transformer
Most standard doorbells require a 16V transformer with a VA rating between 10 and 30. Here’s a quick guide:
- 10-16VA: Suitable for basic single-chime doorbells.
- 20-30VA: Recommended for dual chimes, video doorbells, or systems with multiple buttons.
Check your doorbell’s manual or the label on the chime unit for specific requirements. When in doubt, go with a 16V, 20VA transformer—it’s versatile and widely compatible.
Prepare the New Transformer
Unpack the new transformer and inspect it for damage. Most come with pre-stripped wires or terminal screws. If not, use your wire strippers to remove about 1/2 inch of insulation from the ends of the wires.
Pro Tip: If your new transformer has screw terminals, bend the wire ends into small hooks using needle-nose pliers for a secure connection.
Step 5: Install the New Transformer
Now comes the fun part—installing the new transformer.
Mount the Transformer
Position the new transformer in the same location as the old one. If it’s going into the electrical panel, find an available knockout and insert the transformer. Secure it with the provided screws or mounting clips.
If installing in a junction box or near the chime, use screws to mount it to a stud or wooden surface. Make sure it’s firmly attached and won’t move around.
Connect the Line-Side Wires
These are the wires that connect the transformer to your home’s 120V power supply.
- Connect the black wire (hot) from the transformer to the black wire from the circuit.
- Connect the white wire (neutral) from the transformer to the white wire from the circuit.
Use wire nuts to secure the connections, or attach them to the appropriate terminals if your transformer has screw terminals. Wrap each connection with electrical tape for extra insulation.
Important: Never connect the transformer to a switched circuit (like a light switch). It must be on a dedicated or always-on circuit.
Connect the Load-Side Wires
These are the low-voltage wires that go to your doorbell chime and button.
- Connect the red wire from the transformer to the wire that goes to the chime unit.
- Connect the white wire from the transformer to the wire that goes to the doorbell button.
Again, use wire nuts or terminal screws, and secure with electrical tape.
Note: Some transformers have labeled terminals like “R” (for red/chime) and “C” (for common/button). Match the wires accordingly.
Step 6: Test the Installation
Before you close everything up, it’s crucial to test your work.
Restore Power
Go back to the electrical panel and turn the breaker back on. Listen for any unusual sounds or smells. If everything looks and sounds normal, proceed to the next step.
Test the Doorbell
Go to your front door and press the doorbell button. You should hear a clear, consistent chime from the chime unit.
If the doorbell works, great! If not, don’t panic—there are a few common issues to check.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Doorbell Doesn’t Ring
- Check the breaker: Make sure it’s fully on and hasn’t tripped.
- Test the button: Remove the doorbell button and touch the two wires together. If the chime rings, the button is faulty.
- Inspect connections: Double-check all wire connections for looseness or incorrect wiring.
- Use a multimeter: Test the voltage at the chime terminals. You should see around 16V. If it’s much lower, the transformer may be underpowered or defective.
Chime Rings Weakly or Intermittently
- Low voltage: The transformer may not be providing enough power. Upgrade to a higher VA model.
- Loose wires: Tighten all connections at the transformer, chime, and button.
- Old wiring: Corroded or damaged wires can cause resistance. Replace the low-voltage wire if necessary.
Transformer Overheats or Smells Burnt
- Overloaded circuit: The transformer may be powering too many devices. Ensure it’s only connected to the doorbell system.
- Incorrect voltage: Make sure the transformer matches your doorbell’s requirements.
- Short circuit: Check for exposed wires touching each other or metal surfaces.
If you’re unable to resolve the issue, it’s time to call a licensed electrician.
Final Steps and Maintenance Tips
Once your doorbell is working perfectly, take a few final steps to ensure long-term reliability.
Secure All Connections
Make sure all wires are neatly bundled and secured with zip ties or electrical tape. Avoid pinching wires behind covers or panels.
Label the Breaker
Update the label on your electrical panel to clearly indicate the doorbell circuit. This will make future maintenance easier.
Regular Maintenance
- Test your doorbell every few months.
- Clean the button and chime unit with a dry cloth to remove dust.
- Check for loose wires or corrosion annually.
When to Call a Professional
While installing a wired doorbell transformer is a manageable DIY project for many homeowners, there are situations where it’s best to call a licensed electrician:
- You’re uncomfortable working with electricity.
- The wiring is complex or outdated (e.g., knob-and-tube wiring).
- You can’t locate the transformer or breaker.
- The doorbell still doesn’t work after troubleshooting.
- You’re installing a high-power smart doorbell with advanced features.
Electrical work can be dangerous if done incorrectly. When in doubt, it’s always safer to hire a professional.
Conclusion
Installing a wired doorbell transformer is a practical and rewarding DIY project that can improve your home’s functionality and curb appeal. By following this step-by-step guide, you’ve learned how to safely replace or install a transformer, choose the right model, make secure connections, and troubleshoot common issues.
Remember, safety comes first—always turn off the power and use a voltage tester. Take your time, double-check your work, and don’t hesitate to ask for help if needed. With your new transformer in place, your doorbell will chime reliably for years to come.
Now go ahead and test that button—you’ve earned it!
