Installing a wired Nest Doorbell is a straightforward DIY project that enhances your home security. This guide walks you through every step—from checking compatibility to final setup—ensuring a smooth, professional-looking installation.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Nest’s voltage requirements (16–24V AC) to avoid damage or malfunction.
- Gather the right tools: You’ll need a screwdriver, voltage tester, drill (optional), and wire strippers—most people have these at home.
- Turn off power safely: Always shut off the breaker before working with electrical wiring to prevent shocks or short circuits.
- Use the Nest app for setup: The app guides you through Wi-Fi connection, motion zones, and notification preferences after physical installation.
- Test before finalizing: Power on and test the doorbell’s video, audio, and chime before securing everything in place.
- Upgrade your chime if needed: Mechanical chimes may require a Nest Chime Connector for reliable operation with the wired Nest Doorbell.
- Seek help if unsure: If you’re uncomfortable with electrical work, hire a licensed electrician—safety comes first.
Introduction: Why Install a Wired Nest Doorbell?
Upgrading to a wired Nest Doorbell is one of the smartest moves you can make for home security and convenience. Unlike battery-powered models, the wired version offers continuous power, eliminating the need for frequent recharging. It delivers crisp 1080p HD video, two-way audio, intelligent alerts, and seamless integration with Google Home and other smart devices.
In this comprehensive guide, you’ll learn exactly how to install a wired Nest Doorbell—from assessing your current setup to finalizing the app configuration. Whether you’re replacing an old doorbell or installing one for the first time, we’ll walk you through each step with clear instructions, safety tips, and troubleshooting advice. By the end, you’ll have a reliable, always-on smart doorbell that keeps you connected to your front door 24/7.
What You’ll Need Before Starting
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and reduce frustration during installation.

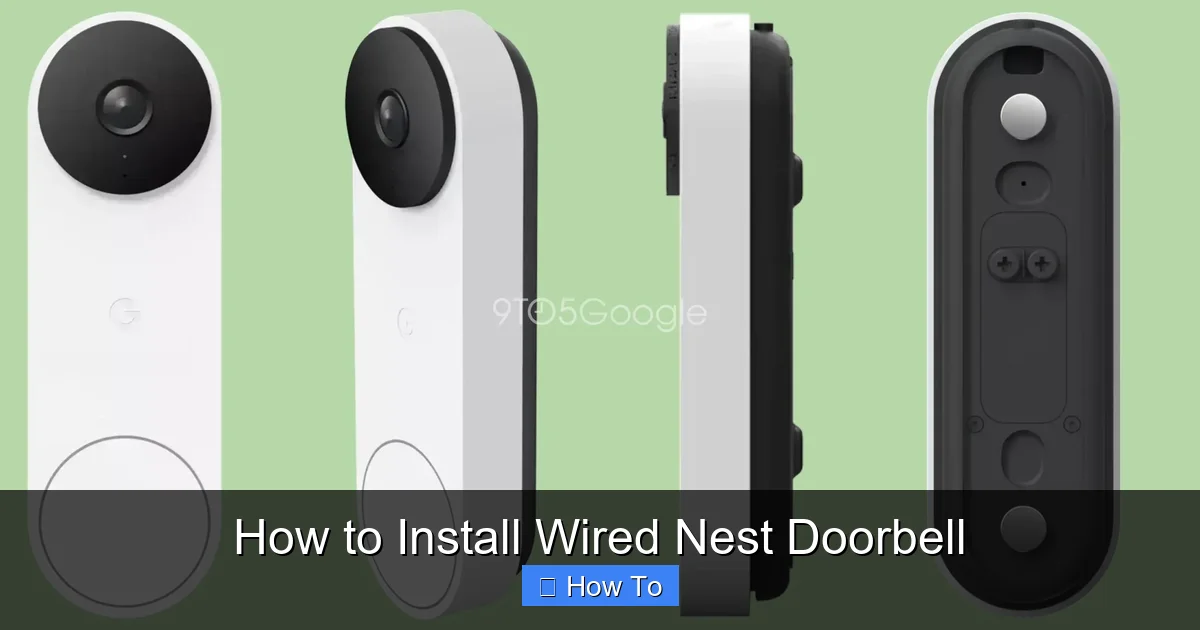

Visual guide about How to Install Wired Nest Doorbell
Image source: i1.wp.com
Tools and Materials Checklist
- Nest Doorbell (wired model) – Make sure you have the correct version (2nd gen or later recommended).
- Screwdriver set – Phillips and flathead for removing old plates and mounting the new one.
- Voltage tester – Essential for confirming power is off and checking transformer output.
- Wire strippers – To expose fresh wire ends if needed.
- Drill and drill bits (optional) – Only if you need to create new mounting holes or run wires.
- Pencil or marker – For marking drill points.
- Smartphone or tablet – To download and use the Google Home app.
- Wi-Fi network – Ensure your 2.4 GHz Wi-Fi is strong near the doorbell location.
- Nest Chime Connector (if needed) – Required for mechanical chimes that don’t work reliably with smart doorbells.
Pro Tip: If your existing doorbell uses a mechanical chime (the kind with physical bells inside), you’ll likely need the Nest Chime Connector. Check Nest’s compatibility tool online before buying.
Step 1: Check Compatibility and Power Requirements
Not all doorbell systems are compatible with the wired Nest Doorbell. Skipping this step could result in a non-functional device or even damage to your home’s electrical system.
Verify Your Transformer Voltage
The wired Nest Doorbell requires a transformer that outputs between 16 and 24 volts AC. Most older homes have transformers in this range, but it’s crucial to confirm.
To check:
- Turn off power at the breaker.
- Remove your existing doorbell button.
- Use a voltage tester to measure the voltage across the two wires.
- If the reading is below 16V or above 24V, you may need to replace the transformer.
Note: If you’re unsure about your transformer, consult an electrician. Installing a compatible transformer is a common upgrade and relatively inexpensive.
Assess Your Chime Type
Nest Doorbells work best with digital (electronic) chimes. If you have a traditional mechanical chime, the Nest Chime Connector is usually required to prevent issues like constant ringing or failure to ring.
You can identify your chime type by listening:
- Mechanical chime: Produces a “ding-dong” sound with distinct tones.
- Digital chime: Plays recorded sounds or melodies through a speaker.
If you’re not sure, open the chime box (usually inside near the front door) and look for physical hammers or bells—this indicates a mechanical chime.
Step 2: Turn Off the Power
Safety is paramount when working with electricity. Never skip this step.
Locate and Shut Off the Correct Breaker
Your doorbell is likely on a dedicated circuit, but it might share a breaker with lights or outlets. To find the right one:
- Turn off breakers one by one and test the doorbell button.
- When the chime stops ringing, you’ve found the correct breaker.
- Label it for future reference.
Once identified, switch the breaker to “OFF” and use a voltage tester at the doorbell wires to confirm no power is flowing.
Warning: Even low-voltage systems can cause shocks or damage electronics if mishandled. Always double-check with a tester.
Step 3: Remove the Old Doorbell
Now it’s time to take down your existing doorbell button.
Unscrew and Disconnect
Use a screwdriver to remove the mounting screws holding the old button in place. Gently pull it away from the wall to expose the wires.
You’ll typically see two wires connected—usually labeled “Front” and “Trans” or just two bare ends. Carefully disconnect them by loosening the terminal screws or pulling out wire connectors.
Tip: Take a photo of the wiring before disconnecting. This serves as a reference if you need to reinstall the old doorbell later.
Prepare the Wires
If the wire ends are frayed, oxidized, or too short, use wire strippers to expose about 1/4 inch of fresh copper. This ensures a solid connection with the new doorbell.
Twist the strands gently to keep them neat and prevent stray wires from causing shorts.
Step 4: Install the Nest Doorbell Mounting Plate
The Nest Doorbell comes with a mounting plate that secures the device to your wall. Proper alignment ensures a clean look and optimal camera angle.
Position the Mounting Plate
Hold the plate against the wall where you want the doorbell. Use a level to make sure it’s straight. The ideal height is about 48 inches from the ground—eye level for most visitors.
Mark the screw holes with a pencil. If your old doorbell was at a different height, you may need to drill new holes.
Drill and Secure (If Needed)
If drilling new holes:
- Use a drill bit slightly smaller than your wall anchors.
- Insert plastic anchors into the holes for a secure hold.
- Align the plate and screw it in place using the provided screws.
Note: For brick, stucco, or concrete walls, use a masonry drill bit and appropriate anchors. Avoid over-tightening screws, which can crack the plate.
Step 5: Connect the Wires to the Nest Doorbell
This is the most critical electrical step. Take your time and ensure connections are secure.
Attach Wires to the Terminal Screws
The Nest Doorbell has two terminal screws labeled “Front” and “Trans.” It doesn’t matter which wire goes where—the device is non-polarized.
Loosen the screws, insert each wire, and tighten firmly. Make sure no bare wire is exposed outside the terminal.
Tip: If your wires are too short, you can splice in extensions using wire nuts and additional low-voltage wire. Just ensure the connection is insulated and secure.
Secure the Doorbell to the Mounting Plate
Once wired, align the Nest Doorbell with the mounting plate. Slide it down until it clicks into place. You should hear a satisfying snap indicating it’s locked.
Use the included security screw and screwdriver bit to secure the bottom of the doorbell. This prevents theft or tampering.
Step 6: Install the Nest Chime Connector (If Required)
If you have a mechanical chime, skip this step only if you’re certain it works without the connector. Otherwise, installing the Nest Chime Connector ensures reliable ringing.
Locate Your Chime Box
Open the chime box inside your home (usually in a hallway or basement). You’ll see wires connected to terminals labeled “Front,” “Trans,” and sometimes “Rear.”
Connect the Chime Connector
The Nest Chime Connector has three wires: red, white, and black.
- Disconnect the “Front” wire from the chime.
- Connect the red wire from the connector to the “Front” terminal.
- Connect the white wire to the same terminal where the original “Front” wire was attached.
- Connect the black wire to the “Trans” terminal.
Mount the connector inside the chime box using the adhesive pad or screws. Close the box securely.
Note: The Chime Connector draws minimal power and doesn’t interfere with the doorbell’s operation.
Step 7: Restore Power and Test the Doorbell
Now it’s time to bring your new doorbell to life.
Turn the Breaker Back On
Go to your electrical panel and switch the doorbell breaker to “ON.” Wait a few seconds for the system to power up.
Check for Power and Function
Look at the Nest Doorbell. You should see a light ring illuminate—usually white or green—indicating it’s receiving power.
Press the doorbell button. Your indoor chime should ring, and the light ring should pulse.
If nothing happens:
- Double-check wire connections at both the doorbell and chime.
- Verify the breaker is on and the transformer is outputting correct voltage.
- Ensure the Chime Connector is properly installed (if used).
Troubleshooting Tip: A blinking red light usually means a power issue. Recheck voltage and connections.
Step 8: Set Up the Nest Doorbell Using the Google Home App
The physical installation is complete—now it’s time to configure your smart features.
Download and Open the Google Home App
If you don’t already have it, download the Google Home app from the App Store or Google Play. Sign in with your Google account.
Add Your Doorbell
In the app:
- Tap the “+” icon and select “Set up device.”
- Choose “New device” and follow the prompts.
- Scan the QR code on the back of your Nest Doorbell or enter the setup code manually.
- The app will guide you through connecting to your Wi-Fi network (2.4 GHz only).
Note: The Nest Doorbell does not support 5 GHz Wi-Fi. Ensure your router broadcasts a 2.4 GHz network.
Configure Settings
Once connected, customize your preferences:
- Motion zones: Define areas where you want alerts (e.g., driveway but not sidewalk).
- Activity zones: Get notified only for specific actions like people approaching.
- Chime settings: Adjust volume or disable indoor chime if using smart speakers.
- Notifications: Choose when and how you receive alerts (e.g., only at night).
You can also link the doorbell to Google Assistant for voice commands like “Hey Google, show me the front door.”
Step 9: Final Adjustments and Tips
With everything working, make final tweaks for the best experience.
Adjust the Camera Angle
The Nest Doorbell’s camera is fixed, but you can tilt the entire unit slightly by loosening the mounting plate screws. Aim it to capture the walkway and avoid glare from windows or lights.
Test Two-Way Audio
Have someone stand outside and speak while you listen through the app. Adjust volume in settings if needed.
Enable Familiar Face Alerts (Optional)
If you have a Google Nest Aware subscription, you can enable Familiar Face Detection to get alerts when specific people (like family members) approach.
Schedule Do Not Disturb
Set quiet hours so you’re not woken up by delivery alerts at 2 a.m.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Doorbell Doesn’t Ring
- Check if the Chime Connector is installed (for mechanical chimes).
- Verify wire connections at both ends.
- Ensure the transformer is providing 16–24V AC.
Poor Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Avoid placing the doorbell behind metal doors or thick walls.
- Ensure the 2.4 GHz network is enabled and not overcrowded.
Video Quality Is Blurry or Dark
- Clean the camera lens with a microfiber cloth.
- Adjust motion zones to reduce false alerts from trees or shadows.
- Enable HDR in the app settings for better low-light performance.
Doorbell Overheats or Shuts Off
- This is rare but can happen in direct sunlight. Ensure it’s mounted in a shaded area if possible.
- Check for loose wires causing intermittent power.
App Not Connecting
- Restart your phone and router.
- Remove and re-add the device in the Google Home app.
- Ensure your Google account is verified and has location permissions.
Conclusion: Enjoy Your Smart Front Door
Congratulations! You’ve successfully installed your wired Nest Doorbell and transformed your home’s security. From verifying compatibility to configuring smart alerts, you’ve completed a project that offers lasting value and peace of mind.
Remember, the wired model eliminates battery worries and ensures constant connectivity. With features like HD video, two-way talk, and intelligent alerts, you’ll always know who’s at your door—even when you’re miles away.
If you ever run into issues, refer back to this guide or consult Nest’s support resources. And if electrical work ever feels overwhelming, don’t hesitate to call a professional. Your safety and satisfaction are worth it.
Now go enjoy your smarter, safer home—one ring at a time.
