This guide walks you through how to install wires for doorbell systems, whether you’re replacing an old unit or setting up a brand-new one. You’ll learn about tools, wiring routes, safety tips, and troubleshooting common issues—all in simple, easy-to-follow steps.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before working on doorbell wiring to prevent shocks or damage.
- Use the right wire gauge: 18- or 20-gauge low-voltage doorbell wire is ideal for most residential installations.
- Plan your wire path: Route wires through walls, under trim, or along baseboards to keep them hidden and protected.
- Test connections before finalizing: Use a multimeter or doorbell tester to confirm voltage and continuity before mounting the chime.
- Choose between wired and wireless: While wireless doorbells are easier, wired systems offer reliability and no battery changes.
- Label wires during removal: If replacing an old doorbell, label the front and rear wires to avoid confusion during reinstallation.
- Follow local codes: Check with your local building authority to ensure your installation meets electrical safety standards.
How to Install Wires for Doorbell: A Complete Step-by-Step Guide
So, you’ve decided to install or upgrade your doorbell—great choice! A working doorbell is more than just a convenience; it’s a key part of your home’s security and functionality. Whether you’re replacing an old, faulty unit or installing one for the first time, knowing how to install wires for doorbell systems properly is essential.
This guide will walk you through the entire process, from planning and gathering tools to connecting wires and testing your new setup. We’ll cover everything you need to know, including safety precautions, wire routing, and troubleshooting tips. By the end, you’ll have a reliable, professionally wired doorbell that works every time—without calling an electrician.
Let’s get started!
Understanding Doorbell Wiring Basics

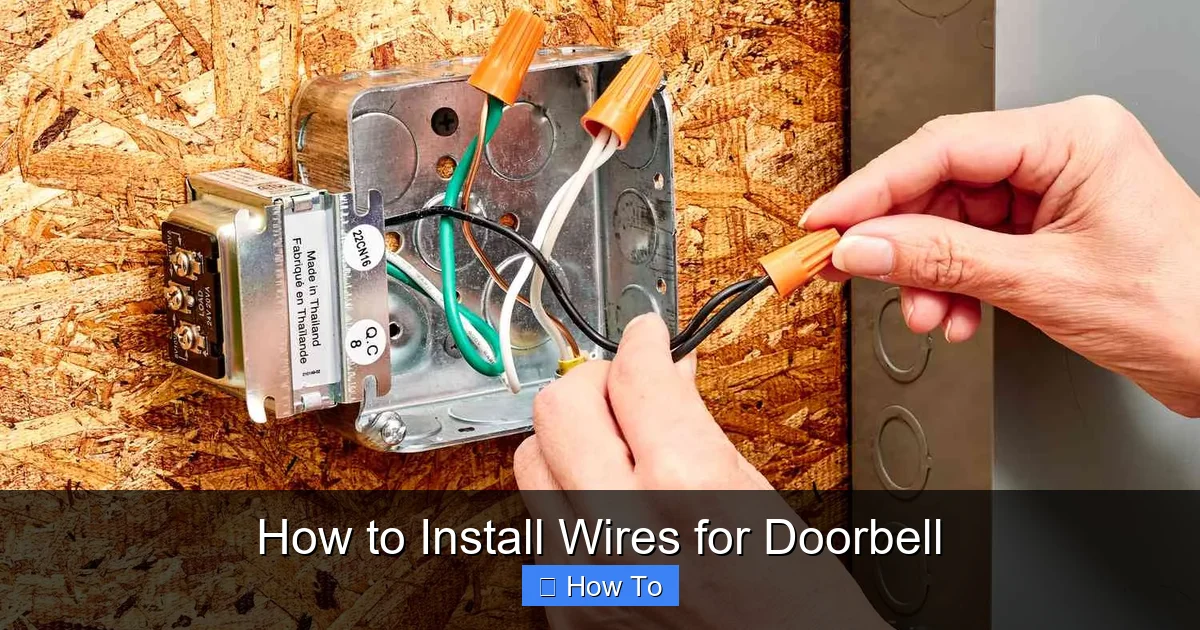

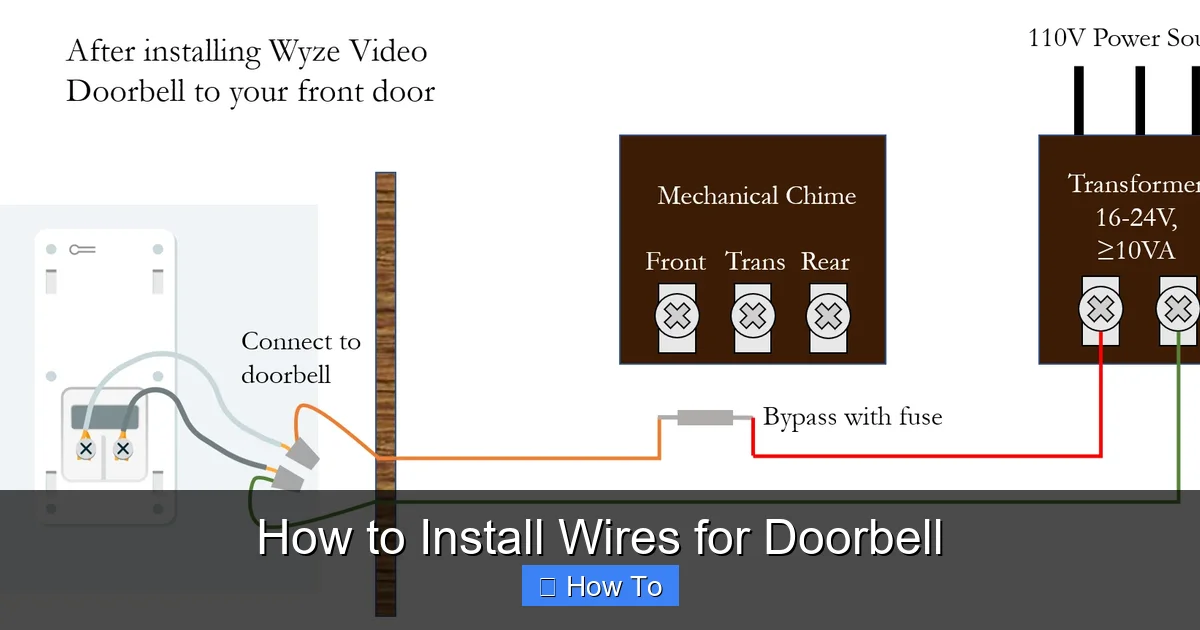

Visual guide about How to Install Wires for Doorbell
Image source: thespruce.com
Before diving into the installation, it’s important to understand how doorbell systems work. Most traditional doorbells use a low-voltage electrical system, typically running on 8 to 24 volts. This is much safer than standard household wiring (120V), but it still requires care and attention.
A basic wired doorbell system includes three main components:
- The button: Mounted outside your door, it completes the circuit when pressed.
- The chime unit: Located inside your home, it produces the sound when the circuit is activated.
- The transformer: Converts standard household voltage (120V) down to the low voltage needed for the doorbell.
The wires connect these components in a simple loop. When you press the button, electricity flows from the transformer, through the wires, to the button, back to the chime, and completes the circuit—making the chime ring.
Knowing this helps you understand why proper wiring is so important. A loose connection, wrong wire type, or incorrect voltage can cause the doorbell to malfunction or not work at all.
Tools and Materials You’ll Need
Before starting, gather all the necessary tools and materials. Having everything ready will save time and reduce frustration.
Essential Tools
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Voltage tester or multimeter
- Drill with drill bits (for wall mounting)
- Fish tape or flexible wire puller
- Electrical tape
- Pencil or marker
- Measuring tape
- Safety glasses and gloves
Materials
- Low-voltage doorbell wire (18- or 20-gauge, 2-conductor)
- Doorbell button
- Doorbell chime unit
- Doorbell transformer (if not already installed)
- Wire nuts or terminal screws
- Wall anchors and screws (if needed)
- Conduit or wire molding (optional, for exposed wiring)
You can find most of these items at your local hardware store or online. If you’re replacing an existing doorbell, check if the transformer is already in place—usually located in a basement, garage, or near your electrical panel.
Step 1: Turn Off the Power
Safety first! Even though doorbell systems use low voltage, the transformer connects to your home’s main electrical supply. That means there’s still a risk of electric shock if you’re not careful.
Locate the Circuit Breaker
Go to your main electrical panel and find the breaker that controls the doorbell transformer. It’s often labeled “doorbell,” “chime,” or “low voltage.” If you’re unsure, turn off the main breaker to be safe—but this will cut power to your entire house, so only do this if necessary.
Test for Power
After turning off the breaker, use a non-contact voltage tester to check the wires at the doorbell button and chime. Touch the tester to the wire terminals—if it beeps or lights up, power is still on. Double-check your breaker or try another one.
Never skip this step. Even a small shock can be dangerous, and working on live wires can damage your doorbell components.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, start by removing the old unit.
Unscrew the Button and Chime
Use a screwdriver to remove the doorbell button from the exterior wall. Gently pull it away to expose the wires. Do the same for the chime unit inside your home.
Label the Wires
This is crucial! The two wires connected to the button are usually interchangeable, but labeling them (e.g., “Front” and “Rear” or “Transformer” and “Chime”) will help during reinstallation. Use tape and a marker to label each wire.
Disconnect the Wires
Loosen the terminal screws or remove wire nuts to disconnect the wires. Pull the old wire out from the wall if you plan to reuse the same path.
If the old wire is damaged or too short, you’ll need to run new wire—more on that in the next step.
Step 3: Plan Your Wire Route
Now it’s time to figure out how to run the new wires from the doorbell button to the chime and transformer.
Choose the Best Path
The goal is to run wires through walls, under trim, or along baseboards to keep them hidden and protected. Avoid areas with moisture, heat, or sharp edges.
Common routes include:
- From the door frame, through the wall cavity, to the attic or basement.
- Under the siding or along the exterior wall (use conduit for protection).
- Through the floor or ceiling to reach the chime location.
Measure the Distance
Use a measuring tape to determine how much wire you’ll need. Add extra length (at least 12–18 inches) for connections and adjustments.
For most homes, 50 feet of wire is sufficient. But if your doorbell is far from the chime (e.g., a large house or detached garage), you may need 100 feet or more.
Check for Obstacles
Look for studs, insulation, or plumbing that might block your path. Use a stud finder to locate studs in the wall. If you need to drill through a stud, use a drill bit slightly larger than the wire diameter.
Step 4: Run the New Doorbell Wire
This is often the trickiest part, but with the right technique, it’s totally doable.
Start at the Button Location
Drill a small hole (about 1/4 inch) through the exterior wall where the doorbell button will go. Make sure the hole is angled slightly downward to prevent water from entering.
Feed the Wire Through
Insert one end of the doorbell wire into the hole from outside. Push it gently until it emerges inside your home.
If the wire won’t go through easily, use a fish tape. Attach the wire to the fish tape and pull it through the wall cavity.
Route to the Chime
Once the wire is inside, guide it toward the chime location. You can run it:
- Through the attic or basement.
- Behind baseboards or crown molding.
- Inside wall cavities (if accessible).
Use wire clips or staples to secure the wire every few feet, but don’t overtighten—this can damage the insulation.
Connect to the Transformer
The transformer is usually mounted near your electrical panel or in a utility area. Run a second wire from the chime location to the transformer.
If the transformer isn’t installed, you’ll need to mount it and connect it to a 120V circuit. This step may require basic electrical knowledge or help from a licensed electrician.
Step 5: Connect the Wires
Now that the wires are in place, it’s time to make the connections.
Prepare the Wire Ends
Use wire strippers to remove about 1/2 inch of insulation from each wire end. Be careful not to cut the copper strands inside.
Connect to the Doorbell Button
Attach the two wires to the terminals on the back of the doorbell button. Most buttons have two screws—tighten them securely, but don’t over-tighten.
The wires are usually interchangeable, so it doesn’t matter which goes where.
Connect to the Chime Unit
At the chime, connect one wire to the “Front” terminal and the other to the “Transformer” terminal. Again, the labels may vary, but the idea is the same: one wire from the button, one from the transformer.
If your chime has multiple terminals (e.g., for a second door), follow the manufacturer’s instructions.
Connect to the Transformer
The transformer has two low-voltage terminals. Connect one wire from the chime and one from the button (or a jumper wire).
The other two terminals on the transformer connect to a 120V circuit. If you’re not comfortable working with high voltage, hire an electrician for this part.
Step 6: Test the System
Before mounting everything permanently, test the doorbell to make sure it works.
Turn the Power Back On
Go to the breaker panel and turn the doorbell circuit back on.
Press the Button
Go outside and press the doorbell button. Listen for the chime inside.
If it rings, great! If not, don’t panic—troubleshooting is next.
Use a Multimeter
Set your multimeter to measure AC voltage. Touch the probes to the transformer terminals. You should see 8–24 volts.
If there’s no voltage, check the breaker, connections, or transformer.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Doesn’t Ring
- Check the breaker—make sure power is on.
- Test the transformer voltage with a multimeter.
- Inspect wire connections—loose or corroded wires can break the circuit.
- Replace the doorbell button if it’s worn out.
Chime Rings Weakly or Intermittently
- This often means low voltage. Check the transformer—it may be underpowered or faulty.
- Long wire runs can cause voltage drop. Use thicker wire (18-gauge) for distances over 50 feet.
- Ensure all connections are tight and free of corrosion.
Multiple Doorbells Not Working
- Check the wiring diagram for multi-button systems.
- Make sure each button is connected to the correct terminal on the chime.
- Verify that the transformer can handle the total load.
Buzzing or Humming Sound
- This could mean a short circuit or loose connection.
- Turn off power and recheck all wire connections.
- Replace the chime unit if the problem persists.
Final Steps: Mount and Secure
Once everything is working, it’s time to finish the installation.
Mount the Button and Chime
Use screws to securely attach the doorbell button to the exterior wall. Make sure it’s level and weatherproof.
Mount the chime unit inside, preferably in a central location where it can be heard throughout the house.
Tidy Up the Wires
Tuck any excess wire into the wall or use wire molding to cover exposed sections. This keeps your installation neat and professional-looking.
Label the Breaker (Optional)
If your breaker isn’t labeled, now’s a good time to mark it “Doorbell” for future reference.
Safety Tips and Best Practices
To ensure a safe and long-lasting installation, keep these tips in mind:
- Always turn off power before working on electrical components.
- Use only low-voltage wire rated for doorbell systems.
- Avoid running wires near water sources or heat vents.
- Don’t staple wires too tightly—this can damage insulation.
- If you’re unsure about any step, consult a professional electrician.
Conclusion
Installing wires for a doorbell might seem intimidating at first, but with the right tools, planning, and patience, it’s a project most homeowners can tackle themselves. By following this guide, you’ve learned how to install wires for doorbell systems safely and effectively—from turning off the power and running wires to testing and troubleshooting.
A properly wired doorbell not only adds convenience but also enhances your home’s security and value. Plus, you’ll save money by doing it yourself.
Remember: take your time, double-check connections, and never skip safety steps. If something doesn’t work, refer back to the troubleshooting section or seek professional help.
Now go enjoy your new doorbell—you’ve earned it!
