This guide walks you through how to install Wyze Doorbell safely and correctly, whether you’re replacing an old doorbell or setting up a new one. You’ll learn wiring, app setup, mounting, and troubleshooting to ensure your smart doorbell works perfectly from day one.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Wyze Doorbell’s power requirements (16–24V AC, 30VA minimum).
- Turn off power at the breaker: Safety is critical—always shut off electricity before handling wires.
- Use the Wyze app for setup: The app guides you through Wi-Fi connection, chime pairing, and live view activation.
- Mount securely with the right angle: Adjust the mounting bracket for optimal camera view and motion detection.
- Test after installation: Verify video quality, motion alerts, and chime functionality before finishing.
- Use a diode if needed: If your mechanical chime buzzes, install the included diode across the chime terminals.
- Keep firmware updated: Regular updates improve performance and security—enable auto-updates in the app.
How to Install Wyze Doorbell: A Complete Step-by-Step Guide
So, you’ve got your hands on a Wyze Doorbell—congratulations! This sleek, affordable smart doorbell offers HD video, two-way audio, motion detection, and night vision, all controlled from your smartphone. But before you can start seeing who’s at your door from anywhere in the world, you need to install it properly.
Don’t worry—installing a Wyze Doorbell isn’t as intimidating as it sounds. Whether you’re replacing an old wired doorbell or setting up a new one, this guide will walk you through every step. We’ll cover everything from checking compatibility to mounting the device and troubleshooting common issues.
By the end of this guide, you’ll have a fully functional Wyze Doorbell that keeps your home secure and gives you peace of mind. Let’s get started!
What You’ll Need Before You Begin

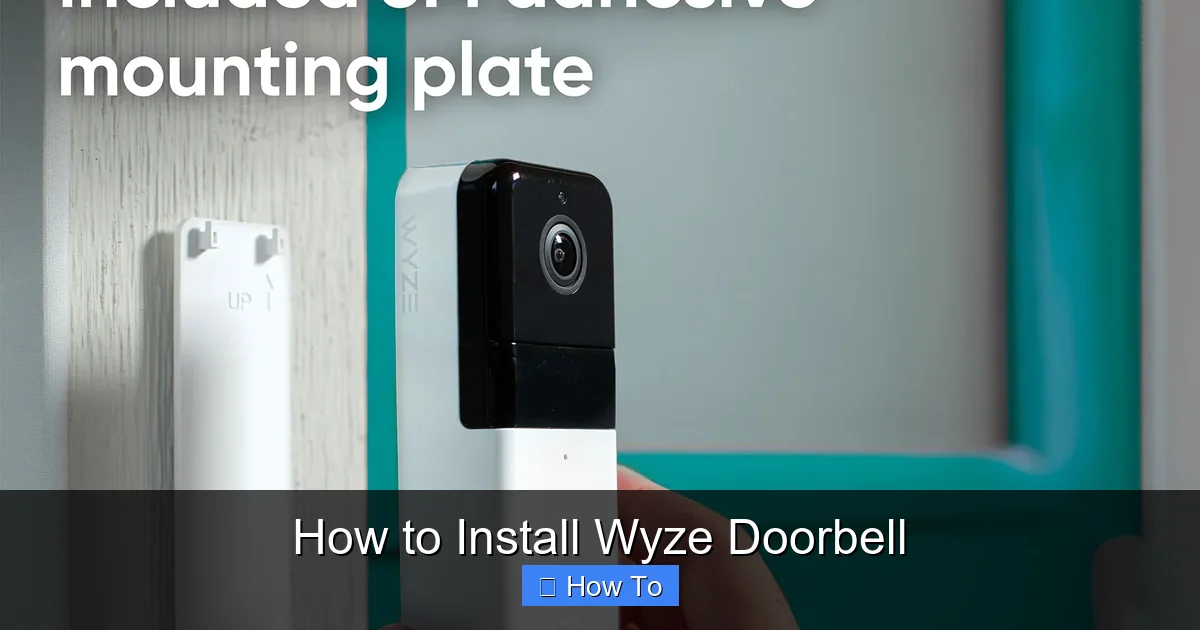

Visual guide about How to Install Wyze Doorbell
Image source: wyze.com
Before diving into the installation, make sure you have all the necessary tools and materials. Here’s a quick checklist:
- Wyze Doorbell (wired model)
- Smartphone with the Wyze app installed (iOS or Android)
- Screwdriver (Phillips head)
- Drill and drill bits (if mounting on brick, stucco, or concrete)
- Level (to ensure the doorbell is straight)
- Voltage tester (optional but recommended)
- Ladder (if your doorbell is high up)
- Wire strippers (if you need to trim or strip wires)
Also, make sure your home’s doorbell system meets the power requirements. Wyze Doorbell requires a transformer that outputs 16–24 volts AC and at least 30VA (volt-amperes). Most modern homes have compatible systems, but older homes may need an upgrade.
Pro tip: If you’re unsure about your transformer, check the label near your doorbell chime or furnace. It should list the voltage and VA rating.
Step 1: Turn Off the Power
Safety first! Before touching any wires, you must turn off the power to your doorbell circuit. Here’s how:
Locate Your Circuit Breaker
Go to your main electrical panel (usually in the basement, garage, or utility closet). Look for the breaker labeled “Doorbell,” “Chime,” or something similar. If there’s no label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “OFF” position. To double-check, go to your existing doorbell and press the button. If the chime doesn’t ring, the power is off.
Use a Voltage Tester (Optional but Smart)
If you have a non-contact voltage tester, hold it near the doorbell wires. If it doesn’t beep or light up, the power is safely off.
Never skip this step. Even low-voltage doorbell wires can cause a shock or damage your new device if handled improperly.
Step 2: Remove Your Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell.
Unscrew the Faceplate
Use a Phillips head screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the faceplate away from the wall.
Disconnect the Wires
You’ll see two wires connected to the back of the doorbell. These are usually labeled “Front” and “Trans” or just have two terminals.
Carefully loosen the screws holding the wires and pull them out. Don’t let the wires fall back into the wall—use electrical tape to secure them to the wall or a nearby surface.
Remove the Mounting Plate (If Necessary)
Some older doorbells have a separate mounting plate. If yours does, unscrew it and remove it. Wyze Doorbell comes with its own mounting bracket, so you won’t need the old one.
Step 3: Check Wiring and Power Compatibility
Before installing the Wyze Doorbell, confirm that your wiring and transformer are compatible.
Identify the Wires
You should have two wires: one from the doorbell button (usually labeled “Front”) and one from the transformer (often labeled “Trans”). These will connect to the Wyze Doorbell.
Test the Voltage (Optional)
If you have a multimeter, set it to AC voltage and touch the probes to the two wires. You should see a reading between 16 and 24 volts. If it’s below 16V, your transformer may be too weak, and the doorbell might not work reliably.
Upgrade the Transformer (If Needed)
If your transformer is under 16V or less than 30VA, consider upgrading it. A 16V or 24V, 30VA transformer is ideal. You can find these at hardware stores or online. Installation requires basic electrical knowledge—if you’re not comfortable, hire an electrician.
Step 4: Install the Wyze Mounting Bracket
The Wyze Doorbell comes with a sturdy mounting bracket that ensures a secure fit and proper angle for the camera.
Position the Bracket
Hold the mounting bracket against the wall where you want to install the doorbell. Use a level to make sure it’s straight. The ideal height is about 48 inches from the ground—this gives the best view of visitors.
Mark the Screw Holes
Use a pencil to mark the locations of the screw holes on the wall.
Drill Pilot Holes (If Needed)
If you’re mounting on wood, you can screw directly into the wall. For brick, stucco, or concrete, drill pilot holes using a masonry bit. Insert wall anchors if necessary.
Secure the Bracket
Align the bracket with the marks and screw it into place using the included screws. Make sure it’s tight and level.
Adjust the Angle (Optional)
The Wyze Doorbell bracket has a slight tilt built in, but you can adjust it for better coverage. If your door is recessed or you want a wider view, use the included angle mount (a small plastic piece that attaches to the bracket).
Step 5: Connect the Wires to the Wyze Doorbell
Now it’s time to connect your doorbell wires to the new device.
Prepare the Wires
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. This ensures a solid connection.
Attach the Wires
Wyze Doorbell has two terminals labeled “Front” and “Trans.” It doesn’t matter which wire goes where—the device is polarity-independent.
Loosen the terminal screws, insert the wires, and tighten the screws securely. Give the wires a gentle tug to make sure they’re held firmly.
Use the Included Wire Nuts (Optional)
If your wires are too short or you want extra security, use the wire nuts provided in the box. Twist the wires together and cap them with the nut, then connect the nut to the terminal.
Step 6: Attach the Wyze Doorbell to the Bracket
With the wires connected, it’s time to mount the doorbell.
Align the Doorbell
Hold the Wyze Doorbell against the mounting bracket. The bottom of the device should snap into place.
Secure with the Set Screw
Use the small hex key (included) to tighten the set screw on the bottom of the doorbell. This prevents theft and keeps the device firmly in place.
Check the Fit
Make sure the doorbell is level and the camera has a clear view of your doorway. Adjust the bracket if needed.
Step 7: Turn the Power Back On
Now that everything is connected, restore power to your doorbell circuit.
Flip the Breaker
Go back to your electrical panel and turn the breaker back to the “ON” position.
Test the Doorbell
Press the doorbell button. You should hear the chime (if connected) and see a light on the Wyze Doorbell. If nothing happens, double-check your wiring and power supply.
Step 8: Set Up the Wyze Doorbell in the App
The final step is configuring your doorbell using the Wyze app.
Download the Wyze App
If you haven’t already, download the Wyze app from the Apple App Store or Google Play Store. Create an account or log in.
Add a New Device
Tap the “+” icon in the app and select “Add Device.” Choose “Doorbell” from the list.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the Wyze Doorbell. This pairs the device with your account.
Connect to Wi-Fi
Follow the on-screen instructions to connect the doorbell to your 2.4 GHz Wi-Fi network. Note: Wyze Doorbell does not support 5 GHz networks.
Enter your Wi-Fi password when prompted. The app will send the network info to the doorbell.
Name Your Doorbell
Give your doorbell a name, like “Front Door” or “Main Entrance,” so you can identify it easily.
Set Up Motion Zones (Optional)
You can define specific areas for motion detection. For example, you might want alerts only when someone approaches the door, not when cars drive by.
Pair with a Chime (If Using)
If you have a Wyze Chime or a compatible mechanical chime, the app will guide you through pairing. For mechanical chimes, you may need to install the included diode to prevent buzzing.
Test Live View
Tap “Live View” in the app to see the camera feed. You should see a clear, wide-angle view of your doorstep. Test two-way audio by speaking and listening through the app.
Step 9: Final Adjustments and Tips
Once your doorbell is working, take a few minutes to fine-tune the setup.
Adjust Motion Sensitivity
In the app, go to Device Settings > Motion Detection. Lower the sensitivity if you’re getting too many alerts from passing cars or animals.
Enable Notifications
Make sure push notifications are enabled so you’re alerted when someone rings the doorbell or motion is detected.
Set Up Recording
Wyze offers cloud recording with a Wyze Cam Plus subscription. You can also use local storage with a microSD card (sold separately).
Install a Protective Cover (Optional)
If you live in a rainy or snowy area, consider a weatherproof cover to protect the doorbell from the elements.
Keep Firmware Updated
Wyze regularly releases firmware updates. Enable auto-updates in the app to ensure your doorbell stays secure and performs well.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Doorbell Won’t Power On
- Check that the breaker is on.
- Verify wire connections are tight.
- Test the transformer voltage.
- Ensure the wires aren’t shorted.
No Video or Poor Video Quality
- Confirm Wi-Fi signal is strong at the doorbell location.
- Move your router closer or use a Wi-Fi extender.
- Restart the doorbell by removing and reinserting it.
Chime Buzzes or Doesn’t Ring
- Install the included diode across the chime terminals.
- Ensure the chime is compatible with smart doorbells.
- Try a digital chime or Wyze Chime instead.
Motion Alerts Are Too Frequent
- Adjust motion zones in the app.
- Lower motion sensitivity.
- Trim bushes or trees that trigger motion.
App Can’t Find the Doorbell
- Make sure the doorbell is powered and in pairing mode (LED blinking blue).
- Restart your phone and router.
- Re-scan the QR code.
Conclusion
Installing a Wyze Doorbell is a straightforward process that can significantly enhance your home security. By following this guide, you’ve learned how to safely remove your old doorbell, check compatibility, mount the new device, connect the wires, and set it up using the Wyze app.
Remember, the key to a successful installation is preparation and attention to detail. Always turn off the power, double-check your wiring, and test everything before finishing. With your Wyze Doorbell now in place, you’ll enjoy real-time alerts, crystal-clear video, and the convenience of answering your door from anywhere.
Whether you’re a DIY beginner or a seasoned pro, this smart upgrade is well worth the effort. Stay safe, stay connected, and enjoy your new Wyze Doorbell!
