This guide walks you through how to install Wyze Video Doorbell with Chime, from checking compatibility to final testing. Whether you’re replacing an old doorbell or installing a new one, we’ve got you covered with clear, beginner-friendly instructions.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Wyze’s requirements (16–24V AC, 10VA minimum) before starting.
- Turn off power at the breaker: Safety is critical—always shut off electricity to the doorbell circuit before handling wires.
- Use the Wyze app for setup: The app guides you through mounting, Wi-Fi connection, and chime pairing for a smooth installation.
- Mount the doorbell securely: Angle it slightly toward the walkway and ensure it’s level for optimal video coverage.
- Test the chime and notifications: After installation, verify that the chime sounds and mobile alerts work properly.
- Troubleshoot common issues: If the doorbell doesn’t power on or the chime is silent, check wiring, Wi-Fi signal, and app settings.
- Enjoy smart features: Once installed, use motion detection, two-way audio, and live video to enhance home security.
How to Install Wyze Video Doorbell with Chime
Installing a smart doorbell like the Wyze Video Doorbell with Chime can significantly boost your home’s security and convenience. Whether you’re replacing an old mechanical doorbell or setting up a new system, this step-by-step guide will walk you through the entire process—from preparation to final testing. By the end, you’ll have a fully functional smart doorbell that sends real-time alerts, records motion, and lets you talk to visitors from anywhere.
This guide is designed for beginners and experienced DIYers alike. We’ll cover everything you need to know, including compatibility checks, wiring tips, app setup, and troubleshooting. No prior smart home experience? No problem. Just follow along, take your time, and you’ll have your Wyze doorbell up and running in under an hour.
What You’ll Need

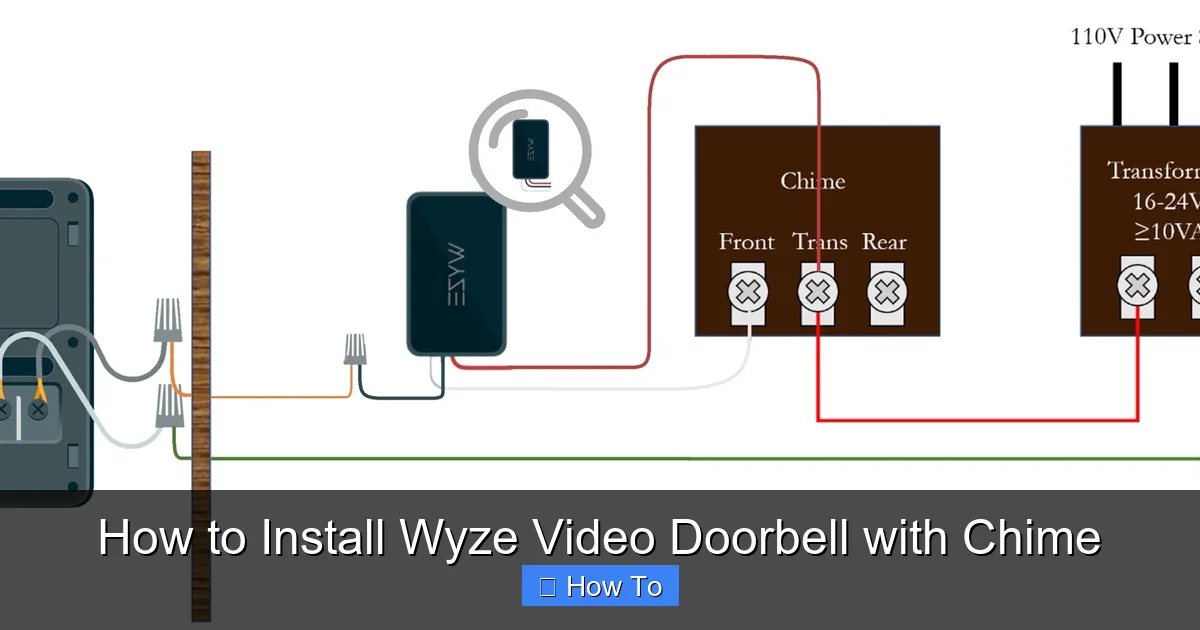

Visual guide about How to Install Wyze Video Doorbell with Chime
Image source: support.wyze.com
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration during installation.
- Wyze Video Doorbell with Chime kit – Includes the doorbell unit, chime, mounting bracket, screws, and wire connectors.
- Screwdriver (Phillips head) – For removing the old doorbell and securing the new mount.
- Drill and drill bits (optional) – Only needed if you’re installing on brick, stucco, or another hard surface.
- Voltage tester (recommended) – To confirm power is off and check transformer voltage.
- Smartphone with the Wyze app installed – Available for iOS and Android.
- Wi-Fi network (2.4 GHz only) – Wyze doorbells do not support 5 GHz networks.
- Ladder (if needed) – For reaching high doorbell locations.
Pro tip: If you’re unsure about your doorbell’s wiring or voltage, consult an electrician before starting. Safety first!
Step 1: Check Compatibility
Not all doorbell systems are compatible with the Wyze Video Doorbell. Before you remove your old doorbell, verify that your home meets the basic requirements.
Transformer Voltage
The Wyze doorbell requires a transformer that outputs between 16 and 24 volts AC (alternating current) with a minimum of 10VA (volt-amperes). Most modern doorbells use 16V or 24V transformers, but older homes may have lower voltages.
To check:
- Turn off power at the breaker.
- Remove the old doorbell from the wall.
- Locate the two wires connected to the doorbell.
- Use a multimeter or voltage tester to measure the voltage across the wires.
If the reading is below 16V, your doorbell may not power on reliably. In that case, you’ll need to upgrade your transformer. This is a job for a licensed electrician unless you’re experienced with electrical work.
Wiring Requirements
The Wyze doorbell needs two wires: one for power (usually labeled “Front”) and one for the doorbell button (“Trans”). If your existing doorbell has only one wire or uses a wireless system, you may need to run new wiring or consider a battery-powered alternative (though the Wyze doorbell is wired-only).
Chime Compatibility
The Wyze Chime works independently of your existing mechanical chime. You can keep your old chime and use the Wyze Chime as a secondary alert, or disconnect the old chime entirely. The Wyze Chime connects via Wi-Fi and plugs into a standard wall outlet near your front door.
Step 2: Turn Off Power
Safety is the most important part of any electrical installation. Never work on doorbell wiring while the power is on.
Locate the Breaker
Find your home’s electrical panel (breaker box). Look for a breaker labeled “Doorbell,” “Front Door,” or something similar. If you can’t find it, turn off the main breaker to be safe.
Test the Wires
After turning off the power, remove the old doorbell and use a non-contact voltage tester to confirm that no electricity is flowing through the wires. Touch the tester to each wire—if it beeps or lights up, the power is still on. Double-check your breaker and try again.
Pro tip: Take a photo of the wiring before disconnecting anything. This will help you remember how to reconnect the wires later.
Step 3: Remove the Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell.
Unscrew the Faceplate
Use a Phillips head screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the unit away from the wall.
Disconnect the Wires
Loosen the terminal screws or pull the wires from the back of the doorbell. Most doorbells have two wires: one connected to the “Front” terminal and one to the “Trans” (transformer) terminal. Label them with tape if needed.
Cap the Wires
Twist wire nuts onto the exposed ends of the wires to prevent them from touching each other or the wall. This prevents short circuits when you’re not using them.
Step 4: Install the Mounting Bracket
The Wyze doorbell comes with a mounting bracket that attaches to the wall. This bracket holds the doorbell securely and allows for easy removal for maintenance.
Position the Bracket
Hold the mounting bracket against the wall where you want to install the doorbell. The ideal height is about 48 inches from the ground—eye level for most visitors. Use a level to ensure it’s straight.
If you’re replacing an old doorbell, the bracket may align with existing screw holes. If not, you’ll need to drill new ones.
Drill Pilot Holes (If Needed)
For brick, stucco, or concrete walls, drill pilot holes using a masonry bit. Insert wall anchors if necessary. For wood or siding, you can screw directly into the wall.
Secure the Bracket
Use the provided screws to attach the bracket to the wall. Make sure it’s tight and doesn’t wobble. The doorbell will snap onto this bracket, so it needs to be sturdy.
Route the Wires
Feed the two doorbell wires through the center hole in the bracket. Leave enough slack (about 6 inches) to connect them to the doorbell later.
Step 5: Connect the Wires to the Doorbell
Now it’s time to connect the wires to your new Wyze doorbell.
Identify the Terminals
On the back of the Wyze doorbell, you’ll see two terminals: “Front” and “Trans.” These correspond to the two wires from your wall.
Strip the Wire Ends
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. Be careful not to cut too much insulation.
Attach the Wires
Loosen the terminal screws on the doorbell. Insert one wire into the “Front” terminal and the other into the “Trans” terminal. Tighten the screws to secure the wires. It doesn’t matter which wire goes where—the doorbell is not polarity-sensitive.
Pro tip: If the wires are too thick or won’t stay in place, use the included wire connectors (butt splices) to extend them with shorter, more flexible wires.
Step 6: Attach the Doorbell to the Bracket
With the wires connected, it’s time to mount the doorbell.
Align the Doorbell
Hold the doorbell so the pins on the back align with the slots on the mounting bracket. The camera should face outward, angled slightly downward toward the walkway.
Snap It Into Place
Gently press the doorbell onto the bracket until you hear a click. It should feel secure and not wobble.
Secure with Set Screw (Optional)
For added security, use the small set screw (included) to lock the doorbell to the bracket. This prevents theft or accidental removal.
Step 7: Set Up the Wyze Chime
The Wyze Chime is a wireless plug-in device that alerts you when someone rings the doorbell. It’s not required for the doorbell to work, but it’s highly recommended.
Plug In the Chime
Find a wall outlet near your front door—ideally within 100 feet of the doorbell for best Wi-Fi performance. Plug in the Wyze Chime. The LED light will blink blue, indicating it’s ready to pair.
Download the Wyze App
If you haven’t already, download the Wyze app from the Apple App Store or Google Play. Create an account or log in.
Add the Chime to the App
Open the app and tap the “+” icon to add a new device. Select “Chime” and follow the on-screen instructions. The app will guide you through connecting the chime to your Wi-Fi network.
Test the Chime
Once connected, press the button on the chime or ring the doorbell to test the sound. You can adjust the volume and choose from multiple tones in the app.
Step 8: Connect the Doorbell to Wi-Fi
Now it’s time to connect your Wyze Video Doorbell to your home network.
Open the Wyze App
Go back to the app and tap “+” to add a new device. Select “Video Doorbell.”
Scan the QR Code
The app will ask you to scan the QR code on the back of the doorbell. Use your phone’s camera to scan it.
Follow the Setup Wizard
The app will guide you through the following steps:
- Confirm the doorbell is powered on (LED should be solid green).
- Connect to your 2.4 GHz Wi-Fi network (5 GHz is not supported).
- Enter your Wi-Fi password.
- Wait for the doorbell to connect (this may take 1–2 minutes).
Complete Setup
Once connected, the app will prompt you to name your doorbell (e.g., “Front Door”) and adjust settings like motion detection, night vision, and notification preferences.
Step 9: Test the System
Before considering the job done, test everything to ensure it’s working properly.
Ring the Doorbell
Press the button on the doorbell. You should hear the chime sound, and a notification should appear on your phone.
Check the Live View
Open the Wyze app and tap on your doorbell to view the live feed. Make sure the video is clear and the audio works.
Test Two-Way Audio
Speak into your phone’s microphone and listen for your voice through the doorbell’s speaker. Ask someone to stand at the door and talk back to test the full two-way communication.
Adjust Motion Zones
In the app, go to the doorbell settings and customize the motion detection zones. You can exclude areas like busy streets or trees to reduce false alerts.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here are solutions to the most common issues.
Doorbell Won’t Power On
- Check that the power is turned back on at the breaker.
- Verify the wires are securely connected to the terminals.
- Test the transformer voltage—it should be 16–24V AC.
- Ensure the mounting bracket is making good contact with the doorbell.
Chime Doesn’t Ring
- Make sure the chime is plugged in and within Wi-Fi range.
- Check that the chime is paired with the doorbell in the app.
- Restart the chime by unplugging it for 10 seconds, then plugging it back in.
- Ensure your phone isn’t in Do Not Disturb mode.
Poor Wi-Fi Signal
- Move your router closer to the door or use a Wi-Fi extender.
- Avoid placing the doorbell near metal objects or thick walls.
- Check for interference from other devices (microwaves, cordless phones).
Video Quality Is Blurry or Laggy
- Ensure your Wi-Fi signal is strong (check the app’s signal indicator).
- Clean the camera lens with a soft, dry cloth.
- Reduce motion detection sensitivity to lower data usage.
False Motion Alerts
- Adjust motion zones to exclude moving trees or shadows.
- Lower the motion sensitivity in the app settings.
- Enable “Person Detection” to filter out animals and vehicles.
Tips for Optimal Performance
To get the most out of your Wyze Video Doorbell, follow these best practices:
- Keep the lens clean: Dust and dirt can block the camera. Wipe it monthly with a microfiber cloth.
- Update firmware regularly: The Wyze app will notify you of updates. Keep your doorbell up to date for the latest features and security patches.
- Use a strong Wi-Fi password: This protects your doorbell from unauthorized access.
- Enable two-factor authentication: Add an extra layer of security to your Wyze account.
- Check battery level (if applicable): While the Wyze doorbell is wired, the chime uses a small internal battery for backup. Replace it every 1–2 years.
Conclusion
Installing the Wyze Video Doorbell with Chime is a straightforward process that can be completed in under an hour with the right preparation. By following this guide, you’ve learned how to check compatibility, safely handle wiring, mount the doorbell, set up the chime, and connect everything to your Wi-Fi network. You’ve also gained troubleshooting skills to resolve common issues and tips to keep your system running smoothly.
Now that your doorbell is installed, you can enjoy peace of mind knowing you’ll always know who’s at your door—even when you’re not home. Whether it’s a delivery person, a neighbor, or a potential intruder, the Wyze Video Doorbell gives you the visibility and control you need to protect your home.
Take a moment to explore the app’s advanced features, like recording schedules, cloud storage, and smart home integrations. With regular maintenance and updates, your Wyze doorbell will serve you well for years to come.
Welcome to the future of home security—one smart doorbell at a time.
