Installing a Zmodo doorbell is a straightforward process that enhances your home security. This guide walks you through every step—from checking compatibility to final app configuration—so you can enjoy smart monitoring in no time.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and voltage meet Zmodo’s requirements to avoid damage or malfunction.
- Turn off power safely: Always shut off the circuit breaker before handling wires to prevent electrical shock.
- Use the Zmodo app for setup: The mobile app guides you through Wi-Fi pairing, device registration, and live view activation.
- Secure mounting is essential: Properly attach the doorbell to a flat, stable surface at recommended height (48–60 inches) for optimal performance.
- Test after installation: Verify motion detection, two-way audio, and live streaming work before finishing the job.
- Troubleshoot common issues: If the doorbell won’t connect or chime doesn’t ring, check Wi-Fi signal, wiring, or transformer voltage.
- Keep firmware updated: Regular updates improve security, add features, and fix bugs—enable auto-updates in the app.
How to Install Zmodo Doorbell: A Complete Step-by-Step Guide
Upgrading your home with a Zmodo smart doorbell is one of the smartest moves you can make for security and convenience. Whether you’re replacing an old wired doorbell or installing a new one from scratch, Zmodo offers reliable, user-friendly models that deliver HD video, two-way audio, motion alerts, and seamless smartphone integration. But like any smart device, proper installation is key to getting the most out of it.
In this comprehensive guide, you’ll learn exactly how to install a Zmodo doorbell—whether it’s a wired model like the Zmodo Pro or a battery-powered version. We’ll cover everything from checking your home’s compatibility to mounting the device, connecting it to your Wi-Fi network, and configuring settings in the Zmodo app. By the end, you’ll have a fully functional smart doorbell that lets you see, hear, and speak to visitors from anywhere.
No prior technical experience? No problem. This guide uses simple language, clear instructions, and practical tips so even beginners can install their Zmodo doorbell confidently and safely. Let’s get started!
What You’ll Need Before You Begin

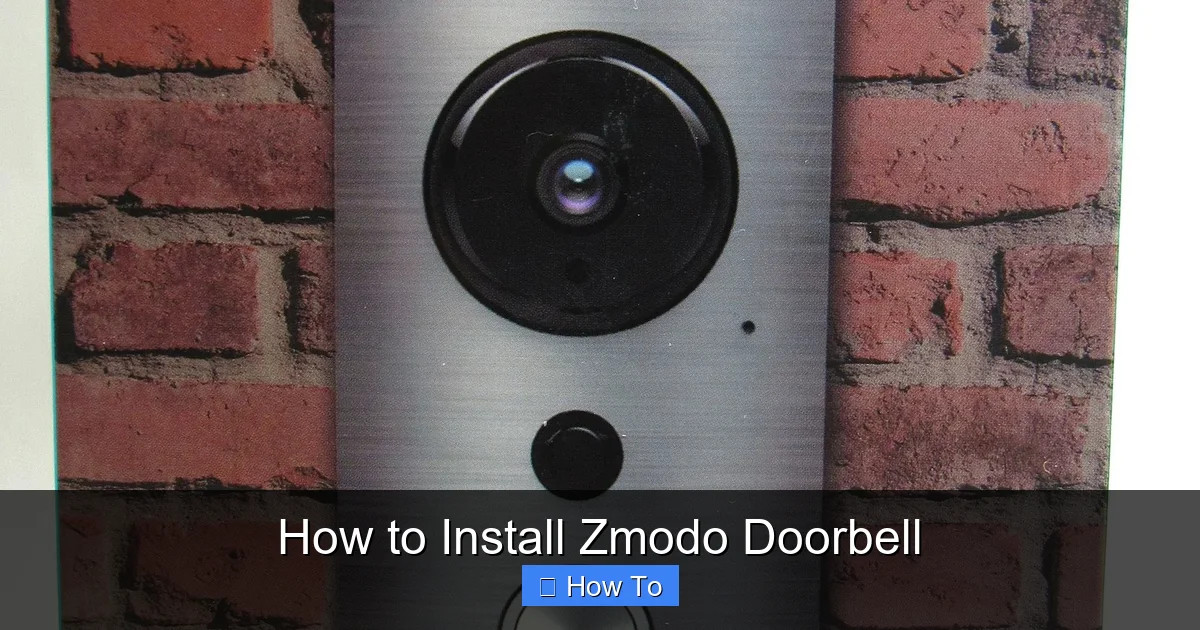

Visual guide about How to Install Zmodo Doorbell
Image source: reviewraft.com
Before diving into the installation, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-process.
Tools and Materials Checklist
- Zmodo doorbell kit (includes doorbell unit, mounting bracket, screws, and chime connector if applicable)
- Screwdriver (usually Phillips-head)
- Drill and drill bits (if mounting on brick, stucco, or concrete)
- Voltage tester (non-contact type recommended)
- Wire strippers (if you need to trim or re-strip wires)
- Smartphone or tablet with the Zmodo app installed
- Stable Wi-Fi network (2.4 GHz band required; 5 GHz not supported)
- Ladder (if your doorbell location is high)
- Electrical tape (optional, for securing wires)
Check Your Existing Doorbell System
Most Zmodo wired doorbells are designed to replace traditional doorbells that use low-voltage wiring (typically 8–24V AC). Here’s how to verify compatibility:
– Locate your doorbell transformer: This is usually found in your basement, garage, or near your electrical panel. It converts standard household voltage (120V) to low voltage for the doorbell.
– Test the voltage: Use a multimeter or voltage tester on the doorbell wires at the chime or transformer. Zmodo recommends 16–24V AC for optimal performance. If your system is below 8V, the doorbell may not power on reliably.
– Check wire condition: Ensure the existing wires are intact, not frayed, and long enough to reach the new doorbell location.
If you’re installing a battery-powered Zmodo model (like the Zmodo Wireless Doorbell), you won’t need existing wiring—but you will need strong Wi-Fi coverage at the installation spot.
Step 1: Turn Off the Power
Safety first! Working with electrical components—even low-voltage ones—requires caution.
Shut Off the Circuit Breaker
1. Go to your home’s main electrical panel (breaker box).
2. Locate the circuit that powers your doorbell. It may be labeled “Doorbell,” “Chime,” or something similar. If unsure, turn off the main breaker to be safe.
3. Use a non-contact voltage tester at the doorbell chime or wires to confirm power is off. The tester should not beep or light up.
Pro Tip: Place a piece of tape over the breaker switch with a note like “Do Not Turn On – Installing Doorbell” to prevent accidental reactivation while you’re working.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, carefully remove it to expose the wiring.
Detach the Old Unit
1. Unscrew the old doorbell from the wall using a screwdriver.
2. Gently pull the unit away to reveal the two wires connected to the back.
3. Loosen the terminal screws and disconnect the wires. Note which wire goes where (though polarity usually doesn’t matter for doorbells, labeling them can help).
4. Cap the exposed wire ends with wire nuts or electrical tape to prevent short circuits.
Inspect the Mounting Area
– Clean the surface where the new doorbell will go.
– Check for damage, rot, or uneven spots. If the wall is uneven, you may need a Zmodo mounting wedge (often included) to level the doorbell.
Step 3: Install the Mounting Bracket
The mounting bracket secures your Zmodo doorbell to the wall and ensures a stable, weather-resistant fit.
Position the Bracket
1. Hold the Zmodo mounting bracket against the wall at the desired height—typically between 48 and 60 inches from the ground. This height ensures clear visibility for most visitors and optimal motion detection.
2. Use a level to make sure the bracket is straight.
3. Mark the screw holes with a pencil.
Drill and Secure
– For wood or siding: Use the provided screws to attach the bracket directly.
– For brick, stucco, or concrete: Drill pilot holes using a masonry bit, then insert wall anchors before screwing in the bracket.
– Ensure the bracket is tight and doesn’t wobble.
Tip: If your wall is slanted or uneven, use the included wedge to angle the doorbell slightly toward the walkway for better video coverage.
Step 4: Connect the Wires
Now it’s time to connect your home’s doorbell wiring to the Zmodo unit.
Prepare the Wires
1. Strip about 1/4 inch of insulation from the ends of the two doorbell wires if needed.
2. Loosen the terminal screws on the back of the Zmodo doorbell or mounting bracket (depending on model).
Attach the Wires
– Insert one wire into each terminal slot. Most Zmodo models are not polarity-sensitive, so it doesn’t matter which wire goes where.
– Tighten the screws securely to hold the wires in place.
– Tuck any excess wire neatly into the wall cavity to avoid pinching.
Important: Do not let the bare wire ends touch each other—this can cause a short circuit.
Step 5: Attach the Zmodo Doorbell
With the bracket and wires in place, you’re ready to mount the doorbell.
Snap It Into Place
1. Align the Zmodo doorbell with the mounting bracket.
2. Gently press it into place until it clicks securely.
3. Some models include a security screw to prevent tampering—insert and tighten it with a screwdriver.
Double-Check Stability
– Give the doorbell a light tug to ensure it’s firmly attached.
– Make sure it’s level and angled correctly for the best view of your doorstep.
Step 6: Power On and Test the Hardware
Before setting up the app, verify that the doorbell is receiving power.
Restore Power
1. Go back to your breaker box and turn the doorbell circuit back on.
2. Wait 10–15 seconds for the Zmodo doorbell to power up.
Check for Lights and Sounds
– Most Zmodo models have an LED indicator that lights up when powered.
– If your model includes a built-in chime, you should hear a ring when power is restored.
– If nothing happens, double-check your wiring and voltage.
Note: Battery-powered models will activate immediately when batteries are inserted—no wiring needed.
Step 7: Download and Set Up the Zmodo App
The Zmodo app is your control center for live viewing, alerts, recordings, and settings.
Install the App
1. On your smartphone or tablet, go to the App Store (iOS) or Google Play Store (Android).
2. Search for “Zmodo” and download the official app (look for the blue icon with a white “Z”).
3. Open the app and create a free account using your email or phone number.
Log In and Add Your Device
1. Tap “Add Device” or the “+” icon.
2. Select “Doorbell” from the list of device types.
3. Follow the on-screen prompts to scan the QR code on your Zmodo doorbell (usually found on the back or in the manual).
Step 8: Connect to Wi-Fi
A stable Wi-Fi connection is essential for live streaming and alerts.
Choose Your Network
1. The app will prompt you to select your home Wi-Fi network.
2. Enter your Wi-Fi password carefully—case-sensitive and exact spelling matter.
3. Ensure your phone is connected to the same 2.4 GHz network (Zmodo doorbells do not support 5 GHz).
Wait for Connection
– The doorbell will attempt to connect, which may take 30–60 seconds.
– A solid green or blue LED usually indicates a successful connection.
– If it fails, move closer to your router or check for interference.
Tip: If your Wi-Fi signal is weak at the door, consider installing a Wi-Fi extender or mesh network to boost coverage.
Step 9: Configure Settings and Features
Once connected, customize your Zmodo doorbell to suit your lifestyle.
Set Up Motion Zones
– In the app, go to “Motion Detection” and draw zones where you want alerts (e.g., driveway, porch).
– Avoid areas like busy streets or trees that cause false alarms.
Adjust Sensitivity
– Lower sensitivity if you’re getting too many alerts from passing cars or animals.
– Increase it if you’re missing visitors.
Enable Two-Way Audio
– Test the microphone and speaker by speaking through the app.
– Ensure background noise isn’t too loud—position the doorbell away from windy or noisy areas if possible.
Set Up Chime (If Using a Mechanical Chime)
– If your home has a traditional doorbell chime, the Zmodo doorbell can trigger it.
– In the app, go to “Chime Settings” and select “Mechanical Chime.”
– Some models require a chime connector (included) to be installed inside the chime box—follow the manual for details.
Enable Cloud or Local Storage
– Choose between cloud recording (subscription may be required) or local storage via microSD card (if supported).
– Set recording schedules or motion-triggered recording.
Step 10: Test Everything
Before calling the job done, thoroughly test all features.
Live View Test
– Open the app and tap “Live View” to see real-time video.
– Check for clarity, lighting, and field of view.
Motion Alert Test
– Walk in front of the doorbell to trigger a motion alert.
– Confirm you receive a push notification on your phone.
Two-Way Audio Test
– Speak through the app and listen for clear audio from the doorbell.
– Have someone at the door speak to you to test the microphone.
Doorbell Ring Test
– Press the doorbell button.
– Verify that the chime rings (if applicable) and you receive a notification.
Troubleshooting Common Issues
Even with careful installation, you might encounter a few hiccups. Here’s how to fix them.
Doorbell Won’t Power On
– Check that power is restored at the breaker.
– Test voltage at the wires—should be 8–24V AC.
– Ensure wires are securely connected and not touching.
No Wi-Fi Connection
– Confirm you’re using 2.4 GHz Wi-Fi (not 5 GHz).
– Move closer to the router during setup.
– Restart your router and the doorbell.
– Re-enter Wi-Fi password carefully.
Chime Doesn’t Ring
– For mechanical chimes: Install the chime connector inside the chime box.
– For digital chimes: Ensure compatibility—some may not work with smart doorbells.
– Check app chime settings.
Poor Video Quality or Lag
– Weak Wi-Fi signal is the most common cause.
– Reduce interference by moving routers away from microwaves or cordless phones.
– Lower video resolution in the app if needed.
False Motion Alerts
– Adjust motion zones to exclude trees, roads, or shadows.
– Lower sensitivity in the app.
– Ensure the doorbell isn’t facing direct sunlight or headlights.
App Not Receiving Notifications
– Check phone notification settings—allow Zmodo app alerts.
– Ensure “Do Not Disturb” mode is off.
– Re-login to the app and re-enable notifications.
Maintenance and Best Practices
To keep your Zmodo doorbell working smoothly for years, follow these tips:
– Clean the lens monthly: Use a soft, dry cloth to wipe away dust, dirt, or spiderwebs.
– Check battery levels (if applicable): Replace batteries every 6–12 months or when low-battery alerts appear.
– Update firmware regularly: Enable auto-updates in the app to get the latest features and security patches.
– Review recordings periodically: Delete old clips to free up storage space.
– Inspect wiring annually: Ensure connections remain tight and wires aren’t damaged.
Conclusion
Installing a Zmodo doorbell is a rewarding DIY project that significantly boosts your home’s security and convenience. By following this step-by-step guide—from verifying compatibility and safely wiring the device to configuring the app and testing all features—you can ensure a smooth, successful installation.
Remember, the key to a hassle-free experience is preparation: turn off the power, use the right tools, and take your time with each step. Once your Zmodo doorbell is up and running, you’ll enjoy peace of mind knowing you can see and speak to anyone at your door—whether you’re home or halfway around the world.
With regular maintenance and smart settings, your Zmodo doorbell will serve you well for years to come. Welcome to the future of home security!
