How to Know Doorbell Voltage

Knowing your doorbell voltage is essential for safety, compatibility, and troubleshooting. This guide walks you through easy methods to check voltage using a multimeter, identifying transformer specs, and understanding low-voltage vs. high-voltage systems—so you can install or repair your doorbell with confidence.

Key Takeaways

• Most doorbells use low-voltage power (16–24V AC): This is safer and standard for residential systems, reducing shock risk and electrical hazards.
• Use a multimeter to measure voltage accurately: A digital multimeter is the most reliable tool for checking doorbell voltage at the chime or transformer.
• Locate the doorbell transformer to find voltage specs: The transformer, usually near your electrical panel or furnace, often lists output voltage on a label.
• High-voltage doorbells (120V) are rare but dangerous: If your doorbell connects directly to household wiring without a transformer, it may be high-voltage—handle with extreme caution.
• Turn off power before testing or replacing components: Always shut off the circuit breaker to avoid electric shock when working on doorbell wiring.
• Match replacement parts to your system’s voltage: Installing a 12V chime on a 24V system can damage the device—always verify compatibility.
• Consult a licensed electrician if unsure: If you can’t locate the transformer or feel uncomfortable with electrical work, professional help ensures safety.

How to Know Doorbell Voltage: A Complete Step-by-Step Guide

If you’re installing a new doorbell, replacing an old one, or troubleshooting a silent chime, one of the first things you need to know is the voltage of your doorbell system. Knowing your doorbell voltage ensures compatibility, prevents damage to components, and keeps you safe during installation or repairs. Most modern doorbells run on low-voltage power—typically between 16 and 24 volts AC—but older homes or unusual setups might use higher voltages or direct line power.

In this comprehensive guide, you’ll learn how to determine your doorbell voltage using simple tools and safe practices. We’ll cover everything from identifying your transformer to using a multimeter, understanding wiring setups, and avoiding common mistakes. Whether you’re a DIY enthusiast or just want to understand your home’s electrical system better, this guide will give you the confidence to get it right.

Why Doorbell Voltage Matters

Before diving into the how-to steps, it’s important to understand why voltage matters. Doorbell systems are designed to operate at specific voltage levels. Using the wrong voltage can lead to:

• Device failure: A chime rated for 16V may burn out if connected to a 24V transformer.
• Reduced lifespan: Even slight overvoltage can shorten the life of electronic components.
• Safety hazards: High-voltage systems (like 120V) pose a real risk of electric shock if mishandled.
• Compatibility issues: Smart doorbells and video doorbells often require precise voltage and may not work with older transformers.

For example, Ring and Nest doorbells typically need 16–24V AC and at least 20VA (volt-amperes) of power. If your existing transformer only outputs 8V, the smart doorbell may not function properly—or at all. That’s why knowing your voltage is the first step in any upgrade or repair.

Understanding Doorbell Power Systems

Most residential doorbells use a low-voltage AC system, which means they’re powered by a transformer that steps down your home’s standard 120V AC electricity to a safer, lower voltage. Here’s how it works:

• Transformer: Converts 120V household current to 16V, 18V, 20V, or 24V AC.
• Wiring: Two low-voltage wires run from the transformer to the doorbell button and chime.
• Doorbell button: When pressed, it completes the circuit, sending power to the chime.
• Chime unit: Receives the signal and produces sound (or triggers a smart device).

This setup is safe, efficient, and easy to work with—as long as you know the voltage. In rare cases, especially in older homes, you might find a high-voltage doorbell that connects directly to 120V wiring. These are outdated and potentially dangerous. If you suspect your doorbell is high-voltage, stop and consult an electrician immediately.

Tools You’ll Need

To determine your doorbell voltage, you’ll need a few basic tools:

• Digital multimeter: The most accurate way to measure voltage. Look for one with AC voltage settings.
• Screwdriver: To remove the doorbell button or chime cover.
• Flashlight: Helps you see in dark areas like electrical panels or basements.
• Electrical tape: For labeling wires if you disconnect them.
• Safety gloves and goggles: Optional but recommended for added protection.

You don’t need to be an electrician to use these tools—just follow safety guidelines and take your time.

Method 1: Check the Transformer Label

The easiest way to know your doorbell voltage is to find the transformer and read its label. The transformer is the device that steps down your home’s electricity to a safe level for the doorbell.

Step 1: Locate the Doorbell Transformer

The transformer is usually mounted near your main electrical panel, furnace, or in a basement, crawlspace, or garage. It’s a small, rectangular or cylindrical metal box with wires coming out of it. It may be tucked behind a panel or inside a junction box.

Tip: Listen for a faint hum or buzz near your electrical panel—transformers often make a slight noise when active.

Step 2: Identify the Voltage Rating

Once you find the transformer, look for a label or stamp that shows the output voltage. It will typically say something like:

• “Output: 16V AC”
• “18V 10VA”
• “24V 30VA”

The number before the “V” is your voltage. The “VA” (volt-amperes) indicates power capacity—important for smart doorbells that need more energy.

Example: If the label says “20V 20VA,” your doorbell system runs on 20 volts AC with a 20-volt-ampere capacity.

Step 3: Confirm It’s for the Doorbell

Not all transformers are for doorbells. Some power thermostats, HVAC systems, or lighting. To confirm, trace the low-voltage wires from the transformer. They should lead to your doorbell button and chime. If you’re unsure, turn off the circuit breaker and test the wires with a multimeter (see Method 2).

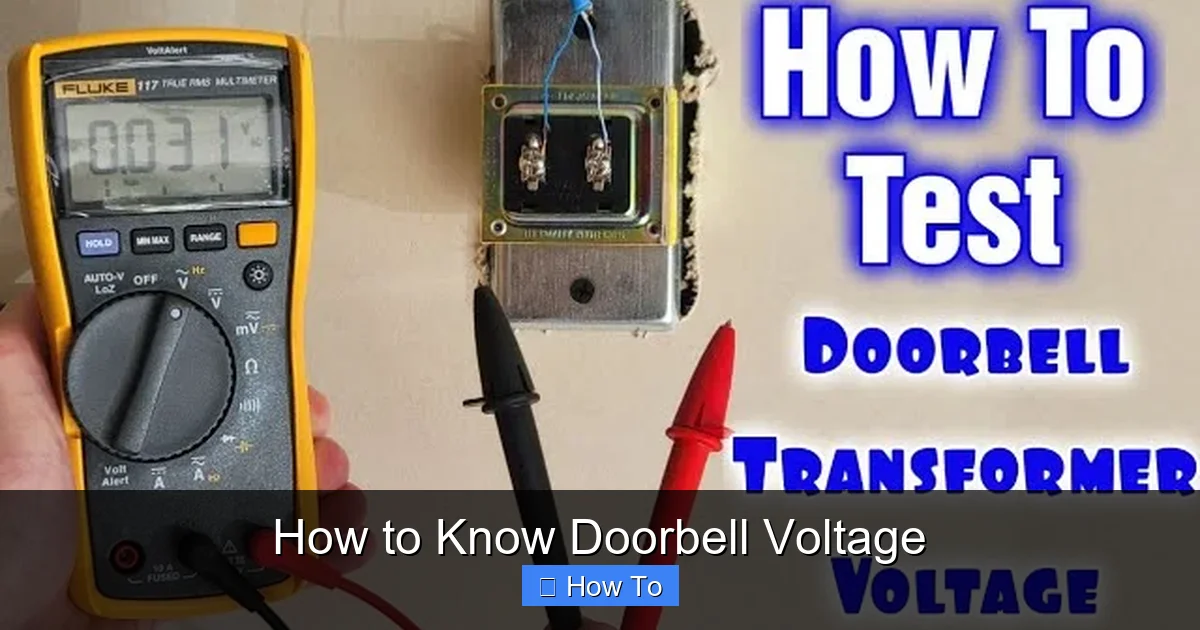

Method 2: Measure Voltage with a Multimeter

If you can’t find the transformer or want to double-check the voltage, use a digital multimeter. This method gives you real-time, accurate readings.

Step 1: Set Up Your Multimeter

Turn on your multimeter and set it to measure AC voltage. Look for the “V~” or “VAC” symbol. Choose a range higher than expected—usually 200V AC is safe for doorbell systems.

Tip: If your multimeter has an auto-ranging feature, it will automatically select the correct range.

Step 2: Access the Doorbell Wiring

You can measure voltage at two points:

• At the chime unit: Remove the cover of your doorbell chime (usually held by screws). You’ll see two wires connected to terminals labeled “Front” and “Trans” or “Transformer.”
• At the doorbell button: Unscrew the button from the wall. The two wires attached to it carry the low-voltage signal.

For most accurate results, measure at the chime, as it’s closer to the transformer and less likely to have voltage drop.

Step 3: Test the Voltage

• Touch the multimeter’s red probe to one wire and the black probe to the other.
• Press the doorbell button. The multimeter should display a voltage reading.
• If the reading is stable (e.g., 18.5V), that’s your system voltage.

Important: Do not touch the bare wires with your fingers. Keep probes steady and avoid shorting the wires.

Step 4: Interpret the Reading

• 16V–24V AC: Normal for most doorbells. Your system is low-voltage and safe to work on.
• Below 12V: The transformer may be underpowered or failing. This can cause weak chimes or smart doorbell issues.
• 120V or higher: Your doorbell is high-voltage. Stop immediately and consult an electrician.

Example: If your multimeter reads 19.2V when the button is pressed, your system is likely 20V—common for modern setups.

Method 3: Check the Doorbell Chime or Button Label

Some doorbell chimes and buttons have voltage ratings printed on them. Check the back or inside of the chime unit or button housing.

• Look for text like “16V AC Only” or “Rated for 24V.”
• This tells you the maximum voltage the device can handle.

While this doesn’t tell you the actual system voltage, it helps confirm compatibility. For instance, if your chime says “16V Max,” but your transformer outputs 24V, you’ll need a new transformer or chime.

Method 4: Use a Non-Contact Voltage Tester (For Safety Check)

A non-contact voltage tester is a pen-like tool that beeps or lights up when it detects voltage. It’s not precise for measuring exact voltage, but it’s great for safety.

How to Use It:

• Turn on the tester and hold it near the doorbell wires.
• If it beeps or glows, voltage is present.
• This confirms the circuit is live—important before handling wires.

Note: This tool won’t tell you the voltage level, only that power is flowing. Always follow up with a multimeter for accuracy.

Troubleshooting Common Voltage Issues

Even with the right tools, you might run into problems. Here’s how to handle common issues:

Issue 1: No Voltage Reading

If your multimeter shows 0V when the button is pressed:

• Check the transformer: It may be faulty or disconnected.
• Test the circuit breaker: The doorbell circuit might be on a dedicated breaker that’s tripped.
• Inspect the button: A broken or stuck button won’t complete the circuit.
• Look for loose wires: Corrosion or loose connections can interrupt power.

Solution: Replace the transformer or button, or tighten connections.

Issue 2: Low Voltage (Below 12V)

Low voltage can cause weak chimes or smart doorbell malfunctions.

• Cause: Undersized transformer, long wire runs, or multiple doorbells on one transformer.
• Solution: Upgrade to a higher VA transformer (e.g., 20VA or 30VA).

Example: A Ring Video Doorbell Pro requires at least 16V and 20VA. If your transformer is only 10VA, it won’t work reliably.

Issue 3: Voltage Fluctuations

If the voltage reading jumps or drops:

• Cause: Loose connections, failing transformer, or interference.
• Solution: Tighten wire connections or replace the transformer.

Issue 4: High Voltage Detected (120V)

If you measure 120V or higher:

• Stop immediately. This is not a standard doorbell system.
• Do not touch the wires.
• Call a licensed electrician. High-voltage doorbells are outdated and dangerous.

Safety Tips When Working with Doorbell Voltage

Even though most doorbells use low voltage, safety should always come first.

• Turn off the power: Locate the doorbell circuit on your breaker panel and switch it off. If unsure, turn off the main breaker.
• Use insulated tools: Prevents accidental short circuits.
• Label wires: Before disconnecting, tape labels to wires so you know where they go.
• Work in dry conditions: Never handle electrical components with wet hands or in damp areas.
• Wear safety gear: Gloves and goggles protect against sparks or debris.

Remember: Low voltage is generally safe, but mistakes can still cause damage or injury. When in doubt, hire a professional.

Upgrading Your Doorbell System

Once you know your voltage, you can make informed decisions about upgrades.

Installing a Smart Doorbell

Smart doorbells like Ring, Nest, or Arlo often require:

• 16–24V AC
• At least 20VA of power
• A stable connection

If your transformer doesn’t meet these specs, you may need to replace it. Many smart doorbells come with a plug-in transformer for this purpose.

Replacing a Transformer

To replace a transformer:

• Turn off the main power.
• Disconnect the old transformer.
• Install the new one with matching voltage and higher VA if needed.
• Reconnect wires and test.

Tip: Choose a transformer with 20VA or 30VA for future-proofing.

Adding a Second Doorbell

If you want front and back doorbells:

• Ensure your transformer can handle the extra load.
• Use a dual chime or two single chimes wired in parallel.
• Check voltage at both buttons to ensure consistency.

When to Call a Professional

While checking doorbell voltage is a DIY-friendly task, some situations require expert help:

• You can’t locate the transformer.
• You detect high voltage (120V).
• The wiring looks damaged or outdated.
• You’re uncomfortable working with electricity.
• Your home has aluminum wiring (common in older homes).

A licensed electrician can safely assess your system, upgrade components, and ensure code compliance.

Conclusion

Knowing your doorbell voltage is a simple but crucial step for any doorbell project. Whether you’re replacing a chime, installing a smart doorbell, or troubleshooting a silent button, understanding your system’s voltage ensures safety, compatibility, and reliable performance.

By using a multimeter, checking the transformer label, or inspecting component ratings, you can quickly and accurately determine your doorbell voltage. Always prioritize safety, turn off power when working, and don’t hesitate to call a professional if something feels off.

With this guide, you’re equipped to handle your doorbell system like a pro. Now go ahead—press that button with confidence!
