How to Know If Your Home Doorbell Is 16V
If you’re installing a new smart doorbell, replacing an old chime, or troubleshooting a silent button, one of the first questions you’ll ask is: What voltage does my doorbell use? Most residential doorbells in the U.S. and Canada operate on low-voltage AC power, typically around 16 volts. But how can you be sure your system is 16V? And why does it matter?
In this comprehensive guide, you’ll learn exactly how to determine if your home doorbell is 16V. We’ll walk you through safe inspection methods, step-by-step voltage testing, and smart troubleshooting tips. Whether you’re a DIY enthusiast or a first-time homeowner, this guide will help you avoid common mistakes and ensure your doorbell works safely and efficiently.
By the end, you’ll know how to:
- Locate your doorbell transformer
- Read voltage labels and specifications
- Use a multimeter to test voltage
- Interpret results and troubleshoot issues
- Choose compatible doorbell devices
Let’s get started—safely and confidently.
Why Voltage Matters for Your Doorbell

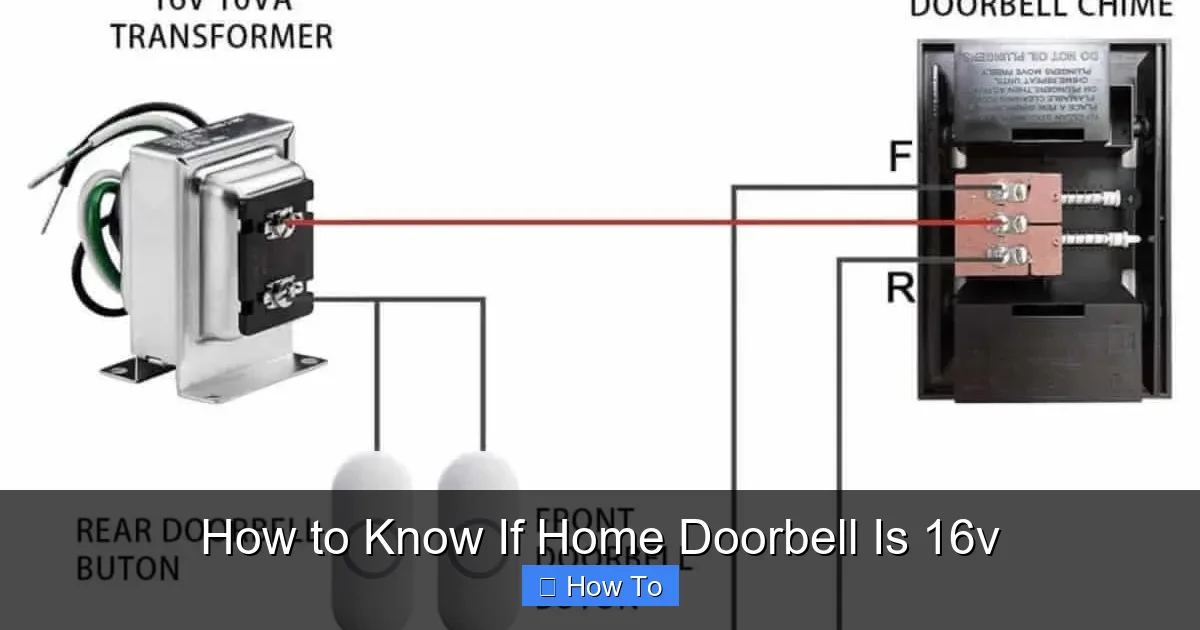

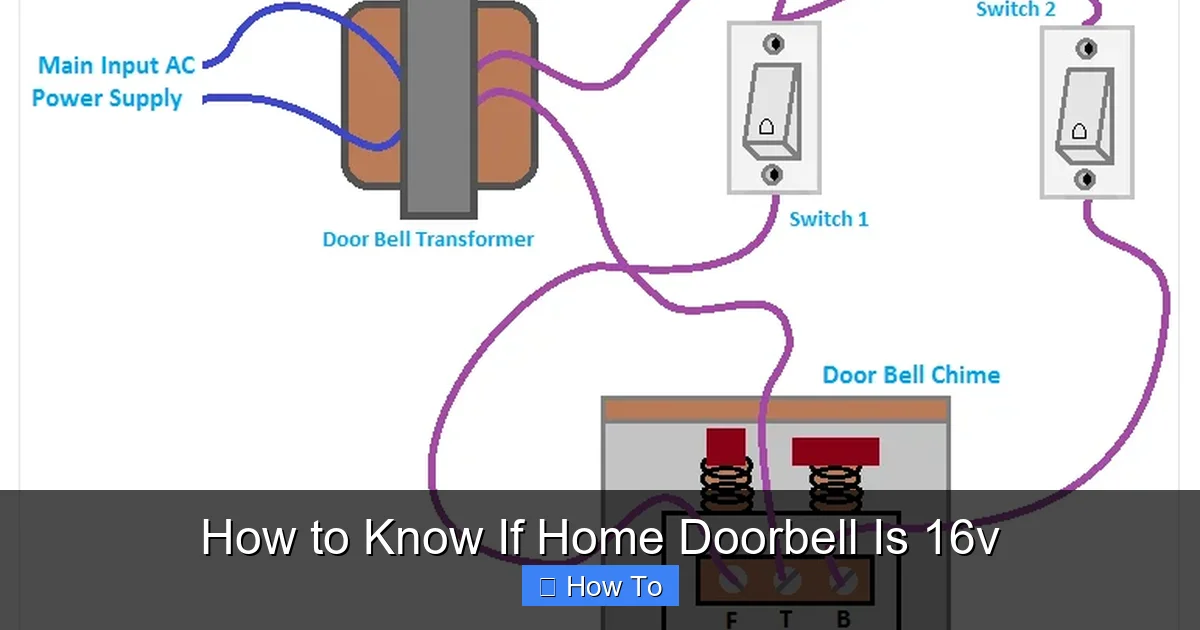

Visual guide about How to Know If Home Doorbell Is 16v
Image source: i0.wp.com
Before diving into how to check your doorbell’s voltage, it’s important to understand why voltage matters in the first place. Doorbell systems are low-voltage electrical circuits, meaning they use significantly less power than standard household outlets (which run at 120V). This makes them safer to work with—but only if you handle them correctly.
Most traditional doorbells use a step-down transformer to convert 120V household current into a safer 8V, 12V, 16V, or 24V AC signal. Of these, 16V is the most common for residential installations. It provides enough power to ring mechanical chimes and support modern smart doorbells without overloading the system.
However, not all doorbells are created equal. Some older homes may have 8V or 12V systems, while newer smart doorbells (like Ring Video Doorbell Pro or Nest Hello) often require 16V or higher. Using a doorbell that doesn’t match your system’s voltage can lead to:
- Weak or inconsistent chimes
- Overheating of the transformer
- Damage to smart doorbell electronics
- Frequent battery drain (for battery-powered smart doorbells)
For example, if your doorbell is rated for 16V but your transformer only outputs 12V, the chime may not ring loudly—or at all. Conversely, if you install a 12V doorbell on a 24V system, you risk frying the internal components.
That’s why knowing your doorbell’s voltage isn’t just helpful—it’s essential.
Step 1: Locate Your Doorbell Transformer
The first step in determining your doorbell’s voltage is finding the transformer. The transformer is the small device that steps down your home’s 120V power to the low voltage needed for the doorbell. It’s the heart of your doorbell system.
Where to Look for the Transformer
Transformers are usually hidden but accessible. Common locations include:
- Basement or crawlspace: Often mounted near the furnace, water heater, or electrical panel.
- Attic: Especially in homes without basements.
- Garage: Near the main electrical service panel or ceiling joists.
- Utility closet: Where HVAC or plumbing systems are housed.
- Inside the doorbell chime box: Some older chimes have built-in transformers.
The transformer looks like a small metal or plastic box, about the size of a deck of cards. It has two wires coming out—one connected to the doorbell button and one to the chime. It’s usually labeled with electrical information, including voltage.
How to Identify the Transformer
If you’re not sure which box is the transformer, look for:
- A device with “doorbell,” “chime,” or “transformer” printed on it
- Two low-voltage wires (often white and red or white and black)
- A label showing input (120V) and output (e.g., 16V AC)
Pro tip: If you see a small box with wires running to your doorbell button and chime, it’s almost certainly the transformer.
Safety First: Turn Off the Power
Before touching any wires or components, turn off the power at the circuit breaker. Even though doorbell systems are low voltage, the transformer is connected to your home’s 120V supply. Accidentally touching live wires can cause shock or damage.
Locate the breaker that controls the doorbell circuit. It may be labeled “doorbell,” “chime,” or “low voltage.” If not, turn off the main breaker to be safe. Use a non-contact voltage tester to confirm the power is off before proceeding.
Step 2: Check the Transformer Label
Once you’ve located the transformer and ensured the power is off, the easiest way to determine your doorbell’s voltage is to read the label.
What to Look For on the Label
Most transformers have a sticker or engraved label with key specs, including:
- Output Voltage: Usually listed as “16V AC,” “12V AC,” etc.
- Output Current: Measured in VA (volt-amperes), e.g., 10VA, 15VA, 20VA.
- Input Voltage: Typically 120V AC.
- Model Number: Useful for looking up specs online.
For example, a label might read:
“Input: 120V AC, 60Hz | Output: 16V AC, 10VA”
This means the transformer outputs 16 volts of alternating current—perfect for most standard doorbells.
Common Voltage Ratings
Here’s a quick reference for typical transformer outputs:
- 8V AC: Rare, used in very old systems.
- 12V AC: Common in older homes or simple chimes.
- 16V AC: Most common for modern residential doorbells.
- 24V AC: Used in commercial systems or high-power smart doorbells.
If your label says “16V AC,” you’re done! Your doorbell system is 16 volts.
But what if the label is faded, missing, or unclear? Don’t worry—there are other ways to confirm.
Step 3: Use a Multimeter to Test Voltage
If you can’t read the transformer label or want to double-check, the most accurate way to determine your doorbell’s voltage is to test it with a digital multimeter.
A multimeter measures electrical properties like voltage, current, and resistance. For this task, you’ll use it to measure AC voltage.
What You’ll Need
- Digital multimeter (available at hardware stores for $10–$30)
- Insulated gloves (optional but recommended)
- Non-contact voltage tester (for safety)
How to Set Up the Multimeter
1. Turn the multimeter dial to the AC voltage setting (usually marked “V~” or “ACV”).
2. Plug the black probe into the “COM” port and the red probe into the “VΩ” port.
3. Set the range to 20V or 50V AC (most multimeters auto-range, but manual settings help avoid errors).
Testing at the Transformer
With the power back on (after confirming safety), follow these steps:
1. Locate the two low-voltage output terminals on the transformer. These are usually screw terminals labeled “Common” and “Front” or “Trans.”
2. Touch the multimeter probes to the two output terminals:
– Black probe to one terminal
– Red probe to the other
3. Read the display. If it shows a value close to 16 (e.g., 15.8V to 16.5V), your system is 16V.
Note: The reading may fluctuate slightly. A reading between 15V and 17V is generally acceptable for a 16V system.
Testing at the Doorbell Chime
You can also test voltage at the chime unit itself:
1. Remove the chime cover (usually held by screws).
2. Locate the two wires connected to the chime terminals.
3. Touch the multimeter probes to the wire terminals.
4. Read the voltage.
This method confirms that power is reaching the chime. If the voltage is much lower than expected (e.g., 10V on a 16V system), there may be a wiring issue or a failing transformer.
Testing at the Doorbell Button
For extra confirmation, you can test at the doorbell button:
1. Remove the button from the wall.
2. Disconnect the wires (note their positions).
3. Touch the probes to the wire ends.
4. Read the voltage.
However, this test is less reliable because the button interrupts the circuit when pressed. Only test with the button disconnected.
Step 4: Review Manufacturer Specifications
If you’re still unsure, check the documentation for your doorbell or chime.
Check the Doorbell or Chime Manual
Most manufacturers include voltage requirements in the user manual or on the product label. Look for phrases like:
- “Requires 16V AC transformer”
- “Compatible with 16V doorbell systems”
- “Input: 16V AC, 10VA”
For example, the Ring Video Doorbell Pro 2 specifies:
“Requires a 16–24V AC transformer with at least 20VA.”
If your doorbell says it needs 16V, and your transformer outputs 16V, you’re good to go.
Look Up the Model Online
If you can’t find the manual, search for your doorbell model online. Sites like Amazon, the manufacturer’s website, or forums often list technical specs.
Pro tip: Take a photo of the model number and search “[Model Number] voltage requirement.”
Step 5: Troubleshooting Common Voltage Issues
Even if your system is labeled 16V, real-world conditions can affect performance. Here’s how to troubleshoot common problems.
Low Voltage Readings
If your multimeter shows significantly less than 16V (e.g., 10V or 12V), possible causes include:
- Failing transformer: Over time, transformers can degrade and output lower voltage.
- Long or thin wiring: Excessive wire length or undersized gauge can cause voltage drop.
- Multiple chimes or devices: Adding extra chimes or smart doorbells can overload the transformer.
Solution: Replace the transformer with a higher-capacity one (e.g., 16V 20VA instead of 10VA).
No Voltage Reading
If the multimeter shows 0V, check:
- Is the circuit breaker on?
- Are the transformer wires securely connected?
- Is the transformer burnt out? (Look for scorch marks or a burnt smell.)
Solution: Replace the transformer or repair loose connections.
Intermittent Chime or Weak Ring
This often indicates voltage instability. Test the voltage while pressing the doorbell button. If it drops significantly, the transformer may be undersized.
Solution: Upgrade to a 16V 20VA transformer for better performance.
Step 6: Choosing the Right Doorbell for Your Voltage
Once you’ve confirmed your system is 16V, you can confidently choose compatible doorbells.
Traditional Mechanical Doorbells
Most standard doorbells work with 16V systems. Just ensure the chime and button are rated for 16V AC.
Smart Doorbells
Smart doorbells have stricter requirements:
- Ring Video Doorbell (2nd Gen): Works with 8–24V, but 16V recommended.
- Ring Video Doorbell Pro: Requires 16–24V, 20VA minimum.
- Nest Hello: Requires 16–24V, 10VA minimum.
- Eufy Video Doorbell: Battery-powered, but wired version needs 16–24V.
Always check the product specs before buying. Using a smart doorbell on an incompatible voltage can void the warranty.
Upgrading Your Transformer
If your current transformer is underpowered (e.g., 16V 10VA), consider upgrading to a 16V 20VA model. This provides more stable power, especially for smart doorbells.
Installation is simple:
1. Turn off the power.
2. Disconnect the old transformer.
3. Connect the new one to the same terminals.
4. Restore power and test.
Safety Tips and Best Practices
Working with electricity—even low voltage—requires caution. Follow these safety tips:
- Always turn off the circuit breaker before handling wires.
- Use insulated tools and wear gloves if possible.
- Never touch bare wires with wet hands.
- Double-check connections before restoring power.
- If you’re unsure, consult a licensed electrician.
Remember: It’s better to be safe than sorry. A small mistake can lead to shock, fire, or damaged equipment.
Conclusion
Knowing whether your home doorbell is 16V is a simple but crucial step in maintaining a safe and functional entry system. Whether you’re installing a new smart doorbell, replacing a chime, or troubleshooting a silent button, confirming your voltage ensures compatibility and prevents damage.
In this guide, you learned how to:
- Locate and inspect your doorbell transformer
- Read voltage labels and specifications
- Use a multimeter to test voltage safely
- Troubleshoot common issues like low or no voltage
- Choose doorbells that match your system
Most residential doorbells run on 16V, but always verify before making changes. With the right tools and a little caution, you can confidently manage your doorbell system like a pro.
Now that you know how to check your doorbell’s voltage, you’re ready to upgrade, repair, or replace with confidence. Stay safe, stay informed, and enjoy the convenience of a properly working doorbell.
