How to Know If Your Ring 2 Doorbell Resistor Is Working Properly
If your Ring 2 doorbell isn’t chiming, sending alerts, or seems to be acting up, the culprit might be a faulty resistor. While many users assume the problem lies with the Wi-Fi connection or the device itself, the resistor—a small but crucial component—often gets overlooked. This guide will walk you through everything you need to know about how to know if your Ring 2 doorbell resistor is functioning correctly. You’ll learn how to test it, what signs to look for, and how to fix or replace it safely.
Whether you’re a tech-savvy homeowner or just getting started with smart home devices, this step-by-step guide is designed to be easy to follow. We’ll use simple language, practical tips, and clear instructions so you can troubleshoot with confidence. By the end, you’ll be able to diagnose resistor issues and keep your Ring 2 doorbell running smoothly.
What Is a Ring 2 Doorbell Resistor?

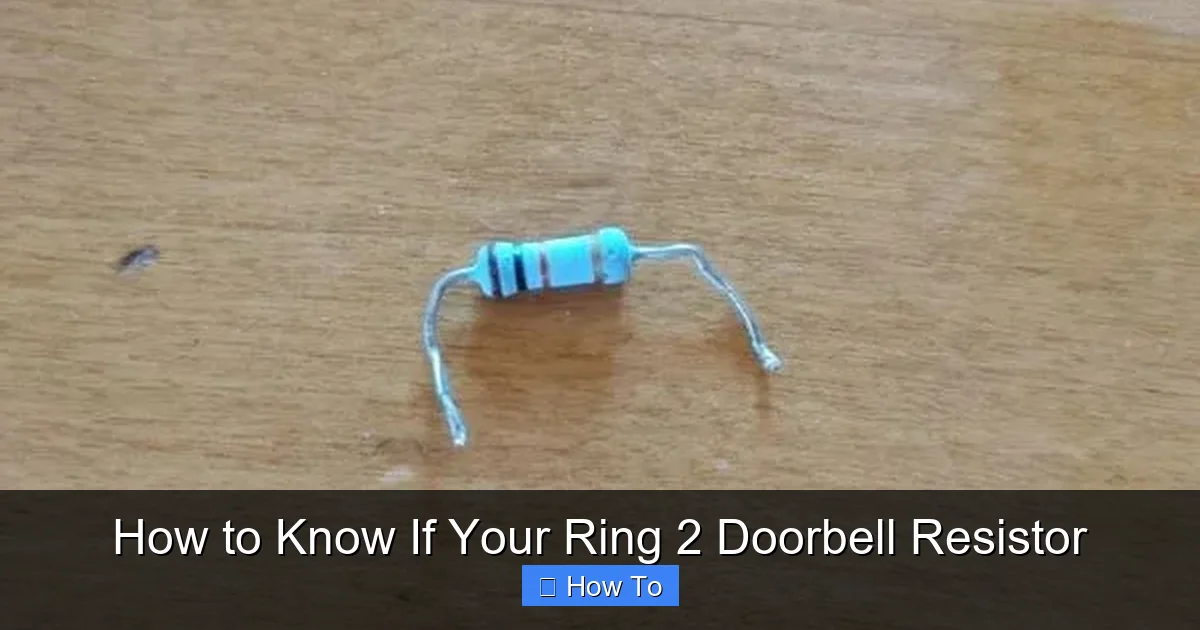

Visual guide about How to Know If Your Ring 2 Doorbell Resistor
Image source: justsmarter.net
Before diving into troubleshooting, it’s important to understand what the resistor does in your Ring 2 doorbell system. The resistor—sometimes referred to as a “doorbell resistor” or “load resistor”—is a small electrical component installed in line with your doorbell’s wiring. Its main job is to regulate the voltage flowing from your home’s transformer to the doorbell chime and the Ring device.
Ring doorbells, especially the Ring 2 model, are designed to work with existing doorbell wiring. However, traditional mechanical chimes require a certain amount of voltage to operate. The Ring device itself uses less power than a standard doorbell button, which can cause the chime to fail to activate. That’s where the resistor comes in.
The resistor creates a small electrical load, mimicking the power draw of a traditional doorbell. This ensures that enough voltage reaches the chime to make it ring when someone presses the button. Without a properly functioning resistor, your Ring 2 might power on and connect to Wi-Fi, but the indoor chime won’t sound.
In short, the resistor acts as a bridge between your smart doorbell and your old-school chime. It’s a simple component, but it plays a vital role in the overall functionality of your system.
Why the Resistor Matters for Your Ring 2 Doorbell
You might be wondering: “Can’t I just use the Ring app for notifications and skip the chime?” While it’s true that the Ring app sends push alerts to your phone, many users still rely on the physical chime for immediate awareness—especially if they’re not near their phone or have hearing impairments.
The resistor ensures that both the Ring device and the mechanical chime work together. If the resistor fails, you might experience one or more of the following:
– The chime doesn’t ring when the button is pressed
– The Ring device powers on but doesn’t trigger the chime
– The device overheats or behaves erratically
– The chime rings weakly or inconsistently
These symptoms can be frustrating, especially if you’ve already checked your Wi-Fi, app settings, and device firmware. That’s why understanding how to test and replace the resistor is so important.
Moreover, using a Ring doorbell without a resistor—or with a faulty one—can lead to long-term damage. The device may draw too much or too little power, causing overheating, shortened battery life (if applicable), or even failure of the internal circuitry.
In summary, the resistor is not optional—it’s a critical part of the system. Ignoring it can lead to poor performance or costly repairs down the line.
Common Signs Your Ring 2 Doorbell Resistor Is Faulty
Now that you know what the resistor does, let’s look at the most common signs that it might be failing. Recognizing these symptoms early can save you time and frustration.
1. The Chime Doesn’t Ring
This is the most obvious sign. If you press the Ring button and the indoor chime doesn’t sound—even though the app shows a notification—the resistor is a prime suspect. The Ring device is receiving power and connecting to Wi-Fi, but the chime isn’t getting enough voltage to activate.
2. Intermittent or Weak Chime
Sometimes the chime works occasionally or rings very softly. This inconsistency often points to a resistor that’s partially failed or not providing a stable load. You might notice the chime works one day and not the next, especially during temperature changes or high humidity.
3. Ring Device Overheats
If your Ring 2 feels unusually warm to the touch—especially near the wiring terminals—it could be due to incorrect voltage regulation. A faulty resistor may allow too much current to flow, causing the device to overheat. This is a safety concern and should be addressed immediately.
4. Frequent Disconnections or Power Issues
While Wi-Fi problems can cause disconnections, power-related issues often stem from the resistor or transformer. If your Ring 2 frequently goes offline, reboots unexpectedly, or shows low battery (even when hardwired), the resistor might not be stabilizing the power supply correctly.
5. Buzzing or Humming Sounds
A faint buzzing or humming noise from the chime box or the Ring device itself can indicate electrical interference or voltage fluctuations. This is often caused by a resistor that’s not properly regulating the current.
6. Transformer Voltage Is Within Range, But Chime Still Doesn’t Work
If you’ve already tested your transformer and confirmed it’s outputting the correct voltage (usually 16–24 volts AC), but the chime still won’t ring, the resistor is the next logical component to check.
Tools You’ll Need to Test the Resistor
Before you start testing, gather the following tools. Most are inexpensive and can be found at hardware stores or online.
- Digital multimeter: This is essential for measuring voltage and resistance. Look for one with clear displays and auto-ranging features.
- Screwdrivers: A Phillips and flathead screwdriver will help you access the doorbell and chime box.
- Electrical tape: For insulating wires during testing.
- Voltage tester (optional): A non-contact voltage tester can help confirm if power is reaching the chime.
- Replacement resistor (if needed): Ring sells official resistors, or you can use a compatible 16–24V AC doorbell resistor.
Make sure to turn off power at the circuit breaker before working on any electrical components. Safety first!
Step-by-Step Guide to Testing Your Ring 2 Doorbell Resistor
Now let’s walk through the process of testing your resistor. Follow these steps carefully to ensure accurate results and avoid electrical hazards.
Step 1: Turn Off Power at the Circuit Breaker
Before touching any wires, locate your home’s electrical panel and turn off the breaker that controls the doorbell circuit. This is usually labeled “doorbell,” “chime,” or “front door.” If you’re unsure, turn off the main breaker to be safe.
Use a non-contact voltage tester at the chime box to confirm that power is off. Simply touch the tester to the wires—if it doesn’t beep or light up, it’s safe to proceed.
Step 2: Remove the Ring 2 Doorbell
Unscrew the Ring 2 from the mounting bracket and gently pull it away from the wall. You’ll see two wires connected to the back. Take a photo of the wiring for reference, then disconnect the wires by loosening the terminal screws.
Set the Ring device aside in a safe place.
Step 3: Access the Chime Box
Locate your indoor doorbell chime—usually found in a hallway, basement, or utility room. Remove the cover to expose the wiring and internal components.
You should see several wires: two from the doorbell button (where the Ring is installed), two from the transformer, and possibly others for additional buttons or chimes.
Step 4: Locate the Resistor
The resistor is typically a small, cylindrical or rectangular component wired in parallel with the chime mechanism. It may be labeled with a resistance value (e.g., “10Ω” or “16V”) or have color bands like a traditional resistor.
If you don’t see a resistor, your system might not have one installed—or it could be integrated into the chime unit. In older homes, some chimes have built-in resistors, while newer installations often require an external one.
Step 5: Test the Resistor with a Multimeter
Set your multimeter to the resistance (ohms) setting. Touch the probes to the two leads of the resistor. A healthy resistor should show a reading close to its labeled value—usually between 10 and 30 ohms.
If the multimeter shows “OL” (open loop) or no reading, the resistor is likely broken and needs replacement. If the reading is significantly higher or lower than expected, the resistor is faulty.
Step 6: Test the Transformer Voltage
While you’re at the chime box, test the transformer output. Set your multimeter to AC voltage (V~). Touch the probes to the two wires coming from the transformer.
The reading should be between 16 and 24 volts AC. If it’s below 16V, the transformer may be underpowered. If it’s above 24V, it could damage your Ring device over time.
Step 7: Reconnect and Test the System
Once you’ve confirmed the resistor and transformer are working, reconnect the wires to the Ring 2 and reattach it to the wall. Turn the power back on at the breaker.
Press the Ring button and listen for the chime. If it rings clearly and consistently, your resistor is functioning properly. If not, proceed to the next section.
How to Replace a Faulty Ring 2 Doorbell Resistor
If testing confirms that the resistor is faulty, it’s time to replace it. Here’s how to do it safely and correctly.
Step 1: Purchase a Compatible Resistor
You can buy a replacement resistor directly from Ring or use a generic 16–24V AC doorbell resistor from a hardware store. Make sure it’s rated for the same voltage as your transformer.
Ring’s official resistor is designed specifically for their devices and ensures compatibility. Generic resistors work too, but double-check the specifications.
Step 2: Turn Off Power Again
Safety first! Turn off the breaker before handling any wires.
Step 3: Remove the Old Resistor
Disconnect the wires from the faulty resistor. Note how they’re connected—usually, the resistor is wired in parallel with the chime coil. Take a photo if needed.
Unscrew or unclip the resistor from its mounting location.
Step 4: Install the New Resistor
Connect the new resistor in the same configuration as the old one. Most resistors have two wires that splice into the existing circuit. Use wire nuts or electrical tape to secure the connections.
Make sure the connections are tight and insulated to prevent short circuits.
Step 5: Reassemble and Test
Replace the chime cover, reconnect the Ring 2, and turn the power back on. Press the button and listen for the chime.
If everything works, you’ve successfully replaced the resistor. If not, double-check your wiring and transformer voltage.
Troubleshooting Common Issues
Even after replacing the resistor, you might still encounter problems. Here are some common issues and how to fix them.
Chime Still Doesn’t Ring
– Double-check that the resistor is properly connected in parallel with the chime.
– Verify the transformer voltage is within range.
– Ensure the Ring device is securely mounted and the wires are tight.
Chime Rings But Is Weak
– The resistor value might be too high. Try a lower-ohm resistor (e.g., 10Ω instead of 20Ω).
– Check for loose or corroded wire connections.
Ring Device Overheats
– Confirm the transformer isn’t over-voltage.
– Ensure the resistor is the correct type and properly installed.
– Consider upgrading to a Ring Chime Pro if hardwiring issues persist.
Intermittent Alerts or Disconnections
– Test Wi-Fi signal strength at the doorbell location.
– Reset the Ring device and reconnect it to the network.
– Check for nearby electrical interference (e.g., motors, fluorescent lights).
Preventing Future Resistor Problems
Once your resistor is working, take steps to avoid future issues:
– Use a high-quality transformer rated for 16–24V AC and at least 20VA.
– Avoid overloading the circuit with multiple smart devices.
– Inspect wiring annually for wear or corrosion.
– Keep the chime box clean and dry.
Regular maintenance can extend the life of your Ring 2 and its components.
When to Call a Professional
If you’re uncomfortable working with electrical systems, or if testing reveals complex wiring issues, it’s best to call a licensed electrician. They can safely diagnose and repair problems with your doorbell circuit, transformer, or home wiring.
Don’t risk electrical shock or fire hazards—professional help is worth the investment.
Conclusion
Knowing how to identify and fix a faulty resistor in your Ring 2 doorbell can save you time, money, and frustration. The resistor plays a crucial role in ensuring your chime rings and your device operates safely. By learning to test it with a multimeter, recognizing common symptoms, and replacing it when necessary, you can keep your smart doorbell system running smoothly.
Remember to always prioritize safety, use the right tools, and consult a professional if you’re unsure. With this guide, you’re now equipped to troubleshoot like a pro and enjoy reliable performance from your Ring 2 doorbell for years to come.
