How to Know Where Is Transformer Located for Ring Doorbell
Installing a Ring Doorbell is a smart way to boost your home security. But before you can enjoy motion alerts and live video, you need to make sure it’s getting the right power. Most Ring Doorbells—especially wired models like the Ring Video Doorbell (2nd Gen), Ring Video Doorbell Pro, and Ring Video Doorbell Pro 2—require a transformer to convert your home’s standard 120V AC power into the lower 16–24V AC that the doorbell needs.
The big question many homeowners ask is: “Where is the transformer located for my Ring Doorbell?” The answer isn’t always obvious. Unlike a battery-powered doorbell, a wired Ring Doorbell relies on a hidden transformer that’s usually tucked away in a wall, basement, attic, or near your existing doorbell chime.
In this guide, we’ll walk you through step-by-step how to find your Ring Doorbell transformer, understand how it works, and what to do if you can’t locate it. Whether you’re installing a new Ring Doorbell or troubleshooting power issues, this guide will help you track down that elusive transformer—safely and efficiently.
By the end, you’ll know exactly where to look, what tools to use, and when to call in a professional. Let’s get started!
Why the Transformer Matters for Your Ring Doorbell

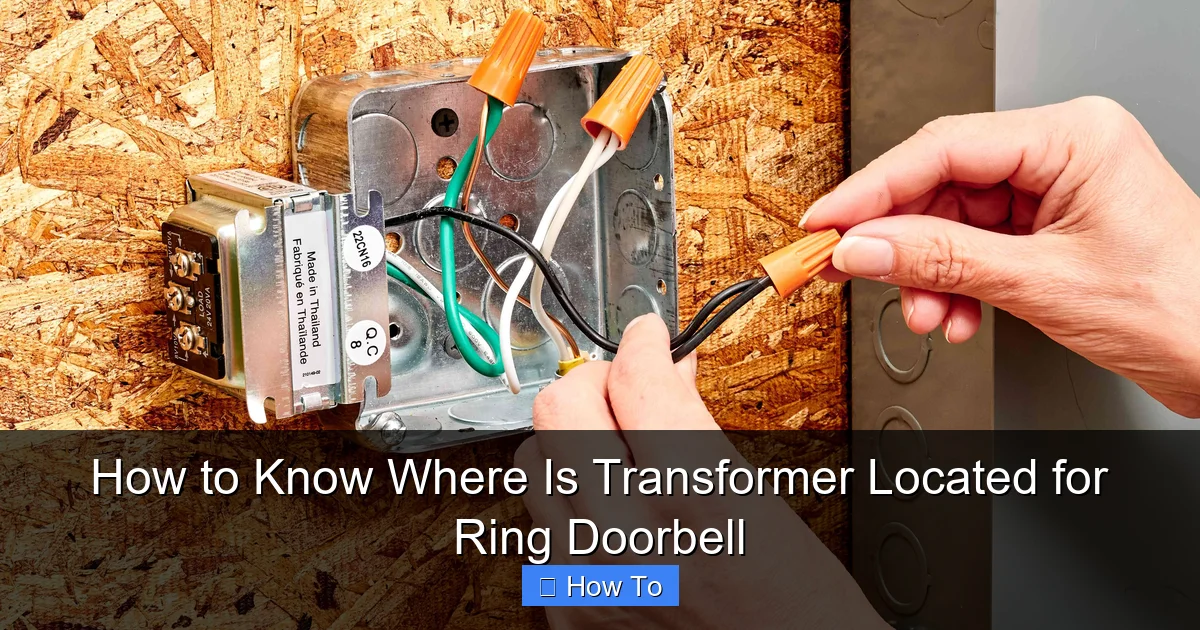

Visual guide about How to Know Where Is Transformer Located for Ring Doorbell
Image source: thespruce.com
Before we dive into locating the transformer, it’s important to understand why it’s so crucial. Your Ring Doorbell doesn’t plug directly into a wall outlet like a phone charger. Instead, it connects to low-voltage wires that run from your home’s electrical system through a transformer.
Here’s how it works:
Your home’s main power supply is 120 volts AC (alternating current). That’s far too much for a doorbell. The transformer’s job is to “step down” that voltage to a safer 16–24 volts AC, which is what Ring Doorbells are designed to use.
Without a properly functioning transformer:
– Your Ring Doorbell may not power on.
– The video quality could be poor or intermittent.
– The device might overheat or fail prematurely.
– The chime may not ring correctly.
So, finding and verifying your transformer isn’t just about installation—it’s about ensuring your doorbell works reliably for years.
Step 1: Understand Where Transformers Are Typically Located
Transformers are small, rectangular or cylindrical devices that are usually mounted out of sight. They’re not meant to be decorative, so they’re often hidden in less visible areas of your home. Here are the most common locations:
Near the Doorbell Chime
This is the #1 place to check. In most homes, the transformer is mounted directly on or near the doorbell chime unit inside the house. The chime is usually located in a hallway, near the front door, or in a closet.
Why? Because the transformer needs to be close to the chime to power both the chime and the doorbell wires. It’s often screwed into the wall or junction box behind the chime plate.
In the Basement or Crawlspace
If your home has a basement, the transformer might be mounted on a wall, near the furnace, or close to the electrical panel. Look for a small black or gray box with wires coming out of it.
In older homes, especially those with knob-and-tube wiring, the transformer might be tucked into a junction box in the basement ceiling.
Inside the Attic
In some homes, especially newer constructions, the transformer is installed in the attic. This is less common but still possible. You’ll typically find it near the access point or close to where the doorbell wires run down through the walls.
Mounted on the Electrical Panel
Some transformers are hardwired directly into the breaker box or mounted on the side of the electrical panel. These are often labeled or tucked into a small compartment.
Inside a Wall Cavity
In rare cases, the transformer is buried inside a wall, usually behind the chime or near an outlet. This makes it harder to access but not impossible to find with the right tools.
Step 2: Start Your Search at the Doorbell Chime
The best place to begin your search is at the indoor doorbell chime. Here’s how to do it safely and effectively.
Turn Off Power (Optional but Recommended)
While the transformer operates at low voltage, it’s still connected to your home’s 120V system. For safety, turn off the power at the breaker box before removing the chime plate. Label the breaker so others don’t accidentally turn it back on.
If you’re not comfortable working with electricity, skip this step and use a non-contact voltage tester to check for live wires.
Remove the Chime Cover
Most chime covers snap off or are held in place with screws. Use a screwdriver to gently remove the cover. Be careful not to damage the wires.
Once the cover is off, look inside the chime box. You’re looking for a small, rectangular device with two or more wires connected to it. It may be labeled “Transformer” or have a voltage rating like “16V” or “24V.”
Identify the Transformer
A typical doorbell transformer looks like a small black or gray box, about the size of a pack of cards. It will have:
– Two input wires (usually black and white) connected to 120V power.
– Two output wires (often red and white) connected to the doorbell circuit.
If you see this device mounted on the chime box or nearby, you’ve found your transformer!
Check the Voltage Rating
Look for a label on the transformer that shows the output voltage. Ring Doorbells require 16–24V AC. If the transformer says 8V or 12V, it’s likely too weak to power a Ring Doorbell reliably.
Example: A transformer labeled “16V 10VA” is suitable. One labeled “8V 5VA” is not.
Step 3: Check the Basement or Utility Area
If you don’t find the transformer near the chime, head to the basement.
Look Near the Furnace or Water Heater
Transformers are often mounted near major appliances because they’re out of the way but still accessible. Check the walls around your furnace, water heater, or laundry area.
Inspect the Electrical Panel
Open your main electrical panel (breaker box). Look for a small transformer mounted on the side or inside. It may be tucked behind other components.
Some transformers are wired directly into a dedicated circuit. If you see a small black box with wires running to the doorbell circuit, that’s likely it.
Follow the Doorbell Wires
If you can trace the low-voltage wires from the chime, they may lead you to the transformer. These wires are usually thin and insulated, often running through walls or along baseboards.
Use a flashlight and gently pull back baseboards or inspect wire pathways. Be careful not to damage any wiring.
Step 4: Search the Attic (If Accessible)
If your home has an attic, it’s worth checking—especially if the basement search comes up empty.
Safely Access the Attic
Use a sturdy ladder and wear protective gear (gloves, mask, goggles). Attics can be hot, dusty, and full of insulation.
Look for Wiring Pathways
Follow the path of the doorbell wires. They often run from the exterior wall up into the attic, then down to the chime.
The transformer may be mounted on a joist or tucked into a junction box. Look for a small box with wires connected to it.
Check Near the Access Hatch
Many electricians install transformers near the attic access point for easy maintenance. Check the area around the pull-down ladder or hatch.
Step 5: Use a Voltage Tester to Confirm
Even if you find a transformer, you need to confirm it’s working and providing the correct voltage.
Use a Non-Contact Voltage Tester
This tool detects live wires without touching them. Turn it on and wave it near the transformer’s input wires (the ones connected to 120V power). If it beeps or lights up, power is reaching the transformer.
Use a Multimeter for Precise Measurement
For accurate voltage readings, use a digital multimeter:
1. Set the multimeter to AC voltage (usually marked “V~”).
2. Touch the red probe to the red (or black) output wire and the black probe to the white (or common) wire.
3. Read the voltage. It should be between 16V and 24V AC.
If the reading is below 16V, the transformer may be underpowered or failing.
Step 6: What If You Can’t Find the Transformer?
Don’t panic—there are still options.
Check for a Plug-in Transformer
Some homeowners use a plug-in transformer that looks like a wall wart. It plugs into an outlet near the door and connects to the doorbell wires. Look behind furniture or near outdoor outlets.
Look for a Junction Box
In older homes, the transformer might be inside a junction box in the wall. Use a stud finder with a deep scan mode to detect hidden boxes. You may need to cut a small access hole (and patch it later).
Consult Your Home’s Electrical Plans
If you have blueprints or electrical diagrams for your home, they may show the transformer location. Check with previous owners or the builder.
Call a Licensed Electrician
If you’ve searched everywhere and still can’t find the transformer, it’s time to call a pro. An electrician can:
– Trace the wiring using specialized tools.
– Locate hidden transformers.
– Install a new transformer if needed.
This is especially important if you’re planning to upgrade to a Ring Doorbell Pro, which requires a stronger transformer.
Step 7: Upgrade Your Transformer (If Needed)
Even if you find the transformer, it might not be strong enough for your Ring Doorbell.
Check the VA Rating
Transformers are rated in volt-amperes (VA). Ring recommends a transformer with at least 10–30VA.
Example:
– A 16V 10VA transformer = 160 watts (16 × 10).
– A 24V 30VA transformer = 720 watts (24 × 30).
Higher VA = more power for features like two-way audio and night vision.
Replace an Underpowered Transformer
If your transformer is too weak:
1. Turn off power at the breaker.
2. Disconnect the old transformer.
3. Install a new 16–24V AC, 10–30VA transformer.
4. Reconnect the wires and test.
You can buy compatible transformers online or at hardware stores. Popular brands include Nutone, Heath/Zenith, and Ring’s own transformer kit.
Install a Ring Transformer Kit
Ring sells a Doorbell Transformer Kit ($29.99) that includes a 16V 30VA transformer and mounting hardware. It’s designed specifically for Ring Doorbells and comes with installation instructions.
Troubleshooting Common Issues
Even after finding the transformer, you might run into problems.
Doorbell Won’t Power On
– Check voltage with a multimeter.
– Ensure wires are securely connected.
– Test the transformer under load (with the doorbell connected).
Chime Doesn’t Ring
– The transformer may not be powerful enough.
– The chime itself could be faulty.
– Wires may be loose or corroded.
Video Quality Is Poor
– Low voltage can cause lag or freezing.
– Upgrade to a higher VA transformer.
– Ensure wires are not damaged or too long.
Transformer Is Hot to the Touch
– This could indicate overload or failure.
– Turn off power immediately.
– Replace the transformer.
Safety Tips When Working with Electrical Components
Always prioritize safety:
– Turn off power at the breaker before handling wires.
– Use insulated tools.
– Never work on live circuits unless absolutely necessary.
– Wear safety glasses and gloves.
– If in doubt, call an electrician.
Remember: Even low-voltage systems can be dangerous if mishandled.
Conclusion
Finding the transformer for your Ring Doorbell might seem tricky at first, but with a systematic approach, it’s totally doable. Start at the chime, check the basement and attic, use a voltage tester, and don’t hesitate to upgrade if needed.
Knowing where your transformer is located ensures your Ring Doorbell gets the power it needs to work reliably. Whether you’re installing a new device or troubleshooting an existing one, this knowledge saves time, frustration, and potential damage.
If you’ve followed these steps and still can’t locate the transformer, it’s okay to ask for help. A licensed electrician can quickly find and fix the issue—keeping your home safe and your doorbell running smoothly.
Now that you know how to find your Ring Doorbell transformer, you’re one step closer to a smarter, safer home.
