This guide walks you through how to locate a doorbell transformer using simple tools and smart detective work. You’ll learn where they’re commonly hidden and how to test them safely.
Key Takeaways
- Doorbell transformers step down voltage from 120V household current to 8–24V for safe doorbell operation.
- Transformers are often hidden inside walls, basements, utility closets, or attic spaces—not always near the doorbell.
- Turn off power before testing to avoid electric shock; use a non-contact voltage tester for safety.
- Follow the doorbell wires from the button back through walls or baseboards to trace the transformer’s location.
- Common locations include electrical panels, furnace rooms, garages, or behind light switch plates.
- Use a multimeter to confirm if the transformer is working by checking output voltage.
- Replace faulty transformers with compatible models (match voltage and VA rating) for reliable performance.
How to Locate Doorbell Transformer: A Complete Step-by-Step Guide
If your doorbell has stopped working, one of the first things to check is the doorbell transformer. This small but essential device converts your home’s standard 120-volt electrical supply into a safer, lower voltage (usually 8 to 24 volts) that powers your doorbell chime and button. Without a functioning transformer, your doorbell simply won’t ring—no matter how many times you press the button.
But here’s the catch: doorbell transformers are often tucked away in out-of-sight locations. They’re not always near the doorbell itself. In fact, they can be hidden behind walls, inside electrical panels, or buried in basement corners. That’s why knowing how to locate a doorbell transformer is a valuable skill for any homeowner.
In this guide, you’ll learn exactly how to find your doorbell transformer safely and efficiently. We’ll cover where to look, what tools you’ll need, how to test the transformer, and what to do if it’s faulty. Whether you’re troubleshooting a silent doorbell or planning to install a new smart doorbell, this guide will help you get the job done right.
What Is a Doorbell Transformer?

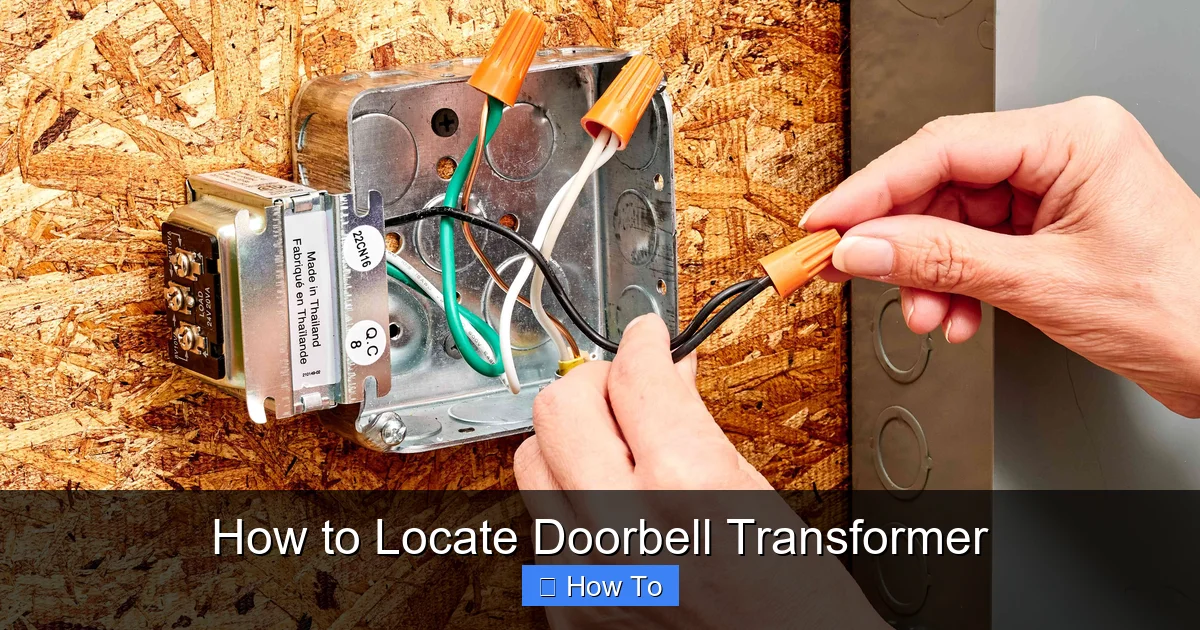

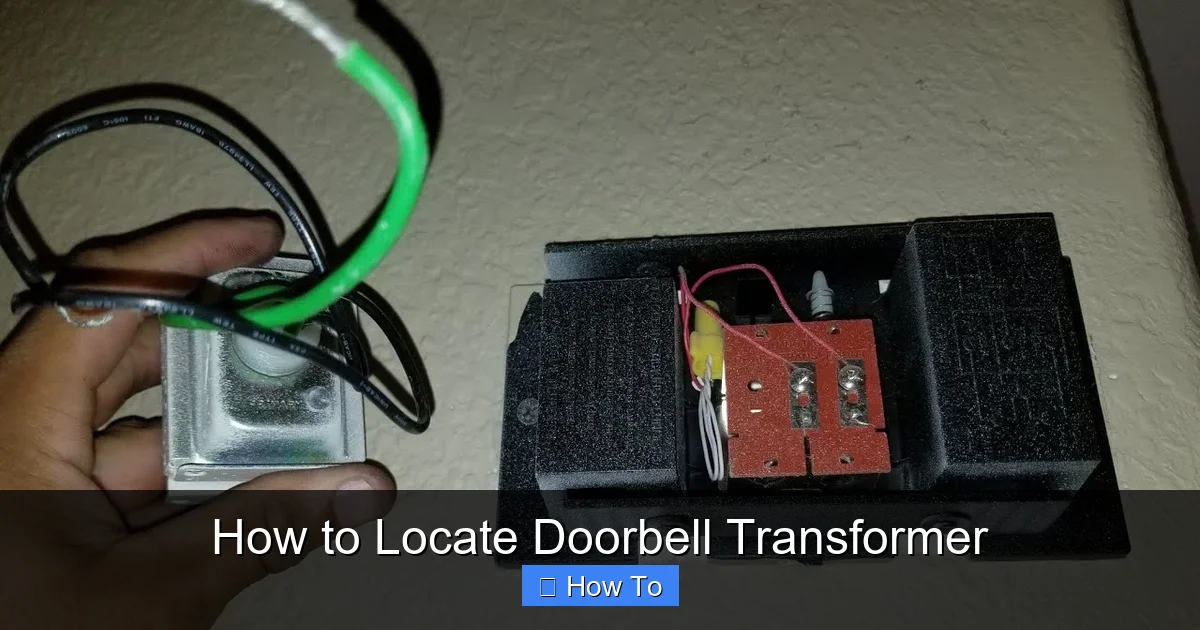

Visual guide about How to Locate Doorbell Transformer
Image source: i.ytimg.com
Before we dive into locating your transformer, let’s quickly understand what it does. A doorbell transformer is a small electrical device that “steps down” the voltage from your home’s main electrical system. Most homes run on 120 volts AC (alternating current), but doorbells only need a fraction of that—typically between 8 and 24 volts.
The transformer takes the high-voltage power from your home’s wiring and converts it into low-voltage power that’s safe for your doorbell circuit. It’s usually a small metal or plastic box, about the size of a deck of cards, with two or three wires coming out of it.
You’ll find the transformer connected in series with your doorbell wiring. Power flows from your home’s electrical panel to the transformer, then to the doorbell button, and finally to the chime unit. When you press the button, it completes the circuit, allowing current to flow and trigger the chime.
Without a working transformer, the circuit can’t function. That’s why a dead doorbell often points to a faulty or disconnected transformer.
Why Is It Hard to Find a Doorbell Transformer?
One of the biggest challenges homeowners face is that doorbell transformers are rarely installed in obvious places. Unlike light switches or outlets, they’re not meant to be seen. Electricians often tuck them away to keep walls clean and wiring hidden.
Here are a few reasons why they’re tricky to locate:
– They’re wired in-line: The transformer is part of the low-voltage circuit, not directly connected to a wall outlet. This means it’s not plugged in like a phone charger—it’s hardwired into your home’s electrical system.
– They’re small and blend in: Most transformers are mounted inside junction boxes, behind drywall, or inside electrical panels. They don’t have labels or bright colors to make them stand out.
– They’re installed during construction: In older homes, transformers were often placed in basements, attics, or utility closets during initial wiring. Over time, people forget where they are.
– They may be behind switches: Some transformers are mounted behind light switch plates, especially in older homes where space was limited.
Because of these factors, finding your doorbell transformer often feels like a treasure hunt. But with the right approach, you can track it down quickly and safely.
Tools You’ll Need to Locate a Doorbell Transformer
Before you start searching, gather these essential tools. They’ll make the process faster and safer:
- Non-contact voltage tester: This pen-like tool detects live wires without touching them. It’s crucial for safety when checking electrical panels or outlets.
- Multimeter: Used to measure voltage and confirm if the transformer is outputting the correct power.
- Screwdrivers (flathead and Phillips): For removing switch plates, outlet covers, or access panels.
- Flashlight: Many transformer locations are dark—basements, attics, and closets often lack good lighting.
- Wire strippers (optional): Useful if you need to inspect or reconnect wires.
- Electrical tape: For marking wires or insulating connections during testing.
- Notepad and pen: To jot down observations, wire colors, or locations you’ve checked.
Having these tools ready will save you time and reduce frustration. Most are inexpensive and available at hardware stores or online.
Step 1: Turn Off the Power
Safety first! Before you touch any wires or electrical components, turn off the power to your doorbell circuit.
Locate Your Electrical Panel
Your home’s main electrical panel (also called a breaker box or fuse box) controls all the circuits in your house. It’s usually found in the basement, garage, utility room, or closet.
Open the panel door and look for a breaker labeled “Doorbell,” “Chime,” or “Low Voltage.” If you don’t see a label, check the breaker that controls outlets or lights near your front door—sometimes the doorbell shares a circuit.
Turn Off the Correct Breaker
Flip the breaker to the “OFF” position. If you’re unsure which one controls the doorbell, turn off the main breaker to cut power to the entire house. This is the safest option, though it will disable all lights and appliances.
Test for Power
Use your non-contact voltage tester to confirm the power is off. Touch the tester to the wires inside the panel or near the doorbell button. If the tester doesn’t beep or light up, the circuit is safe to work on.
Never skip this step. Even low-voltage circuits can carry residual current, and high-voltage lines near the transformer can be dangerous.
Step 2: Start at the Doorbell Button
The easiest way to begin your search is at the doorbell button itself. This is where the low-voltage wires originate.
Remove the Doorbell Button
Unscrew the doorbell button from the wall. Gently pull it away to expose the two wires connected to it. These are typically small-gauge wires (18–22 AWG) and may be labeled or color-coded (often white and red or black).
Trace the Wires
Follow the wires as they disappear into the wall. Use your flashlight to look into the hole or chase the wires along the baseboard. In some homes, the wires run through the wall cavity and exit near the floor or ceiling.
If the wires are stapled to the wall or hidden behind trim, carefully remove any staples or gently pull the trim to expose more of the wire path.
Look for Access Points
As you follow the wires, note any access points—electrical boxes, outlet covers, or switch plates—that might lead to the transformer. Transformers are often mounted near these points.
Step 3: Check Common Hiding Spots
Doorbell transformers are frequently installed in predictable locations. Here’s where to look:
Electrical Panel or Breaker Box
Many transformers are mounted directly inside or near the main electrical panel. Look for a small box with two wires connected to a breaker or neutral bus bar. It may be labeled “Doorbell” or “Chime.”
Basement or Crawlspace
In homes with basements, the transformer is often mounted on a joist, near the furnace, or close to the electrical panel. Look for a small metal box with wires running to it.
Utility Closet or Furnace Room
If your home has a dedicated utility room, check near the water heater, furnace, or air handler. Transformers are sometimes tucked behind these appliances or mounted on the wall.
Attic
In some homes, especially newer constructions, the transformer is installed in the attic. Look near the access hatch or along the eaves where wires enter the ceiling.
Behind Light Switch or Outlet Plates
In older homes, electricians sometimes mounted transformers behind switch plates to save space. Remove the cover plates near the front door or in hallways and peek inside the electrical box.
Garage
If your front door is near the garage, the transformer might be mounted on the garage wall or ceiling. Check near the garage door opener or electrical outlets.
Inside Wall Cavities
If you can’t find the transformer in any of the above locations, it may be buried inside a wall. This is less common but possible, especially in retrofitted systems.
Step 4: Use a Multimeter to Confirm the Transformer
Once you think you’ve found the transformer, use a multimeter to verify it’s working and outputting the correct voltage.
Set Up Your Multimeter
Turn your multimeter to the AC voltage setting (usually marked “V~” or “ACV”). Set the range to 20V or 200V, depending on your meter.
Test the Output Voltage
Carefully touch the multimeter probes to the two low-voltage output terminals on the transformer. These are usually labeled “Common” and “Doorbell” or have small screws for wire connections.
A working transformer should output between 8 and 24 volts AC. If you see 0V or a very low reading, the transformer may be faulty.
Check the Input Side (Optional)
If you’re comfortable working with high voltage, you can also test the input side. Turn the power back on briefly and use your multimeter to check for 120V at the input terminals. But only do this if you’re experienced—high voltage can be deadly.
Step 5: What to Do If You Can’t Find the Transformer
If you’ve checked all common locations and still can’t find the transformer, don’t panic. Here are some troubleshooting tips:
Check for a Smart Doorbell or Wireless System
Some modern doorbells, like Ring or Nest, are battery-powered or use a plug-in transformer. If your doorbell doesn’t have visible wires, it may not use a traditional transformer.
Look for a Plug-In Transformer
In some installations, especially in apartments or newer homes, the transformer plugs into a standard outlet near the doorbell. Check behind furniture, under sinks, or in closets near the front door.
Consult Building Plans or Ask Previous Owners
If you have access to your home’s electrical plans, they may show the transformer location. Alternatively, ask the previous homeowner or your electrician if they remember where it was installed.
Call a Licensed Electrician
If you’ve exhausted all options and still can’t locate the transformer, it’s time to call a professional. An electrician can use specialized tools like a tone generator and probe to trace the wires through walls.
Step 6: Replace a Faulty Transformer
If you’ve found the transformer and confirmed it’s not working, you’ll need to replace it.
Match the Specifications
Check the label on the old transformer for voltage (e.g., 16V) and VA (volt-ampere) rating (e.g., 10VA or 20VA). Buy a replacement with the same or higher VA rating. Never use a lower-rated transformer—it can overheat.
Install the New Transformer
Turn off the power, disconnect the old transformer, and connect the new one using wire nuts. Mount it securely in the same location. Restore power and test the doorbell.
Upgrade for Smart Doorbells
If you’re installing a smart doorbell, check its power requirements. Some models need a higher-voltage transformer (e.g., 24V) or a dedicated power kit.
Troubleshooting Common Issues
Even after locating the transformer, you might still have problems. Here’s how to fix common issues:
Doorbell Rings Weakly or Intermittently
This could mean the transformer is underpowered or failing. Test the output voltage—if it’s below the rated level, replace the transformer.
No Sound at All
Check the doorbell button, chime unit, and wiring. A broken wire or faulty chime can mimic a dead transformer.
Buzzing or Humming Sound
This often indicates a loose connection or a transformer that’s overheating. Turn off the power and inspect all wire connections.
Transformer Gets Hot
A hot transformer is a fire hazard. Turn off the power immediately and replace it. Overheating can be caused by overloading or a short circuit.
Safety Tips When Working with Electrical Systems
Electrical work can be dangerous if not done correctly. Follow these safety guidelines:
- Always turn off the power before touching any wires or components.
- Use a non-contact voltage tester to confirm circuits are dead.
- Never work on live circuits unless you’re a trained electrician.
- Wear insulated gloves and safety glasses when handling electrical parts.
- Keep water away from electrical work areas.
- If in doubt, call a professional. It’s better to pay for expert help than risk injury or damage.
Conclusion
Locating a doorbell transformer doesn’t have to be a frustrating guessing game. By starting at the doorbell button, tracing the wires, and checking common hiding spots, you can find it in most homes. Use the right tools—like a multimeter and voltage tester—to confirm its location and condition.
Remember, safety is paramount. Always turn off the power before working on electrical systems, and don’t hesitate to call an electrician if you’re unsure.
Once you’ve found and tested your transformer, you’ll be able to fix a silent doorbell, upgrade to a smart system, or simply understand how your home’s wiring works. With this guide, you’re equipped to handle the task confidently and correctly.
