How to Make Electromagnetic Doorbell

Build your own electromagnetic doorbell using basic electronics and household tools. This step-by-step guide walks you through gathering materials, wiring the circuit, and installing your custom doorbell safely and effectively.

Key Takeaways

• Gather essential components: You’ll need a 6V or 12V DC power supply, electromagnetic solenoid, push-button switch, bell or chime, wires, and a mounting board.
• Understand the working principle: When the button is pressed, current flows through the electromagnet, creating a magnetic field that moves a metal striker to hit the bell.
• Wire the circuit correctly: Connect the power source, switch, and electromagnet in series to ensure proper current flow and functionality.
• Test before final assembly: Always test your circuit on a breadboard or with temporary connections to avoid mistakes during permanent installation.
• Ensure safety first: Use insulated wires, avoid short circuits, and keep the power supply low voltage to prevent shocks or damage.
• Customize your design: Add features like LED indicators, multiple tones, or wireless triggers to enhance your doorbell.
• Troubleshoot common issues: If the bell doesn’t ring, check connections, power supply voltage, and solenoid alignment.

Introduction: Why Build Your Own Electromagnetic Doorbell?

Have you ever wanted to create something useful with your own hands? Building an electromagnetic doorbell is a fun, educational, and rewarding DIY project that combines basic electronics, physics, and creativity. Whether you’re a student, a hobbyist, or just someone who loves tinkering, this project offers a hands-on way to understand how electromagnetism powers everyday devices.

In this guide, you’ll learn how to make an electromagnetic doorbell from scratch using simple, affordable components. You don’t need to be an engineer—just a curious mind and a willingness to follow clear instructions. By the end, you’ll have a working doorbell that you can install at your home, office, or even gift to a friend.

This project teaches core concepts like circuit design, electromagnetic induction, and mechanical motion. Plus, it’s a great way to repurpose old electronics or explore STEM topics in a practical way. So grab your tools, gather your parts, and let’s get started on building your very own electromagnetic doorbell!

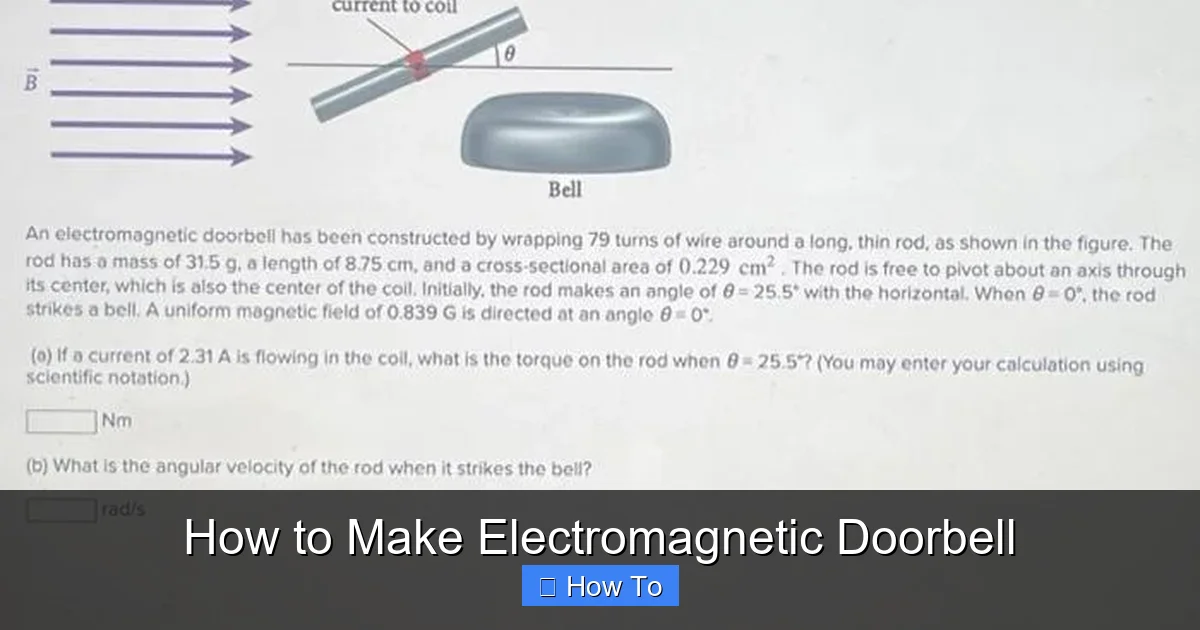

What Is an Electromagnetic Doorbell?

An electromagnetic doorbell is a device that uses an electromagnet to produce sound when a button is pressed. Unlike traditional mechanical bells, this type relies on electricity to create a magnetic field that moves a metal component—called an armature—to strike a bell or chime.

The basic principle is simple: when you press the doorbell button, it completes an electrical circuit. This allows current to flow from the power source (like a battery or adapter) through a coil of wire wrapped around an iron core—the electromagnet. The magnetic field pulls a nearby metal striker toward the bell, causing it to ring. When you release the button, the circuit breaks, the magnet turns off, and a spring or gravity returns the striker to its original position.

This cycle can repeat rapidly if the mechanism is designed for continuous ringing, or it can produce a single chime per press. The result is a reliable, customizable, and educational device that demonstrates the power of electromagnetism in action.

Materials and Tools You’ll Need

Before you begin, make sure you have all the necessary components and tools. Most of these can be found at electronics stores, online retailers, or even in old devices you might already have at home.

Essential Components

• Electromagnetic Solenoid: This is the heart of your doorbell. Look for a 6V or 12V DC solenoid with a plunger that can move freely. You can salvage one from an old printer, washing machine, or buy a new one online.
• Power Supply: A 6V or 12V DC power source. Use a battery pack (4 AA batteries for 6V, 8 for 12V) or a wall adapter. Make sure the voltage matches your solenoid.
• Push-Button Switch: A momentary switch that completes the circuit when pressed. These are commonly used in doorbells and are widely available.
• Bell or Chime: A metal bell, small gong, or even a metal plate that makes a clear sound when struck. You can use a toy bell, a spoon, or a piece of aluminum.
• Wires: Insulated copper wires (22–24 AWG) for connecting components. Use different colors (red for positive, black for negative) to avoid confusion.
• Mounting Board: A piece of wood, plastic, or cardboard to hold all parts in place. This keeps your doorbell neat and functional.
• Resistor (Optional): If your solenoid draws too much current, a resistor can help regulate it. Check the solenoid’s specs to see if one is needed.
• Diode (Optional): A flyback diode (like 1N4007) protects your circuit from voltage spikes when the electromagnet turns off.

Tools Required

• Soldering iron and solder (or wire strippers and electrical tape if not soldering)
• Wire strippers
• Needle-nose pliers
• Screwdriver set
• Hot glue gun or epoxy (for securing parts)
• Multimeter (for testing voltage and continuity)
• Drill (if mounting on wood or plastic)
• Safety goggles and gloves

Optional Upgrades

• LED Indicator: Add a small LED that lights up when the button is pressed.
• Breadboard: Use for testing your circuit before final assembly.
• Enclosure Box: A plastic or wooden box to protect your doorbell and make it look professional.
• Wireless Module: For a modern twist, integrate a wireless doorbell receiver and transmitter.

Once you’ve gathered everything, set up a clean, well-lit workspace. Keep your tools organized and double-check that all components are in working order.

Step 1: Understand the Circuit Design

Before you start wiring, it’s important to understand how the circuit works. A basic electromagnetic doorbell circuit consists of four main parts: the power source, the switch, the electromagnet, and the bell mechanism.

How the Circuit Flows

When the push-button switch is pressed, it closes the circuit, allowing electricity to flow from the positive terminal of the power supply, through the switch, into the electromagnet coil, and back to the negative terminal. This creates a magnetic field that pulls the metal plunger (armature) toward the electromagnet. The plunger is attached to a striker that hits the bell, producing sound.

When the button is released, the circuit opens, the magnetic field collapses, and the plunger returns to its original position—usually with the help of a spring or gravity. This completes one cycle of the doorbell.

Drawing a Simple Schematic

Sketch a simple diagram on paper or use free online tools like CircuitLab or Fritzing to visualize your circuit. Label each component:

• Power source (battery or adapter)
• Push-button switch
• Electromagnet (solenoid)
• Bell or chime (mechanical part)

This visual guide will help you stay organized and avoid wiring mistakes. Remember: the circuit must form a complete loop for current to flow.

Safety Considerations

Always use low-voltage DC power (6V or 12V) to avoid electric shock. Never use AC mains voltage unless you’re experienced and have proper insulation. Keep wires insulated and avoid short circuits by ensuring positive and negative wires don’t touch.

Step 2: Prepare the Components

Now that you understand the circuit, it’s time to prepare each component for assembly. This step ensures everything fits together smoothly and works as expected.

Inspect the Solenoid

Check that the solenoid’s plunger moves freely. If it’s stuck, gently clean it with a soft cloth or compressed air. Test it briefly by connecting it to a battery—listen for a “click” sound when power is applied. If it doesn’t move, the coil may be damaged.

Prepare the Bell Mechanism

Attach the bell or chime to your mounting board using screws, glue, or tape. Position it so that the solenoid’s plunger can strike it firmly when activated. You may need to bend a small metal rod or use a spring to connect the plunger to the striker.

Set Up the Push Button

Mount the push-button switch in a convenient location—ideally near the door. If you’re building a portable version, you can leave it loose for now. Make sure the switch is rated for DC voltage and current (usually 1A or higher is fine for this project).

Prepare the Power Source

If using batteries, insert them into the battery holder and check the voltage with a multimeter. For a wall adapter, ensure it outputs the correct DC voltage and has a compatible plug. Strip about 1 cm of insulation from the wire ends for easy connection.

Cut and Strip Wires

Cut four pieces of wire: two for connecting the power source to the switch, and two for connecting the switch to the solenoid. Strip about 1 cm of insulation from each end. Use red for positive and black for negative to maintain consistency.

Step 3: Assemble the Circuit

Now it’s time to wire everything together. Follow these steps carefully to build a safe and functional circuit.

Connect the Power Source to the Switch

Take the red (positive) wire from the power source and connect it to one terminal of the push-button switch. You can solder it or use a wire nut. Connect the black (negative) wire from the power source to one terminal of the solenoid.

Connect the Switch to the Solenoid

Take another red wire and connect the other terminal of the switch to the remaining terminal of the solenoid. This completes the circuit: power → switch → solenoid → back to power.

Add a Flyback Diode (Recommended)

To protect your circuit from voltage spikes when the electromagnet turns off, connect a diode (like 1N4007) across the solenoid terminals. The striped end of the diode should face the positive side of the solenoid. This prevents damage to the switch or power source.

Test the Circuit on a Breadboard (Optional but Helpful)

If you have a breadboard, build the circuit there first. This allows you to test connections without soldering. Press the button and listen for the solenoid to click. If it works, proceed to permanent assembly.

Secure All Connections

Once you’re confident the circuit works, solder the wires for a permanent connection. Cover each joint with heat shrink tubing or electrical tape to prevent short circuits. Use a hot glue gun to secure loose wires to the mounting board.

Step 4: Mount and Align the Components

Proper alignment is crucial for your doorbell to work smoothly. If the plunger doesn’t strike the bell correctly, the sound will be weak or nonexistent.

Position the Solenoid

Mount the solenoid on the board so that its plunger can move freely toward the bell. Use screws, glue, or brackets to secure it. Leave enough space for the plunger to extend fully.

Attach the Striker

Connect the plunger to a lightweight striker (like a metal rod or plastic arm) that will hit the bell. You can use a small spring to return the striker after each press. Make sure the striker aligns perfectly with the bell.

Adjust the Gap

The distance between the solenoid and the bell should be just right—close enough to strike firmly, but not so close that the plunger gets stuck. Test by pressing the button and observing the movement. Adjust as needed.

Secure the Bell

Make sure the bell is firmly attached and doesn’t vibrate loose. A stable bell produces a clearer, louder sound. You can dampen vibrations with rubber pads if needed.

Step 5: Power Up and Test

With everything assembled, it’s time to test your electromagnetic doorbell.

Double-Check Connections

Before connecting the power, verify that all wires are correctly connected and insulated. Use a multimeter to check for continuity and ensure there are no short circuits.

Apply Power

Connect the power source. If using batteries, insert them. If using an adapter, plug it in. Listen for a click from the solenoid when you press the button.

Press the Button

Gently press the push-button switch. The plunger should move, the striker should hit the bell, and you should hear a clear chime. If it works, congratulations—your doorbell is functional!

Observe Performance

Test multiple presses to ensure consistent operation. Check for overheating in the solenoid or wires. If the solenoid gets hot, it may be drawing too much current—consider using a resistor or lower voltage.

Troubleshooting Common Issues

Even with careful assembly, problems can arise. Here’s how to fix the most common issues.

Bell Doesn’t Ring

• Check power supply: Is it providing the correct voltage? Test with a multimeter.
• Inspect connections: Are all wires securely attached? Look for loose or broken wires.
• Test the solenoid: Connect it directly to the battery. If it doesn’t click, it may be faulty.
• Verify switch function: Press the button and check for continuity with a multimeter.

Weak or Muffled Sound

• Adjust striker alignment: Make sure it hits the bell squarely.
• Increase solenoid power: Use a higher voltage (within limits) or a stronger solenoid.
• Use a heavier bell: A thicker metal produces a louder sound.

Solenoid Overheats

• Reduce voltage: Use a lower voltage power source.
• Add a resistor: Insert a resistor in series to limit current.
• Shorten activation time: Don’t hold the button down too long.

Plunger Sticks or Doesn’t Return

• Check for friction: Ensure the plunger moves freely.
• Add a return spring: Attach a small spring to pull the plunger back.
• Lubricate lightly: Use a drop of light machine oil on the plunger shaft.

Customization Ideas

Once your basic doorbell works, consider upgrading it with fun features.

Add an LED Indicator

Wire a small LED in parallel with the solenoid. When the button is pressed, the LED lights up, giving a visual signal. Use a current-limiting resistor (220Ω) to protect the LED.

Create Multiple Tones

Use two solenoids and two bells tuned to different pitches. Wire them to separate buttons for a musical doorbell.

Build a Wireless Version

Incorporate a 433MHz RF transmitter and receiver. Press a remote button to trigger the doorbell from a distance.

Use a Musical Chime Module

Replace the mechanical bell with a pre-recorded chime IC (like the UM66). It plays a melody when activated.

Design a Themed Enclosure

Paint the board, add decorative elements, or build a miniature house around your doorbell. Make it a conversation piece!

Safety Tips and Best Practices

Safety should always come first when working with electricity.

• Always disconnect power before making changes.
• Use insulated tools and wear safety goggles.
• Keep water and flammable materials away from your workspace.
• Never leave a powered circuit unattended for long periods.
• Teach children about electrical safety if they’re involved in the project.

Conclusion: Enjoy Your DIY Electromagnetic Doorbell

Congratulations! You’ve successfully built your own electromagnetic doorbell. This project not only gives you a functional device but also deepens your understanding of electronics and magnetism. Whether you keep it simple or add advanced features, you’ve created something unique and personal.

Building DIY projects like this fosters creativity, problem-solving skills, and a sense of accomplishment. Share your creation with friends, teach others how to make one, or use it as a stepping stone to more complex electronics projects.

Remember, the best inventions often start with a simple idea and a willingness to try. So keep experimenting, stay curious, and enjoy the journey of making. Your next great project is just a circuit away!
