Introduction: Why Build a Touchless Doorbell?
Imagine walking up to your front door with your arms full of groceries, and the doorbell rings—without you having to press a button. That’s the magic of a touchless doorbell powered by an infrared (IR) proximity sensor. Not only is it convenient, but it’s also more hygienic, especially in a post-pandemic world where minimizing contact is a priority.
In this guide, you’ll learn how to make an IR proximity sensor touchless doorbell from scratch. Whether you’re a beginner tinkering with electronics for the first time or a seasoned DIYer looking for a fun weekend project, this step-by-step tutorial will walk you through every part of the process—from gathering components to testing and troubleshooting your final build.
You’ll use affordable, widely available parts like an IR sensor module, a microcontroller (like an Arduino), a buzzer or speaker, and a power source. The result? A smart, motion-activated doorbell that detects when someone approaches and plays a pleasant chime—no touching required.
By the end of this guide, you’ll not only have a working touchless doorbell but also a solid understanding of how IR sensors work and how to customize your device for different environments. Let’s get started!
What You’ll Need: Tools and Components

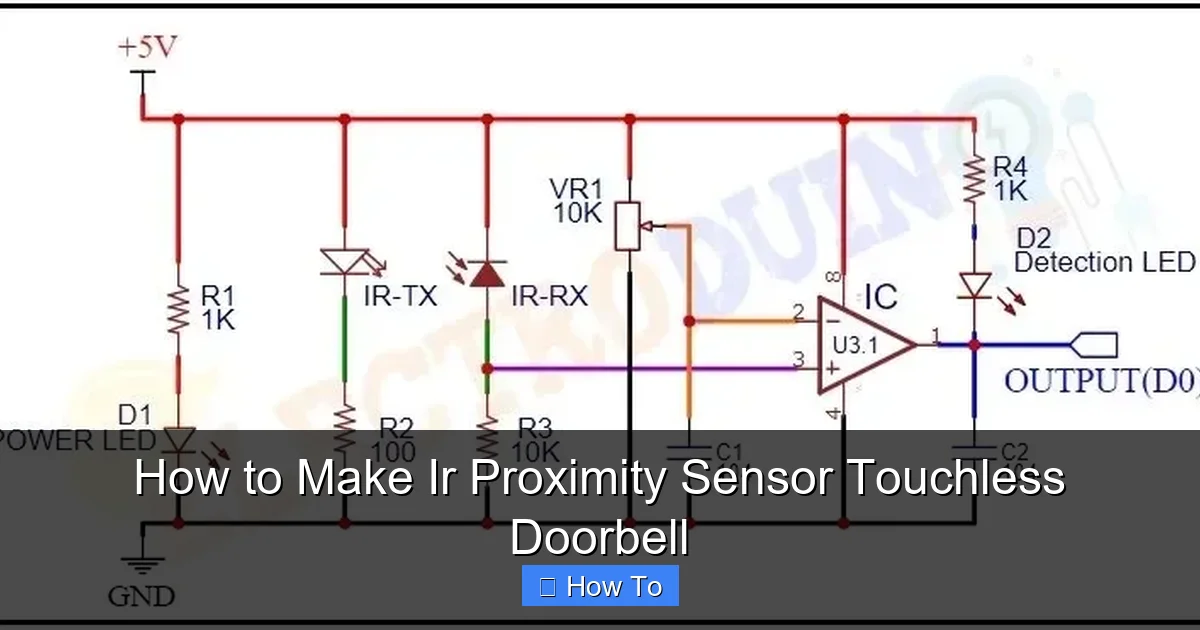

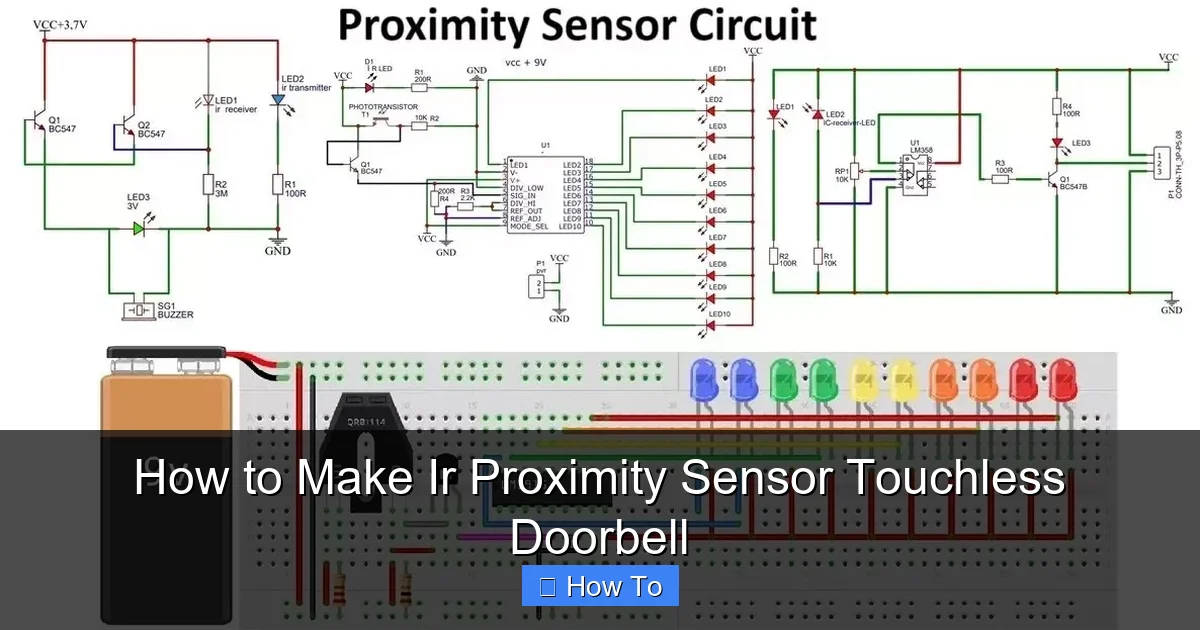

Visual guide about How to Make Ir Proximity Sensor Touchless Doorbell
Image source: i1.wp.com
Before diving into the build, it’s important to gather all the necessary tools and components. This project is designed to be accessible, so you won’t need expensive or hard-to-find parts. Most items can be purchased from electronics retailers like Adafruit, SparkFun, Amazon, or even local hobby shops.
Essential Components
- IR Proximity Sensor Module (e.g., GP2Y0A21YK0F or similar): This is the heart of your touchless doorbell. It emits infrared light and measures the reflection to detect how close an object is. Look for one with a detection range of 10–80 cm for optimal performance.
- Microcontroller (Arduino Uno or Nano recommended): Acts as the brain of the system. It reads the sensor data and triggers the buzzer when motion is detected. The Arduino Uno is beginner-friendly and widely supported.
- Active Buzzer or Piezo Speaker: Produces the doorbell sound. An active buzzer is easier to use because it only needs a digital signal to make noise, unlike passive buzzers that require a specific frequency.
- 9V Battery or 5V USB Power Supply: Powers the entire circuit. A 9V battery is portable and convenient, while a USB power bank offers longer runtime and reusability.
- Breadboard and Jumper Wires: For prototyping and connecting components without soldering. Essential for testing before final assembly.
- Resistors (220Ω and 10kΩ): Used for pull-down circuits and protecting components. The 10kΩ resistor is often used with the sensor’s output pin.
- Optional: LED Indicator: A small LED can light up when the sensor detects motion, providing visual feedback.
- Enclosure (Plastic or 3D-Printed Box): Protects the electronics from dust and weather if used outdoors. A small project box works well.
Tools Required
- Soldering Iron and Solder: For making permanent connections if you’re building a final version.
- Wire Strippers and Cutters: To prepare and trim wires.
- Multimeter: Helps test connections and voltage levels.
- Hot Glue Gun or Double-Sided Tape: For securing components inside the enclosure.
- Computer with Arduino IDE Installed: Needed to upload code to the microcontroller.
Where to Buy
Most components are available online. Here are a few reliable sources:
– Adafruit.com – Great for quality sensors and tutorials.
– SparkFun.com – Excellent for Arduino kits and accessories.
– Amazon.com – Fast shipping and competitive prices.
– AliExpress – Budget-friendly options, though shipping may take longer.
Tip: Buy a few extra resistors and jumper wires—they’re cheap and often get lost or damaged.
Understanding How IR Proximity Sensors Work
Before building, it helps to understand the science behind your touchless doorbell. An IR proximity sensor works by emitting a beam of infrared light and measuring how much of that light bounces back after hitting an object.
The Science Behind IR Detection
Inside the sensor, there’s an IR LED that sends out invisible light pulses. When someone walks toward the door, the light reflects off their body and returns to a photodiode receiver in the sensor. The closer the person is, the stronger the reflected signal.
The sensor then converts this reflected light into an electrical signal—usually a voltage—that changes based on distance. For example, at 10 cm, the output might be 3.2V; at 30 cm, it drops to 1.8V. Your Arduino reads this voltage and decides whether to trigger the doorbell.
Analog vs. Digital Output
Most IR sensors provide an analog output, meaning the voltage varies continuously with distance. This gives you more precision than a simple on/off signal. The Arduino’s analog input pins can read these varying voltages and convert them into digital values (0–1023) for processing.
Some sensors also have a digital output pin that switches high or low when an object is within a certain range. While simpler, this limits customization. For a doorbell, analog is better because you can fine-tune the detection threshold.
Advantages of IR Sensors for Doorbells
- Fast response time: Detects motion in milliseconds.
- Low power usage: Ideal for battery-powered devices.
- Compact size: Fits easily into small enclosures.
- No moving parts: Durable and long-lasting.
One limitation: IR sensors can be affected by bright sunlight or highly reflective surfaces. We’ll address this in the troubleshooting section.
Step-by-Step Circuit Assembly
Now that you understand the components and how they work, it’s time to build the circuit. We’ll start with a breadboard prototype to test everything before making it permanent.
Step 1: Set Up the Breadboard
Place your breadboard on a clean, flat surface. Insert the Arduino Uno or Nano into the breadboard, making sure the pins align correctly. The 5V and GND pins will power the sensor and buzzer.
Step 2: Connect the IR Sensor
The IR sensor typically has three pins: VCC, GND, and OUT.
- Connect VCC to the Arduino’s 5V pin.
- Connect GND to one of the Arduino’s GND pins.
- Connect OUT to Analog Pin A0 on the Arduino.
Add a 10kΩ resistor between the OUT pin and GND to stabilize the signal (pull-down resistor). This prevents false readings when no object is detected.
Step 3: Wire the Buzzer
Take your active buzzer. It has two wires: one for power (usually red) and one for ground (black).
- Connect the positive wire to Digital Pin 8 on the Arduino.
- Connect the negative wire to GND.
If your buzzer has three pins (VCC, I/O, GND), connect VCC to 5V, GND to ground, and I/O to Digital Pin 8.
Step 4: Add an LED (Optional)
For visual feedback, connect an LED:
- Long leg (anode) to Digital Pin 13 through a 220Ω resistor.
- Short leg (cathode) to GND.
This LED will blink when motion is detected, helping you test the sensor.
Step 5: Power the Circuit
You can power the Arduino via USB from your computer during testing. For standalone use:
- Connect a 9V battery to the Arduino’s Barrel Jack or VIN pin (with a battery clip).
- Or use a 5V USB power bank connected to the 5V and GND pins.
Warning: Do not connect the 9V battery directly to the 5V pin—it can damage the Arduino.
Double-Check Your Connections
Before uploading code, use a multimeter to verify:
– 5V is reaching the sensor and buzzer.
– No short circuits between VCC and GND.
– All ground connections are shared.
A loose wire or reversed polarity can fry your components.
Writing and Uploading the Arduino Code
Now it’s time to program the Arduino. The code will read the sensor’s output, determine if someone is close enough, and activate the buzzer.
Step 1: Install the Arduino IDE
If you haven’t already, download and install the Arduino IDE from arduino.cc. It’s free and works on Windows, Mac, and Linux.
Step 2: Connect the Arduino to Your Computer
Use a USB cable to connect the Arduino to your computer. Open the IDE and select the correct board and port:
- Go to Tools > Board > Arduino Uno (or Nano if using that).
- Go to Tools > Port and select the COM port your Arduino is on.
Step 3: Write the Code
Copy and paste the following code into the IDE:
// Touchless Doorbell with IR Proximity Sensor
const int sensorPin = A0; // IR sensor connected to A0
const int buzzerPin = 8; // Buzzer connected to pin 8
const int ledPin = 13; // Optional LED on pin 13
const int threshold = 500; // Adjust based on detection range (0-1023)
void setup() {
pinMode(buzzerPin, OUTPUT);
pinMode(ledPin, OUTPUT);
Serial.begin(9600); // For debugging
}
void loop() {
int sensorValue = analogRead(sensorPin); // Read sensor
Serial.println(sensorValue); // Print value to monitor
if (sensorValue > threshold) {
digitalWrite(buzzerPin, HIGH); // Turn on buzzer
digitalWrite(ledPin, HIGH); // Turn on LED
delay(500); // Beep for 0.5 seconds
digitalWrite(buzzerPin, LOW); // Turn off buzzer
digitalWrite(ledPin, LOW); // Turn off LED
delay(2000); // Wait 2 seconds before next detection
}
delay(100); // Small delay to stabilize readings
}
Step 4: Upload the Code
Click the Upload button (right arrow icon) in the IDE. Wait for the message “Done uploading.”
Step 5: Test the System
Open the Serial Monitor (Tools > Serial Monitor) to see the sensor values. Wave your hand in front of the sensor. When the value exceeds the threshold (500 in this example), the buzzer should beep and the LED should light up.
Adjusting the Threshold
The threshold determines how close someone needs to be. Lower values = longer detection range. Start with 500 and adjust:
– If it triggers too easily, increase the threshold.
– If it doesn’t trigger, decrease it.
Tip: Take multiple readings at different distances to find the best value. For example, at 20 cm, the sensor might read 600. Set the threshold to 550.
Calibrating the Sensor for Best Performance
Calibration ensures your doorbell works reliably in real-world conditions. Here’s how to fine-tune it.
Step 1: Test in Different Lighting
IR sensors can be affected by sunlight or bright indoor lights. Test your doorbell:
– In direct sunlight.
– At night.
– Under fluorescent lighting.
If the sensor gives false readings, try shielding it with a small tube or black tape to block ambient light.
Step 2: Adjust Detection Range
The ideal range for a doorbell is 15–30 cm. Stand at various distances and note the sensor values in the Serial Monitor. Set the threshold just below the value when someone is at the desired distance.
For example:
– At 30 cm: sensor reads 400
– At 20 cm: sensor reads 600
– Set threshold to 500 → triggers when someone is within ~25 cm
Step 3: Reduce False Triggers
Pets, moving curtains, or passing cars can cause false alarms. To minimize this:
– Mount the sensor at chest height (about 120 cm).
– Angle it slightly downward to detect people, not ground movement.
– Add a delay (like the 2-second pause in the code) to prevent repeated beeps.
Step 4: Use a Potentiometer for Manual Adjustment (Optional)
For advanced users, add a potentiometer (variable resistor) to let users adjust sensitivity on the fly. Connect it to another analog pin and modify the code to read its value as the threshold.
Building the Final Enclosure
Once your prototype works, it’s time to make it permanent and weatherproof.
Step 1: Choose an Enclosure
Select a small plastic box with enough space for the Arduino, sensor, and battery. Drill holes for:
– The IR sensor lens.
– Buzzer sound output.
– Power switch (if adding one).
– USB port (for recharging).
Step 2: Secure Components
Use hot glue or double-sided tape to fix the Arduino, sensor, and buzzer inside the box. Make sure the sensor lens faces outward and isn’t blocked.
Step 3: Wire Everything Permanently
Solder the connections instead of using jumper wires. This prevents loose connections. Use heat shrink tubing to insulate exposed wires.
Step 4: Add a Power Switch (Optional)
Install a small toggle switch between the battery and Arduino to turn the doorbell on/off.
Step 5: Mount the Doorbell
Use screws, adhesive strips, or magnets to attach the enclosure near your door. Position the sensor at a height where it can detect approaching visitors.
Troubleshooting Common Issues
Even with careful assembly, problems can arise. Here’s how to fix the most common ones.
Sensor Doesn’t Trigger
- Check wiring: Ensure VCC, GND, and OUT are connected correctly.
- Test power: Use a multimeter to confirm 5V at the sensor.
- Adjust threshold: Lower the value in the code.
- Clean the lens: Dust or fingerprints can block IR light.
Buzzer Doesn’t Sound
- Verify buzzer type: Use an active buzzer (beeps with digital HIGH).
- Check connections: Ensure it’s wired to the correct pin and GND.
- Test with a simple blink sketch: Upload a basic tone example to isolate the issue.
False Triggers
- Shield the sensor: Use a tube or black tape to block stray light.
- Increase threshold: Raise the value to require closer proximity.
- Add a delay: Prevent rapid retriggering with a cooldown period.
- Relocate: Move away from windows or heat sources.
Short Battery Life
- Use a larger battery: Switch to a 2000mAh power bank.
- Reduce power usage: Turn off the LED or use sleep mode in code.
- Unplug when not in use: Add a power switch.
Code Upload Fails
- Check board and port selection in the IDE.
- Press the reset button on the Arduino just before uploading.
- Try a different USB cable—some only charge, not transfer data.
Enhancing Your Touchless Doorbell
Once the basic version works, consider these upgrades:
Add a Melodic Chime
Replace the buzzer with a small speaker and use the ToneAC library to play melodies like “Westminster Chimes.”
Integrate Wi-Fi (ESP8266 or ESP32)
Switch to an ESP32 and send push notifications to your phone when someone approaches.
Use a Camera Module
Add a tiny camera to capture images or video of visitors.
Solar Power
For outdoor use, pair a small solar panel with a rechargeable battery.
Multiple Sensors
Install sensors on both sides of the door for 360-degree detection.
Conclusion: Enjoy Your Smart, Touchless Doorbell
Congratulations! You’ve successfully built a fully functional IR proximity sensor touchless doorbell. This project not only adds a modern, hygienic touch to your home but also deepens your understanding of electronics and programming.
From assembling the circuit to writing code and troubleshooting, you’ve gained hands-on experience with sensors, microcontrollers, and real-world problem-solving. Whether you keep it simple or expand it into a smart home device, the skills you’ve learned are valuable and transferable.
Remember, the key to a great DIY project is patience and testing. Don’t be afraid to tweak the code, adjust the sensor, or try new features. The best inventions come from experimentation.
Now, every time someone approaches your door, they’ll be greeted by a friendly chime—no touching required. Welcome to the future of doorbells!
