How to Make Motion Sensor Doorbell

How to Make Motion Sensor Doorbell

by

This guide walks you through building your own motion sensor doorbell using basic electronics and common tools. You’ll learn how to wire components, program a microcontroller, and install your device for reliable home monitoring.

Key Takeaways

  • Affordable DIY Solution: Build a motion-activated doorbell for under $50 using readily available parts.
  • Customizable Alerts: Choose from chimes, lights, or smartphone notifications based on your preferences.
  • No Wiring Hassle: Use battery-powered components for easy installation without electrical work.
  • Enhanced Home Security: Detect visitors before they ring the bell, improving safety and convenience.
  • Beginner-Friendly: Step-by-step instructions make it accessible even for first-time makers.
  • Expandable Design: Add cameras, Wi-Fi, or multiple sensors as your skills grow.
  • Troubleshooting Tips: Learn how to fix common issues like false triggers or weak signals.

Introduction: Why Build a Motion Sensor Doorbell?

Imagine knowing someone is at your door before they even press the button. A motion sensor doorbell does exactly that—detecting movement near your entrance and alerting you instantly. Whether you’re busy in the backyard, working from home, or simply want extra peace of mind, this DIY project offers a smart, cost-effective upgrade to traditional doorbells.

Unlike store-bought smart doorbells that can cost $100 or more, building your own allows you to customize features, avoid monthly subscription fees, and learn valuable electronics skills. In this guide, we’ll show you how to create a reliable motion-activated doorbell using simple components like a PIR sensor, microcontroller, and wireless transmitter. No prior experience is needed—just curiosity and a willingness to tinker.

By the end of this guide, you’ll have a fully functional doorbell that chimes when someone approaches, runs on batteries, and can be expanded with lights, cameras, or smartphone alerts. Let’s get started!

What You’ll Need: Tools and Components

Before diving into the build, gather all the necessary parts and tools. Most items are inexpensive and available online or at local electronics stores.

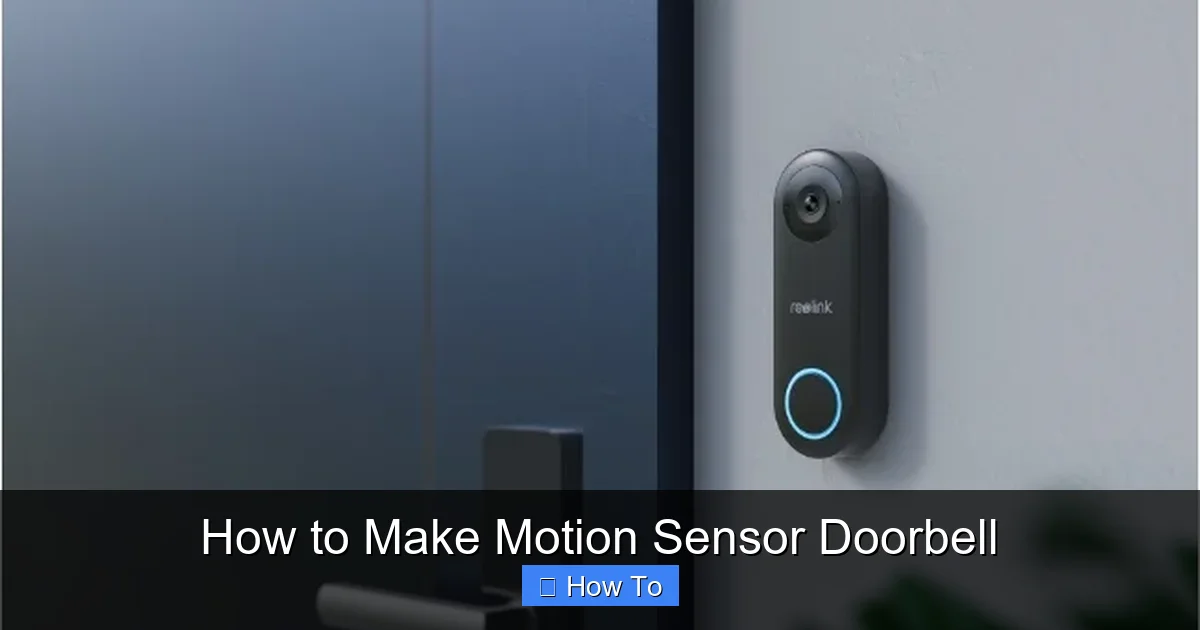

How to Make Motion Sensor Doorbell

Visual guide about How to Make Motion Sensor Doorbell

Image source: home-cdn.reolink.us

Essential Components

  • PIR (Passive Infrared) Motion Sensor: Detects body heat and movement. Look for models like the HC-SR501 (under $5).
  • Microcontroller: An Arduino Nano or ESP8266 (like NodeMCU) handles sensor input and triggers the alert. (~$5–$8)
  • Battery Pack: 4x AA batteries or a 9V battery with a holder for portable power. (~$3)
  • Wireless Transmitter/Receiver Pair: 433MHz RF modules allow communication between the sensor and chime unit. (~$2 for a set)
  • Buzzer or Door Chime Module: Produces the alert sound. A small piezo buzzer works, or use a pre-recorded chime module. (~$3)
  • Perfboard or Breadboard: For prototyping and soldering connections. (~$2)
  • Jumper Wires: Male-to-male and male-to-female wires for connections. (~$3 for a pack)
  • Resistors and LEDs (Optional): For status indicators or circuit protection. (~$1)
  • Enclosure: A plastic project box to protect electronics. (~$5)

Tools Required

  • Soldering iron and solder
  • Wire strippers
  • Multimeter (for testing connections)
  • Screwdrivers
  • Hot glue gun (for securing components)
  • Computer with USB cable (for programming the microcontroller)

Tip: Buy a beginner electronics kit—many include PIR sensors, Arduino, wires, and breadboards for under $30.

Step 1: Understanding How It Works

Before assembling anything, it’s important to understand the basic workflow of your motion sensor doorbell:

  1. The PIR sensor constantly monitors the area in front of your door for infrared heat changes (like a person walking by).
  2. When motion is detected, the sensor sends a signal to the microcontroller.
  3. The microcontroller processes the signal and activates the wireless transmitter.
  4. The transmitter sends a radio signal to the receiver unit inside your home.
  5. The receiver triggers the buzzer or chime, alerting you that someone is at the door.

This system uses two main units: the outdoor sensor unit (mounted near the door) and the indoor chime unit (placed where you want to hear the alert). They communicate wirelessly, so no drilling or wiring through walls is needed.

Note: The PIR sensor has a detection range of about 6–7 meters and a 110-degree field of view. Adjust the angle during installation for best coverage.

Step 2: Setting Up the Microcontroller

The microcontroller is the brain of your doorbell. We’ll use an Arduino Nano for its small size and ease of use, but an ESP8266 (like NodeMCU) works too and adds Wi-Fi capability.

Install the Arduino IDE

Download and install the Arduino IDE from arduino.cc. This free software lets you write and upload code to your board.

Connect the Arduino to Your Computer

  • Use a USB cable to connect the Arduino Nano to your PC.
  • Open the Arduino IDE, go to Tools > Board, and select “Arduino Nano.”
  • Under Tools > Processor, choose “ATmega328P (Old Bootloader)” if you have an older model.
  • Select the correct port under Tools > Port.

Test the Board

Upload a simple blink sketch to confirm everything works:

  1. Go to File > Examples > 01.Basics > Blink.
  2. Click the upload button (right arrow icon).
  3. The onboard LED should blink every second.

Tip: If upload fails, check the board type, port, and USB cable. Some clones require drivers—search for “CH340 driver” if needed.

Step 3: Wiring the PIR Sensor

Now connect the PIR sensor to the Arduino. The HC-SR501 has three pins: VCC (power), GND (ground), and OUT (output).

Connection Diagram

  • VCC → 5V on Arduino
  • GND → GND on Arduino
  • OUT → Digital Pin 2 on Arduino

Use jumper wires to connect these on a breadboard for testing. Later, you’ll solder them for durability.

Adjust Sensor Settings

The HC-SR501 has two potentiometers:

  • Sensitivity: Controls detection range. Turn clockwise to increase.
  • Time Delay: Sets how long the output stays high after detection. Start with 3–5 seconds.

Tip: Cover the sensor lens with tape and gradually remove it to test sensitivity. Avoid pointing it at heat sources like radiators or sunlight.

Step 4: Adding the Wireless Transmitter

To send signals from outside to inside, we’ll use a 433MHz RF transmitter and receiver pair.

Transmitter Wiring (Outdoor Unit)

  • VCC → 5V on Arduino
  • GND → GND on Arduino
  • Data → Digital Pin 12 on Arduino

Receiver Wiring (Indoor Unit)

  • VCC → 5V on second Arduino or standalone power
  • GND → GND
  • Data → Digital Pin 11 on receiver Arduino

Note: The transmitter and receiver must share the same frequency (433MHz). Keep them within 30–50 meters for reliable communication.

Step 5: Programming the Arduino

Now it’s time to write code that reads the sensor and sends a signal.

Code for the Transmitter (Outdoor Unit)

Open a new sketch in Arduino IDE and paste the following:

// Motion Sensor Doorbell - Transmitter

#include <VirtualWire.h>


const int pirPin = 2;

const int txPin = 12;


void setup() {

  pinMode(pirPin, INPUT);

  vw_set_tx_pin(txPin);

  vw_setup(2000); // Speed in bits per second

}


void loop() {

  if (digitalRead(pirPin)
