This guide walks you through how to make a wireless doorbell using basic electronics and household tools. You’ll build a fully functional, battery-powered system that’s customizable, cost-effective, and fun to assemble.

Key Takeaways

  • Affordable DIY Project: Building your own wireless doorbell costs less than buying a commercial one and uses readily available components.
  • No Wiring Required: The wireless design eliminates the need for drilling or electrical wiring, making it perfect for renters or quick installations.
  • Customizable Features: You can choose the chime sound, LED indicators, and range based on your preferences.
  • Beginner-Friendly: With basic soldering skills and simple instructions, even newcomers can complete this project successfully.
  • Expandable System: Add multiple buttons or receivers to cover different areas of your home.
  • Battery-Powered Operation: Both transmitter and receiver run on standard batteries, ensuring portability and low power consumption.
  • Troubleshooting Tips Included: Learn how to diagnose and fix common issues like weak signals or unresponsive buttons.

Introduction: Why Build Your Own Wireless Doorbell?

Imagine never missing a visitor again—even when you’re in the basement, garage, or backyard. A wireless doorbell offers convenience, flexibility, and peace of mind without the hassle of running wires through walls. While store-bought models are convenient, they often come with limited customization, high prices, or short battery life. That’s where building your own wireless doorbell comes in.

In this comprehensive guide, you’ll learn how to make a wireless doorbell from scratch using affordable electronic components. Whether you’re a hobbyist, a parent teaching kids about electronics, or someone looking for a smart home upgrade on a budget, this project is perfect for you. We’ll walk you through every step—from gathering materials to testing your finished system—so you can create a reliable, personalized doorbell that fits your lifestyle.

By the end of this guide, you’ll not only have a working wireless doorbell but also a deeper understanding of basic electronics, radio frequency (RF) communication, and circuit design. Plus, you’ll gain the confidence to modify or expand your system later—like adding multiple buttons, changing chime tones, or integrating LED lights.

What You’ll Need: Tools and Components

Before diving into the build, let’s gather all the necessary tools and components. Don’t worry—most of these are inexpensive and can be found at electronics stores, online retailers like Amazon or AliExpress, or even in old gadgets you might have lying around.

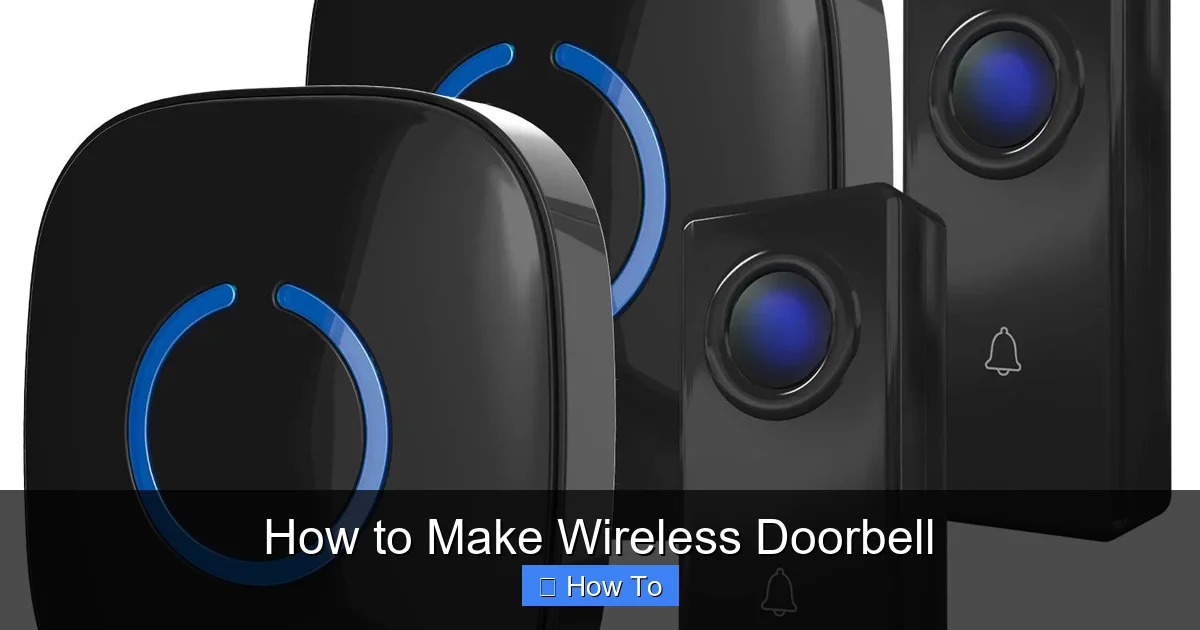

How to Make Wireless Doorbell

Visual guide about How to Make Wireless Doorbell

Image source: knowbend.com

Essential Components

  • RF Transmitter Module (433MHz): This sends the signal from the doorbell button to the receiver. Look for a model with a range of at least 50–100 meters.
  • RF Receiver Module (433MHz): Receives the signal and triggers the chime. Must match the frequency of the transmitter.
  • Push Button Switch: A simple momentary switch that acts as your doorbell button. Waterproof versions are ideal for outdoor use.
  • Breadboard and Jumper Wires: For prototyping and testing your circuit before soldering.
  • Arduino Nano or ATtiny85 Microcontroller (optional but recommended): Adds intelligence—like playing custom sounds or controlling LEDs. The Arduino is beginner-friendly; the ATtiny85 is smaller and cheaper.
  • Battery Holder (for 9V or 3x AA batteries): Powers both the transmitter and receiver. Use separate holders for each unit.
  • Batteries: 9V battery for the transmitter, and 3x AA (4.5V) or 9V for the receiver, depending on your circuit.
  • Buzzer or Mini Speaker: Produces the chime sound. Choose a piezoelectric buzzer for simplicity or a small speaker for richer tones.
  • LED (optional): Adds a visual alert—great for hearing-impaired users or noisy environments.
  • Resistors (220Ω and 10kΩ): Used for current limiting and pull-down circuits.
  • Perfboard or PCB: For soldering the final circuit.
  • Enclosure (plastic box or project case): Protects the electronics and gives your doorbell a professional look.

Tools Required

  • Soldering iron and solder
  • Wire strippers and cutters
  • Multimeter (for testing connections and voltage)
  • Hot glue gun (for securing components)
  • Screwdrivers and pliers
  • Double-sided tape or mounting brackets

Tip: If you’re new to soldering, practice on scrap wires first. A well-soldered joint is shiny and smooth—dull or lumpy joints can cause connection problems.

Understanding How Wireless Doorbells Work

Before building, it helps to understand the basic principle behind wireless doorbells. Unlike wired systems that rely on physical electrical connections, wireless doorbells use radio waves to communicate between the button (transmitter) and the chime unit (receiver).

Here’s a simple breakdown:

  • When you press the doorbell button, it completes a circuit that activates the RF transmitter.
  • The transmitter sends a coded signal (usually at 433MHz) through the air.
  • The receiver, tuned to the same frequency, picks up the signal.
  • The receiver then triggers a buzzer, speaker, or LED to alert you.

Most DIY kits use ASK (Amplitude Shift Keying) modulation, which is simple and reliable for short-range communication. The range depends on the transmitter power, antenna length, and obstacles like walls or metal objects.

Using a microcontroller like the Arduino allows you to add features such as:

  • Multiple chime sounds
  • Delayed activation
  • LED flash patterns
  • Signal confirmation (e.g., a beep when the button is pressed)

This flexibility is one reason why building your own doorbell is so rewarding—you’re not limited by factory settings.

Step-by-Step Guide: Building the Transmitter (Doorbell Button)

The transmitter is the part you’ll mount outside your door. It’s battery-powered, compact, and activates when the button is pressed. Let’s build it step by step.

Step 1: Prepare the RF Transmitter Module

Take your 433MHz RF transmitter module. It typically has three pins: VCC (power), GND (ground), and DATA (signal input). Check the datasheet if unsure.

Connect the VCC pin to the positive terminal of your battery holder (9V recommended). Connect GND to the negative terminal. Use jumper wires and a breadboard for testing.

Step 2: Wire the Push Button

Take your momentary push button switch. When pressed, it should complete the circuit between the DATA pin and VCC.

Here’s how to wire it:

  • Connect one side of the button to the DATA pin.
  • Connect the other side to VCC (positive power).
  • Add a 10kΩ resistor between DATA and GND. This is a pull-down resistor—it ensures the DATA pin reads LOW when the button isn’t pressed, preventing false signals.

Now, when you press the button, the DATA pin receives a HIGH signal, telling the transmitter to send a signal.

Step 3: Add an Optional LED Indicator

To confirm the button is working, add an LED. Connect the anode (long leg) to VCC through a 220Ω resistor. Connect the cathode (short leg) to the DATA pin.

When you press the button, the LED will light up, giving you visual feedback. This is especially helpful during testing.

Step 4: Test the Transmitter

Insert a 9V battery into the holder. Press the button. You won’t hear anything yet—but if you have an RF receiver nearby, you can test it later.

Use a multimeter to check voltage at the VCC and GND pins. It should read close to 9V. If the LED lights up when pressed, your circuit is working.

Step 5: Solder and Enclose

Once tested, transfer the circuit to a perfboard. Solder all connections carefully. Trim excess wire leads to avoid shorts.

Place the circuit, battery, and button into a small plastic enclosure. Drill a hole for the button and another for the LED (if used). Use hot glue to secure components.

Mount the transmitter near your door using double-sided tape or screws. Make sure the button is accessible and the antenna (usually a short wire) is straight for best range.

Step-by-Step Guide: Building the Receiver (Chime Unit)

The receiver listens for the signal and plays the chime. It can be placed anywhere inside your home—living room, kitchen, or bedroom.

Step 1: Set Up the RF Receiver Module

Your 433MHz RF receiver module has three or four pins: VCC, GND, DATA (or two DATA pins for stereo). Connect VCC to 5V (from 3x AA batteries or a 5V regulator) and GND to ground.

Note: Some receivers work at 3.3V. Check the datasheet to avoid damage.

Step 2: Connect the Microcontroller (Arduino Nano)

While you can connect the receiver directly to a buzzer, using an Arduino gives you more control. Here’s how:

  • Connect the receiver’s DATA pin to digital pin 2 on the Arduino.
  • Connect VCC and GND of the receiver to the Arduino’s 5V and GND pins.
  • Power the Arduino with 3x AA batteries (4.5V) via the VIN pin, or use a 9V battery with a voltage regulator.

Step 3: Add the Buzzer or Speaker

Connect a passive buzzer (one that can play different tones) to digital pin 8 and GND. If using a speaker, add a 100Ω resistor in series to limit current.

Tip: Active buzzers (with built-in oscillators) only make one sound. Passive buzzers are better for custom chimes.

Step 4: Upload the Arduino Code

Open the Arduino IDE on your computer. Connect the Arduino via USB. Upload the following simple code:

const int receiverPin = 2;

const int buzzerPin = 8;


void setup() {

  pinMode(receiverPin, INPUT);

  pinMode(buzzerPin, OUTPUT);

}


void loop() {

  if (digitalRead(receiverPin)
