Matching a door bell switch with your doorbell ensures reliable performance and seamless integration. This guide walks you through compatibility checks, wiring, installation, and troubleshooting to help you choose and install the right switch for your system.
Key Takeaways
- Check voltage compatibility: Ensure your doorbell and switch match in voltage (typically 8–24V AC) to avoid damage or malfunction.
- Match brand and model when possible: Using components from the same manufacturer increases compatibility and simplifies setup.
- Understand switch types: Choose between mechanical, electronic, LED-lit, or smart switches based on your doorbell system and preferences.
- Follow wiring safety steps: Always turn off power at the breaker before handling wires to prevent electrical shock.
- Test before finalizing: After installation, test the chime and switch multiple times to confirm consistent operation.
- Upgrade to smart options for added features: Smart switches offer remote access, lighting, and integration with home automation systems.
- Consult manuals and labels: Always refer to manufacturer instructions and wiring diagrams for accurate matching and safe installation.
How to Match Door Bell Switch with Doorbell
Upgrading or replacing your doorbell switch might seem like a small task, but it’s one that can make a big difference in your home’s functionality and curb appeal. Whether you’re installing a new doorbell system or replacing a worn-out switch, matching the door bell switch with your doorbell correctly is essential for reliable performance. A mismatched switch can lead to weak chimes, no sound at all, or even damage to your doorbell transformer.
In this comprehensive guide, you’ll learn how to choose the right doorbell switch for your system, understand compatibility requirements, and install it safely and effectively. We’ll walk you through everything from identifying your current doorbell type to testing your new setup. By the end, you’ll have the confidence to match your door bell switch with your doorbell like a pro—no electrician required.
Understanding Doorbell Systems and Switches

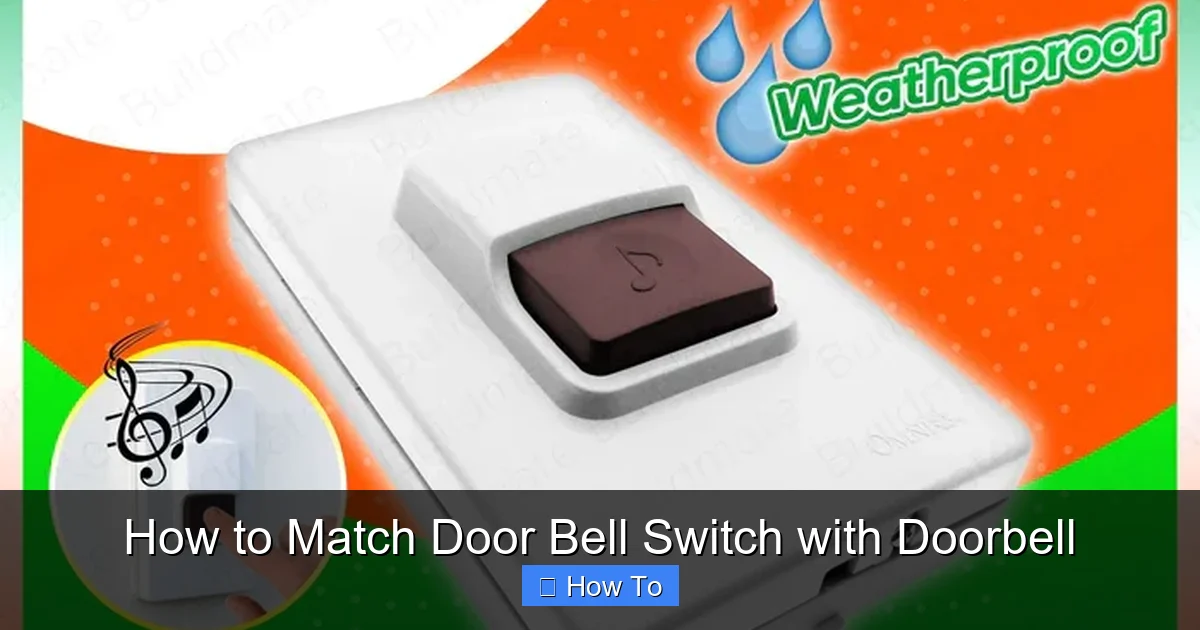

Visual guide about How to Match Door Bell Switch with Doorbell
Image source: shopbuildmate.com
Before you can match a door bell switch with your doorbell, it’s important to understand how these systems work together. Most traditional doorbells operate on low-voltage AC power, typically ranging from 8 to 24 volts. This power comes from a transformer that steps down your home’s standard 120V electricity to a safer level for doorbell use.
The doorbell switch—the button you press at the front door—completes the circuit when pressed. This sends power to the chime unit inside your home, which then produces the sound. Because the switch is a critical part of this circuit, it must be compatible with the voltage and wiring of your doorbell system.
There are several types of doorbell switches available:
- Mechanical switches: The most common type, these use a simple spring-loaded button to complete the circuit. They’re reliable, inexpensive, and work with most standard doorbells.
- Electronic switches: These often include features like LED lighting or soft-touch buttons. They may require slightly more power but are still compatible with most low-voltage systems.
- Smart switches: These connect to Wi-Fi and allow you to receive notifications on your phone, see who’s at the door via a camera, or integrate with smart home systems like Alexa or Google Home.
- Illuminated switches: These have built-in lights that glow in the dark, making them easy to find at night. They usually draw a tiny amount of current even when not pressed.
Knowing which type your current system uses will help you choose a replacement or upgrade that matches properly.
Step 1: Identify Your Current Doorbell System
The first step in matching a door bell switch with your doorbell is to identify what kind of system you currently have. This includes the type of chime, the voltage, and the wiring setup.
Check the Chime Unit
Start by locating your indoor chime unit. It’s usually mounted on a wall near the front door, often in a hallway or entryway. Remove the cover (if possible) and look for labels or model numbers. Common brands include Nutone, Ring, Honeywell, and Heath Zenith.
Inside the chime, you may see two or three terminals labeled “Front,” “Trans,” and “Rear.” These indicate where wires from the front door, transformer, and rear door (if applicable) connect. The “Front” terminal is where the doorbell switch wire attaches.
Locate the Transformer
The transformer is the device that converts household voltage to the lower voltage needed for the doorbell. It’s typically found in a basement, garage, utility closet, or near your electrical panel. Look for a small metal box with wires coming out and a label indicating voltage (e.g., 16V AC).
If you can’t find it, turn off the power to your doorbell at the breaker, then disconnect the wires at the chime. Use a multimeter to test the voltage across the “Front” and “Trans” terminals. A reading between 8 and 24 volts confirms a low-voltage system.
Inspect the Existing Switch
Go to your front door and remove the existing doorbell button. Most switches are held in place by one or two screws. Gently pull it away from the wall to expose the wires.
Note the type of switch:
- Does it have a light?
- Is it a simple push-button or a touch-sensitive panel?
- Are the wires connected with screws or push-in connectors?
Take a photo of the wiring before disconnecting anything. This will help you reconnect the new switch correctly.
Step 2: Choose a Compatible Doorbell Switch
Now that you understand your system, it’s time to choose a switch that matches. Compatibility depends on three main factors: voltage, wiring, and design.
Match the Voltage
Your new switch must be rated for the same voltage as your doorbell system. Most standard switches are designed for 8–24V AC, which covers the majority of residential systems. However, if your transformer outputs 16V, for example, avoid switches rated only for 12V.
Check the packaging or product description for voltage specifications. If you’re unsure, choose a universal switch labeled “compatible with all standard doorbells.”
Consider the Wiring Setup
Most doorbell switches use two wires: one from the transformer (via the chime) and one returning to the chime. These are typically low-voltage wires that are easy to work with.
If your current switch has two wires, any standard replacement should work. However, if you’re upgrading to a smart switch, you may need a neutral wire or a different power source. Some smart switches require a constant power supply and may not work with older two-wire systems unless you install a bypass resistor or upgrade the transformer.
Choose the Right Style and Features
Think about what you want from your new switch:
- Illuminated: Great for visibility at night. Look for models with long-lasting LEDs.
- Weather-resistant: Essential for outdoor use. Choose switches with a rubber gasket or sealed housing.
- Smart capabilities: If you want remote alerts or video, consider a smart doorbell like Ring or Nest. These often replace both the switch and chime.
- Aesthetic match: Pick a finish (brass, nickel, black, etc.) that complements your door hardware and exterior.
For example, if you have a modern home with stainless steel fixtures, a brushed nickel switch will look cohesive. If you live in a rainy climate, a weatherproof switch with a protective cover is a smart choice.
Step 3: Gather Tools and Materials
Before you begin installation, make sure you have the right tools and materials. This will save time and prevent frustration.
Essential Tools
- Screwdriver (flathead and Phillips)
- Voltage tester or multimeter
- Wire strippers (if you need to trim or re-strip wires)
- Pliers (optional, for tightening connections)
Materials Needed
- New doorbell switch
- Wire nuts (if extending or splicing wires)
- Electrical tape
- Optional: Bypass resistor (for smart switches on older systems)
If you’re installing a smart doorbell, you may also need a drill, level, and anchors for mounting.
Step 4: Turn Off the Power
Safety is paramount when working with electrical systems—even low-voltage ones. Although doorbell circuits are low-risk, accidental contact with higher-voltage lines or short circuits can still cause problems.
Locate the Breaker
Find the circuit breaker that controls your doorbell. It may be labeled “doorbell,” “chime,” or simply be part of a general lighting circuit. If you’re unsure, turn off the main breaker to be safe.
Test for Power
Use a non-contact voltage tester at the chime unit or switch wires to confirm the power is off. Touch the tester to the exposed wires—it should not light up or beep.
Never assume the power is off just because the breaker is switched. Always test.
Step 5: Remove the Old Switch
With the power off, it’s time to remove the old doorbell switch.
Unscrew the Mounting Plate
Use a screwdriver to remove the screws holding the switch to the wall. Gently pull the switch away from the wall to expose the wires.
Disconnect the Wires
Loosen the terminal screws or release the push-in connectors to free the wires. Take note of which wire goes to which terminal. In most cases, it doesn’t matter which wire goes where since doorbell circuits are not polarized, but labeling them can help avoid confusion.
If the wires are short or damaged, you may need to strip a small amount of insulation (about 1/4 inch) to expose fresh copper.
Cap the Wires
Twist wire nuts onto the exposed ends to prevent accidental contact. This is especially important if you’re not installing the new switch immediately.
Step 6: Install the New Doorbell Switch
Now it’s time to install your new switch. Follow these steps carefully.
Prepare the Wires
If the wires are short, you may need to extend them using additional low-voltage wire and wire nuts. Strip about 1/4 inch of insulation from each end.
Connect the Wires
Attach the wires to the new switch’s terminals. Most switches have two screws labeled “Front” or “Common.” Tighten the screws securely, but don’t over-tighten, as this can damage the terminals.
If your switch uses push-in connectors, insert the stripped wire fully and ensure it’s held firmly.
Secure the Switch to the Wall
Position the switch against the wall and align it with the mounting holes. Use the provided screws to attach it securely. Make sure it sits flush and doesn’t wobble.
Tuck Wires Neatly
Gently push the wires back into the electrical box or wall cavity to avoid pinching them when mounting.
Step 7: Restore Power and Test
Once the new switch is installed, it’s time to test it.
Turn the Power Back On
Go to the breaker panel and restore power to the doorbell circuit.
Test the Doorbell
Press the new switch and listen for the chime inside. It should sound clearly and consistently. If you have a rear doorbell, test that one too.
Check for Issues
If the chime doesn’t sound:
- Double-check wire connections.
- Ensure the transformer is working (test voltage again).
- Verify the chime unit is receiving power.
If the switch feels loose or the light (if applicable) doesn’t glow, recheck the mounting and wiring.
Step 8: Troubleshooting Common Problems
Even with careful installation, issues can arise. Here’s how to solve the most common problems.
No Sound When Button Is Pressed
- Cause: Loose or reversed wires.
- Solution: Turn off power, recheck connections, and ensure wires are tight.
Chime Sounds Weak or Intermittent
- Cause: Low voltage or poor connection.
- Solution: Test transformer output. Replace if below 8V. Check for corrosion on terminals.
LED Light Doesn’t Glow
- Cause: Faulty LED or insufficient current.
- Solution: Some illuminated switches require a minimum voltage. Try a different switch or upgrade the transformer.
Smart Switch Not Connecting
- Cause: Missing neutral wire or incompatible system.
- Solution: Install a bypass resistor or consult the manufacturer’s compatibility guide.
Switch Feels Hot or Buzzes
- Cause: Short circuit or wrong voltage.
- Solution: Turn off power immediately. Check for crossed wires or damaged insulation.
Upgrading to a Smart Doorbell Switch
If you’re ready for more functionality, consider upgrading to a smart doorbell. These devices replace the traditional switch and chime with a Wi-Fi-enabled camera and app-based alerts.
Benefits of Smart Doorbells
- Receive notifications on your phone when someone rings the bell.
- See live video of your doorstep from anywhere.
- Talk to visitors remotely via two-way audio.
- Integrate with smart home systems (e.g., unlock doors, turn on lights).
Installation Tips
- Ensure strong Wi-Fi signal at the door.
- Use a compatible transformer (usually 16–24V).
- Follow the manufacturer’s app-guided setup.
- Mount at a height of 48 inches for optimal camera angle.
Popular options include Ring Video Doorbell, Nest Hello, and Arlo Essential. These often come with rechargeable batteries or hardwired options.
Maintaining Your Doorbell Switch
To keep your doorbell switch working smoothly:
- Clean the button gently with a damp cloth to remove dirt and debris.
- Check connections annually, especially after extreme weather.
- Replace batteries in wireless or smart switches as needed.
- Inspect wires for fraying or corrosion.
Regular maintenance prevents unexpected failures and extends the life of your system.
Conclusion
Matching a door bell switch with your doorbell doesn’t have to be complicated. By understanding your system’s voltage, wiring, and design, you can choose a compatible switch that enhances both function and style. Whether you’re replacing a broken button or upgrading to a smart model, following these steps ensures a safe, reliable installation.
Remember to always turn off the power, test connections, and consult your doorbell’s manual when in doubt. With the right switch in place, you’ll enjoy clear chimes, improved visibility, and peace of mind knowing your entryway is secure and welcoming.
Take your time, follow the guide, and don’t hesitate to ask for help if you’re unsure. A well-matched doorbell switch is a small upgrade that makes a big difference in your daily life.
