This guide teaches you how to measure voltage on a doorbell transformer safely and correctly. You’ll learn the tools needed, step-by-step testing methods, and how to interpret results to ensure your doorbell works properly.
Key Takeaways
- Safety first: Always turn off power and use insulated tools when working near electrical components to prevent shock or injury.
- Use a multimeter: A digital multimeter is the essential tool for measuring voltage on a doorbell transformer—set it to AC voltage (V~) mode.
- Locate the transformer: Most doorbell transformers are mounted near the main electrical panel, in the basement, attic, or utility closet.
- Test at the chime unit: You can also measure voltage at the doorbell chime terminals if accessing the transformer directly is difficult.
- Normal voltage range: A working doorbell transformer typically outputs between 16V and 24V AC—anything outside this range may indicate a problem.
- Check wiring connections: Loose or corroded wires can cause low voltage; always inspect terminals before assuming the transformer is faulty.
- Replace if necessary: If the transformer reads 0V or significantly below 16V, it may need replacement to restore doorbell function.
How to Measure Voltage on Doorbell Transformer
If your doorbell isn’t ringing, making a weak sound, or not working at all, the issue might be with the doorbell transformer. The transformer is a small but critical component that steps down your home’s standard 120V AC power to a safer, lower voltage (usually 16V to 24V AC) needed to power your doorbell system. Over time, transformers can fail, wiring can loosen, or connections can corrode—leading to poor performance or complete failure.
Learning how to measure voltage on a doorbell transformer is a valuable skill for any homeowner or DIY enthusiast. It helps you diagnose problems quickly, avoid unnecessary replacements, and ensure your doorbell system operates safely and efficiently. This comprehensive guide will walk you through the entire process—from gathering the right tools to interpreting your readings and troubleshooting common issues.
By the end of this guide, you’ll be able to confidently test your doorbell transformer, understand what the voltage readings mean, and take the appropriate next steps—whether that’s tightening a connection, replacing a wire, or installing a new transformer.
Why Measuring Doorbell Transformer Voltage Matters

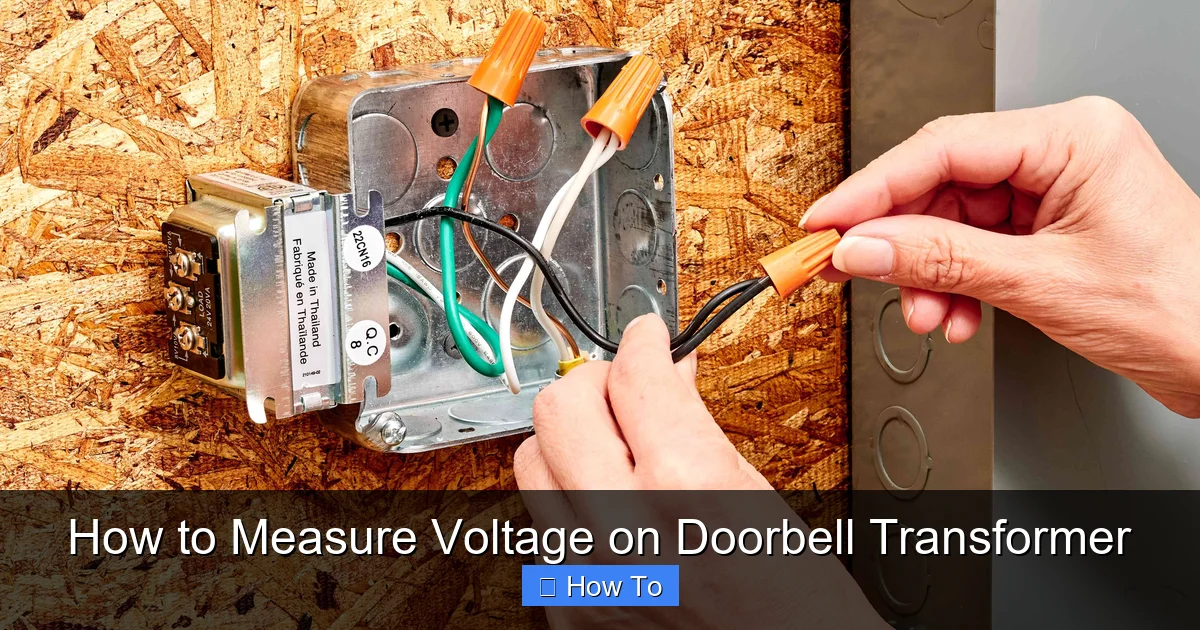

Visual guide about How to Measure Voltage on Doorbell Transformer
Image source: thespruce.com
Your doorbell may seem like a simple device, but it relies on a consistent and correct voltage supply to function. If the voltage is too low, the chime might not ring or may produce a weak, intermittent sound. If it’s too high, it could damage the chime unit or other components. In some cases, a completely dead doorbell could be traced back to a failed transformer.
Measuring the voltage helps you:
– Confirm whether the transformer is working
– Rule out wiring or chime issues
– Prevent unnecessary repairs or replacements
– Ensure safety by identifying electrical faults early
Most modern doorbells operate on 16V or 24V AC, and even a small drop in voltage can affect performance. For example, a transformer rated for 16V that’s only outputting 12V may not provide enough power for the chime to activate properly. On the other hand, a transformer outputting 30V could damage sensitive electronics in smart doorbells or video doorbells.
By learning how to measure voltage accurately, you gain insight into the health of your entire doorbell system—and save time and money by diagnosing problems at the source.
Tools and Materials You’ll Need
Before you begin, make sure you have the right tools on hand. Most of these are inexpensive and widely available at hardware stores or online.
Essential Tools
- Digital multimeter: This is the most important tool. Look for one with an AC voltage setting (usually labeled V~ or VAC). Analog multimeters work too, but digital models are easier to read and more accurate.
- Insulated screwdrivers: Use screwdrivers with rubber or plastic handles to reduce the risk of electric shock.
- Voltage tester (non-contact): Optional but helpful for confirming whether power is present before touching any wires.
- Safety gloves and goggles: While doorbell voltage is low, it’s still wise to protect yourself, especially if you’re working near the main electrical panel.
Optional but Helpful
- Flashlight: Many transformers are located in dark areas like basements or attics.
- Electrical tape: Useful for marking wires or insulating exposed connections after testing.
- Wire strippers: In case you need to repair or replace damaged wires.
- Replacement transformer: If testing confirms a faulty unit, having a new one ready can save time.
Safety Gear Reminder
Even though doorbell transformers operate at low voltage, they are still connected to your home’s main electrical system. Always treat them with caution. Never assume a wire is safe to touch just because it’s part of a low-voltage circuit. Use insulated tools, wear protective gear, and follow safe work practices.
Step 1: Locate the Doorbell Transformer
The first step in measuring voltage is finding the transformer. It’s not always obvious where it’s located, but there are common places to check.
Common Locations
- Near the main electrical panel: This is the most common spot. Look for a small, rectangular or cylindrical device mounted on or near the breaker box. It often has two wires coming out and may be labeled “doorbell” or “chime.”
- Basement or crawlspace: If your electrical panel is in the basement, the transformer is likely nearby, often attached to a junction box or wooden beam.
- Attic: In some homes, especially older ones, the transformer is mounted in the attic near the doorbell chime unit.
- Utility closet or furnace room: Sometimes installed near heating systems or other electrical equipment.
- Behind the doorbell chime: In rare cases, the transformer is integrated into the chime unit itself, though this is less common.
How to Identify the Transformer
The transformer usually looks like a small metal or plastic box, about the size of a pack of cards. It has two primary wires (connected to the 120V line) and two secondary wires (going to the doorbell and chime). It may also have a small label indicating the output voltage (e.g., “16V AC” or “24V AC”).
If you’re unsure, trace the wires from your doorbell button and chime unit. The transformer will be where those low-voltage wires connect back to the main power source.
Tip: Use a Circuit Tracer (Optional)
If you’re having trouble locating the transformer, a circuit tracer can help. This tool sends a signal through the wire, allowing you to follow it to its source. It’s especially useful in homes with complex wiring.
Step 2: Turn Off Power (Optional but Recommended)
While doorbell transformers operate at low voltage, they are still energized by your home’s 120V circuit. For maximum safety, it’s best to turn off the power before working on or near the transformer.
How to Safely Turn Off Power
- Go to your main electrical panel (breaker box).
- Look for the breaker labeled “doorbell,” “chime,” or “low voltage.” If there isn’t one, check for a general lighting or outlet circuit that might control the transformer.
- Flip the breaker to the OFF position.
- Use a non-contact voltage tester to confirm that power is off at the transformer terminals.
Important Note
Some transformers are hardwired and don’t have a dedicated breaker. In that case, you may need to turn off the main breaker or the breaker for the circuit that feeds the transformer. Always double-check with a voltage tester before touching any wires.
Alternative: Test Live (With Caution)
If you choose to test the transformer while it’s live (which is common for voltage measurement), take extra precautions:
– Keep one hand in your pocket to avoid creating a path for current through your heart.
– Use insulated tools.
– Avoid touching metal parts of the multimeter probes.
– Work quickly and carefully.
Step 3: Set Up Your Multimeter
Now that you’ve located the transformer and taken safety precautions, it’s time to prepare your multimeter.
Step-by-Step Multimeter Setup
- Turn on the multimeter. Most digital multimeters have a power button or dial.
- Set the dial to AC voltage. Look for the symbol “V~” or “VAC.” This is crucial—do not use DC voltage (V⎓), as doorbells use alternating current.
- Select the appropriate range. If your multimeter has manual range settings, choose a range higher than the expected voltage (e.g., 200V AC for a 16V transformer). Many modern multimeters are auto-ranging and will detect the voltage automatically.
- Insert the probes. Plug the black probe into the COM (common) port and the red probe into the VΩmA port (or similar, depending on your model).
Understanding Multimeter Probes
– The black probe is the negative or ground lead.
– The red probe is the positive or live lead.
– For AC voltage measurements, polarity doesn’t matter—you can touch either probe to either terminal.
Test the Multimeter (Optional but Smart)
Before testing the transformer, verify your multimeter is working. Touch the probes to a known live outlet (with caution) and confirm it reads around 120V AC. This ensures your tool is functioning correctly.
Step 4: Measure Voltage at the Transformer
With your multimeter ready, it’s time to take the actual measurement.
Access the Transformer Terminals
Most transformers have two screw terminals on the low-voltage side (output side). These are where the wires from the doorbell button and chime connect. You may need to loosen the screws slightly to insert the multimeter probes.
Take the Voltage Reading
- Touch the black probe to one of the low-voltage terminals.
- Touch the red probe to the other low-voltage terminal.
- Hold the probes steady and read the display.
What to Expect
– A working transformer should read between 16V and 24V AC, depending on its rating.
– If the reading is close to the labeled voltage (e.g., 16.5V on a 16V transformer), it’s functioning properly.
– A reading of 0V or near 0V indicates a failed transformer or no power input.
– A reading significantly below 16V (e.g., 8V or 10V) suggests a weak or overloaded transformer.
Example Readings and What They Mean
- 16.2V AC: Normal—transformer is working correctly.
- 12.5V AC: Low—possible wiring issue, overload, or failing transformer.
- 0V AC: Dead—transformer is not receiving power or has failed.
- 28V AC: High—could damage doorbell components; check for wiring errors or incorrect transformer.
Tip: Test Under Load
For the most accurate reading, test the voltage while the doorbell is being pressed. This puts a load on the transformer, simulating real-world conditions. If the voltage drops significantly when the button is pressed (e.g., from 16V to 8V), the transformer may be weak or undersized.
Step 5: Measure Voltage at the Doorbell Chime (Alternative Method)
If you can’t easily access the transformer, you can measure voltage at the doorbell chime unit instead. This method is useful for troubleshooting without opening walls or panels.
Locate the Chime Unit
The chime is usually mounted on a wall inside your home, near the front door. Remove the cover (often held by screws or clips) to expose the wiring terminals.

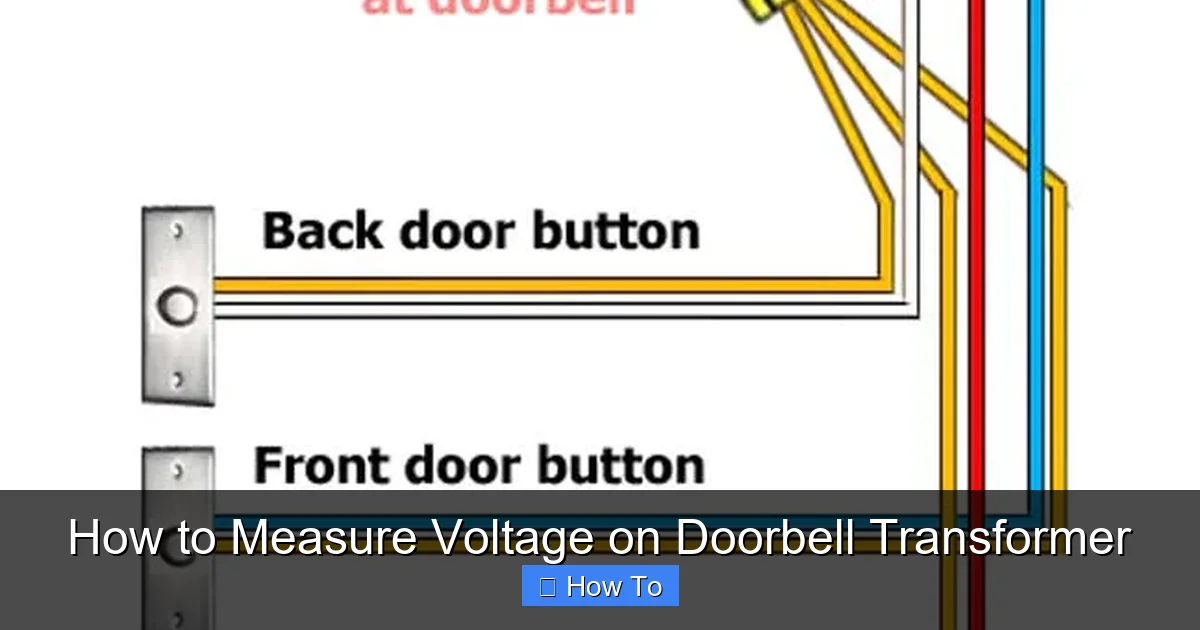

Identify the Terminals
Most chimes have two or more terminals:
– Front: Connects to the front doorbell button.
– Rear: Connects to the rear doorbell button (if you have one).
– Transformer: Connects to the low-voltage wires from the transformer.
Take the Reading
- Set your multimeter to AC voltage (V~).
- Touch the probes to the “Front” and “Transformer” terminals (or “Rear” and “Transformer” if testing the rear button).
- Press the doorbell button and observe the reading.
Interpreting Chime Readings
– A reading of 16V–24V while the button is pressed indicates the transformer and wiring are working.
– A low or zero reading suggests a problem with the transformer, wiring, or button.
Advantages of This Method
– No need to access the transformer directly.
– Tests the entire circuit, including wiring and button.
– Helps isolate whether the issue is at the transformer or elsewhere.
Troubleshooting Common Issues
Even with accurate voltage readings, you may encounter problems. Here’s how to diagnose and fix common issues.
Issue 1: No Voltage Reading (0V)
- Possible Causes: Tripped breaker, blown fuse, disconnected wires, failed transformer.
- Solutions:
– Check the breaker panel and reset any tripped breakers.
– Inspect the transformer’s primary (120V) wires for loose or disconnected connections.
– Test the input voltage to the transformer (should be ~120V AC). If not, the issue is upstream.
– Replace the transformer if input voltage is present but output is 0V.
Issue 2: Low Voltage Reading (Below 16V)
- Possible Causes: Long wire runs, undersized wires, multiple doorbells on one transformer, failing transformer.
- Solutions:
– Check wire gauge—use 18- or 20-gauge bell wire for most installations.
– Ensure no extra devices (like smart cameras) are overloading the transformer.
– Replace the transformer with a higher-capacity model (e.g., 24V 20VA instead of 16V 10VA).
Issue 3: Intermittent or Weak Chime
- Possible Causes: Loose connections, corroded terminals, faulty doorbell button.
- Solutions:
– Tighten all wire connections at the transformer, chime, and button.
– Clean terminals with a small wire brush or contact cleaner.
– Test the doorbell button with the multimeter (continuity test) to ensure it’s working.
Issue 4: Voltage Fluctuates
- Possible Causes: Loose wiring, failing transformer, electrical interference.
- Solutions:
– Re-secure all connections.
– Replace the transformer if fluctuations persist.
– Keep low-voltage wires away from high-voltage lines to avoid interference.
When to Replace the Doorbell Transformer
If your voltage readings indicate a problem that can’t be fixed with simple repairs, it’s time to replace the transformer.
Signs You Need a New Transformer
– Consistent 0V or very low voltage output.
– Transformer feels hot to the touch.
– Visible damage, burning smell, or charring.
– Doorbell still doesn’t work after checking all connections and the button.
How to Choose a Replacement
– Match the voltage (16V or 24V AC).
– Check the VA (volt-ampere) rating—common values are 10VA, 15VA, or 20VA. Higher VA means more power.
– Ensure it’s compatible with your doorbell system (especially smart doorbells).
Installation Tips
– Turn off power at the breaker before replacing.
– Label wires before disconnecting.
– Mount the new transformer securely and keep wires organized.
– Test voltage after installation to confirm proper operation.
Safety Tips and Best Practices
Working with electricity always carries some risk. Follow these guidelines to stay safe.
General Safety Rules
– Always assume wires are live until proven otherwise.
– Use insulated tools and wear protective gear.
– Never work on electrical systems in wet conditions.
– If you’re unsure, consult a licensed electrician.
Multimeter Safety
– Inspect probes for cracks or exposed wires before use.
– Never exceed the multimeter’s voltage rating.
– Keep fingers behind the probe guards.
When to Call a Professional
– If you can’t locate the transformer.
– If you’re uncomfortable working with electricity.
– If the issue involves the main electrical panel or high-voltage wiring.
Conclusion
Knowing how to measure voltage on a doorbell transformer empowers you to diagnose and fix doorbell issues quickly and safely. With just a multimeter and a few basic tools, you can determine whether the transformer is working, identify wiring problems, and ensure your doorbell system operates reliably.
Remember to prioritize safety, use the correct settings on your multimeter, and interpret your readings in context. A voltage reading between 16V and 24V AC typically means everything is functioning properly. Lower or zero readings point to issues that may require repair or replacement.
By following this guide, you’ll save time, avoid unnecessary service calls, and gain confidence in handling basic home electrical tasks. Whether you’re troubleshooting a silent doorbell or performing routine maintenance, this skill is a valuable addition to your DIY toolkit.
