How to Mount a Doorbell Transformer

Mounting a doorbell transformer is a manageable DIY project that ensures your doorbell gets the right power. This guide walks you through every step—from choosing a location to testing the system—so you can install it safely and effectively.

Key Takeaways

• Choose the right location: Mount the transformer near an electrical outlet and close to your doorbell chime, but inside your home (like a basement or utility closet).
• Turn off power first: Always shut off the circuit breaker before working on electrical components to prevent shock or injury.
• Use proper tools: A voltage tester, screwdriver, wire strippers, and drill are essential for a safe and clean installation.
• Follow wiring basics: Connect low-voltage wires from the transformer to the doorbell button and chime using correct polarity and secure connections.
• Test before finishing: Power up and test the doorbell after installation to confirm everything works before closing up walls or panels.
• Know when to call a pro: If you’re unsure about electrical work or your home has complex wiring, consult a licensed electrician.
• Maintain safety standards: Keep the transformer accessible and avoid overloading circuits to ensure long-term reliability.

How to Mount a Doorbell Transformer: A Complete Step-by-Step Guide

Installing or replacing a doorbell transformer might sound like a job for an electrician, but with the right tools, knowledge, and safety precautions, it’s a project most homeowners can tackle themselves. Whether you’re upgrading to a smart doorbell, replacing a faulty unit, or installing a doorbell for the first time, mounting the transformer correctly is crucial. The transformer steps down your home’s standard 120-volt electrical supply to a safe 16–24 volts, which powers your doorbell system.

In this guide, we’ll walk you through everything you need to know about how to mount a doorbell transformer—from understanding what it is and why it matters, to choosing the best location, gathering tools, and completing the installation safely. We’ll also cover common mistakes, troubleshooting tips, and when it’s best to call in a professional. By the end, you’ll feel confident handling this essential home improvement task.

Let’s get started!

What Is a Doorbell Transformer?

Before diving into the installation, it’s important to understand what a doorbell transformer does. Simply put, it’s a small electrical device that converts high-voltage household current (typically 120V AC) into low-voltage power (usually 16V or 24V AC) that your doorbell system can safely use.

Most modern doorbells—whether traditional wired chimes or newer video doorbells like Ring or Nest—require this low-voltage power to operate. Without a properly functioning transformer, your doorbell won’t ring, the camera won’t turn on, or the chime won’t sound.

Transformers are typically small, rectangular or cylindrical devices mounted inside your home, often in a basement, garage, utility closet, or near your electrical panel. They’re connected to your home’s main power supply via a dedicated circuit or piggybacked onto an existing one, and they send power through thin low-voltage wires to your doorbell button and chime.

Why Mounting the Transformer Correctly Matters

Mounting your doorbell transformer isn’t just about convenience—it’s about safety, functionality, and longevity. A poorly installed transformer can lead to:

– Intermittent or no doorbell function
– Overheating and potential fire hazards
– Damage to your doorbell or chime unit
– Difficulty accessing the transformer for future maintenance

Proper mounting ensures the transformer is secure, well-ventilated, and located in a dry, accessible area. It also helps maintain consistent power delivery and makes future upgrades or repairs much easier.

Tools and Materials You’ll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will save time and reduce frustration during installation.

Essential Tools

• Screwdriver set (flathead and Phillips)
• Voltage tester (non-contact type recommended)
• Wire strippers
• Drill and drill bits (if mounting to wood or drywall)
• Measuring tape
• Pencil or marker
• Electrical tape
• Wire nuts (usually included with the transformer)

Materials

• Doorbell transformer (16V or 24V, 10–30VA rating—check your doorbell’s requirements)
• Mounting screws or brackets (often included)
• Low-voltage wire (if replacing or extending existing wiring)
• Electrical box or enclosure (optional, for added protection)

Optional but Helpful

• Stud finder (to locate wall studs)
• Cable staples or clips (for securing wires)
• Multimeter (for advanced testing)
• Ladder (if mounting high on a wall)

Step 1: Turn Off the Power

Safety is the most important part of any electrical project. Before touching any wires or mounting hardware, you must turn off the power to the circuit you’ll be working on.

Locate the Correct Circuit Breaker

Go to your home’s main electrical panel (breaker box). Look for a breaker labeled “doorbell,” “chime,” or “low voltage.” If there isn’t a dedicated breaker, the transformer may be connected to a general lighting or outlet circuit.

If you’re unsure which breaker controls the doorbell, turn off the main breaker to be safe—or use a non-contact voltage tester to confirm power is off at the transformer location.

Test for Power

Even after turning off the breaker, always double-check with a voltage tester. Touch the tester to the wires where the transformer will connect. If it lights up or beeps, power is still on—do not proceed until the correct breaker is found and turned off.

Safety Tip

Place a piece of tape over the breaker switch and write “DO NOT TURN ON” to prevent someone else from accidentally restoring power while you’re working.

Step 2: Choose the Right Location

Where you mount the transformer affects both performance and safety. The ideal location should meet several criteria:

Inside the Home

Never mount a doorbell transformer outside. It must be protected from weather, moisture, and temperature extremes. Common indoor locations include:

– Basement (near the furnace or water heater)
– Utility closet
– Garage (if insulated and dry)
– Attic (only if accessible and climate-controlled)
– Near the electrical panel

Close to Power and Doorbell Wiring

The transformer needs to be near an electrical outlet or junction box for power input, and within reach of the low-voltage wires that run to your doorbell button and chime. Ideally, it should be within 50 feet of both.

Accessible and Ventilated

Avoid enclosing the transformer in a tight space without airflow. It generates a small amount of heat and needs room to breathe. Also, make sure it’s easy to reach for future maintenance or replacement.

Avoid Moisture and Heat Sources

Don’t mount it near water pipes, washing machines, or heating vents. Moisture can damage the unit, and excessive heat can reduce its lifespan.

Example Locations

– Basement wall near the electrical panel: Great for central access and power connection.
– Utility closet behind the doorbell chime: Minimizes wire runs and keeps everything tidy.
– Garage ceiling joist: Out of the way but still accessible.

Step 3: Remove the Old Transformer (If Applicable)

If you’re replacing an existing transformer, you’ll need to remove it first.

Disconnect the Wires

Use your screwdriver to loosen the terminal screws on the old transformer. Carefully remove the two low-voltage wires (usually labeled “Front” and “Trans” or “T1” and “T2”) that go to the doorbell and chime.

Next, locate the two high-voltage wires (black and white, or red and black) connected to your home’s electrical supply. These are typically secured with wire nuts or terminal screws. Disconnect them carefully.

Unmount the Old Unit

Unscrew the transformer from its mounting bracket or electrical box. If it’s mounted directly to a stud or joist, remove the screws and gently pull it free.

Inspect the Wiring

Check the condition of the existing low-voltage wires. If they’re frayed, brittle, or too short, consider replacing them with new 18- or 20-gauge doorbell wire.

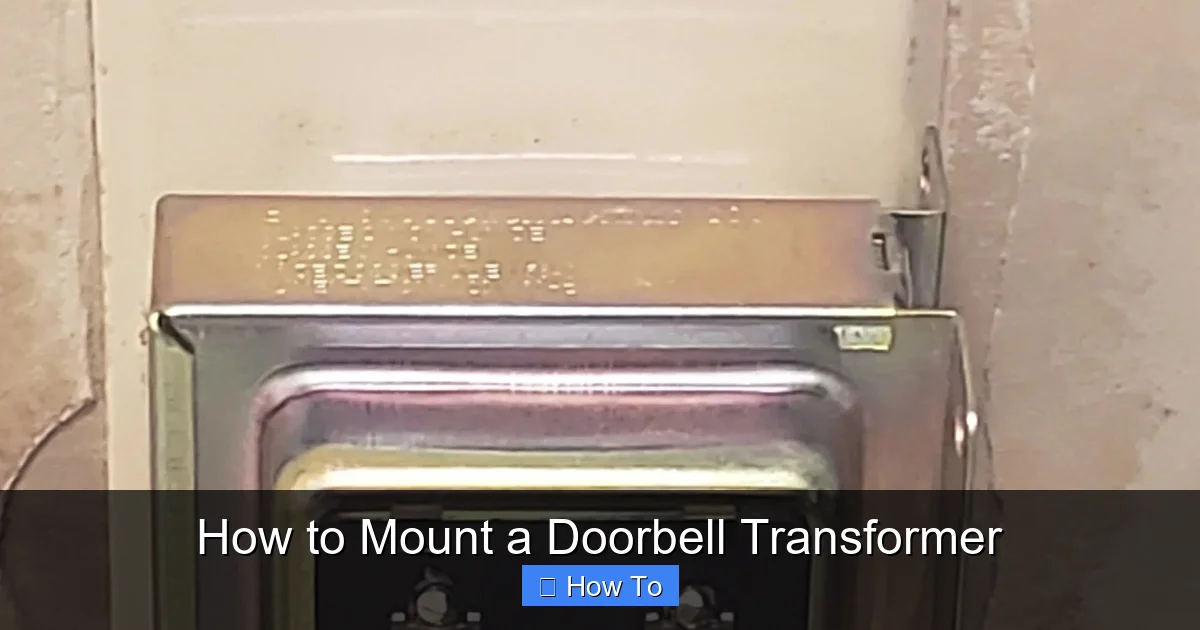

Step 4: Mount the New Transformer

Now it’s time to install the new transformer. Follow these steps carefully.

Position the Transformer

Hold the new transformer against the wall or stud where you want to mount it. Use a level to ensure it’s straight. Mark the screw holes with a pencil.

Drill Pilot Holes (If Needed)

If mounting to wood or drywall, drill small pilot holes at the marked spots. This prevents splitting and makes screwing easier.

Secure the Transformer

Use the provided screws or mounting bracket to attach the transformer to the wall or stud. Make sure it’s firmly anchored and doesn’t wobble.

Optional: Use an Electrical Box

For added safety and a cleaner look, mount the transformer inside a plastic or metal electrical junction box. This protects the connections and meets some local electrical codes.

Step 5: Connect the High-Voltage Wires

This step involves connecting the transformer to your home’s 120V electrical supply. Proceed with caution.

Identify the Wires

The transformer will have two high-voltage input terminals, usually labeled “Line” or “120V.” These connect to your home’s hot (black or red) and neutral (white) wires.

Strip the Wire Ends

Use wire strippers to remove about ½ inch of insulation from the ends of the hot and neutral wires from your electrical supply.

Connect to the Transformer

Attach the hot wire (black or red) to one terminal and the neutral wire (white) to the other. Tighten the screws securely. If using wire nuts, twist the wires together with the transformer’s input leads and cap with a wire nut.

Secure with Electrical Tape

Wrap the connections with electrical tape for extra insulation and safety.

Important Note

Never connect the high-voltage wires while the power is on. Double-check that the breaker is off before making any connections.

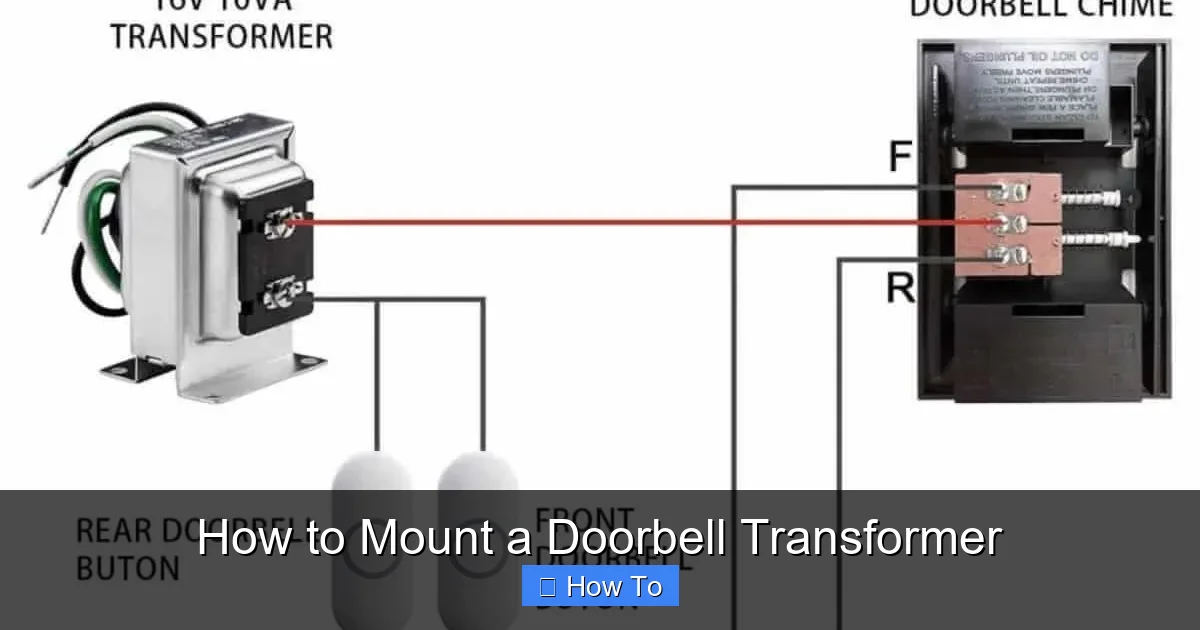

Step 6: Connect the Low-Voltage Wires

Now connect the transformer to your doorbell system.

Identify the Output Terminals

The transformer will have two low-voltage output terminals, often labeled “Doorbell” or “16V.” These send power to your doorbell button and chime.

Connect to Existing Wires

Attach the two low-voltage wires (usually labeled “Front” and “Trans”) to these terminals. It doesn’t matter which wire goes where—doorbell circuits are not polarity-sensitive.

Tighten the screws or use wire nuts to secure the connections.

Route the Wires Neatly

Use cable clips or staples to secure the low-voltage wires along the wall or baseboard, keeping them tidy and out of the way.

Step 7: Restore Power and Test the System

Once everything is connected, it’s time to test your work.

Turn the Power Back On

Go to the breaker panel and flip the breaker back on. Remove the “DO NOT TURN ON” tape.

Test the Doorbell

Press the doorbell button. You should hear the chime ring. If you have a video doorbell, check that the camera turns on and connects to your Wi-Fi.

Check for Issues

– If the doorbell doesn’t ring, double-check all connections.
– If the chime sounds weak or intermittent, the transformer may be underpowered—upgrade to a higher VA rating.
– If the transformer feels hot or makes a buzzing sound, turn off the power immediately and recheck the wiring.

Troubleshooting Common Problems

Even with careful installation, issues can arise. Here’s how to fix the most common ones.

Doorbell Doesn’t Ring

• Check power: Use a voltage tester to confirm the transformer is receiving 120V.
• Test output voltage: Use a multimeter to check if the transformer is outputting 16–24V. If not, it may be defective.
• Inspect wiring: Look for loose, corroded, or disconnected wires.
• Test the button: Bypass the button by touching the two low-voltage wires together. If the chime rings, the button is faulty.

Weak or Intermittent Sound

• Underpowered transformer: Upgrade to a 24V, 30VA transformer for smart doorbells or long wire runs.
• Loose connections: Tighten all terminal screws and wire nuts.
• Old wiring: Replace damaged or undersized low-voltage wires.

Transformer Overheats or Buzzes

• Overloaded circuit: Ensure the transformer isn’t powering additional devices beyond the doorbell.
• Poor ventilation: Move the transformer to a cooler, more open location.
• Faulty unit: Replace the transformer if it continues to overheat.

No Power to Transformer

• Tripped breaker: Check the breaker panel and reset if necessary.
• Blown fuse: Some older homes use fuses—replace if blown.
• Loose connection: Recheck the high-voltage input wires.

Safety Tips and Best Practices

To ensure a safe and successful installation, keep these tips in mind:

• Always turn off power before working on electrical components.
• Use a voltage tester to confirm power is off.
• Don’t overload the transformer—stick to doorbell-only use unless it’s rated for more.
• Keep the transformer accessible for future maintenance.
• Label wires before disconnecting to avoid confusion.
• Follow local electrical codes—some areas require permits or professional installation.
• When in doubt, call an electrician—especially if you’re uncomfortable with electrical work.

When to Call a Professional

While mounting a doorbell transformer is generally a DIY-friendly task, there are situations where hiring a licensed electrician is the best choice:

– You’re unsure which breaker controls the doorbell circuit.
– Your home has aluminum wiring or outdated electrical systems.
– You need to run new high-voltage wiring through walls.
– The transformer must be mounted in a hard-to-reach or confined space.
– You’re installing a high-power smart doorbell with additional features (like lighting or cameras).

A professional can ensure the job is done safely, up to code, and with minimal disruption to your home.

Conclusion

Mounting a doorbell transformer is a straightforward project that can save you money and give you greater control over your home’s entry system. By following this guide, you’ve learned how to choose the right location, gather the necessary tools, safely connect high- and low-voltage wires, and test your installation.

Remember, safety comes first—always turn off the power and double-check your work. With the right preparation and attention to detail, your doorbell will work reliably for years to come.

Whether you’re upgrading to a video doorbell or simply replacing an old transformer, you now have the knowledge and confidence to get the job done right. Happy installing!
