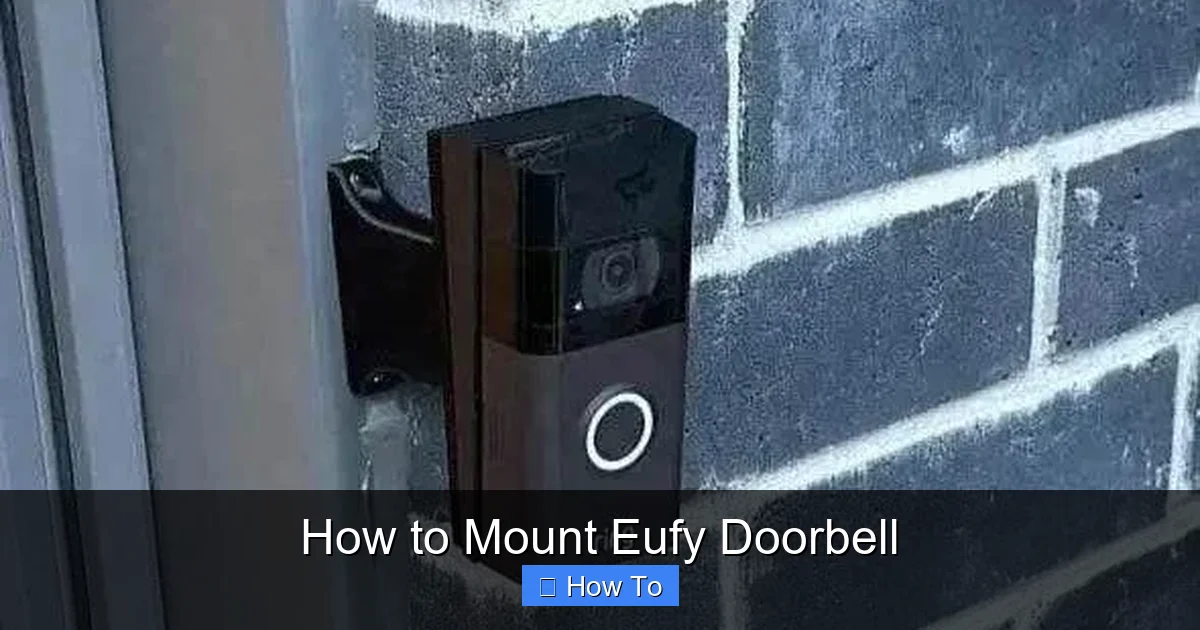

How to Mount Eufy Doorbell

Most Eufy doorbell kits come with a mounting bracket, screws, and sometimes wall anchors. But it’s smart to have extras on hand—especially if you’re mounting on a tricky surface like stucco or brick.

Step 3: Turn Off Power (For Wired Models Only)

If you’re installing a wired Eufy doorbell, safety is critical. Even though doorbell circuits are low voltage, they’re still connected to your home’s electrical system. Here’s how to stay safe:

Locate Your Breaker Box

Find your home’s main electrical panel. Look for a breaker labeled “doorbell,” “chime,” or “front door.” If you can’t find it, turn off the main breaker to be safe.

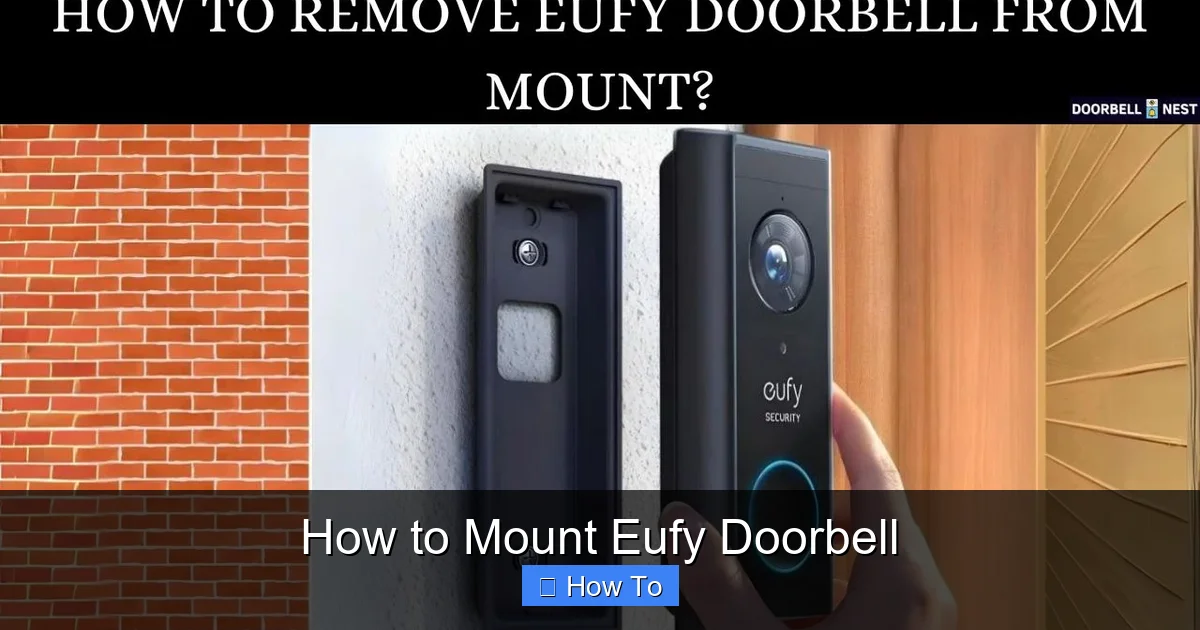

Visual guide about How to Mount Eufy Doorbell

Image source: doorbellnest.com

Test the Wires

After turning off the breaker, go to your current doorbell and remove the faceplate. Use a non-contact voltage tester to touch the wires. If the tester doesn’t beep or light up, the power is off. If it does, double-check your breaker or consult an electrician.

Important: Never skip this step. Even low-voltage shocks can be dangerous, and you don’t want to damage your new doorbell with a power surge.

Step 4: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, you’ll need to remove it first.

Unscrew the Faceplate

Use your screwdriver to remove the screws holding the old doorbell in place. Gently pull the device away from the wall.

Disconnect the Wires

You’ll see two wires connected to terminals (usually labeled “Front” and “Trans”). Loosen the screws and pull the wires free. Don’t let them fall back into the wall—tape them to the siding or hold them with a helper.

Patch or Cover the Hole (Optional)

If the old doorbell was larger than your Eufy model, you might see a gap around the mounting area. Use spackle or a wall plate cover to hide it. This gives your new doorbell a clean, professional look.

Step 5: Prepare the Mounting Surface

Now it’s time to get your wall ready for the Eufy doorbell.

Choose the Mounting Location

Pick a spot near your door that’s:

• 48–60 inches from the ground (eye level for most visitors)
• Centered on the doorframe or wall
• Close enough to your door that the camera can see the walkway
• Away from direct sunlight or heavy rain (to avoid glare and water damage)

Avoid mounting too high—this can distort the camera angle and reduce motion detection accuracy.

Mark the Drill Points

Hold the Eufy mounting bracket against the wall where you want to install it. Use a level to make sure it’s straight, then mark the screw holes with a pencil.

Drill Pilot Holes

Drill small pilot holes at the marked spots. This prevents wood from splitting and makes screwing easier. If you’re drilling into brick or concrete, use a masonry bit and insert wall anchors.

Step 6: Install the Mounting Bracket

The mounting bracket is the backbone of your doorbell installation. It holds the device securely and allows for adjustments.

Attach the Bracket to the Wall

Line up the bracket with your pilot holes and screw it into place using the provided screws. Make sure it’s tight and level.

Route the Wires (For Wired Models)

If you’re installing a wired doorbell, feed the two doorbell wires through the center hole in the bracket. Leave about 2–3 inches of wire exposed so you can connect them later.

Secure Loose Wires

Use electrical tape or wire clips to keep the wires from slipping back into the wall. You don’t want to lose them after mounting!

Step 7: Connect the Wires (Wired Models Only)

This is where wired and battery models diverge. If you’re using a battery-powered Eufy doorbell, skip to Step 8. For wired models, follow these steps:

Strip the Wire Ends (If Needed)

If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. This ensures a solid connection.

Connect to the Doorbell

Eufy doorbells have two wire terminals—usually labeled “Front” and “Trans.” It doesn’t matter which wire goes where (polarity isn’t an issue), so just connect one wire to each terminal. Tighten the screws securely.

Tuck Wires Neatly

Once connected, gently push the wires back into the wall cavity. Don’t force them—just make sure they’re not pinched or strained.

Step 8: Attach the Eufy Doorbell to the Bracket

Now for the fun part—mounting the actual doorbell.

Align the Doorbell

Hold the Eufy doorbell so the mounting slots align with the bracket. Slide it down until it clicks into place. You should hear a satisfying snap.

Secure with Anti-Theft Screw (Optional)

Some Eufy models include a small anti-theft screw that prevents tampering. If yours has one, insert it into the designated hole and tighten with the provided tool. This isn’t required for function, but it adds security.

Check the Angle

Look at the doorbell from the side. The camera should be level and pointed straight ahead—not tilted up or down. If it’s off, loosen the bracket slightly and adjust before retightening.

Step 9: Power On and Test (Wired Models)

If you installed a wired doorbell, it’s time to restore power and test.

Turn the Breaker Back On

Go to your electrical panel and flip the breaker back on. Wait about 30 seconds for the doorbell to power up.

Listen for the Chime

If your indoor chime is connected, you should hear a ring. If not, check your wiring or chime compatibility (some digital chimes may need a resistor).

Check the LED Light

The Eufy doorbell has an LED that indicates status. A solid blue light usually means it’s powered and ready to connect.

Step 10: Set Up the Eufy Security App

No matter which model you have, you’ll need the Eufy Security app to complete setup.

Download and Open the App

If you haven’t already, download “Eufy Security” from the App Store or Google Play. Create an account or log in.

Add a New Device

Tap the “+” icon and select “Video Doorbell.” Follow the on-screen prompts. The app will ask you to scan the QR code on the back of your doorbell or enter the serial number manually.

Connect to Wi-Fi

Choose your home Wi-Fi network and enter the password. Eufy doorbells support 2.4 GHz networks (some newer models also support 5 GHz). Make sure your phone is connected to the same network.

Wait for Pairing

The app will communicate with the doorbell and configure settings. This may take 1–2 minutes. Don’t move or touch the doorbell during this time.

Test the Connection

Once paired, you should see a live video feed in the app. Tap the screen to test two-way audio—say “Hello” and listen for a response.

Step 11: Customize Settings in the App

Now that your doorbell is online, personalize it to fit your lifestyle.

Set Motion Zones

In the app, go to “Device Settings” > “Motion Detection.” Draw zones where you want alerts (e.g., driveway, sidewalk). Avoid areas like busy streets to reduce false alarms.

Adjust Sensitivity

Choose between low, medium, or high motion sensitivity. High sensitivity catches more movement but may trigger on leaves or shadows.

Enable Notifications

Turn on push notifications so you’re alerted when someone approaches. You can also set quiet hours to avoid disturbances at night.

Set Up Recording Preferences

Choose between event-based recording (only when motion is detected) or continuous recording (if supported by your model and subscription plan).

Invite Family Members

Share access with family or roommates by inviting them via email in the app. They’ll get their own login and can view the feed.

Step 12: Final Checks and Troubleshooting

Before you call it a day, run through these final checks.

Test Night Vision

Wait for dusk or cover the camera with your hand to see if infrared LEDs activate. The image should stay clear in low light.

Check Video Quality

Review a recorded clip in the app. Look for clarity, color accuracy, and smooth playback. If it’s blurry, clean the lens with a microfiber cloth.

Verify Motion Alerts

Walk in front of the doorbell to trigger a motion alert. Make sure you receive a notification and that the video starts recording.

Ensure Stable Mounting

Gently tug on the doorbell. It shouldn’t wobble or move. If it does, tighten the bracket screws or reposition the mount.

Troubleshooting Common Issues

Even with careful installation, problems can happen. Here’s how to fix the most common ones.

Doorbell Won’t Power On (Wired)

• Double-check that the breaker is on.
• Test the voltage at the wires with a multimeter.
• Ensure wires are securely connected and not shorted.
• If using a mechanical chime, install the included resistor (if provided).

Weak Wi-Fi Signal

• Move your router closer or use a Wi-Fi extender.
• Avoid mounting the doorbell behind metal doors or thick walls.
• Check signal strength in the app—Eufy shows a Wi-Fi icon with bars.

Blurry or Dark Video

• Clean the lens with a soft, dry cloth.
• Adjust the angle to avoid direct sunlight or backlighting.
• Ensure night vision LEDs aren’t blocked by dirt or spiderwebs.

False Motion Alerts

• Lower motion sensitivity in the app.
• Exclude areas like trees or passing cars from motion zones.
• Enable “Human Detection” to filter out animals and objects.

Battery Drains Too Fast (Battery Models)

• Reduce motion detection frequency.
• Turn off unnecessary features like continuous recording.
• Ensure the doorbell isn’t in a high-traffic area triggering constant alerts.

Conclusion

Mounting your Eufy doorbell might seem intimidating at first, but with the right tools and a little patience, it’s a job anyone can tackle. Whether you’re going wired or wireless, the key is careful preparation, safe wiring practices, and thorough testing.

By following this guide, you’ve not only learned how to mount Eufy doorbell—you’ve also set up a smart security system that gives you peace of mind. From real-time alerts to crystal-clear video, your Eufy doorbell keeps you connected to your home, even when you’re away.

Remember: take your time, double-check connections, and don’t hesitate to consult the Eufy support team if you run into issues. With your new doorbell in place, you’re one step closer to a smarter, safer home.
