This guide walks you through how to mount Google Doorbell safely and correctly, whether you’re replacing an old doorbell or installing one for the first time. You’ll learn about tools, wiring, positioning, and app setup to ensure your smart doorbell works perfectly from day one.
Key Takeaways
- Choose the right model: Google offers several doorbell models (like Nest Doorbell Wired and Battery), so confirm compatibility with your home’s setup before mounting.
- Gather the right tools: You’ll need a drill, screwdriver, level, wire strippers (for wired models), and possibly a voltage tester to ensure safety.
- Positioning matters: Mount the doorbell at 4–5 feet high and angled slightly toward the walkway for optimal motion detection and video quality.
- Turn off power first: If installing a wired model, always shut off power at the breaker to avoid electrical shock.
- Use the Google Home app: The app guides you through setup, Wi-Fi connection, and testing after mounting.
- Test before finalizing: Always test the doorbell’s video, audio, and notifications before securing all screws.
- Consider weather and lighting: Avoid direct sunlight or heavy rain exposure, and ensure the area is well-lit for clear night vision.
How to Mount Google Doorbell: A Complete Step-by-Step Guide
So, you’ve got your new Google Doorbell—congratulations! Whether it’s the Nest Doorbell (wired) or the battery-powered version, you’re about to upgrade your home security with smart features like HD video, motion alerts, and two-way audio. But before you can see who’s at the door from your phone, you need to mount it properly.
Mounting a Google Doorbell might seem straightforward, but doing it right ensures reliable performance, clear video, and long-term durability. This guide will walk you through every step—from choosing the best location to finalizing the setup in the Google Home app. Whether you’re replacing an old doorbell or installing one for the first time, we’ve got you covered.
By the end of this guide, you’ll know exactly how to mount Google Doorbell like a pro, avoid common mistakes, and troubleshoot any issues that come up. Let’s get started!
What You’ll Need Before You Begin

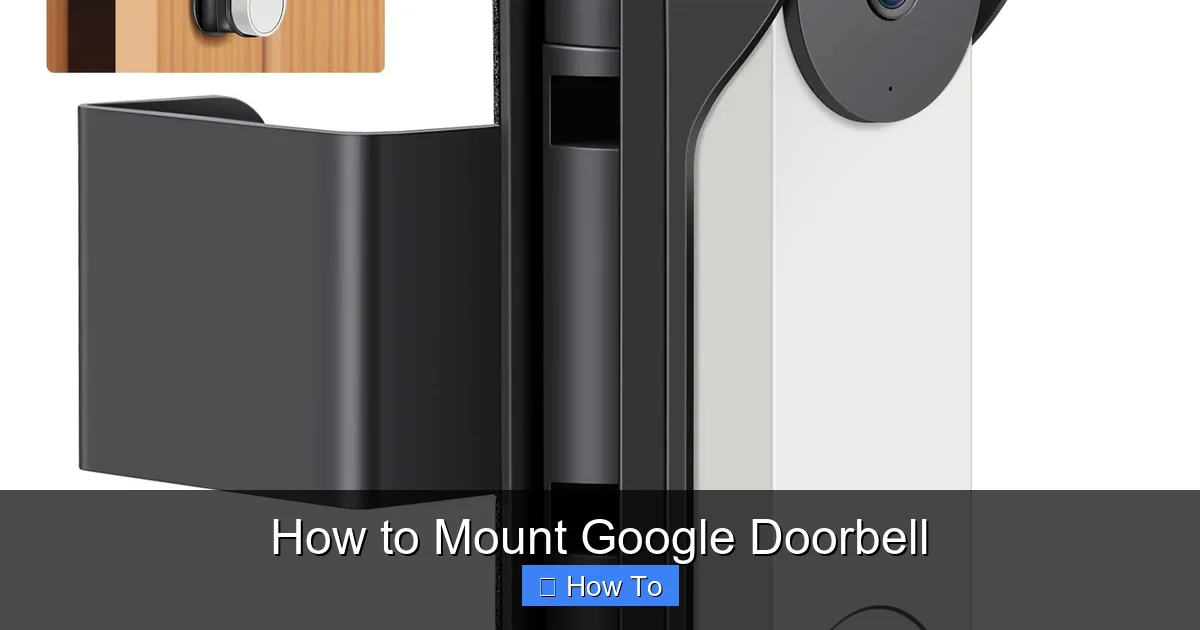

Visual guide about How to Mount Google Doorbell
Image source: m.media-amazon.com
Before you grab your drill and head to the front door, make sure you have all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-installation.
Tools and Materials Checklist
- Google Doorbell (Nest Doorbell Wired or Battery)
- Mounting screws and anchors (usually included)
- Drill with appropriate drill bits (typically 3/16″ for masonry or wood)
- Screwdriver (Phillips head)
- Level (to ensure the doorbell is straight)
- Wire strippers (for wired models only)
- Voltage tester (for wired models—safety first!)
- Pencil or marker (for marking drill points)
- Smartphone with Google Home app installed
- Ladder (if mounting high or on a second story)
- Optional: Wire nuts, electrical tape, and a voltage transformer (if upgrading from a low-voltage system)
Know Your Doorbell Model
Google offers two main types of doorbells:
- Nest Doorbell (Wired): Requires existing doorbell wiring and a transformer (16–24V AC). Best for homes with existing chimes.
- Nest Doorbell (Battery): Runs on rechargeable battery, no wiring needed. Great for renters or homes without existing wiring.
Make sure you know which model you have, as the installation steps differ slightly. The packaging and app will help confirm this.
Step 1: Choose the Best Location
Where you mount your Google Doorbell affects everything—video quality, motion detection, and even battery life (for battery models). Take time to pick the right spot.
Ideal Mounting Height
Mount the doorbell at 4 to 5 feet (1.2 to 1.5 meters) above the ground. This height captures faces clearly and avoids being too low (where it could be tampered with) or too high (where it might miss visitors).
Angle and Field of View
The doorbell should face the walkway or driveway, not directly into the sun. A slight downward angle (about 15 degrees) helps focus on the area where people approach. Avoid mounting it where it points straight into bright sunlight, which can cause glare or overexposure.
Proximity to Door and Obstructions
Keep the doorbell within 3–5 feet of the doorframe. Avoid placing it behind screens, thick walls, or metal surfaces that can block Wi-Fi signals. Also, ensure there are no overhangs, plants, or decorations that could obstruct the camera’s view.
Wi-Fi Signal Strength
Your doorbell needs a strong Wi-Fi connection. Use the Google Home app to check signal strength at the mounting location. If the signal is weak, consider using a Wi-Fi extender or mesh network to boost coverage.
Step 2: Turn Off Power (For Wired Models Only)
If you’re installing a wired Google Doorbell, safety is critical. Electricity and water don’t mix—and neither do live wires and DIY projects.
Locate Your Circuit Breaker
Find the breaker that controls your doorbell circuit. It’s often labeled “doorbell,” “chime,” or “front door.” If unsure, turn off the main breaker to be safe.
Test the Wires
Use a non-contact voltage tester to confirm the power is off. Touch the tester to the doorbell wires at the mounting location. If it beeps or lights up, the power is still on—double-check the breaker.
Remove the Old Doorbell (If Applicable)
Unscrew the old doorbell and gently pull it away from the wall. You’ll see two wires connected to terminals. Loosen the screws and disconnect the wires. Label them (e.g., “Front” and “Trans”) if needed, though Google’s app will help identify them later.
Step 3: Prepare the Mounting Surface
A secure mount starts with a clean, level surface. Whether you’re drilling into wood, brick, or siding, proper prep ensures a stable installation.
Clean the Area
Wipe down the wall with a damp cloth to remove dust, dirt, or grease. This helps the mounting bracket adhere better and ensures accurate drilling.
Mark the Drill Points
Hold the mounting bracket against the wall at your chosen height. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes
Drill pilot holes at the marked spots. Use a drill bit slightly smaller than the screws to prevent splitting wood. For brick or concrete, use a masonry bit and wall anchors.
Step 4: Install the Mounting Bracket
The mounting bracket is the backbone of your doorbell. Secure it properly to avoid wobbling or falling.
Attach the Bracket
Line up the bracket with the pilot holes and insert the screws. Tighten them with a screwdriver or drill (on low torque to avoid over-tightening). Ensure the bracket is flush against the wall and level.
Route the Wires (Wired Models)
If you’re installing a wired doorbell, feed the two wires through the center hole of the bracket. Leave enough slack (about 6 inches) to connect to the doorbell later.
Optional: Use a Corner Mount
If your door is in a corner or you want a better angle, Google sells a corner mount kit. It allows you to mount the doorbell at a 45-degree angle for a wider field of view.
Step 5: Connect the Wires (Wired Models Only)
This step is only for wired doorbells. If you have a battery model, skip to the next section.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire. Be careful not to cut the copper strands.
Connect to the Doorbell
Google Doorbell wired models have spring-loaded terminals. Insert one wire into each terminal and press the release tab to secure. The app will guide you during setup, so don’t worry about polarity.
Secure Loose Wires
Tuck any excess wire back into the wall or use wire nuts and electrical tape to bundle them neatly. This prevents strain on the connections.
Step 6: Attach the Google Doorbell
Now it’s time to snap the doorbell onto the bracket.
Align and Secure
Hold the doorbell with the camera facing outward. Slide it onto the bracket until it clicks into place. You should feel it lock securely.
Test the Fit
Gently tug on the doorbell to ensure it’s firmly attached. It shouldn’t wobble or come loose.
For Battery Models: Insert the Battery
If using a battery-powered doorbell, insert the rechargeable battery into the compartment on the back. Make sure it’s fully seated and the cover clicks shut.
Step 7: Power On and Set Up via Google Home App
The final step is connecting your doorbell to your home network and configuring settings.
Download and Open Google Home App
If you haven’t already, download the Google Home app (available on iOS and Android). Sign in with your Google account.
Add a New Device
Tap the “+” icon, then “Set up device,” and follow the prompts. The app will detect your doorbell via Bluetooth.
Connect to Wi-Fi
The app will guide you to connect the doorbell to your home Wi-Fi network. Make sure you’re on a 2.4 GHz network (most Google Doorbells don’t support 5 GHz). Enter your Wi-Fi password when prompted.
Test the Doorbell
Once connected, the app will ask you to test the doorbell. Press the button (or simulate a press) to check video, audio, and notifications. You should see a live feed and hear the chime (if wired).
Adjust Settings
Customize motion zones, notification preferences, and video quality in the app. You can also set up familiar face alerts or package detection if available.
Step 8: Final Checks and Tips
Before you call it a day, do a few final checks to ensure everything works perfectly.
Check Video Quality
Look at the live feed in the app. Is the image clear? Are colors accurate? Adjust the angle slightly if needed.
Test Night Vision
Turn off the lights or wait for dusk to test night vision. The infrared LEDs should activate automatically.
Verify Motion Detection
Walk in front of the doorbell to test motion alerts. Adjust sensitivity in the app if it’s too sensitive or not sensitive enough.
Secure All Screws
Double-check that all mounting screws are tight. Loose hardware can cause vibration or misalignment over time.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Wired model: Check that power is restored at the breaker. Use a voltage tester to confirm 16–24V at the wires.
- Battery model: Ensure the battery is fully charged and properly inserted. Try recharging it for at least 4 hours.
Poor Wi-Fi Connection
- Move your router closer or use a Wi-Fi extender.
- Ensure the doorbell is within 30–50 feet of the router.
- Avoid mounting near metal objects or thick walls.
Blurry or Glared Video
- Clean the camera lens with a microfiber cloth.
- Reposition the doorbell to avoid direct sunlight.
- Use the app to adjust brightness or contrast settings.
False Motion Alerts
- Adjust motion zones in the app to exclude trees, cars, or pets.
- Lower sensitivity if the doorbell triggers too often.
- Ensure the doorbell isn’t facing a busy street or windy area.
Chime Not Working (Wired Models)
- Check that the chime is compatible with digital doorbells.
- Ensure wires are securely connected.
- Some older chimes may need a resistor or replacement.
Maintenance and Care Tips
To keep your Google Doorbell working smoothly, follow these maintenance tips.
Clean the Lens Monthly
Use a soft, dry cloth to wipe the camera lens. Avoid harsh chemicals or abrasive materials.
Check Battery Level (Battery Models)
The app will notify you when the battery is low. Recharge it every 2–6 months, depending on usage.
Update Firmware
Google automatically pushes updates, but ensure your app and doorbell are connected to Wi-Fi to receive them.
Inspect Mounting Hardware
Every few months, check that screws are tight and the doorbell is secure. Weather and vibration can loosen hardware over time.
Conclusion
Mounting a Google Doorbell is a smart upgrade for any home, and with the right preparation, it’s a project most homeowners can tackle in under an hour. From choosing the perfect spot to connecting it to your Wi-Fi and customizing settings in the Google Home app, each step ensures your doorbell delivers reliable performance and peace of mind.
Remember, how to mount Google Doorbell isn’t just about drilling holes and tightening screws—it’s about optimizing placement, ensuring safety, and setting up the system for long-term success. Whether you’re using a wired or battery model, following this guide will help you avoid common pitfalls and enjoy crystal-clear video, instant alerts, and two-way communication from day one.
Now that your doorbell is installed, you’re ready to see who’s at the door—even when you’re miles away. Welcome to the future of home security!
