Mounting a Ring Doorbell on a narrow door frame can be tricky, but it’s totally doable with the right tools and techniques. This guide walks you through every step—from assessing your space to final adjustments—so you can install your smart doorbell securely and maintain full functionality.
Key Takeaways
- Assess your door frame width first: Measure the available mounting surface to determine if you need a wedge or offset mount.
- Use the right mounting accessories: Ring offers angled wedges and corner brackets designed specifically for tight spaces.
- Drill carefully and safely: Pre-drill holes to avoid splitting wood or damaging trim, especially on narrow frames.
- Ensure proper Wi-Fi signal: Test signal strength at the installation point before finalizing the mount.
- Adjust the angle for optimal view: Tilt the doorbell slightly downward to capture visitors clearly without blind spots.
- Seal gaps to prevent weather damage: Use silicone caulk around the mount to protect against moisture and drafts.
- Test motion and video after install: Verify detection zones and video quality using the Ring app.
How to Mount Ring Doorbell on Narrow Door Frame
Installing a Ring Doorbell is a great way to boost your home security, but what happens when your door frame is too narrow for a standard mount? Don’t worry—this common challenge has practical solutions. Whether you live in an older home with tight trim or a modern apartment with minimal wall space, this guide will show you exactly how to mount your Ring Doorbell securely and effectively on a narrow door frame.
In this comprehensive how-to guide, you’ll learn how to evaluate your mounting space, choose the right hardware, install your doorbell safely, and fine-tune the angle for the best video and motion detection. We’ll also cover troubleshooting tips, weatherproofing, and how to ensure strong Wi-Fi connectivity—all tailored for tight spaces.
By the end of this guide, you’ll have a professionally installed Ring Doorbell that works flawlessly, even in the most confined entryways.
Why Narrow Door Frames Are a Challenge

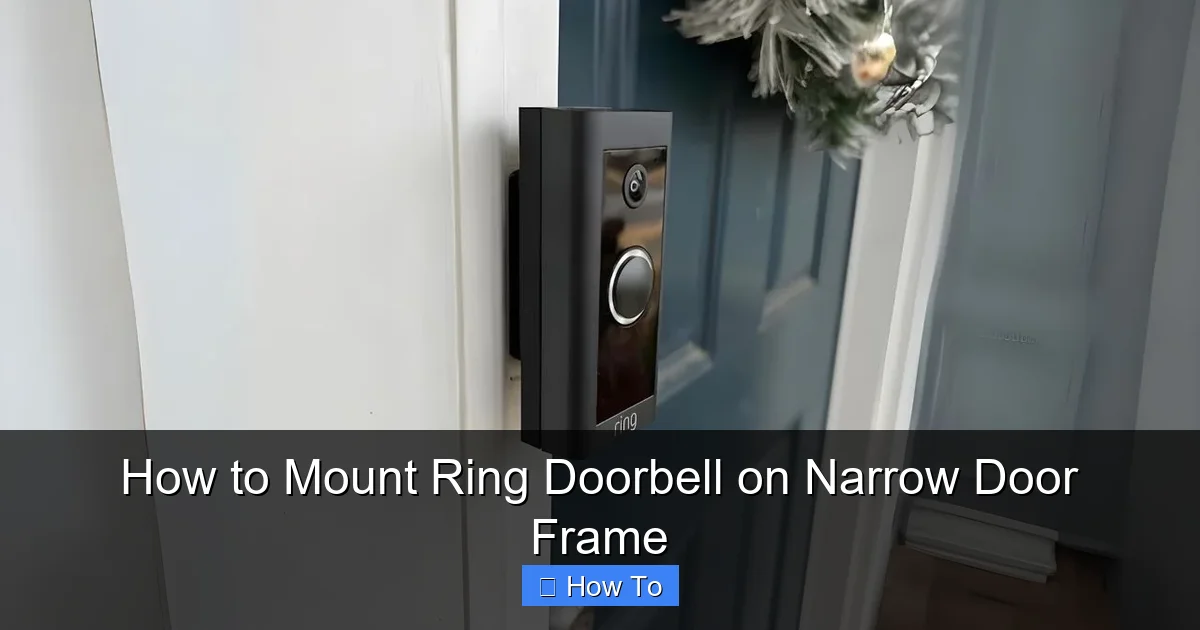

Visual guide about How to Mount Ring Doorbell on Narrow Door Frame
Image source: doorbellnest.com
Most Ring Doorbells come with a standard mounting bracket that requires a flat, vertical surface of at least 2–3 inches in width. However, many homes—especially older ones or those with decorative trim—have door frames that are too narrow or uneven. This can make it difficult to attach the bracket securely, leading to a wobbly mount or poor camera angle.
Additionally, a poorly positioned doorbell might miss motion events, capture only part of a visitor’s face, or be vulnerable to weather damage. That’s why it’s crucial to use the right mounting strategy for your specific setup.
Tools and Materials You’ll Need
Before you begin, gather the following tools and materials:
- Ring Doorbell (any model: Video Doorbell, Doorbell 2, Doorbell 3, Doorbell 4, or Pro)
- Ring mounting bracket (included with the doorbell)
- Ring wedge kit or offset mount (sold separately or in bundles)
- Measuring tape
- Pencil or masking tape
- Drill with appropriate bits (usually 3/32” or 1/8” pilot bit)
- Screwdriver (Phillips head)
- Level
- Silicone caulk or exterior sealant
- Smartphone with Ring app installed
- Optional: Stud finder (if mounting into drywall)
- Optional: Wire strippers (if hardwiring)
Having everything ready will make the installation process smoother and faster.
Step 1: Assess Your Door Frame
The first step is to evaluate your door frame to determine the best mounting approach.
Measure the Available Space
Use a measuring tape to check the width of the flat surface next to your door. Look for a spot that’s:
- At least 1.5 inches wide (minimum for most brackets)
- Vertical and relatively flat
- Within 5–6 feet of the door handle (for optimal motion detection)
- Accessible for wiring (if hardwiring)
If the space is less than 2 inches wide, you’ll likely need a wedge or offset mount.
Check for Obstructions
Look for potential obstacles such as:
- Door trim or molding that sticks out
- Light fixtures or doorbells already in place
- Windows or glass panels nearby
- Electrical wires or plumbing (use a stud finder to detect hidden hazards)
Avoid mounting directly over glass or reflective surfaces, as this can cause glare in your video footage.
Test Wi-Fi Signal Strength
Open the Ring app and go to Device Health > Signal Strength. Hold your phone where you plan to install the doorbell and check the signal. You want at least 2–3 bars. If the signal is weak, consider:
- Moving your router closer
- Using a Wi-Fi extender
- Choosing a different mounting location
A strong signal ensures reliable alerts and video streaming.
Step 2: Choose the Right Mounting Accessory
Ring offers several mounting accessories designed for tricky installations. For narrow door frames, the most useful are:
Ring Wedge Kit
The Ring Wedge Kit includes angled brackets that tilt the doorbell 15° or 30° to the left or right. This allows you to mount the doorbell on a narrow surface while still pointing it toward the walkway.
Best for: Frames with limited width but enough height.
Ring Corner Mount
The Corner Mount lets you attach the doorbell to the corner of a door frame or wall. It’s ideal when you have very little flat surface on either side of the door.
Best for: Tight corners or L-shaped entryways.
Ring Offset Mount
The Offset Mount extends the doorbell away from the wall, giving you more flexibility in positioning. It’s useful when you need to avoid trim or get a better angle.
Best for: Recessed doors or frames with protruding elements.
You can purchase these accessories directly from Ring or third-party retailers. Make sure to choose the one that matches your doorbell model.
Step 3: Prepare the Mounting Location
Once you’ve selected the right mount, it’s time to prepare the area.
Clean the Surface
Wipe down the door frame with a damp cloth to remove dust, dirt, or grease. Let it dry completely. A clean surface ensures better adhesion if you’re using adhesive mounts (though drilling is recommended for permanent installs).
Mark the Mounting Points
Hold the mounting bracket (or wedge/offset) against the door frame where you want to install it. Use a level to make sure it’s straight. Then, mark the screw holes with a pencil or a small piece of masking tape.
Pro tip: If you’re using a wedge, make sure the angled side faces the direction you want the camera to point.
Pre-Drill Pilot Holes
Using a drill bit slightly smaller than your screws, pre-drill holes at the marked spots. This prevents the wood from splitting, especially on narrow or delicate trim.
If you’re mounting into drywall, use wall anchors for extra support. For brick or concrete, use masonry screws and anchors.
Step 4: Install the Mounting Bracket
Now it’s time to attach the bracket securely.
Attach the Wedge or Offset (If Using)
If you’re using a wedge or offset mount, attach it to the door frame first using the provided screws. Make sure it’s tight and level.
Secure the Main Bracket
Place the main Ring mounting bracket onto the wedge or directly onto the frame. Align the screw holes and insert the screws. Tighten them firmly, but don’t over-tighten—this can strip the screw holes or damage the bracket.
Double-check that the bracket is level and stable. Give it a gentle tug to ensure it’s secure.
Run the Wires (If Hardwiring)
If you’re hardwiring your Ring Doorbell (recommended for Doorbell Pro or if you want continuous power), feed the wires through the bracket and connect them to the terminals on the back of the doorbell.
Important: Turn off power at the breaker before working with electrical wires. If you’re unsure, consult an electrician.
For battery-powered models, skip this step—just make sure the battery is charged.
Step 5: Attach the Ring Doorbell
With the bracket in place, it’s time to mount the doorbell.
Slide the Doorbell Onto the Bracket
Align the back of the Ring Doorbell with the mounting bracket and slide it down until it clicks into place. You should hear a secure snap.
Secure with the Security Screw
Use the included security screw and screwdriver to fasten the doorbell to the bracket. This prevents theft and ensures it stays in place.
Adjust the Angle (If Needed)
If your doorbell isn’t pointing in the right direction, you can adjust it slightly. Most Ring models allow a small range of motion. Loosen the security screw just enough to tilt the doorbell, then retighten.
For better control, use the Ring app’s motion zones to fine-tune detection areas.
Step 6: Weatherproof and Seal the Installation
To protect your doorbell from the elements, especially on exposed door frames, take a few extra steps.
Apply Silicone Caulk
Run a thin bead of exterior-grade silicone caulk around the edges of the mounting bracket where it meets the door frame. This prevents water from seeping behind the mount and causing damage.
Avoid covering the camera lens or motion sensors.
Check for Gaps
Make sure there are no large gaps between the bracket and the wall. If there are, fill them with caulk or use foam weatherstripping for insulation.
This also helps reduce wind noise in your video recordings.
Step 7: Test the Doorbell
Before calling the job done, test everything thoroughly.
Check Video Quality
Open the Ring app and view the live feed. Make sure the image is clear, the lighting is good, and the angle captures the walkway and front of the door.
Test Motion Detection
Walk in front of the doorbell to trigger motion alerts. Adjust the motion zones in the app if needed to avoid false alarms from passing cars or trees.
Verify Night Vision and Two-Way Talk
Test the doorbell at night to ensure the infrared night vision works. Also, try using the two-way talk feature to confirm audio clarity.
Check Battery or Power Status
If using a battery model, check the charge level in the app. For hardwired models, ensure the doorbell stays powered during the day.
Troubleshooting Common Issues
Even with careful planning, you might run into problems. Here’s how to fix the most common ones.
Doorbell Won’t Stay Secure
If the mount feels loose, double-check that:
- The screws are tight
- Wall anchors are used (if needed)
- The wedge or offset is properly attached
Consider using longer screws or adding a small bracket for extra support.
Poor Video Angle
If the camera is pointing too high or too low:
- Adjust the wedge angle
- Reposition the bracket slightly
- Use the app’s motion zones to focus on key areas
Avoid mounting too high—ideally, the lens should be 48–60 inches from the ground.
Weak Wi-Fi Signal
If alerts are delayed or video buffers:
- Move your router closer
- Install a Wi-Fi extender
- Switch to a 2.4 GHz network (better range than 5 GHz)
The Ring app will show signal strength—aim for “Good” or “Excellent.”
Battery Drains Too Fast
For battery-powered models:
- Reduce motion sensitivity
- Shorten video length
- Avoid extreme temperatures
Consider switching to a hardwired model if battery life is a persistent issue.
Water or Moisture Behind the Mount
If you notice condensation or water:
- Reapply silicone caulk
- Ensure proper drainage
- Check for leaks in nearby gutters or downspouts
A well-sealed mount should last for years without issues.
Pro Tips for Narrow Door Frame Installs
Here are some expert tips to make your installation even better:
- Use a laser level: For precise alignment, especially on uneven surfaces.
- Label your wires: If hardwiring, label the transformer wires to avoid confusion.
- Install during daylight: Natural light makes it easier to see what you’re doing.
- Take photos before drilling: Document the original setup in case you need to revert.
- Keep spare screws: Store extra hardware in a labeled bag for future adjustments.
- Schedule regular checks: Inspect the mount every 6 months for loose screws or wear.
Conclusion
Mounting a Ring Doorbell on a narrow door frame doesn’t have to be a headache. With the right tools, accessories, and techniques, you can achieve a secure, professional-looking installation that enhances your home security.
Start by measuring your space and choosing the best mounting solution—whether it’s a wedge, corner mount, or offset bracket. Prepare the area carefully, drill pilot holes, and attach the bracket securely. Don’t forget to weatherproof the installation and test all features using the Ring app.
Even in tight spaces, your Ring Doorbell can deliver clear video, reliable motion detection, and peace of mind. Follow this guide step by step, and you’ll have a smart doorbell that works perfectly—no matter how narrow your door frame is.
Now go ahead and upgrade your entryway with confidence!
