How to Mount Ring Doorbell on Siding: A Complete Step-by-Step Guide

So, you’ve got your shiny new Ring Doorbell and you’re ready to install it—but your home has vinyl or wood siding. No worries! Mounting a Ring Doorbell on siding is totally doable, even if the surface isn’t perfectly flat. With the right tools, a little patience, and this detailed guide, you’ll have your smart doorbell up and running in under an hour.

In this guide, we’ll walk you through everything you need to know about how to mount Ring Doorbell on siding. Whether you’re installing a Ring Video Doorbell, Ring Doorbell 2, Ring Doorbell 3, Ring Doorbell 4, or the Ring Doorbell Pro, the process is very similar. We’ll cover tool requirements, safety tips, step-by-step instructions, troubleshooting, and pro tricks to make your installation look clean and professional.

By the end of this article, you’ll not only have your Ring Doorbell securely mounted, but you’ll also understand how to optimize its performance—so you get the best video quality, motion detection, and Wi-Fi connection possible.

Let’s get started!

What You’ll Need Before You Begin

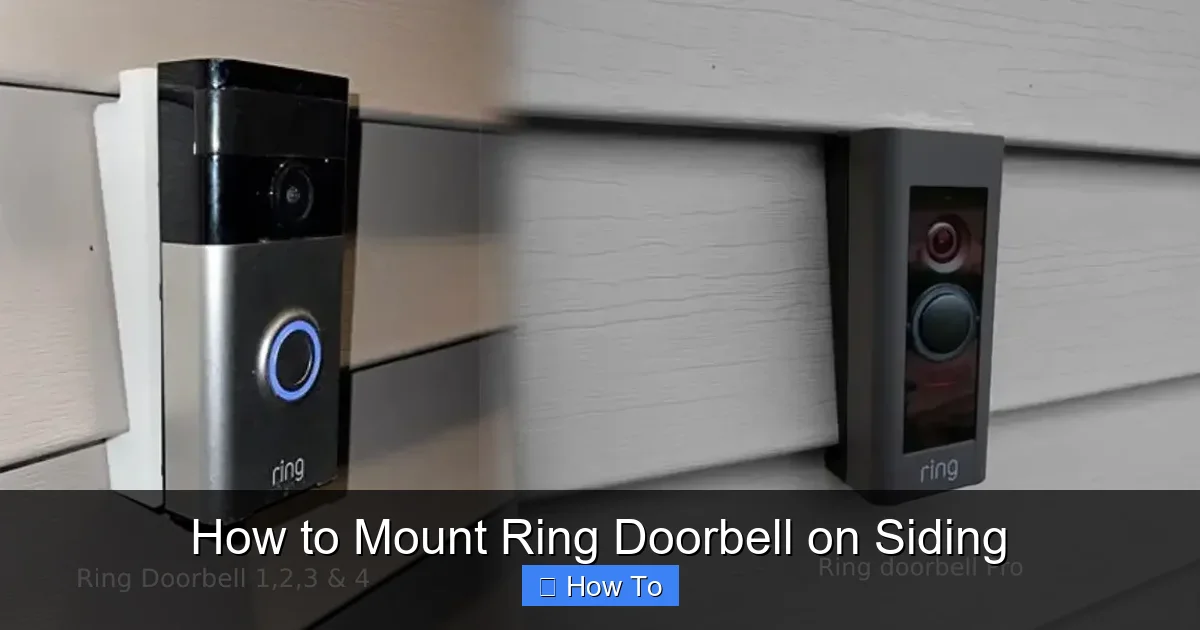

Visual guide about How to Mount Ring Doorbell on Siding

Image source: d2j6dbq0eux0bg.cloudfront.net

Before you grab your drill and start poking holes in your siding, take a moment to gather all the necessary tools and materials. Having everything ready will save you time and frustration.

Here’s your checklist:

• Ring Doorbell (any model)
• Ring mounting bracket (included in the box)
• Screwdriver (Phillips head)
• Power drill with drill bits (1/8″ and 3/16″ recommended)
• Level (a small bubble level works great)
• Pencil or painter’s tape for marking
• Measuring tape
• Wire strippers (if hardwiring)
• Electrical tape (if hardwiring)
• Exterior-grade silicone caulk
• Ladder (if mounting above eye level)
• Safety goggles and gloves

Optional but helpful:

• Stud finder (to avoid drilling into wall studs if possible)
• Wireless doorbell chime (if not hardwiring)
• Extension cord (for power drill if outlet is far)

Pro Tip: If you’re hardwiring your Ring Doorbell, make sure your existing doorbell transformer provides at least 16–24 volts AC. Most modern doorbells do, but older homes may need an upgrade. Check Ring’s compatibility tool online if you’re unsure.

Step 1: Choose the Best Location

Picking the right spot is crucial. You want your Ring Doorbell to capture clear video of visitors, detect motion reliably, and stay connected to your Wi-Fi network.

Ideal Placement Guidelines

• Height: Mount the doorbell about 48 inches (4 feet) from the ground. This is the standard height for most doorbells and ensures a good view of people’s faces.
• Angle: The camera should face straight ahead or slightly downward. Avoid pointing it directly at the sun or a bright window, which can cause glare.
• Clearance: Leave at least 6–12 inches of space around the doorbell so it doesn’t get blocked by doors, plants, or mailboxes.
• Wi-Fi Signal: Test your Wi-Fi strength at the installation spot using your phone. If the signal is weak, consider a Wi-Fi extender or relocating the router.

Dealing with Siding Challenges

Siding can be tricky because it’s often uneven, textured, or slightly curved. Here’s how to handle common issues:

• Vinyl Siding: It’s lightweight and flexible. Avoid over-tightening screws, which can crack or warp the material.
• Wood Siding: More durable but can split if you drill too close to the edge. Use pilot holes and go slow.
• Textured or Rough Surfaces: The included mounting bracket may not sit flush. Use the wedge mount (included) to angle the doorbell correctly.

Pro Tip: If your siding has deep grooves or is very uneven, consider using a small piece of wood or composite backing (like a 2×4 cut to size) behind the bracket. Secure it to the wall first, then mount the bracket to the backing. This creates a flat, stable surface.

Step 2: Turn Off Power (If Hardwiring)

Safety first! If you’re hardwiring your Ring Doorbell to your existing doorbell wires, you must turn off the power at the breaker box.

How to Safely Shut Off Power

1. Locate your home’s electrical panel (usually in the basement, garage, or utility closet).
2. Find the breaker labeled “Doorbell,” “Front Door,” or something similar. If unsure, turn off the main breaker to be safe.
3. Test the existing doorbell by pressing it. If it doesn’t ring, the power is off.
4. Use a non-contact voltage tester near the wires to double-check that no electricity is flowing.

Important: Never assume the power is off just because the doorbell doesn’t ring. Always test with a voltage tester.

If you’re using the Ring Doorbell in battery mode (no wires), you can skip this step. But even then, it’s a good idea to turn off the power if you’re working near electrical wires.

Step 3: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, you’ll need to remove it first.

Steps to Remove the Old Unit

1. Unscrew the old doorbell from the wall.
2. Carefully pull it away from the siding to expose the wires.
3. If hardwiring, disconnect the wires by loosening the terminal screws or untwisting wire nuts.
4. Label the wires (e.g., “Front” and “Trans”) so you know which is which when reconnecting.
5. Tuck the wires back into the wall slightly so they don’t get in the way.

Pro Tip: Take a photo of the wiring before disconnecting. This makes reinstallation much easier.

Step 4: Install the Mounting Bracket

Now it’s time to mount the Ring bracket. This is the most important step for a secure, long-lasting installation.

Mark the Mounting Holes

1. Hold the mounting bracket against the siding at your chosen location (about 48 inches high).
2. Use a level to make sure it’s straight. Adjust as needed.
3. Mark the center of each screw hole with a pencil or a piece of painter’s tape.
4. Double-check the alignment with the level before drilling.

Drill Pilot Holes

1. Use a 1/8″ drill bit to create pilot holes at each marked spot.
2. Drill slowly and gently—especially on vinyl siding, which can crack under pressure.
3. If drilling into wood, you can use a slightly larger 3/16″ bit for a snug fit.

Pro Tip: Place a small piece of painter’s tape over the siding before drilling. This helps prevent the drill bit from slipping and reduces the risk of cracking.

Secure the Bracket

1. Align the bracket with the pilot holes.
2. Insert the included screws and tighten them with a screwdriver or drill on a low torque setting.
3. Don’t overtighten! This can damage the siding or strip the screw holes.
4. If the bracket doesn’t sit flush due to uneven siding, use the included wedge mount to adjust the angle.

Pro Tip: For extra stability on loose or warped siding, add a dab of exterior-grade silicone caulk behind the bracket before screwing it in. This helps seal gaps and prevents moisture from getting behind the siding.

Step 5: Connect the Wires (If Hardwiring)

If you’re hardwiring your Ring Doorbell, now’s the time to connect the wires.

How to Connect the Wires

1. Strip about 1/4 inch of insulation from the ends of the doorbell wires (if not already done).
2. Loosen the terminal screws on the back of the Ring Doorbell.
3. Wrap the exposed wire around the screw terminals (one wire per terminal).
4. Tighten the screws securely, but don’t over-tighten.
5. Tuck the wires neatly behind the doorbell to avoid pinching.

Pro Tip: If the wires are too short, use wire extenders or pigtail connectors. Never leave exposed wire outside the terminal.

If you’re using battery power, skip this step. Just make sure the battery is fully charged before mounting.

Step 6: Attach the Ring Doorbell

With the bracket in place and wires connected (if applicable), it’s time to attach the doorbell.

Mounting the Device

1. Align the Ring Doorbell with the mounting bracket.
2. Slide it down until it clicks into place.
3. Secure it with the included security screw using the provided screwdriver (or a standard Phillips head).
4. Make sure it’s snug and doesn’t wobble.

Pro Tip: If the doorbell feels loose, check that the bracket is fully secured. You can also add a small piece of rubber or foam tape between the bracket and doorbell for a tighter fit.

Step 7: Seal the Screw Holes

This step is often overlooked but super important for preventing water damage.

How to Waterproof the Installation

1. Apply a small bead of exterior-grade silicone caulk around each screw head.
2. Smooth it with your finger or a caulk tool to create a watertight seal.
3. Let it dry for at least 2–4 hours before exposing it to rain.

Why this matters: Water can seep behind siding through screw holes, leading to rot, mold, or structural damage. A little silicone now can save you big repair costs later.

Step 8: Restore Power and Test the Doorbell

If you turned off the power earlier, now’s the time to turn it back on.

Powering Up

1. Go back to the breaker box and flip the breaker back on.
2. Wait 30–60 seconds for the doorbell to power up.
3. Open the Ring app on your phone and follow the setup prompts.
4. Test the doorbell by pressing the button (or triggering motion).

If the doorbell doesn’t turn on:

• Check that the wires are securely connected.
• Verify the breaker is on.
• Make sure the battery is charged (if using battery mode).

Step 9: Adjust Settings in the Ring App

Once your doorbell is installed, customize it for the best performance.

Key Settings to Adjust

• Motion Zones: Go to Device Settings > Motion Settings > Motion Zones. Draw zones to focus on your walkway and ignore busy streets or trees.
• Motion Sensitivity: Adjust how sensitive the motion detection is. Lower sensitivity reduces false alerts.
• Live View: Test the video quality and audio. Make sure the image is clear and the microphone picks up sound.
• Chime Settings: If using a Ring Chime or Echo device, pair it in the app so you hear alerts inside.

Pro Tip: Enable “People Only Mode” to reduce notifications from cars, animals, or moving shadows. This feature uses AI to detect human shapes.

Troubleshooting Common Issues

Even with careful installation, you might run into a few hiccups. Here’s how to fix them.

Problem: Doorbell Won’t Turn On

• Check power: Is the breaker on? Are the wires connected?
• Battery dead: Charge the battery fully before installing.
• Faulty unit: Contact Ring support for a replacement.

Problem: Weak Wi-Fi Signal

• Move your router closer or add a Wi-Fi extender.
• Avoid mounting near metal objects or thick walls.
• Use the Ring app’s signal strength tool to find the best spot.

Problem: Video is Blurry or Glared

• Clean the lens with a microfiber cloth.
• Adjust the angle to avoid direct sunlight.
• Use the wedge mount to tilt the camera slightly downward.

Problem: False Motion Alerts

• Adjust motion zones to exclude busy areas.
• Lower motion sensitivity.
• Trim bushes or trees that move in the wind.

Problem: Water Leaking Behind Siding

• Remove the doorbell and reapply silicone caulk around screw holes.
• Check for cracks in the siding and repair if needed.
• Consider using a flashing kit for extra protection.

Maintenance Tips for Long-Term Performance

Your Ring Doorbell will work great for years with a little upkeep.

• Clean the lens monthly: Use a soft, dry cloth to wipe away dust, dirt, or spiderwebs.
• Check screws annually: Make sure the mounting bracket is still tight and secure.
• Update firmware: The Ring app will notify you when updates are available. Install them promptly.
• Replace the battery: If using battery mode, recharge or replace the battery every 6–12 months.
• Inspect for damage: Look for cracks, loose parts, or signs of water intrusion.

Final Thoughts

Mounting a Ring Doorbell on siding might seem tricky at first, but with the right approach, it’s a straightforward DIY project. By following this guide, you’ve learned how to mount Ring Doorbell on siding safely, securely, and effectively.

Remember: take your time, use the right tools, and don’t skip the waterproofing step. A well-installed doorbell not only looks great but also performs reliably in all weather conditions.

Now that your Ring Doorbell is up and running, you can enjoy peace of mind knowing you’ll always see who’s at your door—whether you’re home or halfway around the world.

Happy installing!
