Moving a doorbell box may seem tricky, but with the right tools and steps, it’s a manageable DIY project. This guide walks you through planning, disconnecting, relocating, and reconnecting your doorbell safely and effectively.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before working on your doorbell to prevent shocks or damage.
- Plan the new location wisely: Choose a spot that’s visible, accessible, and within wiring reach—ideally near the front door but not in high-traffic zones.
- Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for a smooth relocation.
- Label wires during removal: This prevents confusion when reconnecting the transformer and chime unit.
- Test before finalizing: Always test the doorbell after installation to ensure it works properly before securing everything in place.
- Consider wireless options: If running new wires is too complex, upgrading to a wireless doorbell can simplify the process.
- Check local codes: Some areas have electrical regulations—consult a professional if unsure.
How to Move Doorbell Box: A Complete Step-by-Step Guide
So, you’ve decided to move your doorbell box. Maybe your front door layout changed, you’re renovating, or the current spot is just awkward—blocked by a plant, too close to the doorframe, or hard to reach. Whatever the reason, relocating a doorbell box is totally doable with some planning and care.
This guide will walk you through the entire process—from turning off the power to testing your newly placed doorbell. Whether you’re a seasoned DIYer or a first-timer, we’ll keep things simple, safe, and stress-free. By the end, you’ll know exactly how to move a doorbell box without frying the system or calling an electrician.
Let’s get started.
Why Move a Doorbell Box?

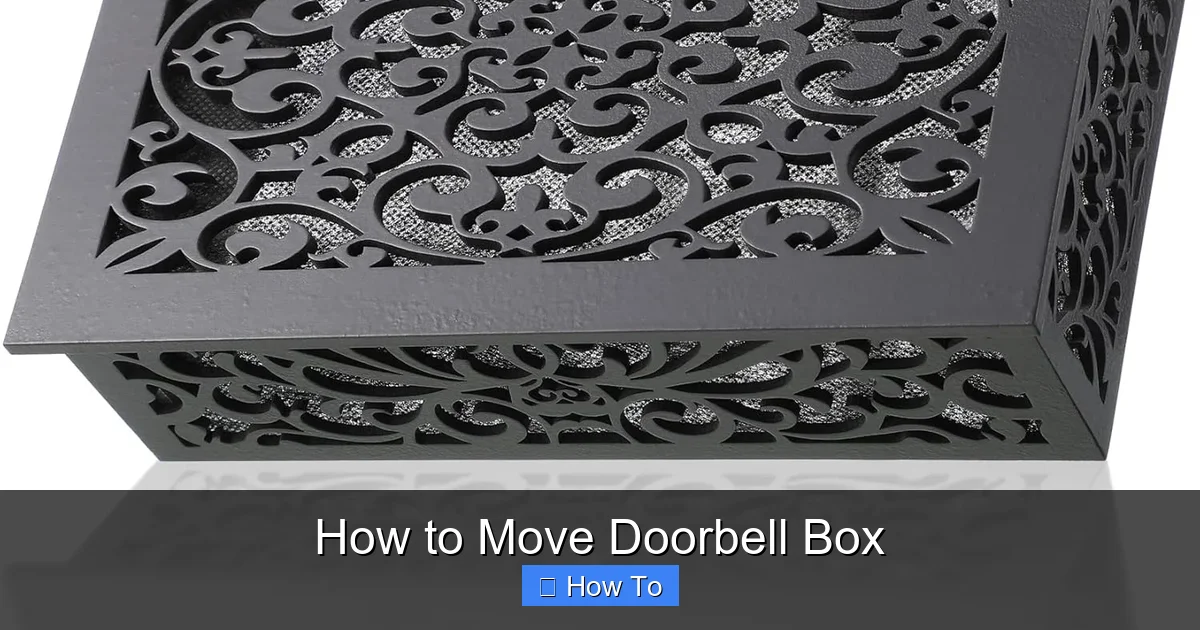

Visual guide about How to Move Doorbell Box
Image source: m.media-amazon.com
Before diving into the how, let’s talk about the why. There are several common reasons people want to move their doorbell box:
– **Aesthetic reasons:** The current location looks cluttered or outdated.
– **Home renovations:** New siding, doors, or landscaping may block access.
– **Better placement:** You want it higher, lower, or more centered for visibility.
– **Upgrading to a smart doorbell:** Many smart models require a different mounting setup.
– **Accessibility:** Elderly or disabled individuals may need it at a more convenient height.
Whatever your motivation, moving the doorbell box is a practical upgrade that improves both function and curb appeal.
Tools and Materials You’ll Need
Before you begin, gather these tools and supplies. Having everything ready will save time and frustration.
- Screwdrivers: Phillips and flathead for removing screws.
- Voltage tester: To confirm the power is off (non-contact type works best).
- Wire strippers: For exposing fresh wire ends if needed.
- Drill and drill bits: For making new mounting holes.
- Measuring tape: To plan the new location accurately.
- Pencil or marker: For marking drill points.
- Wall anchors and screws: If mounting into drywall or brick.
- Electrical tape: To secure and insulate wire connections.
- Wire nuts: For reconnecting wires safely.
- New doorbell box (optional): If replacing an old or damaged unit.
- Smart doorbell (optional): If upgrading during the move.
Pro tip: If you’re unsure about any tool, check your local hardware store—they often have rental programs for drills and other equipment.
Step 1: Turn Off the Power
Safety first! Doorbell systems run on low voltage, but they’re still connected to your home’s electrical circuit via a transformer. That means there’s a risk of shock if you’re not careful.
Locate the Doorbell Transformer
The transformer steps down your home’s 120V power to 8–24V for the doorbell. It’s usually hidden in one of these places:
– Inside the basement near the electrical panel
– In the attic
– Behind the doorbell chime unit inside the house
– Inside a closet or utility room
Look for a small black or gray box with wires coming out—often labeled “doorbell” or “transformer.”
Turn Off the Correct Circuit Breaker
Once you find the transformer, trace its wires back to the breaker panel. The circuit may be labeled “doorbell,” “chime,” or just “misc.” If not, use a process of elimination:
1. Turn off breakers one by one.
2. Test the doorbell after each switch—when it stops working, you’ve found the right one.
Alternatively, use a non-contact voltage tester near the transformer wires. When the power is off, the tester won’t beep or light up.
Double-Check with a Voltage Tester
Even after turning off the breaker, always test the wires at the doorbell box. Touch the tester to the wire terminals—if it lights up or beeps, the power is still on. Never assume it’s safe.
Step 2: Remove the Old Doorbell Box
Now that the power is off, it’s time to take down the existing unit.
Unscrew the Doorbell Button
Use a screwdriver to remove the screws holding the doorbell button to the wall. Gently pull it away from the surface. You’ll see two small wires connected to the back.
Label the Wires
This is crucial! The two wires (usually black and red, but color doesn’t matter) must be reconnected correctly. Use a piece of tape or a marker to label them “Front” or “Transformer” if they’re not already marked.
If the wires are short, don’t yank them. They may be tucked into the wall. Gently pull them out just enough to work with.
Disconnect the Wires
Loosen the terminal screws on the back of the doorbell button and remove the wires. If they’re connected with wire nuts, unscrew those instead.
Set the old button aside. You can reuse it or replace it with a new one.
Remove the Mounting Plate (If Applicable)
Some doorbell boxes have a separate mounting plate screwed into the wall. If yours does, remove those screws too. This makes it easier to patch the old hole later.
Step 3: Plan the New Location
Where should you put the new doorbell box? A good location balances visibility, accessibility, and wiring logistics.
Ideal Placement Tips
– **Height:** 48–60 inches from the ground—eye level for most adults.
– **Distance from door:** 6–12 inches from the doorframe, so it’s not blocked by the door when opened.
– **Avoid obstructions:** Keep it away from plants, mailboxes, or light fixtures.
– **Weather protection:** If outdoors, choose a spot under an eave or porch to protect from rain and sun.
– **Visibility:** It should be easy for visitors to find—no guessing where to press!
Check Wire Length
Measure the distance from the old location to the new one. Standard doorbell wires are usually 20–50 feet long. If your new spot is farther, you may need to extend the wires.
If the wires are too short, you’ll need to run new ones through the wall or use a wireless doorbell instead.
Mark the New Spot
Use a pencil to mark where the new mounting screws will go. Hold the doorbell box (or its mounting plate) against the wall and trace around it. Make sure it’s level using a bubble level or smartphone app.
Step 4: Run or Extend Wires (If Needed)
If your new location is within reach of the existing wires, you can simply feed them through the wall. But if not, you’ll need to extend them.
Feeding Existing Wires
1. Remove any trim or siding near the old hole.
2. Use a fish tape or flexible rod to pull the wires through the wall toward the new location.
3. Guide them out through the new hole.
This works best if the wall cavity is open or has minimal obstructions.
Extending the Wires
If the wires are too short, splice in new ones:
1. Strip about ½ inch of insulation from the ends of both the old and new wires.
2. Twist them together and secure with a wire nut.
3. Wrap the connection with electrical tape for extra protection.
4. Tuck the splice into the wall cavity.
Use the same gauge wire (usually 18–22 AWG) and ensure all connections are tight and insulated.
Alternative: Use a Wireless Doorbell
If running wires is too difficult, consider upgrading to a wireless doorbell. These use batteries and connect via Wi-Fi or radio frequency. No wires, no hassle—just mount the button and receiver.
Popular brands like Ring, Google Nest, and Arlo offer easy-to-install wireless models.
Step 5: Mount the New Doorbell Box
Now it’s time to secure the doorbell in its new home.
Drill Pilot Holes
Use a drill bit slightly smaller than your screws to make pilot holes at the marked spots. This prevents the wood or drywall from splitting.
If mounting into brick or concrete, use a masonry bit and wall anchors.
Attach the Mounting Plate
If your doorbell uses a plate, screw it into the wall first. Make sure it’s level and secure.
Connect the Wires
Take the two wires from the wall and connect them to the terminals on the back of the doorbell button. It doesn’t matter which wire goes where—doorbell circuits are not polarized.
Tighten the terminal screws or use wire nuts if required. Ensure no bare wire is exposed.
Secure the Doorbell Button
Align the button with the mounting plate and screw it into place. Don’t overtighten—this can crack the plastic.
Step 6: Restore Power and Test
You’re almost done! Now it’s time to see if everything works.
Turn the Power Back On
Go to your breaker panel and flip the doorbell circuit back on.
Test the Doorbell
Press the button. You should hear the chime inside the house. If not, check:
– Are the wires connected properly?
– Is the transformer receiving power?
– Is the chime unit working?
If the button feels loose or the light (on smart models) doesn’t turn on, double-check the wiring.
Adjust if Needed
If the sound is weak or the button is unresponsive, the wires may be loose or corroded. Turn the power off again and recheck connections.
Troubleshooting Common Issues
Even with careful planning, problems can arise. Here’s how to fix the most common ones.
Doorbell Doesn’t Ring
– **Check power:** Use a voltage tester at the transformer and button.
– **Inspect wires:** Look for breaks, loose connections, or corrosion.
– **Test the chime:** Bypass the button by touching the two wires together. If the chime rings, the button is faulty.
Weak or Intermittent Sound
– **Loose wires:** Tighten all connections.
– **Low voltage:** The transformer may be underpowered. Upgrade to a 16V or 24V model if needed.
– **Long wire runs:** Resistance increases with distance. Use thicker wire or a stronger transformer.
Button Feels Loose or Wobbles
– **Tighten screws:** Ensure the mounting plate and button are securely fastened.
– **Use wall anchors:** If the wall is soft or crumbling, anchors provide better support.
Smart Doorbell Not Connecting
– **Check Wi-Fi signal:** Move the router closer or use a Wi-Fi extender.
– **Update firmware:** Follow the manufacturer’s app instructions.
– **Verify wiring:** Some smart doorbells require a constant power source—ensure the transformer matches specs.
Safety Tips and Best Practices
Moving a doorbell box is generally safe, but follow these guidelines to avoid accidents:
– Always turn off power before touching any wires.
– Use insulated tools to reduce shock risk.
– Don’t work in wet conditions—water and electricity don’t mix.
– Wear safety glasses when drilling or fishing wires.
– Ask for help if you’re unsure—especially with wiring or wall penetration.
If you’re not confident, hire a licensed electrician. It’s better to pay for peace of mind than risk damage or injury.
When to Call a Professional
While most homeowners can move a doorbell box themselves, some situations call for expert help:
– You can’t locate the transformer.
– The wiring is damaged or outdated.
– You’re running wires through multiple walls or floors.
– You’re upgrading to a high-voltage smart doorbell.
– Local building codes require permits or inspections.
A professional can also advise on optimal placement and ensure compliance with electrical standards.
Upgrading During the Move
Moving your doorbell box is the perfect time to upgrade! Consider these options:
– **Smart doorbell:** Get motion alerts, video recording, and two-way audio (e.g., Ring, Nest Hello).
– **Illuminated button:** Helps visitors find it at night.
– **Decorative covers:** Match your home’s style with brass, bronze, or modern finishes.
– **Multiple chimes:** Add a second chime in the bedroom or backyard.
Just make sure your transformer and wiring can handle the new device’s power needs.
Final Thoughts
Moving a doorbell box might seem like a small task, but it can make a big difference in your home’s functionality and appearance. With the right preparation, tools, and safety steps, it’s a project anyone can tackle.
Remember: plan carefully, work safely, and test thoroughly. Whether you’re relocating for convenience, style, or a smart upgrade, you’ll enjoy the results every time someone rings the bell.
And if you run into trouble? Don’t hesitate to consult a pro. Better safe than sorry.
Now go enjoy your perfectly placed doorbell!
