Moving doorbell wires may seem tricky, but with the right tools and safety steps, it’s a manageable DIY project. This guide walks you through planning, disconnecting, rerouting, and reconnecting your doorbell wires to a new location—ensuring your system works perfectly afterward.
Key Takeaways
- Turn off power first: Always shut off the power at the breaker before touching any doorbell wires to avoid electrical shock.
- Plan your new location carefully: Choose a spot that’s visible, accessible, and within range of your doorbell chime and transformer.
- Use the right tools: A voltage tester, wire strippers, fish tape, and screwdrivers are essential for a smooth installation.
- Label wires during removal: Marking the front and rear wires prevents confusion when reconnecting them later.
- Test before finalizing: Always test the doorbell after reconnecting to ensure it rings properly before securing everything in place.
- Consider wire length and gauge: Standard doorbell wires are 18-22 gauge; ensure your new run doesn’t exceed recommended lengths to avoid signal loss.
- When in doubt, consult a pro: If you’re unsure about electrical work or wiring, hiring a licensed electrician is the safest choice.
How to Move Doorbell Wires: A Complete Step-by-Step Guide
So, you’ve decided to move your doorbell—maybe you’re remodeling your entryway, upgrading to a smart doorbell, or just want it in a more convenient spot. Whatever the reason, one of the biggest questions is: How do I move the doorbell wires? The good news? It’s totally doable with some planning, the right tools, and a bit of patience.
In this guide, we’ll walk you through the entire process of safely and effectively moving your doorbell wires. Whether you’re relocating the button, the chime, or both, we’ve got you covered. You’ll learn how to disconnect the old wiring, route new wires (or reuse existing ones), and reconnect everything so your doorbell works like new. No prior electrical experience? No problem. We’ll keep things simple, safe, and stress-free.
By the end of this guide, you’ll know exactly how to move doorbell wires without frying your system—or yourself. Let’s get started!
Why You Might Need to Move Doorbell Wires

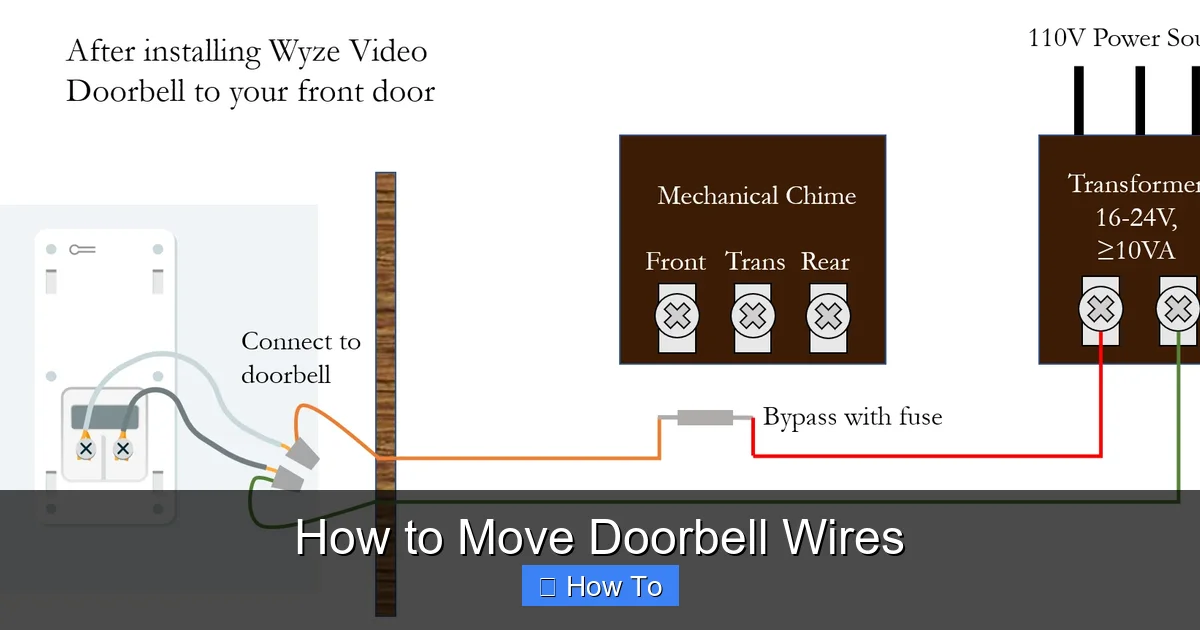

Visual guide about How to Move Doorbell Wires
Image source: howtogeek.com
Before diving into the how-to, let’s talk about the why. There are several common reasons homeowners decide to move their doorbell wires:
- Home Renovations: If you’re updating your front door, adding siding, or reconfiguring your entryway, the original doorbell location might no longer make sense.
- Upgrading to a Smart Doorbell: Many smart doorbells (like Ring, Nest, or Arlo) require a bit more power or a different wiring setup than traditional models. Moving wires may be necessary to meet these requirements.
- Aesthetic Preferences: Maybe the current button is hidden behind a bush or awkwardly placed near the doorframe. Moving it can improve curb appeal and functionality.
- Adding a Second Doorbell: If you have a large home or multiple entrances, you might want to install a second button and chime, requiring new wiring runs.
- Replacing Old or Damaged Wiring: Over time, wires can fray, corrode, or get chewed by pests. Moving them gives you a chance to install fresh, reliable wiring.
No matter your reason, the process remains similar. The key is careful planning and safety.
Tools and Materials You’ll Need
Before you begin, gather all the tools and materials. Having everything on hand will save time and prevent frustrating mid-project trips to the hardware store.
Essential Tools
- Screwdrivers (Phillips and flathead): For removing the doorbell button, chime unit, and electrical covers.
- Voltage Tester: A non-contact voltage tester is crucial for confirming the power is off.
- Wire Strippers: To strip insulation from the ends of the wires.
- Fish Tape or Flexible Drill Bit: For pulling wires through walls or conduits.
- Drill and Drill Bits: For creating new holes if needed.
- Pliers: For bending or gripping wires.
- Electrical Tape: To insulate connections temporarily.
- Wire Nuts (optional): If you need to extend or splice wires.
Materials
- Doorbell Wire (18-22 gauge): Low-voltage wire specifically designed for doorbells. You can reuse existing wire if it’s in good condition and long enough.
- Wall Anchors and Screws: For mounting the new button or chime.
- Conduit (optional): If running wires through exposed areas or for added protection.
- Labels or Tape: To mark wires during removal.
Safety Gear
- Safety Glasses: Protect your eyes when drilling or fishing wires.
- Gloves: To protect your hands from sharp edges or wire insulation.
Step 1: Turn Off the Power
Safety first! Even though doorbell systems use low voltage (typically 8–24 volts), they’re still connected to your home’s electrical circuit via a transformer. That means there’s a risk of shock if you’re not careful.
Locate the Doorbell Transformer
The transformer steps down your home’s 120V power to a safe, low-voltage level for the doorbell. It’s usually located in one of these places:
- Inside the doorbell chime unit (in older homes)
- In the basement near the furnace or electrical panel
- In the attic
- Inside a junction box near the doorbell circuit
Once you find it, trace the wires back to your breaker panel. The transformer is often connected to a dedicated circuit or a general lighting circuit.
Turn Off the Correct Breaker
Go to your electrical panel and turn off the breaker that controls the doorbell circuit. If you’re unsure which one it is, turn off the main breaker to be safe—but this will cut power to your entire home, so only do this if necessary.
Test for Power
Use your non-contact voltage tester to check the wires at the doorbell button and chime. Touch the tester to the wire terminals. If it beeps or lights up, the power is still on—double-check your breaker.
Pro Tip: Even if the tester shows no power, treat the wires as if they’re live until you’re certain. Better safe than sorry!
Step 2: Remove the Old Doorbell Button and Chime
With the power off, it’s time to disconnect the old components.
Remove the Doorbell Button
1. Unscrew the mounting screws on the doorbell button.
2. Gently pull the button away from the wall.
3. You’ll see two small wires connected to the back. These are your doorbell wires.
4. Loosen the terminal screws and carefully remove the wires.
5. Label the wires with tape—mark one as “Front” (usually the one connected to the front terminal) and the other as “Rear” or “Common.” This will help when reconnecting later.
Remove the Chime Unit
1. Locate the chime inside your home (usually in a hallway or near the front door).
2. Remove the cover by unscrewing it or pressing the release tabs.
3. Inside, you’ll see two or more wires connected to terminals labeled “Front,” “Rear,” and “Trans.”
4. Note which wire goes where—take a photo if needed.
5. Disconnect the wires, again labeling them clearly.
Pro Tip: If you’re keeping the same chime, you can reuse the existing wires. If you’re upgrading, check the new model’s wiring requirements.
Step 3: Plan the New Location
Now that everything is disconnected, it’s time to decide where to put your doorbell.
Choose the Button Location
Consider these factors:
- Visibility: Guests should easily see and reach the button.
- Protection from Weather: Avoid spots directly exposed to rain or snow. A covered porch or overhang is ideal.
- Proximity to Door: It should be within 6–12 inches of the doorframe for easy access.
- Wire Access: Can you route wires from this spot back to the chime and transformer?
Choose the Chime Location (If Moving It)
The chime should be:
- Central enough to be heard throughout the home
- Near an electrical outlet (if using a plug-in transformer)
- Accessible for future maintenance
Map the Wire Path
Trace the route the new wires will take from the button to the chime and transformer. Look for:
- Existing holes in walls or floors
- Spaces behind baseboards or trim
- Attic or basement access points
If you need to drill new holes, plan them carefully to avoid structural damage or electrical wires.
Step 4: Run the New Wires
This is often the trickiest part—getting the wires from point A to point B.
Option 1: Reuse Existing Wires (If Possible)
If your old wires are long enough and in good condition, you might be able to pull them through to the new location.
1. Tape the old wires to a fish tape or flexible rod.
2. Gently pull them through the wall cavity to the new button spot.
3. Be careful not to kink or damage the wires.
Option 2: Install New Wires
If reusing isn’t possible, you’ll need to run new wire.
1. Measure the distance from the new button location to the chime and transformer.
2. Cut a length of 18- or 22-gauge doorbell wire (two conductors, usually red and white).
3. Use a drill to create access holes if needed.
4. Feed the wire through using a fish tape. Attach the wire to the fish tape with electrical tape and gently pull it through.
5. Leave extra wire at both ends (about 6–12 inches) for connections.
Pro Tip: If running wires through exterior walls, consider using conduit to protect them from moisture and pests.
Dealing with Obstacles
– Studs and Joists: Drill holes in the center of studs (at least 1.25 inches from the edge) to avoid nails or screws.
– Insulation: Push wires gently through fiberglass insulation. Avoid compressing it too much.
– Multiple Stories: Use the basement or attic to route wires between floors.
Step 5: Connect the Wires to the New Button
Once the wires are in place, it’s time to connect them.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire end. Be careful not to cut the copper strands.
Attach to the Button
1. Loosen the terminal screws on the new doorbell button.
2. Insert one wire under each screw (it doesn’t matter which wire goes where—doorbell circuits are not polarized).
3. Tighten the screws securely.
4. Gently tug the wires to ensure they’re held firmly.
Mount the Button
1. Hold the button against the wall in the desired position.
2. Mark the screw holes.
3. Drill pilot holes if needed.
4. Secure the button with screws.
Step 6: Connect the Wires to the Chime
Now, connect the other end of the wires to the chime unit.
Identify the Terminals
Most chimes have three terminals:
- Front: Connects to the front doorbell button.
- Rear: Connects to a rear doorbell button (if you have one).
- Trans: Connects to the transformer.
If you’re only using one button, connect your wires to “Front” and “Trans.”
Make the Connections
1. Strip the wire ends.
2. Attach one wire to “Front” and the other to “Trans.”
3. Tighten the screws.
4. If you have a rear button, connect those wires to the “Rear” terminal.
Mount the Chime
1. Position the chime unit on the wall.
2. Mark and drill holes.
3. Secure with screws.
4. Replace the cover.
Step 7: Reconnect the Transformer
The transformer connects to your home’s electrical system and powers the doorbell.
Locate the Transformer Wires
These are usually two thicker wires (120V) coming from the transformer to the electrical box.
Reconnect to Power
1. Turn off the breaker again (just to be safe).
2. Connect the transformer wires to the circuit wires using wire nuts.
3. Secure the connections and tuck them into the electrical box.
4. Mount the transformer if it’s not already secured.
Restore Power
Go back to the breaker panel and turn the power back on.
Step 8: Test the Doorbell
Now for the moment of truth—does it work?
Press the Button
Have someone press the doorbell button while you listen for the chime.
– If it rings: Great! You’re done.
– If it doesn’t ring: Don’t panic. Let’s troubleshoot.
Common Issues and Fixes
- No sound: Check all connections. Make sure wires are tight and not loose. Verify the breaker is on.
- Weak or intermittent ring: This could mean a loose connection or wire that’s too long. Check wire gauge and length (should be under 200 feet for 18-gauge wire).
- Chime buzzes but doesn’t ring: The button may be stuck or shorted. Remove and inspect it.
- Transformer overheats: This could mean a short circuit. Turn off power and recheck all connections.
Troubleshooting Tips
Even with careful work, issues can arise. Here’s how to handle them:
Doorbell Doesn’t Work at All
– Double-check power at the breaker.
– Test the transformer with a multimeter (should output 8–24V AC).
– Ensure wires aren’t crossed or touching each other.
Only One Button Works (If You Have Two)
– Verify the second button is connected to the “Rear” terminal.
– Check for loose wires or a faulty button.
Smart Doorbell Won’t Power On
– Many smart doorbells need a stronger power supply. You may need a higher-voltage transformer or a power kit.
– Ensure the wires are thick enough (18-gauge recommended).
Wires Keep Coming Loose
– Use wire nuts or terminal screws tightly.
– Avoid bending wires sharply at connections.
Safety Reminders
Throughout this project, keep these safety tips in mind:
- Always turn off power before working on wires.
- Use a voltage tester to confirm power is off.
- Don’t work in wet conditions.
- Wear safety glasses and gloves.
- If you’re uncomfortable with electrical work, hire a professional.
When to Call a Professional
While moving doorbell wires is generally a DIY-friendly task, there are times when it’s best to call an electrician:
- You can’t locate the transformer.
- The wiring is old, brittle, or damaged.
- You need to run wires through concrete or masonry.
- You’re installing a complex system with multiple chimes or smart features.
- You’re unsure about electrical safety.
A licensed electrician can ensure the job is done safely and up to code.
Final Thoughts
Moving doorbell wires might sound intimidating, but with the right approach, it’s a straightforward project that can improve your home’s functionality and appearance. By following this guide—turning off the power, planning your layout, running wires carefully, and testing thoroughly—you’ll have a reliable doorbell system in its new location.
Remember: take your time, label everything, and don’t skip safety steps. A little patience now can save you from headaches later.
Whether you’re upgrading to a video doorbell or just repositioning for convenience, you’ve got this. And if you run into trouble, don’t hesitate to seek help. Happy wiring!
