Opening a Ring Doorbell Wired may seem tricky, but with the right tools and careful steps, it’s totally doable. This guide walks you through safely removing the faceplate, disconnecting wires, and accessing internal components—perfect for cleaning, repairs, or upgrades.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before handling your Ring Doorbell Wired to prevent shocks or damage.
- Use the right tools: A small Phillips screwdriver and a plastic prying tool are essential for safely opening the device without scratching or cracking it.
- Remove the faceplate carefully: Gently pry open the front cover using the notch at the bottom—don’t force it to avoid breaking clips.
- Label wires before disconnecting: Take a photo or label wires so you can reconnect them correctly during reassembly.
- Handle internal components with care: Avoid touching circuit boards directly; use anti-static precautions if possible.
- Test after reassembly: Restore power and check that your doorbell functions properly through the Ring app.
- Seek professional help if unsure: If you’re uncomfortable with electrical work, consult a licensed electrician.
Introduction: Why You Might Need to Open Your Ring Doorbell Wired
So, you’ve got a Ring Doorbell Wired installed—great choice! It keeps your home secure, lets you see who’s at the door from anywhere, and even records activity. But what happens when something goes wrong? Maybe the video is glitchy, the motion detection isn’t working, or you just want to clean dust buildup inside. Or perhaps you’re planning to upgrade or replace a component.
Whatever your reason, knowing how to open a Ring Doorbell Wired safely and correctly is a valuable skill. Unlike battery-powered models, the wired version is connected directly to your home’s electrical system, which means extra caution is needed. But don’t worry—this guide will walk you through every step, from turning off the power to reassembling your device like a pro.
By the end of this guide, you’ll feel confident opening your Ring Doorbell Wired for maintenance, troubleshooting, or repairs. We’ll cover the tools you need, detailed step-by-step instructions, safety tips, and even common mistakes to avoid. Whether you’re a DIY enthusiast or just trying to fix a small issue, this guide has you covered.
What You’ll Need Before Starting

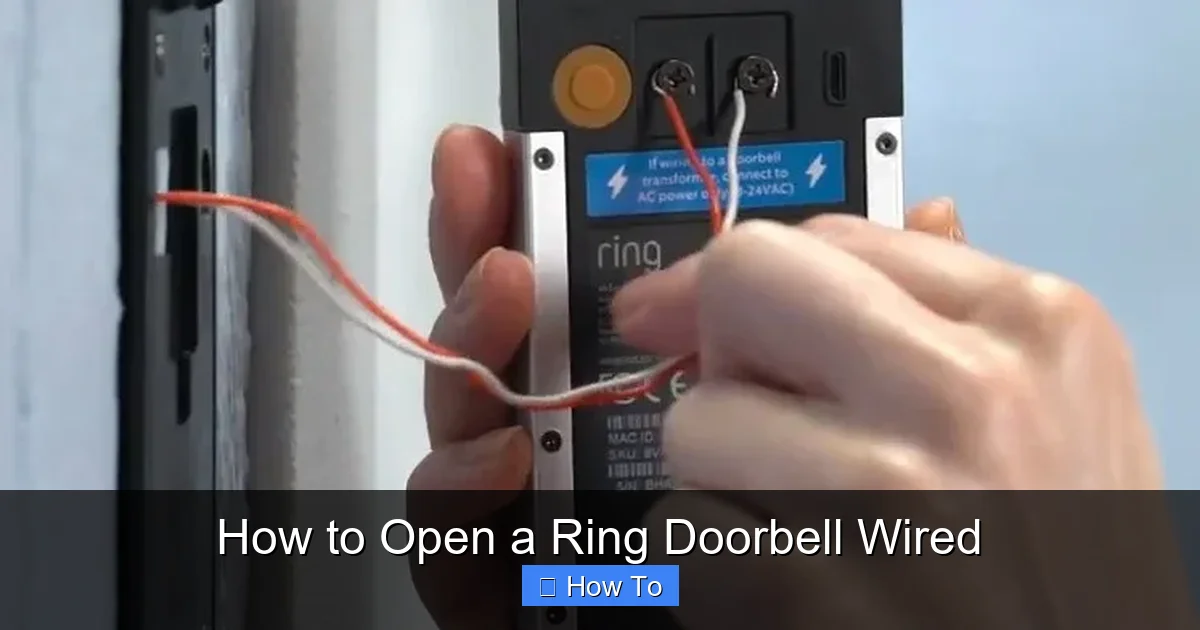

Visual guide about How to Open a Ring Doorbell Wired
Image source: i1.wp.com
Before you even think about touching your Ring Doorbell Wired, gather the right tools and prepare your workspace. Rushing into this without the proper equipment can lead to damage—or worse, injury.
Here’s a quick checklist of what you’ll need:
- Small Phillips-head screwdriver: Most Ring Doorbell models use tiny screws that require precision.
- Plastic prying tool or guitar pick: This helps gently separate the faceplate without scratching or cracking it.
- Non-conductive work surface: A wooden table or anti-static mat is ideal.
- Flashlight or phone light: Good lighting makes it easier to see small components.
- Electrical tape and wire labels (optional but recommended): These help you remember which wire goes where.
- Camera or smartphone: Take photos at each step to help with reassembly.
- Voltage tester (optional but smart): Double-check that power is truly off before proceeding.
Also, make sure you’re working in a dry, well-lit area. Avoid rainy or humid conditions, and never attempt this during a storm. Safety first!
Step 1: Turn Off the Power at the Breaker
This is the most important step—and we can’t stress it enough. Your Ring Doorbell Wired is connected to your home’s electrical system, typically running on 8–24 volts AC. While that’s low voltage, it’s still enough to give you a shock or damage the device if mishandled.
Locate Your Electrical Panel
Head to your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility closet. Look for the circuit that controls your doorbell. It might be labeled “Doorbell,” “Chime,” or something similar. If it’s not labeled, you may need to test circuits by turning them off one at a time and checking if your doorbell stops working.
Switch Off the Correct Breaker
Once you’ve identified the right breaker, flip it to the “OFF” position. To be extra safe, use a non-contact voltage tester near the doorbell wires after turning off the breaker. If the tester doesn’t beep or light up, power is off. If it does, double-check your breaker—you may have the wrong one.
Test the Doorbell
Go back to your doorbell and press the button. If nothing happens—no chime, no light, no app notification—then power is successfully off. This confirms it’s safe to proceed.
Pro Tip: Leave a note on the breaker box saying “Doorbell Work in Progress” so no one accidentally turns the power back on while you’re working.
Step 2: Remove the Faceplate
Now that the power is off, it’s time to access the inside of your Ring Doorbell Wired. The faceplate is the front cover that houses the camera, motion sensor, and button.
Locate the Release Notch
Flip your doorbell over so the back is facing up. At the very bottom edge, you’ll see a small notch or groove. This is your entry point. It’s designed specifically for prying open the faceplate without damaging the device.
Gently Insert the Prying Tool
Take your plastic prying tool (or a thin guitar pick) and insert it into the notch. Apply gentle upward pressure. You should feel the faceplate begin to lift slightly. Don’t force it—Ring uses small plastic clips to hold the faceplate in place, and forcing it can break them.
Work Around the Edges
Once you’ve loosened one side, carefully move the tool around the perimeter of the doorbell, gently releasing each clip. Go slowly and evenly. The faceplate should pop off with minimal resistance.
Set the Faceplate Aside
Once it’s free, place the faceplate face-down on a soft surface (like a towel) to avoid scratching the lens or screen. Be careful not to pull on any internal wires—they’re still connected at this point.
Common Mistake: Using a metal tool like a screwdriver can scratch or crack the plastic. Always use a plastic tool for prying.
Step 3: Disconnect the Wires
With the faceplate removed, you’ll now see the internal wiring connected to your Ring Doorbell Wired. These wires carry power from your home’s electrical system to the device.
Identify the Wires
You’ll typically see two wires: one labeled “Front” (or “Transformer”) and one labeled “Trans” (or “Chime”). These connect to the terminal screws on the back of the doorbell. The colors may vary—common combinations include red and white, black and white, or blue and brown.
Take a Photo for Reference
Before disconnecting anything, take a clear photo of the wiring setup. This will serve as your guide when it’s time to reconnect everything. You can also label the wires with tape and a marker (e.g., “Front” and “Trans”).
Loosen the Terminal Screws
Using your small Phillips screwdriver, gently loosen the two terminal screws. Don’t remove them completely—just loosen them enough so you can slide the wires out. Be careful not to drop the screws; they’re tiny and easy to lose.
Remove the Wires
Once the screws are loose, carefully pull the wires out of the terminals. If they’re stiff, wiggle them gently side to side while pulling. Avoid yanking, as this can damage the wire insulation or the terminal.
Pro Tip: If the wires are short or hard to reach, you can use needle-nose pliers to grip the wire near the terminal for better control.
Step 4: Access the Internal Components
Now that the wires are disconnected, you can fully remove the Ring Doorbell Wired from the mounting bracket and access the internal components.
Remove the Mounting Screws
Look at the back of the doorbell. You’ll see two screws securing it to the mounting bracket. Use your Phillips screwdriver to remove these screws. Set them aside in a small container so you don’t lose them.
Lift the Doorbell Off the Bracket
Once the screws are out, gently lift the doorbell away from the wall. It should come off easily. Be mindful of any remaining wire slack—don’t pull too hard.
Inspect the Interior
Now you have full access to the inside of your Ring Doorbell Wired. You’ll see the circuit board, camera module, microphone, speaker, and other components. This is your chance to clean dust, check for loose connections, or diagnose issues.
Cleaning Tips
If you’re opening the doorbell to clean it, use a soft, dry brush (like a clean makeup brush) to gently remove dust from the camera lens and sensors. Avoid using liquids or compressed air, as moisture can damage electronics.
For stubborn grime, lightly dampen a cotton swab with isopropyl alcohol and carefully wipe the lens. Let it dry completely before reassembly.
Safety Note: Avoid touching the circuit board with your fingers. The oils from your skin can cause corrosion over time. If you must handle it, wear anti-static gloves or touch a grounded metal object first to discharge static electricity.
Step 5: Perform Repairs or Maintenance
Now that your Ring Doorbell Wired is open, you can address the reason you opened it in the first place. Whether it’s cleaning, troubleshooting, or replacing a part, here’s what to keep in mind.
Common Issues and Fixes
- Blurry or foggy video: Clean the camera lens and check for condensation inside. If moisture is trapped, leave the doorbell open in a dry area for a few hours before reassembly.
- Intermittent connectivity: Check for loose wire connections or corrosion on the terminals. Clean with a dry brush or alcohol swab.
- Motion detection not working: Ensure the PIR (passive infrared) sensor isn’t blocked by dirt or debris. Clean it gently.
- Chime not ringing: Verify that the wires are securely connected and that your mechanical or digital chime is functioning.
Replacing Components
If you’re replacing a part (like a damaged camera module), make sure you have the correct replacement part for your specific Ring model. Ring does not officially support user-replaceable parts, so proceed at your own risk. Improper installation can void your warranty.
Testing Before Reassembly
If you’ve made repairs, consider testing the doorbell before fully reassembling it. Temporarily reconnect the wires and turn the power back on briefly to see if the issue is resolved. If everything works, turn the power off again before continuing.
Warning: Never leave the doorbell powered on while it’s open or partially assembled. This can cause short circuits or damage.
Step 6: Reassemble Your Ring Doorbell Wired
Once you’ve completed your maintenance or repairs, it’s time to put everything back together. Reassembly is essentially the reverse of disassembly—but with a few key tips to ensure success.
Reconnect the Wires
Refer to the photo you took earlier. Slide the wires back into their correct terminals and tighten the screws securely. Make sure the wires are fully inserted and not pinched or frayed.
Reattach to the Mounting Bracket
Place the doorbell back onto the mounting bracket and align the screw holes. Insert and tighten the two mounting screws. Don’t overtighten—this can crack the plastic.
Snap the Faceplate Back On
Align the faceplate with the main body and press it firmly around the edges until you hear the clips snap into place. Start at the top and work your way down. Avoid using excessive force.
Double-Check Everything
Before restoring power, give the doorbell a quick visual inspection. Make sure all screws are tight, wires are secure, and the faceplate is fully attached.
Step 7: Restore Power and Test
You’re almost done! Now it’s time to turn the power back on and make sure everything works.
Turn the Breaker Back On
Return to your electrical panel and flip the doorbell breaker back to the “ON” position.
Wait for the Doorbell to Boot
Your Ring Doorbell Wired will take a few seconds to power up. The LED light on the front should glow solidly (usually blue or white), indicating it’s connected.
Test the Functionality
Open the Ring app on your phone and check the live view. Press the doorbell button to see if the chime rings and if you receive a notification. Walk in front of the doorbell to test motion detection.
If everything works, congratulations—you’ve successfully opened and reassembled your Ring Doorbell Wired!
Troubleshooting Common Issues
Even with careful steps, things can sometimes go wrong. Here are a few common problems and how to fix them.
Doorbell Won’t Power On
- Check that the breaker is on.
- Verify wire connections are secure.
- Use a voltage tester to confirm power is reaching the doorbell.
- Ensure the faceplate is fully attached—some models won’t power on if it’s loose.
No Video or Poor Video Quality
- Clean the camera lens.
- Check Wi-Fi signal strength in the Ring app.
- Ensure the doorbell is properly seated on the mounting bracket.
Chime Doesn’t Ring
- Confirm wires are connected to the correct terminals.
- Test your mechanical or digital chime separately.
- Check the Ring app settings to ensure the chime is enabled.
Faceplate Won’t Snap Back On
- Make sure all internal components are seated properly.
- Check for obstructions or pinched wires.
- Align the faceplate carefully and press evenly around the edges.
When to Call a Professional
While opening a Ring Doorbell Wired is manageable for most homeowners, there are times when it’s best to call in an expert.
- You’re uncomfortable working with electricity.
- The wiring in your wall is old or damaged.
- You suspect a problem with your doorbell chime or transformer.
- You’ve tried troubleshooting but the issue persists.
A licensed electrician can safely inspect your wiring and ensure your doorbell is installed and functioning correctly. It’s always better to be safe than sorry.
Conclusion: You’ve Got This!
Opening a Ring Doorbell Wired might seem intimidating at first, but with the right preparation and careful steps, it’s a straightforward process. By turning off the power, using the correct tools, and following this guide, you can safely access the internal components for cleaning, repairs, or upgrades.
Remember: safety comes first. Always disconnect power, handle components gently, and don’t rush. Take photos, label wires, and test everything before finishing up. And if you ever feel unsure, don’t hesitate to seek professional help.
Now that you know how to open your Ring Doorbell Wired, you’re equipped to keep your smart doorbell running smoothly for years to come. Whether it’s a quick clean or a deeper fix, you’ve got the skills to handle it like a pro.
