Opening an old doorbell transformer may seem intimidating, but with the right tools and safety precautions, it’s a manageable DIY task. This guide walks you through the entire process—from identifying the transformer to safely accessing its components—while emphasizing electrical safety and proper handling.
Key Takeaways
- Safety first: Always turn off power at the circuit breaker before working on any electrical component, including doorbell transformers.
- Locate the transformer: Most old doorbell transformers are mounted inside the electrical panel, basement, or attic near the chime unit.
- Use the right tools: A voltage tester, screwdrivers, and insulated gloves are essential for safe disassembly.
- Understand the wiring: Familiarize yourself with low-voltage wiring and how the transformer connects to the doorbell circuit.
- Inspect for damage: Once opened, check for burnt wires, corrosion, or a blown fuse that may explain doorbell malfunctions.
- Replace if necessary: If the transformer is faulty, consider upgrading to a modern 16V or 24V model for better reliability.
- Test after reassembly: Always restore power and test the doorbell to ensure everything works correctly.
Introduction: Why You Might Need to Open an Old Doorbell Transformer
If your doorbell has stopped working, makes a faint buzz instead of a clear ring, or only works intermittently, the issue could be with the doorbell transformer. This small but crucial device converts standard household voltage (120V) down to a safer, low-voltage level (typically 16V or 24V) that powers your doorbell chime and button. Over time, especially in older homes, these transformers can degrade, overheat, or fail entirely.
Opening an old doorbell transformer isn’t something most homeowners attempt—partly because it involves electricity, and partly because the process isn’t well documented. But with the right knowledge and precautions, you can safely access, inspect, and even replace the internal components of your transformer. This guide will walk you through every step, from locating the transformer to safely opening its casing, diagnosing problems, and reassembling it—or replacing it altogether.
Whether you’re a DIY enthusiast or just trying to fix a stubborn doorbell, this comprehensive how-to will give you the confidence to tackle the job safely and effectively. We’ll cover everything you need to know, including safety protocols, tools, troubleshooting tips, and what to do if you find damage inside.
Understanding Your Doorbell Transformer

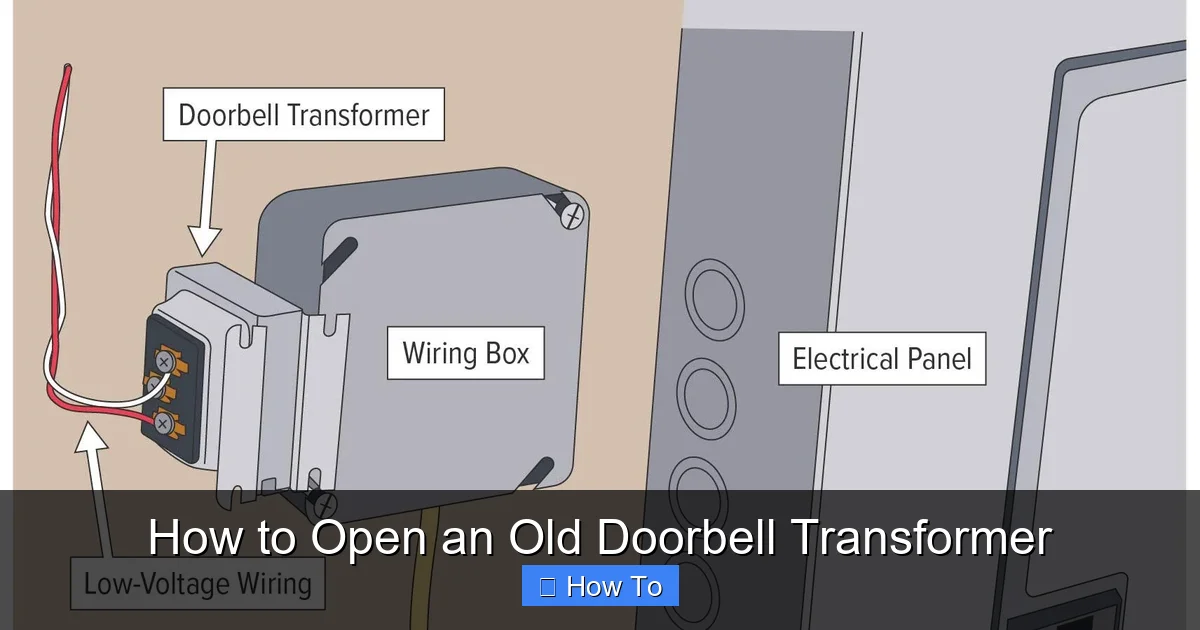

Visual guide about How to Open an Old Doorbell Transformer
Image source: res.cloudinary.com
Before you even think about opening the transformer, it’s important to understand what it does and where it’s located. The doorbell transformer is the heart of your doorbell system. It steps down the high voltage from your home’s electrical system to a low-voltage current that safely powers the doorbell button and chime.
Most transformers are small, rectangular or cylindrical devices, often mounted inside the electrical panel, basement, crawl space, or attic. They’re usually tucked away near the doorbell chime unit or wired directly into the main electrical box. Older models—common in homes built before the 1990s—may have metal enclosures, exposed terminals, or outdated wiring that requires extra care.
The transformer works by using electromagnetic induction to reduce voltage. When you press the doorbell button, it completes a circuit that sends low-voltage power from the transformer to the chime, causing it to ring. If the transformer fails, the doorbell won’t receive power, and nothing will happen when you press the button.
Knowing how your transformer functions helps you understand why it might fail and what to look for when inspecting it. Common signs of a failing transformer include:
– No sound when the button is pressed
– A faint hum or buzz from the chime
– The doorbell works only sometimes
– The chime sounds weak or distorted
If you’re experiencing any of these issues, it’s worth checking the transformer—especially if it’s an older model.
Safety First: Preparing to Work on Electrical Components
Working with electricity—even low-voltage systems—can be dangerous if you don’t take the proper precautions. The doorbell transformer is connected to your home’s main electrical supply, which means there’s still a risk of shock or short circuits if you’re not careful.
Here’s how to prepare safely:
Turn Off the Power at the Circuit Breaker
The most critical step is to shut off the power to the transformer. Locate your home’s main electrical panel (also called the breaker box). Look for the circuit that controls the doorbell or the area where the transformer is installed. If you’re unsure which breaker it is, turn off the main breaker to cut power to the entire house—this is the safest option.
Use a non-contact voltage tester to confirm that the power is off. Touch the tester to the wires connected to the transformer. If it doesn’t beep or light up, the power is off. If it does, double-check your breaker and try again.
Wear Protective Gear
Even with the power off, it’s smart to wear insulated gloves and safety glasses. These protect you from accidental contact with live wires or sharp metal edges inside the transformer housing.
Gather the Right Tools
You’ll need a few basic tools to safely open and inspect the transformer:
– Non-contact voltage tester
– Screwdrivers (Phillips and flathead)
– Needle-nose pliers
– Wire strippers (optional)
– Multimeter (for testing voltage output)
– Flashlight (for better visibility)
– Electrical tape
Having these tools ready will make the process smoother and safer.
Work in a Dry, Well-Lit Area
Avoid working in damp or humid conditions, as moisture increases the risk of electrical shock. Choose a dry, well-lit space—preferably indoors—where you can lay out your tools and work comfortably.
Locating the Doorbell Transformer
Finding the transformer is often the trickiest part of the process. Unlike modern smart doorbells that may have wireless components, traditional doorbell systems rely on a hardwired transformer connected to your home’s electrical system.
Here are the most common locations:
Inside the Electrical Panel

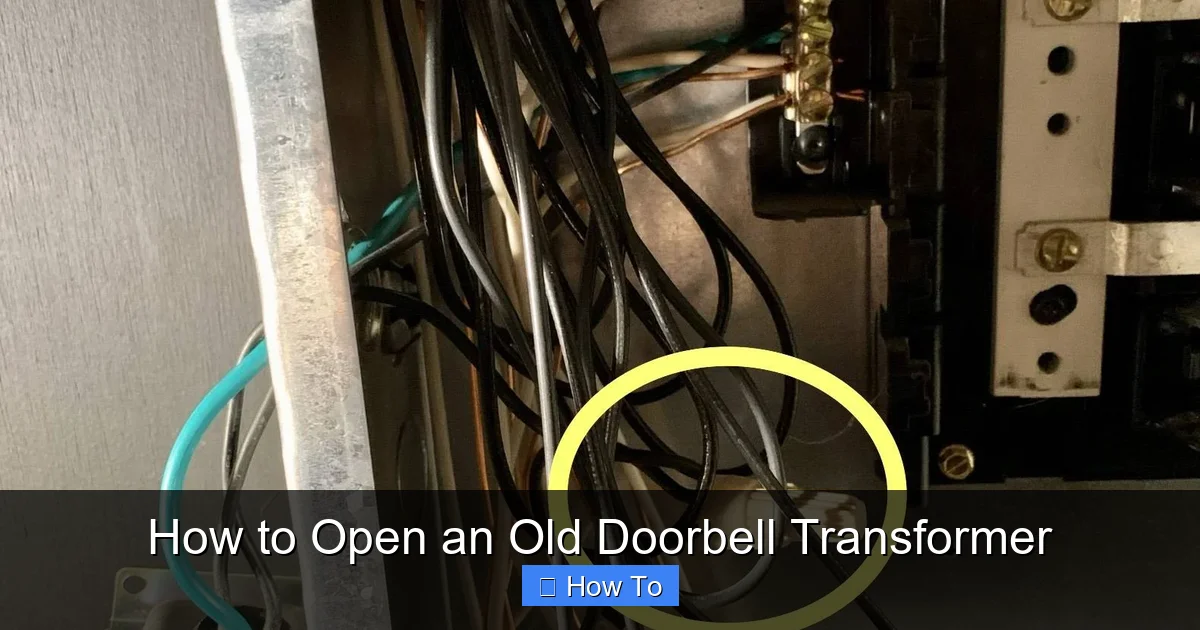

Many older transformers are mounted directly inside the main breaker box. Look for a small, rectangular device with two or three wires connected to it. It may be labeled “Doorbell” or “Transformer.” Some are screwed into the side of the panel, while others are clipped onto a bus bar.
Near the Doorbell Chime
In some homes, the transformer is mounted near the doorbell chime unit, often in the basement, attic, or utility closet. Follow the low-voltage wires from the chime—they usually lead back to the transformer.
In the Attic or Crawl Space
If your home has an unfinished attic or crawl space, the transformer might be tucked away in a corner or mounted to a joist. Use a flashlight to search along the wiring paths.
Behind the Doorbell Button
Rarely, the transformer is integrated into the doorbell button itself—especially in very old homes. However, this is uncommon, and most transformers are centralized.
Once you’ve located the transformer, take a photo or make a note of the wiring setup before disconnecting anything. This will help you reconnect everything correctly later.
Step-by-Step: How to Open an Old Doorbell Transformer
Now that you’ve located the transformer and taken safety precautions, it’s time to open it. The process varies slightly depending on the model, but most older transformers follow a similar design.
Step 1: Disconnect the Wires
Start by disconnecting the wires connected to the transformer. Most transformers have two sets of wires:
– **Line wires:** These connect to the 120V household circuit (usually black and white).
– **Load wires:** These connect to the doorbell button and chime (usually low-voltage, often red and white).
Use needle-nose pliers to gently loosen the terminal screws or wire nuts. Carefully pull the wires free. Label them with tape if needed (e.g., “Line In,” “To Chime”) to avoid confusion during reassembly.
Step 2: Remove the Transformer from Its Mounting
Most transformers are mounted with screws or clips. Use a screwdriver to remove the mounting hardware. If it’s clipped into the electrical panel, gently pry it loose with a flathead screwdriver.
Be careful not to damage the surrounding wiring or panel components.
Step 3: Open the Transformer Housing
This is the main step—opening the transformer itself. Older transformers often have a metal or plastic cover held in place by screws, rivets, or clips.
– If it has screws, use the appropriate screwdriver to remove them.
– If it has rivets, you may need to drill them out carefully. Use a small drill bit and go slowly to avoid damaging internal components.
– If it’s sealed with adhesive or heat, you might need to gently pry it open with a flathead screwdriver. Be cautious—forcing it could crack the casing.
Once the cover is off, you’ll see the internal components: a laminated iron core, copper windings, and possibly a fuse or thermal cutoff.
Step 4: Inspect the Internal Components
Now that the transformer is open, inspect it for signs of damage:
– **Burnt or discolored windings:** This indicates overheating or a short circuit.
– **Corrosion or rust:** Common in damp environments; can cause poor connections.
– **Blown fuse:** Some transformers have a small inline fuse that can blow if there’s a power surge.
– **Loose or broken wires:** Check all connections for tightness and integrity.
Use a multimeter to test the transformer’s output voltage. Set the meter to AC voltage and touch the probes to the low-voltage terminals. A working transformer should output between 16V and 24V. If it reads 0V or significantly lower, the transformer is likely faulty.
Step 5: Clean and Repair (If Possible)
If you find minor issues like corrosion or loose wires, you may be able to fix them:
– Clean corroded terminals with a wire brush or electrical contact cleaner.
– Tighten any loose connections.
– Replace a blown fuse with one of the same rating (check the transformer label for specifications).
However, if the windings are burnt or the core is damaged, the transformer is likely beyond repair and should be replaced.
Step 6: Reassemble the Transformer
If you’ve made repairs or just inspected the unit, it’s time to put it back together:
– Replace the cover and secure it with screws or clips.
– Reattach the transformer to its mounting location.
– Reconnect the wires to the correct terminals. Double-check your labels to ensure proper connections.
Step 7: Restore Power and Test
Once everything is reassembled, go back to the electrical panel and turn the power back on. Test the doorbell by pressing the button. If it rings clearly, you’ve successfully opened and inspected the transformer.
If it still doesn’t work, proceed to the troubleshooting section below.
Troubleshooting Common Issues
Even after opening and inspecting the transformer, you might still encounter problems. Here are some common issues and how to fix them:
The Doorbell Still Doesn’t Work
If the transformer tests fine but the doorbell remains silent, the issue might be elsewhere:
– **Faulty doorbell button:** Test the button with a multimeter for continuity. If it doesn’t close the circuit when pressed, replace it.
– **Broken chime unit:** Listen for a faint click when the button is pressed. If you hear a click but no ring, the chime may be damaged.
– **Loose or damaged wiring:** Check all low-voltage wires between the transformer, button, and chime for breaks or loose connections.
The Transformer Gets Hot
A transformer that overheats may be overloaded or shorted. Turn off the power immediately and inspect for:
– Excessive load (e.g., multiple chimes or smart doorbells drawing too much power)
– Short circuits in the wiring
– A failing internal component
If it continues to overheat, replace the transformer with a higher-capacity model (e.g., 24V instead of 16V).
Low or No Voltage Output
If your multimeter shows low or no voltage:
– Confirm the input voltage is correct (should be ~120V).
– Check for loose connections at the terminals.
– Test the fuse (if present).
– Consider replacing the transformer, especially if it’s over 10–15 years old.
Buzzing or Humming Sound
A constant buzz from the chime often indicates a weak or failing transformer. It may not be providing enough consistent power. Try replacing it with a new one.
When to Replace Instead of Repair
While it’s possible to open and inspect an old transformer, it’s not always worth repairing. Transformers are relatively inexpensive (typically $10–$25), and older models may not meet modern safety standards.
Consider replacing the transformer if:
– It’s more than 15 years old
– The casing is cracked or damaged
– Internal components are burnt or corroded
– You’re upgrading to a smart doorbell that requires more power
When replacing, choose a transformer with the correct voltage (usually 16V or 24V) and sufficient VA (volt-ampere) rating. A 16V 10VA transformer is common for standard doorbells, while smart doorbells may need 16V 30VA or higher.
Installation is straightforward: mount the new transformer, connect the wires, and test the system.
Conclusion: Taking Control of Your Doorbell System
Opening an old doorbell transformer might seem like a daunting task, but with the right preparation and safety measures, it’s well within the reach of most homeowners. By understanding how the transformer works, locating it safely, and carefully inspecting its components, you can diagnose and often fix common doorbell problems without calling an electrician.
Remember, safety is paramount—always turn off the power, use the right tools, and wear protective gear. If you’re ever unsure, consult a licensed electrician.
Whether you’re troubleshooting a silent doorbell or upgrading to a modern system, knowing how to access and evaluate your transformer gives you greater control over your home’s electrical systems. And with this guide, you’re now equipped to do just that—safely, confidently, and effectively.
