Opening a doorbell chime box is a simple task that allows you to troubleshoot, replace, or upgrade your doorbell system. This guide walks you through the process safely, whether you’re dealing with a wired or wireless model, and includes essential tips to avoid common mistakes.
Key Takeaways
- Safety first: Always turn off the power at the circuit breaker before working on a wired doorbell to prevent electric shock.
- Identify your chime box type: Know whether you have a wired, wireless, or smart doorbell system, as each requires a slightly different approach.
- Use the right tools: A screwdriver (Phillips or flathead), voltage tester, and possibly a drill are essential for most chime box installations.
- Check the mounting method: Most chime boxes are secured with screws, clips, or adhesive—knowing this helps you open them without damage.
- Inspect internal components: Once open, look for loose wires, corrosion, or damaged parts that may be causing issues.
- Test before reassembly: Always test the doorbell after making changes to ensure everything works properly before closing the box.
- Consult the manual: If you’re unsure, refer to the manufacturer’s guide for model-specific instructions.
How to Open Doorbell Chime Box: A Complete Step-by-Step Guide
If your doorbell isn’t ringing, sounds weak, or you’re planning to upgrade to a smart doorbell, you may need to open the chime box. The chime box—also called the doorbell chime unit—is typically mounted on a wall inside your home, usually in a hallway or near the front door. It’s the device that makes the “ding-dong” sound when someone presses the doorbell button outside.
While it might seem intimidating at first, opening a doorbell chime box is a straightforward DIY task that most homeowners can handle with basic tools and a little patience. Whether you’re troubleshooting a malfunction, replacing old wiring, or installing a new system, this guide will walk you through the entire process—safely and effectively.
In this comprehensive how-to guide, you’ll learn:
– How to identify your doorbell chime box type
– The tools and safety precautions you need
– Step-by-step instructions for opening wired, wireless, and smart chime boxes
– How to inspect and maintain internal components
– Troubleshooting common issues
– Tips for reassembly and testing
By the end, you’ll feel confident handling your doorbell system like a pro—no electrician required.
Understanding Your Doorbell Chime Box

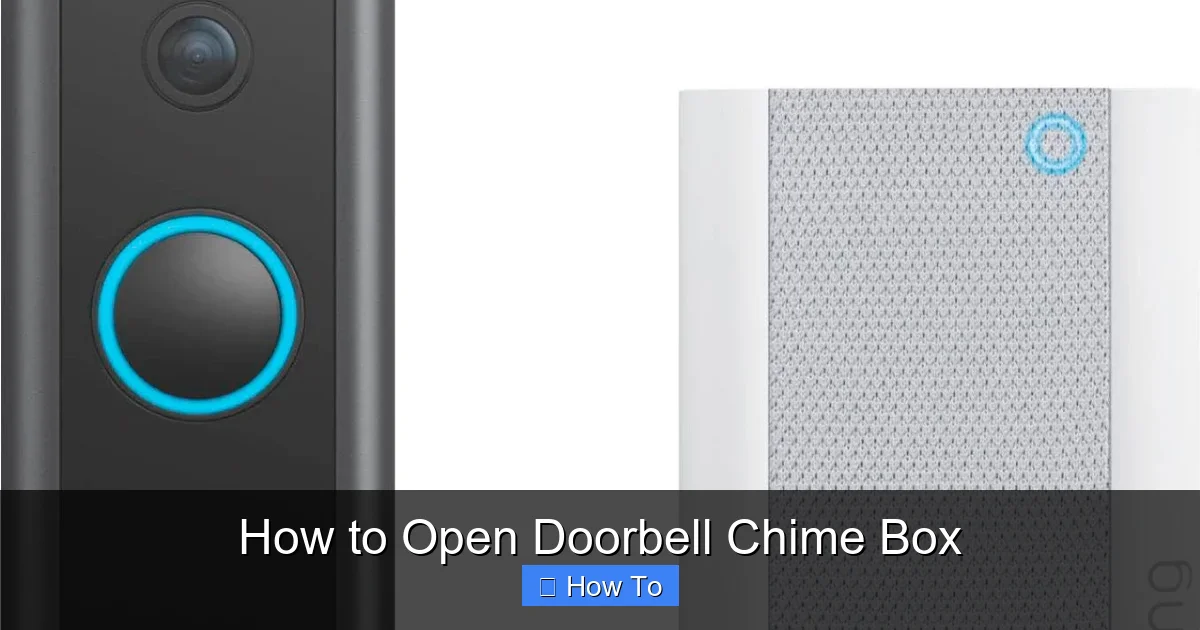

Visual guide about How to Open Doorbell Chime Box
Image source: storables.com
Before you start, it’s important to understand what kind of doorbell system you have. Not all chime boxes are the same, and the method for opening them can vary depending on the type.
Types of Doorbell Chime Boxes
There are three main types of doorbell systems:
1. Wired Doorbell Systems
These are the most common and traditional type. They use low-voltage electrical wiring to connect the doorbell button (outside) to the chime box (inside). The chime box is usually mounted on a wall and connected to your home’s electrical system via a transformer.
2. Wireless Doorbell Systems
Wireless doorbells use radio frequencies to transmit a signal from the button to the chime unit. The chime box is typically battery-powered and mounted with screws or adhesive. Since there’s no wiring involved, they’re easier to install and open.
3. Smart Doorbell Systems
Smart doorbells (like Ring, Nest, or Arlo) often include a chime box that connects to your Wi-Fi network. Some models use a traditional wired setup, while others are battery-powered or plug into an outlet. The chime box may also include a speaker, LED lights, and connectivity features.
Where to Find Your Chime Box
Most chime boxes are installed in a central location inside your home—commonly in a hallway, living room, or near the main entrance. Look for a rectangular or square plastic or metal box mounted on the wall, about 4 to 6 feet from the floor. It may have a small speaker grille and possibly LED indicators.
If you can’t find it, try pressing the doorbell button and listen carefully. The chime box will make a sound, helping you locate it.
Safety First: Preparing to Open the Chime Box
Working with electrical components—even low-voltage ones—requires caution. A small mistake can lead to electric shock, damage to your doorbell system, or even a fire hazard. Follow these safety steps before you begin.
Turn Off the Power
For wired doorbell systems, the first and most critical step is to turn off the power. Here’s how:
1. Locate your home’s main electrical panel (breaker box).
2. Find the circuit breaker labeled “doorbell,” “chime,” or “low voltage.” If it’s not labeled, you may need to test breakers by turning them off one at a time and checking if the doorbell stops working.
3. Flip the breaker to the “OFF” position.
Pro Tip: Use a non-contact voltage tester to confirm the power is off. Simply touch the tester near the chime box wires—if it doesn’t beep or light up, the power is safely disconnected.
Gather the Right Tools
Having the right tools on hand will make the process smoother and safer. Here’s what you’ll likely need:
– Phillips or flathead screwdriver (depending on your chime box screws)
– Non-contact voltage tester
– Flashlight (to see inside the box)
– Needle-nose pliers (for handling small wires)
– Replacement screws or anchors (if needed)
– Electrical tape (for securing wires)
– Drill (only if you need to remove stubborn screws or remount the box)
Work in a Well-Lit Area
Make sure you have good lighting. A flashlight or headlamp can help you see inside the chime box, especially if it’s mounted in a dim corner.
Wear Safety Gear (Optional but Recommended)
While doorbell systems use low voltage (typically 8–24 volts), it’s still wise to wear rubber-soled shoes and avoid working with wet hands. If you’re particularly cautious, wear safety glasses to protect your eyes from dust or debris.
Step-by-Step: How to Open a Wired Doorbell Chime Box
Wired chime boxes are the most common type and require the most caution due to electrical connections. Follow these steps carefully.
Step 1: Turn Off the Power (Again!)
Double-check that the power is off at the breaker. Even if you turned it off earlier, it’s worth confirming. Use your voltage tester near the chime box to ensure no electricity is flowing.
Step 2: Remove the Cover
Most wired chime boxes have a front cover that snaps or screws into place.
– If it has screws: Use a screwdriver to remove the screws (usually 2–4) on the front or sides of the cover. Set the screws aside in a small container so you don’t lose them.
– If it snaps on: Gently pry the cover off using a flathead screwdriver or your fingers. Start at the bottom or side and work your way around. Be careful not to crack the plastic.
Pro Tip: Some covers have hidden tabs. If it won’t budge, look for small notches or press gently on the sides to release the clips.
Step 3: Disconnect the Wires (If Necessary)
Once the cover is off, you’ll see the internal mechanism and wires.
– Take a photo of the wiring setup before disconnecting anything. This will help you reconnect everything correctly later.
– If you need to remove the entire chime unit, gently pull the wires out of the terminals. Use needle-nose pliers if the connections are tight.
– Label the wires with tape if they’re not already marked (e.g., “Front,” “Trans,” “Rear”).
Important: Do not cut the wires unless you’re replacing the entire system. Simply disconnect them from the terminals.
Step 4: Remove the Chime Unit from the Wall
The chime box is usually mounted to a junction box or directly to the wall with screws.
– Use a screwdriver to remove the mounting screws.
– Gently pull the unit away from the wall. Be careful not to strain the wires.
– If the unit is stuck, check for additional clips or adhesive.
Step 5: Inspect the Interior
Now that the chime box is open, take a close look inside.
– Check for loose or frayed wires.
– Look for signs of corrosion, burn marks, or melted plastic—these could indicate a short circuit.
– Test the solenoid (the part that strikes the chime bars) by gently pressing it. It should move freely.
– If you see dust or debris, use a can of compressed air to clean it out.
Step-by-Step: How to Open a Wireless Doorbell Chime Box
Wireless chime boxes are simpler to open since they don’t involve electrical wiring. However, they still require care to avoid damaging the internal electronics.
Step 1: Remove the Batteries
Before opening the chime box, remove the batteries to prevent accidental activation or short circuits.
– Locate the battery compartment (usually on the back or bottom).
– Slide or unscrew the cover and take out the batteries.
– Store them safely so you don’t lose them.
Step 2: Unmount the Chime Box
Wireless chime boxes are typically mounted with screws or adhesive strips.
– If screwed: Use a screwdriver to remove the mounting screws.
– If adhesive: Gently pry the unit off the wall using a putty knife or flathead screwdriver. Be careful not to damage the wall or the back of the unit.
Step 3: Open the Chime Box
Most wireless chime boxes have a snap-on front cover.
– Look for small seams or tabs around the edges.
– Insert a flathead screwdriver into the seam and gently twist to pop the cover off.
– Work your way around the box until the cover releases.
Pro Tip: If the cover is stuck, try warming it slightly with a hairdryer to soften the plastic and make it more flexible.
Step 4: Inspect the Internal Components
Once open, check for:
– Corroded battery terminals (clean with a cotton swab and rubbing alcohol if needed)
– Dust or debris on the circuit board
– Loose connections or damaged speakers
– Signs of water damage (if the unit was exposed to moisture)
Step-by-Step: How to Open a Smart Doorbell Chime Box
Smart doorbell chime boxes vary by brand, but most follow a similar pattern. Here’s how to open common models like Ring or Nest.
Step 1: Disconnect from Power
– For wired smart doorbells: Turn off the breaker as described earlier.
– For plug-in models: Unplug the chime box from the wall outlet.
– For battery-powered models: Remove the batteries.
Step 2: Remove the Mounting Plate
Smart chime boxes often have a mounting plate screwed to the wall.
– Use a screwdriver to remove the screws.
– Gently pull the chime box away from the plate.
Step 3: Open the Chime Box
Some smart chime boxes have removable covers, while others require you to disassemble the unit.
– Check the manufacturer’s instructions (available online if you no longer have the manual).
– Look for hidden screws under labels or rubber feet.
– Use a plastic prying tool to avoid scratching the surface.
Step 4: Access Internal Components
Once open, you may see:
– A circuit board with Wi-Fi antenna
– Speaker and microphone components
– LED indicators
– Wiring terminals (for wired models)
Be extra careful with smart chime boxes—they contain sensitive electronics that can be easily damaged.
Troubleshooting Common Issues When Opening the Chime Box
Even with careful handling, you might run into problems. Here’s how to solve the most common ones.
The Cover Won’t Come Off
– Cause: Hidden screws, tight clips, or dried adhesive.
– Solution: Double-check for screws under labels or stickers. Use a hairdryer to warm the plastic and loosen the clips. For adhesive, slide a putty knife behind the unit and gently wiggle it free.
Wires Are Too Short
– Cause: The chime box is pulled too far from the wall.
– Solution: Don’t force it. Loosen the mounting screws slightly and gently guide the wires as you pull. If needed, disconnect the wires temporarily (after labeling them).
You See Burn Marks or a Burning Smell
– Cause: Electrical short or overheating.
– Solution: Stop immediately. Do not reconnect power. The transformer or chime mechanism may be faulty. Consult an electrician or replace the unit.
The Chime Box Is Rusted or Corroded
– Cause: Moisture exposure (common in basements or humid areas).
– Solution: Clean terminals with a cotton swab and rubbing alcohol. If corrosion is severe, replace the unit to prevent future issues.
You Can’t Find the Circuit Breaker
– Cause: The breaker isn’t labeled.
– Solution: Turn off breakers one by one and test the doorbell after each. When it stops working, you’ve found the right one. Label it for future use.
Reassembling and Testing Your Doorbell Chime Box
Once you’ve inspected, cleaned, or repaired the chime box, it’s time to put it back together.
Step 1: Reconnect the Wires
– Refer to the photo you took earlier.
– Reattach each wire to the correct terminal.
– Tighten the screws securely, but don’t overtighten.
Step 2: Reattach the Chime Unit
– Position the unit back on the wall or mounting plate.
– Secure it with screws or clips.
– Make sure it’s level and snug.
Step 3: Replace the Cover
– Snap or screw the front cover back into place.
– Ensure all clips are engaged and the cover is flush with the wall.
Step 4: Restore Power and Test
– Turn the breaker back on (for wired systems).
– Replace batteries (for wireless or smart systems).
– Press the doorbell button and listen for the chime.
If it works, great! If not, double-check your connections and try again.
Maintenance Tips to Keep Your Doorbell Working
To avoid future issues, follow these simple maintenance tips:
– Clean the chime box annually with a dry cloth.
– Check batteries every 6 months (for wireless models).
– Inspect wiring for wear or damage.
– Test the doorbell monthly to catch problems early.
– Keep the doorbell button clean and free of debris.
Conclusion
Opening a doorbell chime box might seem like a small task, but it’s an essential skill for any homeowner. Whether you’re fixing a silent doorbell, upgrading to a smart system, or just doing routine maintenance, knowing how to safely access the chime box saves time, money, and frustration.
By following this guide, you’ve learned how to identify your chime box type, take proper safety precautions, and open the unit step by step—whether it’s wired, wireless, or smart. You’ve also gained troubleshooting knowledge and maintenance tips to keep your doorbell ringing reliably for years to come.
Remember: when in doubt, consult the manufacturer’s manual or call a professional. But for most situations, you’ve got this!
With a little confidence and the right approach, you can handle your doorbell system like a pro—no electrician required.
