This guide walks you through how to open a doorbell voltage transformer safely and correctly. You’ll learn the tools needed, safety precautions, and what to do if your doorbell isn’t working.
Key Takeaways
- Safety first: Always turn off power at the circuit breaker before handling any electrical components to prevent shocks or injury.
- Know your transformer type: Most doorbell transformers are low-voltage (16–24V AC) and mounted near your electrical panel or inside the doorbell chime unit.
- Use the right tools: A screwdriver, voltage tester, and wire strippers are essential for safely accessing and testing the transformer.
- Check for hidden covers: Some transformers have snap-on covers or are housed inside junction boxes—look carefully before forcing anything open.
- Test before reassembling: Use a multimeter to confirm voltage output after opening and inspecting the transformer.
- Replace if damaged: If the transformer shows signs of burning, corrosion, or no output, replace it with a compatible model.
- When to call a pro: If you’re unsure about wiring or electrical work, consult a licensed electrician.
How to Open Doorbell Voltage Transformer: A Complete Step-by-Step Guide
So, your doorbell isn’t ringing. Or maybe you’re installing a new smart doorbell and need to access the wiring. Whatever the reason, you’ve found yourself staring at a small, box-like device—probably near your electrical panel or behind the chime—and wondering, “How do I even open this thing?” That device is your doorbell voltage transformer, and yes, you can open it. But you need to do it safely and correctly.
In this guide, we’ll walk you through how to open a doorbell voltage transformer without frying your doorbell—or yourself. Whether you’re troubleshooting a faulty chime, upgrading to a video doorbell, or just curious about how your doorbell system works, this step-by-step tutorial will give you the confidence to handle the job like a pro.
We’ll cover everything from identifying the transformer to safely opening its housing, testing its output, and knowing when it’s time to replace it. No electrical degree required—just common sense, the right tools, and a little patience.
Let’s get started.
What Is a Doorbell Voltage Transformer?

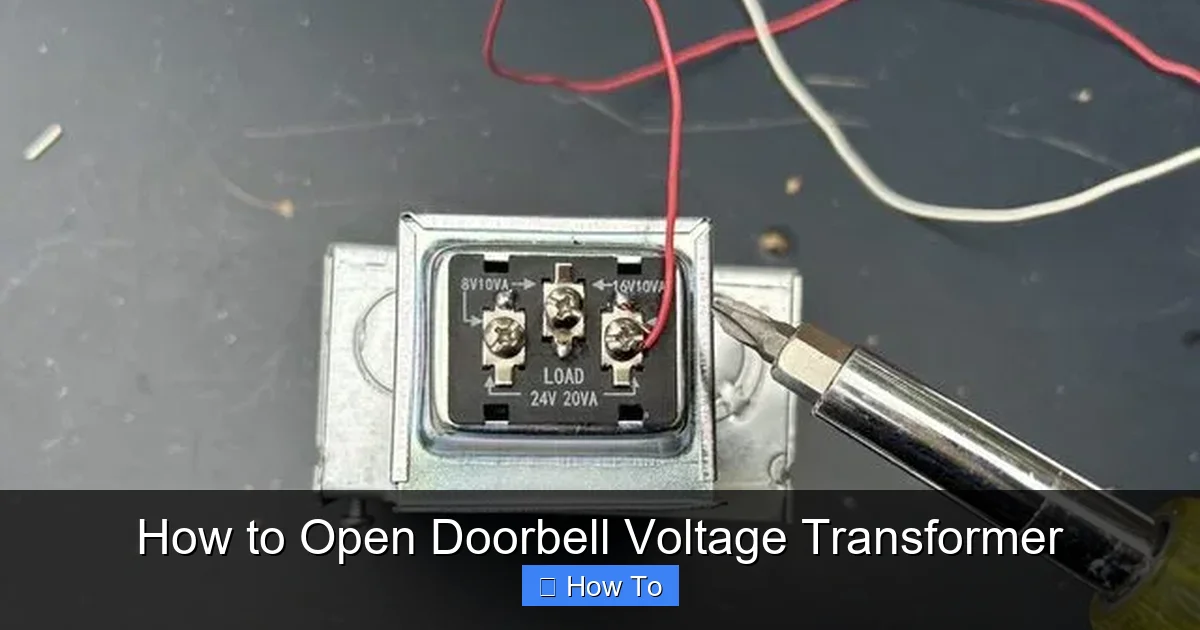

Visual guide about How to Open Doorbell Voltage Transformer
Image source: familyhandyman.com
Before we dive into opening it, let’s understand what a doorbell transformer actually does.
Most homes run on 120-volt AC electricity—way too much power for a simple doorbell. That’s where the transformer comes in. It steps down the high household voltage to a safe, low-voltage output (usually between 16 and 24 volts AC) that your doorbell can use.
Think of it like a tiny power adapter for your doorbell. Without it, your doorbell would either not work or get instantly fried.
Transformers are typically small, rectangular or cylindrical metal boxes. You’ll often find them in one of three places:
– Mounted on or near your main electrical panel
– Inside the doorbell chime unit (behind the cover)
– Hidden in a junction box in your basement, attic, or closet
They’re usually labeled with voltage and amperage ratings (e.g., “16V 10VA” or “24V 20VA”), which tell you how much power they can deliver.
Now, why would you need to open it? Common reasons include:
– Testing if it’s still working
– Replacing old or damaged wiring
– Installing a new doorbell that requires more power
– Diagnosing why your doorbell isn’t ringing
Whatever your reason, opening the transformer safely is the first step.
Tools and Materials You’ll Need
Before you touch anything electrical, gather the right tools. This isn’t a job for guesswork or makeshift solutions.
Here’s what you’ll need:
- Screwdrivers: Both flathead and Phillips, depending on the screws used. Most transformers use standard screws, but some newer models have Torx or security bits.
- Non-contact voltage tester: This is crucial. It lets you check if power is still flowing without touching wires.
- Multimeter: To test the actual voltage output of the transformer once it’s open.
- Wire strippers: In case you need to trim or re-strip wires.
- Electrical tape: For insulating exposed wires temporarily.
- Work gloves and safety glasses: Even low-voltage systems can cause sparks or shocks if mishandled.
- Flashlight: Many transformers are tucked away in dark corners.
- Replacement transformer (optional): If you suspect the current one is faulty, have a new one ready.
Pro tip: Keep a small toolkit dedicated to home electrical projects. It saves time and reduces the risk of using the wrong tool.
Safety First: Essential Precautions
We can’t stress this enough: safety is non-negotiable when working with electricity—even low-voltage systems.
Here’s how to protect yourself:
Turn Off the Power
Even though doorbell transformers run on low voltage, they’re still connected to your home’s 120V circuit. That means there’s still a risk of shock if you’re not careful.
1. Go to your main electrical panel (breaker box).
2. Locate the circuit that powers your doorbell. It’s often labeled “Doorbell,” “Chime,” or “Low Voltage.” If it’s not labeled, you may need to test circuits by turning them off one by one and checking if the doorbell stops working.
3. Flip the breaker to the OFF position.
Wait—don’t just trust the breaker. Use your non-contact voltage tester to double-check that no power is reaching the transformer. Touch the tester near the wires or terminals. If it beeps or lights up, power is still on. Go back and find the correct breaker.
Work in a Dry Area
Never work on electrical components with wet hands or in damp conditions. Water conducts electricity and increases the risk of shock.
Don’t Force Anything
If a cover won’t come off easily, don’t pry it with a knife or hammer. You could damage the transformer or expose live wires. Look for hidden screws, clips, or release tabs.
Label Wires Before Disconnecting
If you need to disconnect wires, take a photo or use tape to label them (e.g., “Front Door,” “Transformer Out”). This makes reassembly much easier.
Keep Kids and Pets Away
Electrical work isn’t a group activity. Make sure the area is clear of distractions.
Once you’ve taken these precautions, you’re ready to proceed.
Step 1: Locate the Doorbell Transformer
Before you can open it, you need to find it.
As mentioned earlier, transformers are usually in one of three spots. Let’s go through each.
Near the Electrical Panel
This is the most common location. Open your breaker box (safely, with the main power off) and look for a small, black or gray box mounted on the side or back. It may be clipped to a knockout hole or screwed into the panel.
It often has two wires coming out: one going to the doorbell button, and one to the chime.
Inside the Doorbell Chime Unit
Some older homes have the transformer built into the chime housing. To check:
1. Remove the cover of your indoor doorbell chime (usually held by two screws).
2. Look inside for a small box with wires connected to it.
3. If you see a transformer, note its location and wiring.
In a Junction Box
In some homes, especially newer ones, the transformer is tucked away in a junction box in the basement, attic, or closet. Look for a small metal or plastic box with wires entering it. Use your flashlight to peer inside.
If you can’t find it after checking these spots, try this trick:
– Press the doorbell button.
– Listen for a faint “hum” or “buzz” near the electrical panel or chime. Transformers often make a slight noise when active.
Once you’ve located it, move to the next step.
Step 2: Prepare the Area
Now that you’ve found the transformer, prepare your workspace.
1. Clear the area around the transformer. Move boxes, tools, or debris that could get in the way.
2. Lay down a clean, dry towel or mat to place your tools on.
3. Plug in your flashlight if needed.
4. Put on your safety glasses and gloves.
If the transformer is in a tight space (like inside a cramped electrical panel), consider using a mirror or smartphone camera to get a better view.
Step 3: Remove the Cover or Housing
This is the moment of truth—opening the transformer.
But remember: not all transformers are designed to be opened. Some are sealed units meant to be replaced, not repaired. However, many older models have removable covers for access to terminals or fuses.
Here’s how to proceed:
Check for Screws
Most transformers have a cover held in place by one or two screws. Look around the edges of the box. Use your screwdriver to remove them.
If there are no screws, look for:
– Snap-on covers that pop off with gentle pressure
– Sliding panels
– Twist-lock mechanisms
Gently Pry Open (If Needed)
If the cover doesn’t come off easily, use a flathead screwdriver to gently pry it open. Insert the tip into a seam and wiggle it slightly. Don’t force it—apply even pressure.
If it still won’t budge, the transformer may be sealed. In that case, you may need to replace the entire unit rather than open it.
Watch for Hidden Wires
As you open the cover, be mindful of any wires inside. Don’t pull or yank them. If wires are in the way, carefully move them aside with your fingers or a plastic tool.
Once the cover is off, you should see:
– Two or more terminal screws (usually labeled “Common,” “Front,” “Rear,” or “T”)
– Wires connected to those terminals
– Possibly a fuse or reset button (on some models)
Take a photo of the wiring before touching anything. This will help you reconnect everything correctly later.
Step 4: Inspect the Transformer
Now that it’s open, take a close look.
Check for:
– Burn marks or discoloration: Black or brown spots around the terminals or inside the housing indicate overheating or electrical arcing.
– Corrosion or rust: Moisture can damage the internal components.
– Loose or frayed wires: These can cause poor connections or short circuits.
– Burnt smell: A strong odor of burning plastic or insulation is a red flag.
If you see any of these signs, the transformer is likely faulty and should be replaced.
If everything looks clean and intact, proceed to testing.
Step 5: Test the Transformer Output
This is where your multimeter comes in.
Testing the voltage output will tell you if the transformer is working properly.
Set Up Your Multimeter
1. Turn your multimeter to the AC voltage setting (usually marked “V~” or “ACV”).
2. Set the range to 200V or higher (most doorbell transformers output 16–24V, but it’s safer to start high).
Test the Output
1. Turn the power back on at the breaker (briefly—just for testing).
2. Touch the multimeter’s red probe to one terminal and the black probe to the other.
3. Read the display.
A working transformer should show a voltage close to its rated output (e.g., 16V, 24V). If it reads 0V or very low (under 10V), the transformer is likely dead.
Important: Only test for a few seconds. Don’t leave the probes connected for long.
After testing, turn the power back off at the breaker.
Test the Input (Optional)
If you want to confirm the transformer is receiving power, you can test the input side (the wires coming from the breaker). But this involves 120V—be extra cautious.
Use your non-contact voltage tester first. If it beeps, proceed with the multimeter on the AC voltage setting. You should see around 120V.
If there’s no input voltage, the problem may be with the circuit breaker or wiring—not the transformer.
Step 6: Repair or Replace?
Based on your inspection and test results, decide what to do next.
If the Transformer Is Working
Great! Reassemble the cover, reconnect any wires, and turn the power back on. Test your doorbell.
If it still doesn’t work, the issue may be with the doorbell button, chime, or wiring—not the transformer.
If the Transformer Is Faulty
It’s time to replace it.
1. Note the voltage and amperage rating (e.g., 16V 10VA).
2. Buy a compatible replacement (available at hardware stores or online).
3. Disconnect the old wires (label them first!).
4. Install the new transformer in the same location.
5. Reconnect the wires to the correct terminals.
6. Secure the cover and turn the power back on.
Most transformers are easy to replace—just match the specs and wiring.
Troubleshooting Common Issues
Even after opening and testing, you might run into problems. Here’s how to handle them.
Doorbell Still Not Working After Testing Transformer
– Check the doorbell button: It may be stuck or corroded.
– Inspect the chime unit: Internal contacts can wear out.
– Test the wiring: Use your multimeter to check for continuity in the wires from the transformer to the button and chime.
Transformer Humming or Overheating
This could mean it’s overloaded. Smart doorbells (like Ring or Nest) often require more power than traditional ones. Upgrade to a higher-rated transformer (e.g., 24V 20VA).
No Power at the Transformer
– Confirm the breaker is on.
– Check for a blown fuse in the transformer (if it has one).
– Test the wiring from the breaker to the transformer for breaks.
Wires Are Too Short
If you need to extend wires, use wire nuts and electrical tape to splice in new wire. Match the gauge (usually 18-22 AWG for doorbells).
When to Call a Professional
DIY is great, but know your limits.
Call a licensed electrician if:
– You can’t locate the transformer
– You’re uncomfortable working with electricity
– The wiring looks damaged or outdated
– You suspect a problem with your main electrical panel
– The transformer is hardwired into a complex system
It’s better to pay for professional help than risk injury or damage.
Final Tips for Success
– Always double-check that power is off before touching wires.
– Take photos at every step for easy reassembly.
– Use the right tools—don’t improvise with knives or pliers.
– Replace old transformers even if they seem to work—they can fail suddenly.
– Label everything clearly.
Conclusion
Opening a doorbell voltage transformer might seem intimidating at first, but with the right approach, it’s a manageable task for most homeowners. By following this guide, you’ve learned how to safely locate, open, inspect, and test your transformer—and when it’s time to replace it.
Remember: safety comes first. Always turn off the power, use proper tools, and don’t rush. Whether you’re fixing a silent doorbell or upgrading to a smart system, understanding your transformer is a key part of the process.
Now go ahead—open that transformer with confidence. Your doorbell will thank you.
