This guide walks you through pairing your Ring Doorbell Wired with the Ring app step by step. You’ll learn how to install, connect, and troubleshoot your device for seamless smart home security.
Key Takeaways
- Download the Ring app: Available on iOS and Android, the app is essential for setup and management.
- Ensure proper wiring: Ring Doorbell Wired requires existing doorbell wiring and a compatible transformer (8–24V AC).
- Use 2.4 GHz Wi-Fi: The device only connects to 2.4 GHz networks, not 5 GHz.
- Follow in-app setup: The Ring app guides you through scanning the QR code and connecting to Wi-Fi.
- Test after installation: Always test the doorbell and live view to confirm successful pairing.
- Update firmware: Keep your device updated via the app for optimal performance and security.
- Troubleshoot common issues: Reconnect Wi-Fi, reset the device, or check voltage if pairing fails.
How to Pair Ring Doorbell Wired with Ring App: A Complete Step-by-Step Guide
So, you’ve just unboxed your new Ring Doorbell Wired—congratulations! You’re about to upgrade your home security with a smart doorbell that lets you see, hear, and speak to visitors from anywhere. But before you can answer the door from your couch (or your vacation in Bali), you’ll need to pair your Ring Doorbell Wired with the Ring app.
Don’t worry—this process is simpler than it sounds. Whether you’re a tech newbie or a smart home pro, this guide will walk you through every step to get your Ring Doorbell Wired up and running smoothly. From downloading the app to troubleshooting common issues, we’ve got you covered.
By the end of this guide, you’ll know exactly how to:
– Install your Ring Doorbell Wired
– Download and set up the Ring app
– Pair the doorbell with your Wi-Fi network
– Test and customize your device
– Fix common pairing problems
Let’s get started!
What You’ll Need Before You Begin

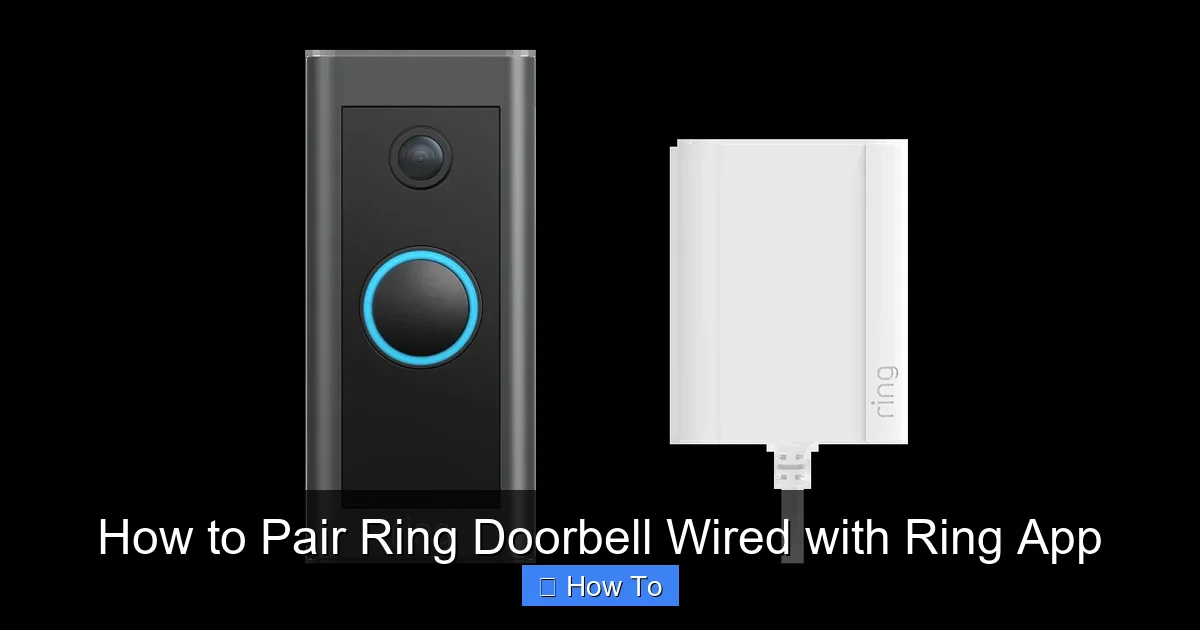

Visual guide about How to Pair Ring Doorbell Wired with Ring App
Image source: cdn.shopify.com
Before diving into the setup, make sure you have everything ready. Skipping this step can lead to frustration—or worse, a half-installed doorbell. Here’s your checklist:
- Ring Doorbell Wired: Obviously! Make sure it’s the wired version (not the battery-powered model).
- Existing doorbell wiring: Your home must have low-voltage doorbell wiring (typically 16–24 AWG) connected to a transformer.
- Compatible transformer: Ring recommends a transformer with 8–24V AC and at least 10VA (volt-amperes). Most older homes have 16V transformers, which work perfectly.
- Smartphone or tablet: You’ll need a device running iOS 12 or later, or Android 7.0 or later.
- Wi-Fi network: A 2.4 GHz Wi-Fi network is required. Ring Doorbell Wired does not support 5 GHz networks.
- Wi-Fi password: Have your network name (SSID) and password handy.
- Screwdriver and drill (optional): For mounting, though most users can use the included mounting bracket and screws.
- Smart Chime (optional): If you want an indoor chime, you can pair a Ring Chime or use the app’s notification sounds.
Pro Tip: If you’re unsure about your doorbell wiring or transformer, consult an electrician. Incorrect voltage can damage your Ring device or prevent it from working.
Step 1: Download and Set Up the Ring App
The Ring app is the control center for your smart doorbell. It’s where you’ll receive notifications, view live video, adjust settings, and manage your device.
Download the App
Open your smartphone’s app store:
– For iPhone users: Open the App Store and search for “Ring – Always Home.”
– For Android users: Open Google Play Store and search for “Ring.”
Tap “Install” or “Get” to download the app. The download is free and takes just a few seconds.
Create a Ring Account
Once installed, open the app. You’ll be prompted to sign in or create an account.
– Tap “Create Account.”
– Enter your email address, create a strong password, and confirm it.
– Add your phone number for two-factor authentication (recommended for security).
– Verify your email by clicking the link sent to your inbox.
Now you’re in! The app will guide you through a quick tour of its features. You can skip this if you’re in a hurry, but we recommend taking a minute to explore.
Enable Permissions
For the app to work properly, it needs access to certain features on your phone:
– Camera: To scan the QR code on your doorbell.
– Microphone: For two-way audio.
– Notifications: To alert you when someone rings the doorbell.
– Location: Optional, but helps with device setup and geofencing.
Tap “Allow” when prompted. You can always adjust these later in your phone’s settings.
Step 2: Prepare Your Doorbell for Installation
Before mounting your Ring Doorbell Wired, it’s important to prepare it properly. This ensures a smooth pairing process and prevents damage.
Turn Off Power at the Breaker
Safety first! Even though doorbell wires carry low voltage, it’s smart to turn off power at the circuit breaker. Locate the breaker that controls your doorbell (often labeled “doorbell” or “chime”) and switch it off.
Use a non-contact voltage tester on the wires to confirm no power is flowing.
Remove Your Old Doorbell
Unscrew and remove your existing doorbell button. You’ll see two wires connected to the back. Carefully disconnect them—don’t cut them! Label them with tape (e.g., “Front” and “Trans”) so you know which is which.
If your old doorbell has a chime inside, leave it connected for now. Your Ring Doorbell Wired will work with most existing chimes.
Check Voltage (Optional but Recommended)
Use a multimeter to check the voltage across the two wires. Set the multimeter to AC voltage and touch the probes to each wire.
– If the reading is between 8V and 24V AC, you’re good to go.
– If it’s below 8V, your transformer may be too weak.
– If it’s above 24V, you risk damaging the Ring device.
If your voltage is out of range, consult an electrician to upgrade your transformer.
Prepare the Ring Doorbell Wired
Unbox your Ring Doorbell Wired. You’ll find:
– The doorbell unit
– Mounting bracket
– Screws and anchors
– Wire nuts
– Security screw and tool
Remove the front faceplate by pressing the release button on the bottom. You’ll see two terminal screws inside.
Strip about 1/4 inch of insulation from the ends of your doorbell wires if needed. This ensures a solid connection.
Step 3: Install the Ring Doorbell Wired
Now it’s time to mount your new doorbell. Follow these steps carefully.
Attach the Mounting Bracket
Hold the mounting bracket against the wall where you want to install the doorbell. Make sure it’s level and at a comfortable height (typically 48 inches from the ground).
Mark the screw holes with a pencil. Drill pilot holes if needed, then secure the bracket with the provided screws.
Connect the Wires
Thread the two doorbell wires through the back of the mounting bracket.
Inside the Ring Doorbell Wired, loosen the two terminal screws. Insert one wire into each terminal and tighten the screws securely. It doesn’t matter which wire goes where—Ring devices are polarity-insensitive.
Pro Tip: If your wires are too short, use the included wire nuts to extend them. Just twist the wires together and cap them with the nut.
Secure the Doorbell
Align the doorbell with the mounting bracket and press it firmly into place. You’ll hear a click when it’s secure.
Use the security screw and tool to lock the doorbell in place. This prevents theft and tampering.
Turn Power Back On
Go back to your breaker panel and turn the power back on. Your doorbell should light up, indicating it’s receiving power.
Wait about 30 seconds for the device to boot up. You may see a blinking light—this is normal during startup.
Step 4: Pair Ring Doorbell Wired with the Ring App
Now for the fun part—connecting your doorbell to the app!
Open the Ring App and Add a Device
Launch the Ring app on your phone. Tap the three-line menu (☰) in the top-left corner, then select “Set Up a Device.”
Choose “Doorbells” from the list, then select “Ring Doorbell Wired.”
Scan the QR Code
The app will ask you to scan the QR code on your doorbell. This code is located on the back of the device or on the quick start guide.
Hold your phone about 6–12 inches away and center the QR code in the camera frame. The app will automatically scan it.
If the scan fails, tap “Enter Code Manually” and type in the 8-digit code.
Connect to Wi-Fi
The app will now prompt you to connect your doorbell to your Wi-Fi network.
– Select your 2.4 GHz Wi-Fi network from the list.
– Enter your Wi-Fi password carefully.
– Tap “Connect.”
Your phone will send the network info to the doorbell. This may take 30–60 seconds.
Wait for Pairing to Complete
The app will show a progress bar as it pairs your doorbell. You’ll see messages like “Connecting to Wi-Fi” and “Finalizing Setup.”
Once complete, you’ll see a success message and a live preview of your doorbell’s camera feed.
Name Your Doorbell
Give your doorbell a name, like “Front Door” or “Main Entrance.” This helps if you have multiple Ring devices.
You can also assign it to a location (e.g., “Home” or “Cottage”).
Set Up Motion and Notification Settings
The app will guide you through customizing:
– Motion zones: Define areas where motion detection is active.
– Motion sensitivity: Adjust how sensitive the sensor is.
– Notification preferences: Choose when and how you’re alerted.
Take your time here—these settings affect how often you’re notified.
Step 5: Test Your Ring Doorbell Wired
Before you call it a day, test everything to make sure it’s working.
Test the Doorbell Button
Press the doorbell button. You should hear a chime (if connected to a mechanical chime) and receive a notification on your phone.
Open the app and tap the notification to see the live video feed.
Test Two-Way Audio
While viewing the live feed, tap the microphone icon and speak. You should hear your voice through the doorbell’s speaker.
Ask someone to stand outside and test speaking back to you.
Test Motion Detection
Walk in front of the doorbell to trigger motion. You should receive a motion alert in the app.
Check the recorded clip to ensure video quality is clear.
Check Night Vision
Turn off the lights or wait until dusk. The doorbell should switch to night vision mode automatically.
Look at the live feed—you should see a clear black-and-white image.
Troubleshooting Common Pairing Issues
Even with perfect setup, things can go wrong. Here’s how to fix the most common problems.
“Unable to Connect to Wi-Fi”
– Ensure you’re using a 2.4 GHz network. Ring Doorbell Wired doesn’t support 5 GHz.
– Move your router closer or use a Wi-Fi extender if the signal is weak.
– Restart your router and try again.
– Reset the doorbell and re-pair it (see below).
“Doorbell Not Receiving Power”
– Double-check that power is on at the breaker.
– Verify wire connections are tight.
– Test voltage again—low voltage can cause boot failures.
– Try a different transformer if available.
“App Can’t Find the Doorbell”
– Make sure the doorbell is powered and the light is on.
– Restart the app and try scanning the QR code again.
– Manually enter the setup code if scanning fails.
– Reset the doorbell to factory settings.
How to Reset Your Ring Doorbell Wired
If all else fails, reset the device:
1. Press and hold the orange button on the back of the doorbell for 20 seconds.
2. Release when the light turns off and back on.
3. The doorbell will reboot and enter setup mode.
4. Re-pair it using the app.
Firmware Update Issues
Sometimes the doorbell won’t update automatically.
– Ensure it’s connected to Wi-Fi.
– Open the app, go to Device Settings > Device Health > Check for Updates.
– If stuck, reset and re-pair the device.
Tips for Optimal Performance
To get the most out of your Ring Doorbell Wired:
- Keep it clean: Wipe the lens monthly with a soft, dry cloth to maintain video quality.
- Update regularly: Enable automatic updates in the app to get the latest features and security patches.
- Adjust motion zones: Exclude areas like busy streets to reduce false alerts.
- Use a Ring Protect Plan: For video recording and extended history, consider subscribing to Ring Protect (starting at $3.99/month).
- Pair with Alexa: Enable the Ring skill on Alexa to view live feeds on Echo Show devices.
Conclusion
Pairing your Ring Doorbell Wired with the Ring app is a straightforward process when you follow the steps in order. From downloading the app and checking your wiring to mounting the device and connecting to Wi-Fi, each step brings you closer to a smarter, safer home.
Remember, the key to success is preparation—make sure your wiring and Wi-Fi are compatible before you start. And if you run into issues, don’t panic. Most problems can be solved with a simple reset or Wi-Fi tweak.
Once your doorbell is paired, you’ll enjoy peace of mind knowing you can see and speak to visitors anytime, anywhere. Whether you’re at work, on vacation, or just relaxing in the backyard, your Ring Doorbell Wired keeps you connected.
So go ahead—press that button, answer the door from your phone, and enjoy the convenience of modern home security. Welcome to the Ring family!
