Connecting a diode to a doorbell can solve common chime problems like double-ringing or no sound. This guide walks you through the process safely and simply, even if you’re a beginner.
Key Takeaways
- Why use a diode: A diode prevents voltage spikes and back EMF from damaging your doorbell chime when the button is released.
- Correct diode type: Use a 1N4001, 1N4004, or 1N4007 rectifier diode—common, affordable, and effective for doorbell circuits.
- Polarity matters: The diode must be installed in the correct direction (cathode toward the chime) to work properly.
- Safety first: Always turn off power at the breaker before working on doorbell wiring to avoid electric shock.
- Simple tools needed: You only need basic tools like wire strippers, screwdrivers, and electrical tape.
- Works with most doorbells: This fix applies to wired doorbells with mechanical chimes, not typically wireless or digital models.
- Test after installation: Always test the doorbell after connecting the diode to ensure it rings correctly and quietly.
How to Connect a Diode to a Doorbell
If your doorbell chime is acting up—ringing twice when you press the button, making a buzzing sound, or not ringing at all—you might need to install a diode. Don’t worry, it’s easier than it sounds. In this guide, we’ll walk you through how to connect a diode to a doorbell step by step. Whether you’re a DIY beginner or just looking to fix a noisy chime, this fix can make a big difference.
We’ll cover why diodes are important, what tools you need, how to install the diode safely, and how to test your doorbell afterward. By the end, you’ll have a quieter, more reliable doorbell that works the way it should.
Why You Need a Diode on Your Doorbell

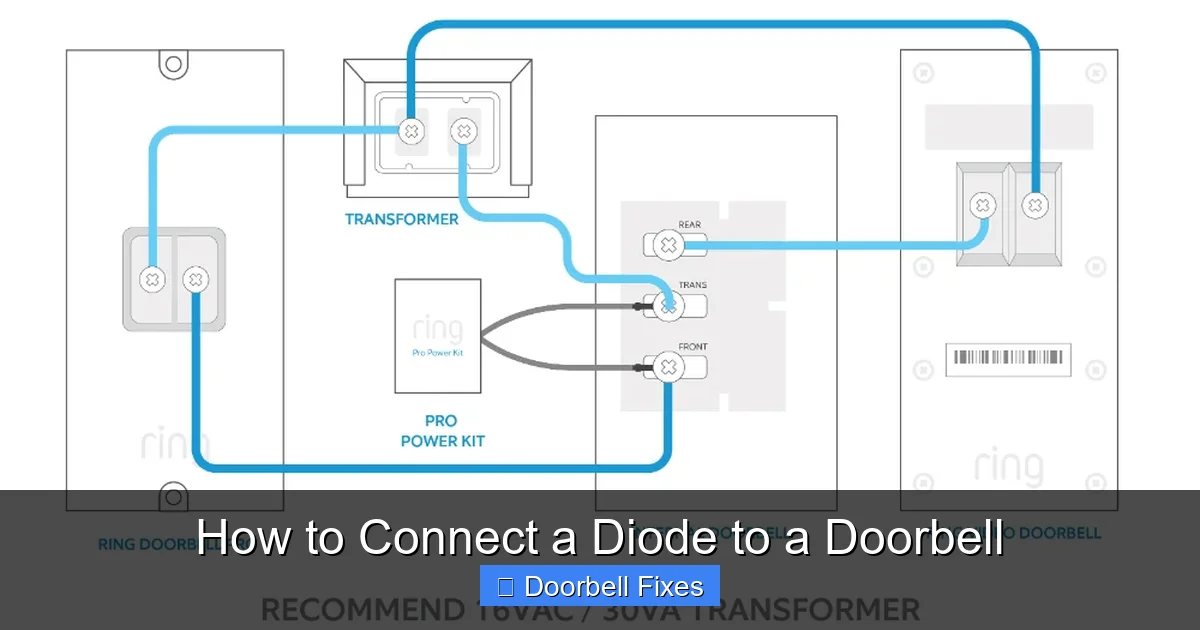

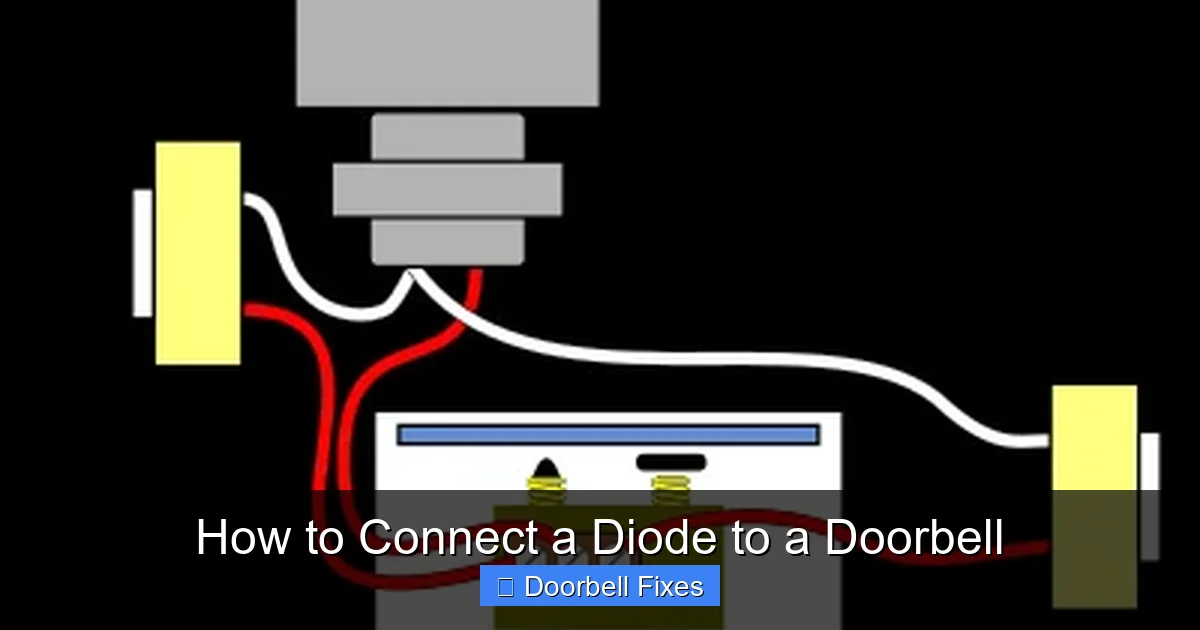

Visual guide about How to Connect a Diode to a Doorbell
Image source: i.pinimg.com
Before jumping into the installation, it helps to understand why a diode is useful. Most traditional wired doorbells use a mechanical chime—a small device inside your wall that makes a “ding-dong” sound when electricity flows through it. When you press the doorbell button, it completes a low-voltage circuit, sending power to the chime.
The problem? When you release the button, the magnetic field in the chime coil collapses suddenly. This creates a quick burst of reverse voltage, called back electromotive force (back EMF). This spike can cause the chime to vibrate again, leading to a double ring or a buzzing noise.
A diode—specifically a rectifier diode—acts like a one-way gate for electricity. It allows current to flow in only one direction. When installed correctly, it absorbs that reverse voltage spike, protecting the chime and eliminating unwanted sounds.
Think of it like a pressure release valve. Without it, the sudden surge can stress the chime over time. With it, your doorbell runs smoother and lasts longer.
What You’ll Need
You don’t need a lot to complete this project. Here’s a simple list of tools and materials:
- Diode: A 1N4001, 1N4004, or 1N4007 rectifier diode (available at hardware stores or online for under $5)
- Screwdrivers: Phillips and flathead, depending on your chime unit
- Wire strippers: To expose fresh wire ends
- Electrical tape: For insulating connections
- Needle-nose pliers: Helpful for bending and securing wires
- Voltage tester (optional): To double-check that power is off
- Safety glasses: Always a good idea when working with electronics
Most of these items are probably already in your toolbox. The diode is the only special part, and it’s inexpensive and easy to find.
Step 1: Turn Off the Power
Safety is the most important step. Even though doorbell systems use low voltage (usually 8–24 volts), it’s still smart to turn off the power before working on any electrical device.
Locate Your Doorbell Transformer
The transformer is what steps down your home’s 120-volt power to the lower voltage used by the doorbell. It’s usually located in one of these places:
- Inside the electrical panel (breaker box)
- In the attic or basement
- Near the doorbell chime unit
- Inside a closet or utility room
Look for a small black or gray box with wires coming out of it. It often has “16V” or “24V” printed on it.
Turn Off the Correct Circuit
Once you find the transformer, trace its wires back to the breaker panel. It may be connected to a dedicated breaker or share one with other lights or outlets. If you’re unsure, turn off the main breaker to be safe.
Use a non-contact voltage tester near the transformer wires to confirm power is off. If the tester doesn’t beep or light up, you’re good to go.
Pro Tip: Label the breaker before turning it off so you can easily turn it back on later.
Step 2: Remove the Doorbell Chime Cover
Now that the power is off, it’s time to access the chime unit.
Find the Chime Location
The chime is usually mounted on a wall near the front door, often in a hallway or entryway. It’s a small rectangular or round box with a cover that can be removed.
Unscrew the Cover
Use a screwdriver to remove the screws holding the cover in place. Some models have snap-on covers—gently pry them off with a flathead screwdriver.
Set the cover and screws aside in a safe place so you don’t lose them.
Identify the Wiring
Inside, you’ll see two or three wires connected to terminals labeled “Front,” “Trans,” and sometimes “Rear” (for a second doorbell button). The “Trans” wire comes from the transformer, and the “Front” wire goes to the doorbell button.
Take a photo of the wiring before disconnecting anything. This will help you reconnect everything correctly later.
Step 3: Choose the Right Diode
Not all diodes are the same. For doorbell applications, you need a general-purpose rectifier diode that can handle the low voltage and current.
Recommended Diodes
The most common and reliable choices are:
- 1N4001: Rated for 50V and 1A—perfect for most doorbells
- 1N4004: Rated for 400V and 1A—more than enough
- 1N4007: Rated for 1000V and 1A—overkill but widely available
Any of these will work. The 1N4007 is often recommended because it’s easy to find and handles more than enough voltage.
Check the Diode’s Polarity
Diodes have a direction. One end is the anode (positive side), and the other is the cathode (negative side). Current flows from anode to cathode.
Look for a stripe or band on the diode body. That marks the cathode. This is important—you’ll need to install the diode with the cathode facing the correct direction.
Step 4: Install the Diode
Now for the main event: connecting the diode to stop that annoying double ring.
Decide Where to Install the Diode
The diode should be placed across the chime terminals—specifically, in parallel with the chime coil. This means it connects to the same two points where the transformer and doorbell button wires meet.
Most people install it across the “Front” and “Trans” terminals. This protects the chime when the front doorbell is pressed.
Prepare the Wires
If the wires are already connected, carefully loosen the terminal screws and remove them. You’ll need space to add the diode.
Strip about 1/4 inch of insulation from the ends of the wires if they’re not already exposed.
Connect the Diode
Here’s how to do it:
- Take the diode and bend the leads slightly so they can reach the terminals.
- Connect the anode (end without the stripe) to the “Front” terminal.
- Connect the cathode (end with the stripe) to the “Trans” terminal.
You can twist the diode leads around the terminal screws or use wire nuts if you prefer. Make sure the connections are tight and secure.
Important: The stripe (cathode) must face the “Trans” side. If you install it backward, the diode won’t work and could even block the doorbell from ringing.
Secure the Connection
Once the diode is in place, tighten the terminal screws to hold everything firmly. Use electrical tape to wrap the diode and connections for extra insulation and to prevent shorts.
If the diode is dangling, you can tape it to the chime housing or use a small zip tie to keep it tidy.
Step 5: Reassemble and Test
With the diode installed, it’s time to put everything back together and see if it works.
Reattach the Chime Cover
Place the cover back over the chime unit and secure it with the screws. Make sure no wires are pinched or exposed.
Turn the Power Back On
Go to your breaker panel and turn the power back on. If you turned off the main breaker, turn it on first, then the specific circuit if needed.
Test the Doorbell
Press the doorbell button and listen.
- Good result: You hear a clean “ding-dong” with no buzzing or double ring.
- Bad result: No sound, weak sound, or still double-ringing.
If it works perfectly, great! You’ve successfully connected a diode to your doorbell.
If not, don’t worry—we’ll troubleshoot in the next section.
Troubleshooting Common Issues
Sometimes things don’t go as planned. Here’s how to fix the most common problems.
Doorbell Doesn’t Ring at All
If there’s no sound after installing the diode, check these:
- Diode polarity: Did you install it backward? The stripe should face the “Trans” terminal. Flip it if needed.
- Loose connections: Make sure all wires are tight and secure at the terminals.
- Power is off: Double-check that the breaker is on and the transformer is getting power.
- Faulty diode: Rare, but possible. Try replacing it with a new one.
Still Double-Ringing or Buzzing
If the diode didn’t fix the issue, consider these possibilities:
- Wrong diode type: Make sure you’re using a rectifier diode (like 1N4007), not a Zener or signal diode.
- Multiple chimes: If you have front and rear doorbells, you may need a diode on each chime circuit.
- Worn chime mechanism: Over time, the chime contacts can wear out. The diode helps, but the chime itself might need replacement.
- Loose wiring: Vibrations can loosen connections. Check all wire nuts and terminals.
Weak or Intermittent Sound
This could mean:
- Low voltage: The transformer might be underpowered. Check if it’s rated for at least 16V.
- Long wire runs: Thin or long wires can cause voltage drop. Consider upgrading to 18-gauge wire.
- Corroded contacts: Clean the chime terminals and button contacts with contact cleaner.
When to Call a Professional
Most people can handle this fix on their own. But if you’re uncomfortable working with electricity, or if the problem persists after trying the diode, it’s okay to call an electrician.
Also, if your doorbell is part of a smart system or uses high voltage (uncommon), a professional can ensure it’s safe and compatible.
Tips for Long-Term Doorbell Health
Now that your doorbell is working better, here are a few tips to keep it that way:
- Test regularly: Press the button once a month to make sure it’s still working.
- Clean the button: Dust and dirt can build up on the doorbell button, causing weak signals. Wipe it with a dry cloth.
- Check the transformer: If your doorbell starts acting up again, the transformer might be failing. Replace it if needed.
- Upgrade if necessary: If your chime is very old, consider replacing it with a new mechanical or digital model.
Conclusion
Connecting a diode to a doorbell is a simple, effective fix for common chime problems. It stops double-ringing, reduces buzzing, and protects your doorbell system from voltage spikes. With just a few tools and a $2 diode, you can improve your doorbell’s performance in under 30 minutes.
Remember to always turn off the power, install the diode with the correct polarity, and test the system afterward. If you run into issues, use our troubleshooting tips to get it working.
This small upgrade can make a big difference in your home’s comfort and functionality. Now, every time someone rings the bell, you’ll hear a clear, clean sound—just like it should be.
