Installing a 3-wire doorbell transformer doesn’t have to be complicated. This guide walks you through every step—from turning off power to testing your doorbell—so you can do it safely and confidently. Perfect for homeowners tackling DIY doorbell fixes.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before working on wiring to prevent shocks or damage.
- Use the right transformer: A 16V, 10–30VA transformer is ideal for most residential doorbells with 3-wire systems.
- Identify your wires correctly: The three wires are typically common (C), front (F), and rear (R)—match them to the right terminals.
- Secure connections tightly: Loose wires cause poor performance or no ring; use wire nuts or terminal screws properly.
- Test before finishing: Always test the doorbell after installation to ensure it works before closing up walls or covers.
- Know when to call a pro: If you’re unsure about electrical work or encounter unexpected wiring, consult a licensed electrician.
- Label wires during removal: Take photos or tape labels to avoid confusion when reconnecting.

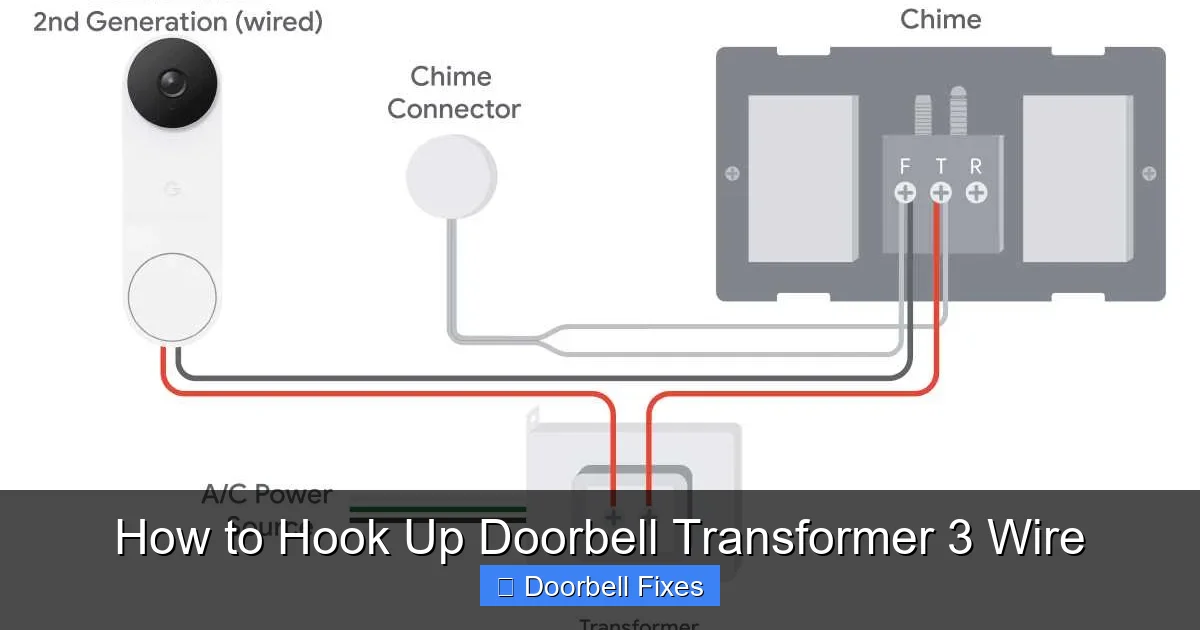

How to Hook Up Doorbell Transformer 3 Wire: A Complete DIY Guide
If your doorbell isn’t ringing, chimes are weak, or you’re installing a new smart doorbell that requires consistent power, the issue might be your transformer. Many modern doorbells—especially video or Wi-Fi-enabled models—need more reliable voltage than older mechanical chimes. That’s where a 3-wire doorbell transformer comes in. Unlike simple two-wire setups, a 3-wire system gives you dedicated connections for front and rear chimes, plus a common return path, offering better control and reliability.
In this guide, we’ll walk you through how to hook up a doorbell transformer 3 wire safely and correctly. Whether you’re replacing an old transformer or installing a new one, these step-by-step instructions will help you get your doorbell working like new—without calling an electrician. We’ll cover tools, safety tips, wiring diagrams, troubleshooting, and FAQs so you can tackle this project with confidence.
What Is a 3-Wire Doorbell Transformer?
A 3-wire doorbell transformer is part of a low-voltage doorbell circuit that uses three wires running from the transformer to the chime unit. These wires are typically labeled:
- Common (C): The return path for electrical current.
- Front (F): Powers the front door button.
- Rear (R): Powers a secondary button (like a back door or side entrance).
The transformer steps down your home’s standard 120V AC power to a safer 16V (or sometimes 24V), which is ideal for doorbell operation. Most residential doorbells run on 16 volts with 10 to 30 volt-amperes (VA) of power. A 3-wire setup allows you to have multiple buttons and chime tones without overloading the circuit.
Why upgrade or replace? Older transformers may not provide enough power for smart doorbells like Ring or Nest, which need steady voltage to maintain Wi-Fi connectivity and video streaming. A new 3-wire transformer ensures your doorbell gets consistent, reliable power.
Tools and Materials You’ll Need
Before you begin, gather these tools and supplies. Having everything ready will make the job faster and safer.
Essential Tools
- Non-contact voltage tester
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Needle-nose pliers
- Electrical tape
- Wire nuts (usually included with transformer)
- Drill and bits (if mounting in a new location)
- Stud finder (optional, for locating wall studs)
Materials
- 16V doorbell transformer (10–30VA recommended)
- 3-wire low-voltage cable (if replacing or extending wiring)
- Mounting screws or brackets
- Wire labels or colored tape (for identification)
Safety Gear
- Safety glasses
- Rubber-soled shoes
- Insulated gloves (optional but recommended)
Pro Tip: Buy a transformer with a slightly higher VA rating (e.g., 20VA or 30VA) if you’re installing a video doorbell. These devices draw more power than traditional chimes.
Safety First: Turn Off the Power
Working with electricity is never risk-free, even at low voltage. But the real danger comes from the 120V line that powers the transformer. Always treat this as live until proven otherwise.
Step 1: Locate Your Electrical Panel
Find your home’s main electrical breaker box. It’s usually in the basement, garage, or utility closet.
Step 2: Turn Off the Correct Breaker
Look for the breaker labeled “doorbell,” “chime,” or “low voltage.” If there isn’t one, turn off the breaker that controls the outlet or junction box where your transformer is mounted. When in doubt, turn off the main breaker—but only if you’re comfortable doing so and know how to reset it.
Step 3: Test for Power
Use a non-contact voltage tester at the transformer location. Touch the probe to the wires and terminals. If the tester lights up or beeps, power is still on—double-check your breaker. Never proceed until the tester confirms no voltage is present.
⚠️ Warning: Never assume power is off just because a breaker is flipped. Always test with a voltage detector.
Locate and Remove the Old Transformer
Most doorbell transformers are mounted inside the electrical panel, in a junction box near the chime, or inside the attic or basement. Here’s how to find and remove yours.
Step 1: Find the Transformer
Start by checking near your doorbell chime unit. Look for a small metal or plastic box with wires coming out. It may be tucked behind the chime or mounted on a wall stud. If you don’t see it, check your electrical panel—many transformers are clipped onto a knockout or mounted inside the panel itself.
Step 2: Disconnect the Low-Voltage Wires
The transformer has two sets of wires:
- High-voltage side (120V): Usually black and white wires connected to the home’s electrical supply.
- Low-voltage side (16V): Three colored wires (often red, white, and yellow or black) going to the chime.
Carefully disconnect the low-voltage wires from the chime or wire nuts. Label them with tape or take a photo so you remember which is C, F, and R.
Step 3: Disconnect the High-Voltage Wires
Unscrew the wire nuts connecting the transformer’s black and white wires to the home’s electrical supply. Pull the wires free. If the transformer is mounted with screws, remove them and take the old unit out.
💡 Tip: If the old transformer is hardwired into the panel, you may need to loosen terminal screws instead of wire nuts.
Install the New 3-Wire Doorbell Transformer
Now it’s time to install your new transformer. Follow these steps carefully to ensure a safe and functional connection.
Step 1: Mount the Transformer
Choose a location close to the old one—ideally within 6 feet of an electrical box or outlet. Use the mounting bracket or screws provided. If mounting inside the electrical panel, ensure it’s securely fastened and doesn’t interfere with other components.
⚠️ Important: The transformer must be mounted in a location accessible for future maintenance. Never bury it inside a wall.
Step 2: Connect the High-Voltage Wires (120V)
Your new transformer will have two wires: black (hot) and white (neutral).
- Connect the black wire to the hot (usually black) wire from your electrical supply.
- Connect the white wire to the neutral (white) wire.
- Secure both connections with wire nuts and wrap with electrical tape for extra safety.
Double-check that no bare wire is exposed. A loose connection can cause arcing or overheating.
Step 3: Connect the Low-Voltage Wires (16V)
Your transformer will have three terminals labeled C, F, and R. Match them to the corresponding wires from your chime:
- C (Common): Connect to the common wire (often white or black).
- F (Front): Connect to the wire from the front door button (usually red).
- R (Rear): Connect to the wire from the rear door button (often yellow or blue).
Use the terminal screws on the transformer to secure each wire. Tighten firmly—but don’t overtighten, as this can strip the screw or damage the wire.
💡 Pro Tip: If your wires are too short, use a short piece of 18-gauge low-voltage wire to extend them. Splice with wire nuts and tape.
Step 4: Secure and Organize Wires
Tuck all wires neatly into the junction box or mounting area. Use cable ties or electrical tape to bundle them and prevent strain on the connections. Make sure nothing is pinched or bent sharply.
Test the Doorbell Before Finishing
Before you close up the wall or panel, test your work. This step saves time and avoids frustration later.
Step 1: Restore Power
Go back to the breaker panel and turn the power back on. Listen for any unusual sounds (buzzing, clicking) from the transformer—this could indicate a problem.
Step 2: Press the Doorbell Button
Go to your front door and press the button. The chime should ring clearly. If you have a rear button, test that too.
Step 3: Check for Weak or No Sound
If the chime is weak, silent, or intermittent, there may be a loose connection or incorrect wiring. Turn off power again and double-check all terminals and wire nuts.
For smart doorbells, open the app and check for connectivity. If it says “low power” or “offline,” your transformer may not be providing enough voltage.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring at All
- Check power: Use a voltage tester to confirm 120V is reaching the transformer.
- Test transformer output: Use a multimeter to check for 16V between C and F terminals.
- Inspect button: A faulty doorbell button can break the circuit. Bypass it temporarily with a wire to test.
Chime Rings Weakly or Intermittently
- Loose connections: Tighten all wire nuts and terminal screws.
- Undersized transformer: Upgrade to a 20VA or 30VA model for video doorbells.
- Long wire runs: Voltage drops over distance. Use thicker wire (16-gauge) for runs over 50 feet.
Transformer Hums or Gets Hot
- Overloaded circuit: Ensure the transformer isn’t powering devices beyond its capacity.
- Poor ventilation: Move the transformer to a cooler, open area.
- Defective unit: Replace if it continues to overheat.
Smart Doorbell Shows “Low Power”
- Transformer too weak: Most smart doorbells need at least 16V and 20VA.
- Incorrect wiring: Ensure the common wire is connected to C, not F or R.
- Faulty chime unit: Some smart doorbells require a bypass chime or resistor.
Tips for a Professional-Looking Installation
A clean installation not only works better but also looks neat and is safer.
- Label everything: Use colored tape or labels on wires so you (or a future technician) can identify them easily.
- Use wire channels: If running new wires through walls, use plastic conduit or wire mold for a clean finish.
- Mount securely: Avoid loose transformers that can vibrate or fall.
- Keep it accessible: Don’t hide the transformer behind drywall or insulation.
- Document your work: Take photos before and after for reference.
When to Call a Professional
While this project is DIY-friendly, some situations call for an expert:
- You’re uncomfortable working with electricity.
- The wiring is damaged, frayed, or outdated.
- You can’t locate the transformer or breaker.
- Your home has aluminum wiring (requires special handling).
- The doorbell still doesn’t work after troubleshooting.
A licensed electrician can ensure code compliance and safety, especially in older homes.
Conclusion
Learning how to hook up a doorbell transformer 3 wire is a valuable skill for any homeowner. With the right tools, safety precautions, and a little patience, you can replace or install a transformer in under an hour. Not only will your doorbell work better, but you’ll also extend the life of your smart doorbell and improve home security.
Remember: always turn off power, label your wires, and test before finishing. If something doesn’t feel right, don’t hesitate to ask for help. A properly installed transformer ensures reliable performance and peace of mind.
Now that your doorbell is powered correctly, enjoy the convenience of a working chime—and the satisfaction of a job well done!
